Model Electrolux 56-9581-10-01 MICROWAVE – Common Parts & Diagrams

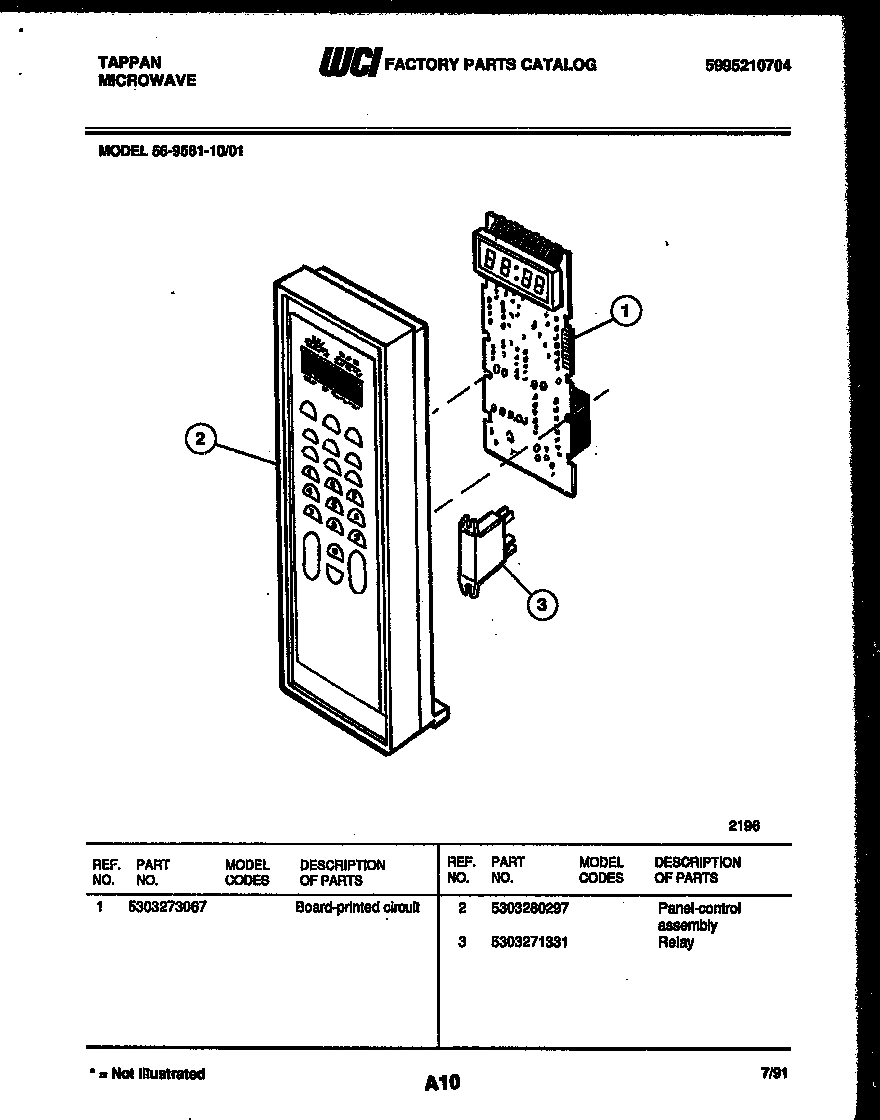

02 - CONTROL PANEL

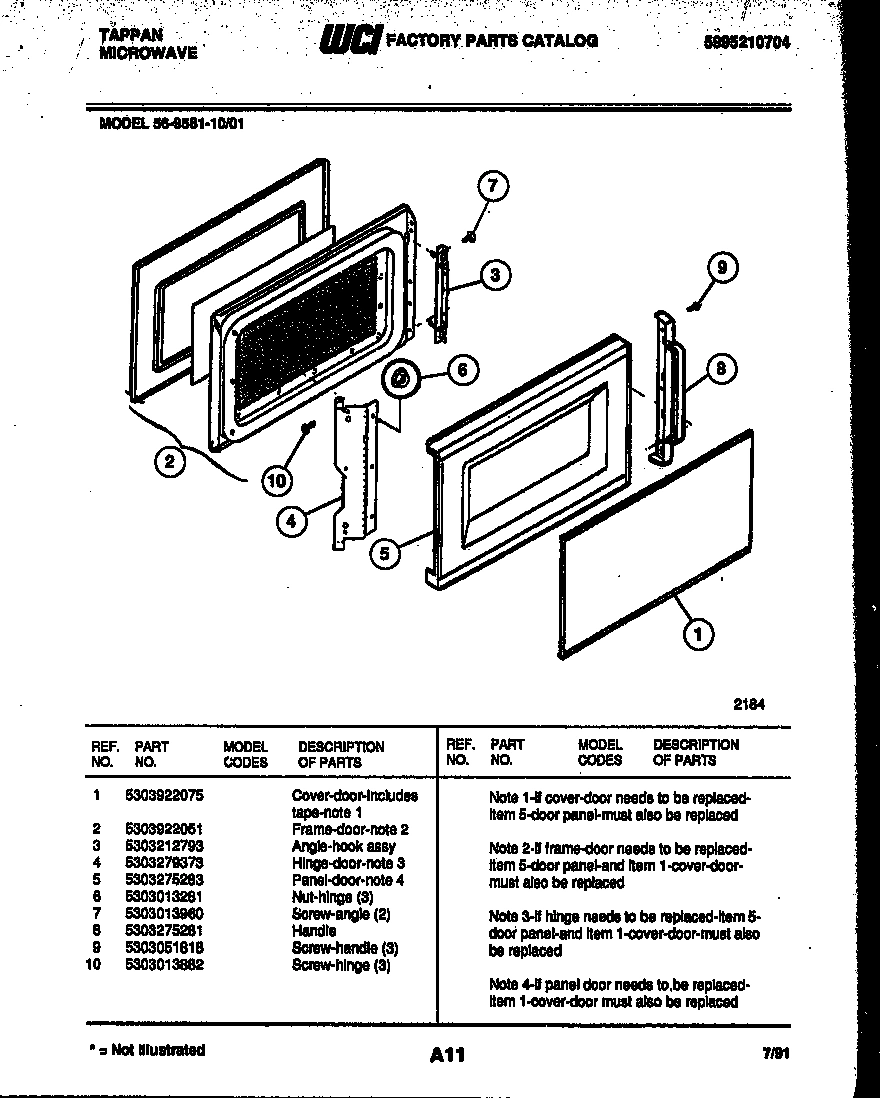

03 - DOOR PARTS
04 - FUNCTIONAL PARTS
05 - WRAPPER AND BODY PARTS
Common parts from model Electrolux 56-9581-10-01 MICROWAVE
*54771
HARNESS-MAIN WCI 5303273071 Contact Us For Availability
*54772
HARNESS-BROWNER WCI 5303273072 Contact Us For Availability
*54773
WCI 5303212809 WCI 5303212809 Contact Us For Availability
*54774
HANG KIT WCI 5303269631 Contact Us For Availability
*54774
SCREW-WRAPPER WCI 5303273263 Contact Us For Availability
1
WCI 5303922075 WCI 5303922075 Contact Us For Availability
1
WCI 5303212767 WCI 5303212767 Contact Us For Availability
1
WCI 5303212766 WCI 5303212766 Contact Us For Availability
2
FRAME-DOOR-(IF FRAME-DOOR NEEDS TO BE REPLACE WCI 5303922051 Contact Us For Availability
2
WCI 5303011556 WCI 5303011556 Contact Us For Availability
2
BRACKET-CONTROL PANEL SUPPORT WCI 5303270384 Contact Us For Availability
3
WCI 5303271331 WCI 5303271331 Contact Us For Availability
3
ANGLE-HOOK ASSY WCI 5303212793 Contact Us For Availability
3
BUSHING-STRAIN RELIEF/FUSE HOLDER WCI 5303212769 Contact Us For Availability
3
WCI 5303212771 WCI 5303212771 Contact Us For Availability
4
HINGE-DOOR-(IF HINGE NEEDS TO BE REPLACED-ITE WCI 5303279373 Contact Us For Availability
4
WCI 5303206781 WCI 5303206781 Contact Us For Availability
4
WCI 5303212772 WCI 5303212772 Contact Us For Availability
5
SWITCH-MONITOR WCI 5303201602 Contact Us For Availability
5
PANEL-DOOR (IF PANEL DOOR NEEDS TO BE REPLACE WCI 5303275283 Contact Us For Availability
5
COLLAR-STIRRER-(INCLUDES SUPPORT, COLLAR AND WCI 5303922010 Contact Us For Availability
6
NUT-HINGE (3) WCI 5303013281 Contact Us For Availability
6
FUSE WCI 5303011670 Contact Us For Availability
6
WCI 5303212775 WCI 5303212775 Contact Us For Availability
7
SCREW-ANGLE (2) WCI 5303013960 Contact Us For Availability
7
WCI 5303212773 WCI 5303212773 Contact Us For Availability
7
WCI 5303269958 WCI 5303269958 Contact Us For Availability
8
HANDLE WCI 5303275281 Contact Us For Availability
8
CORD-POWER WCI 5303212774 Contact Us For Availability
8
WCI 5303271017 WCI 5303271017 Contact Us For Availability
9
FAN-STIRRER WCI 5303202397 Contact Us For Availability
10
SCREW-HINGE (3) WCI 5303013882 Contact Us For Availability
10
WCI 5303212783 WCI 5303212783 Contact Us For Availability
10
PLUG BUTTON (2) WCI 5303091555 Contact Us For Availability
11
WCI 5303212785 WCI 5303212785 Contact Us For Availability
11
SUPPORT-THERMAL PROTECTOR (2) WCI 5303212788 Contact Us For Availability
12
WCI 5308037677 WCI 5308037677 Contact Us For Availability
13
WCI 5303212787 WCI 5303212787 Contact Us For Availability
13
WCI 5303012322 WCI 5303012322 Contact Us For Availability
14
LAMP-120V WCI 5303212801 Contact Us For Availability
15
MOTOR-FAN, 120 V, INCLUDES MOTOR, FAN DUCT, F WCI 5303922053 Contact Us For Availability
15
WCI 5303212794 WCI 5303212794 Contact Us For Availability
16
PLUG-BUTTON (PROBE) WCI 5303201365 Contact Us For Availability
16
WCI 5303212795 WCI 5303212795 Contact Us For Availability
17
PLUG-BUTTON TRAY (2) WCI 5308037665 Contact Us For Availability
17
HARNESS-FIRE PROTECTOR WCI 5303212800 Contact Us For Availability
18
WCI 5303205548 WCI 5303205548 Contact Us For Availability
19
WCI 5303013771 WCI 5303013771 Contact Us For Availability
19
TRAY-OVEN WCI 5303091188 Contact Us For Availability
20
SOCKET-LAMP WCI 5303212810 Contact Us For Availability
20
WCI 5303212812 WCI 5303212812 Contact Us For Availability
21
WCI 5303212803 WCI 5303212803 Contact Us For Availability
21
WCI 5303014097 WCI 5303014097 Contact Us For Availability
22
WCI 5303014221 WCI 5303014221 Contact Us For Availability
22
PLUG-BUTTON (2) WCI 5303015230 Contact Us For Availability
23
WCI 5303202107 WCI 5303202107 Contact Us For Availability
23
SCREW-TAMPER PROOF (2) WCI 5303271024 Contact Us For Availability
24
WCI 5303203636 WCI 5303203636 Contact Us For Availability
24
RIVET WCI 5303271581 Contact Us For Availability
25
TAPE-FOAM SEAL CUT TO SIZE WCI 5303017864 Contact Us For Availability
26
TAPE-FOAM SEAL WCI 5303212845 Contact Us For Availability
27
TRANSFORMER WCI 5303212811 Contact Us For Availability
28
SCREW-FAN MOTOR (2) WCI 5308014502 Contact Us For Availability
29
HARNESS-DIODE WCI 5303212799 Contact Us For Availability
× ![]()
