Model Electrolux 56-9238-10-01 MICROWAVE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - DOOR PARTS

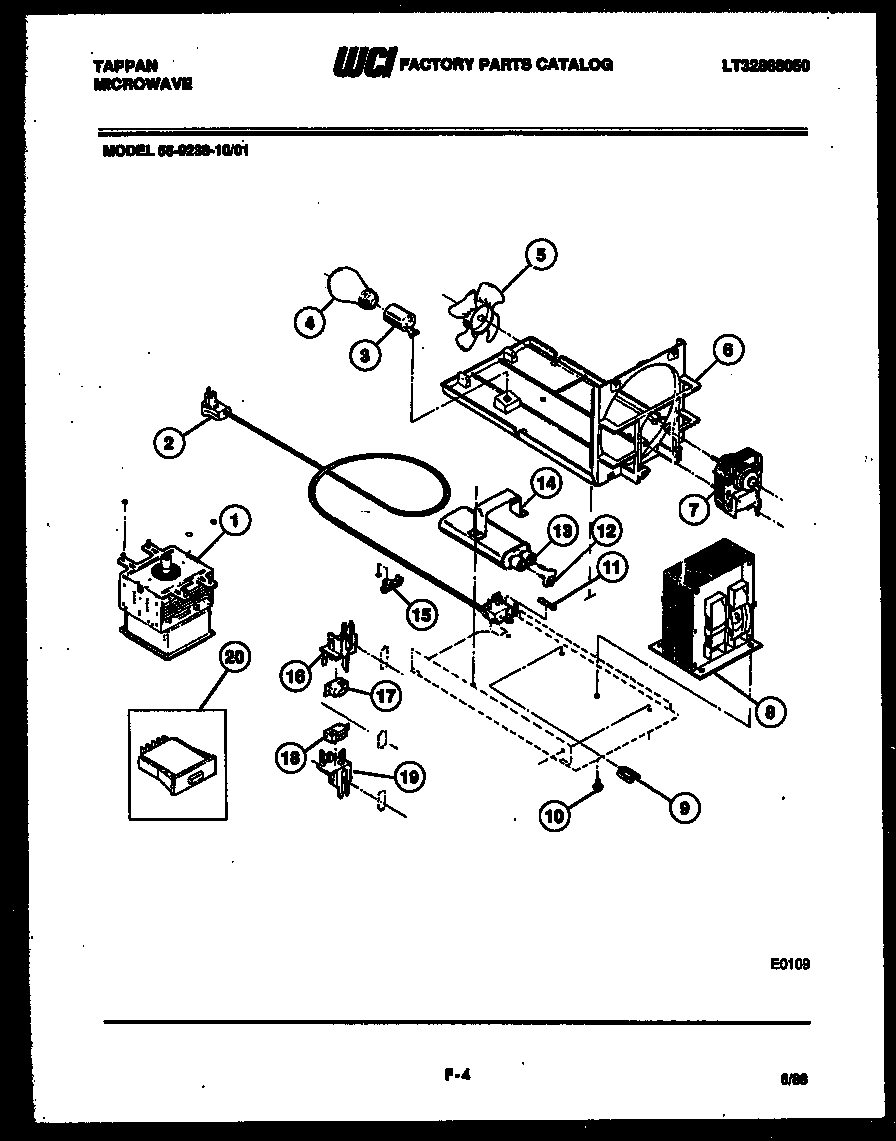

04 - POWER CONTROL

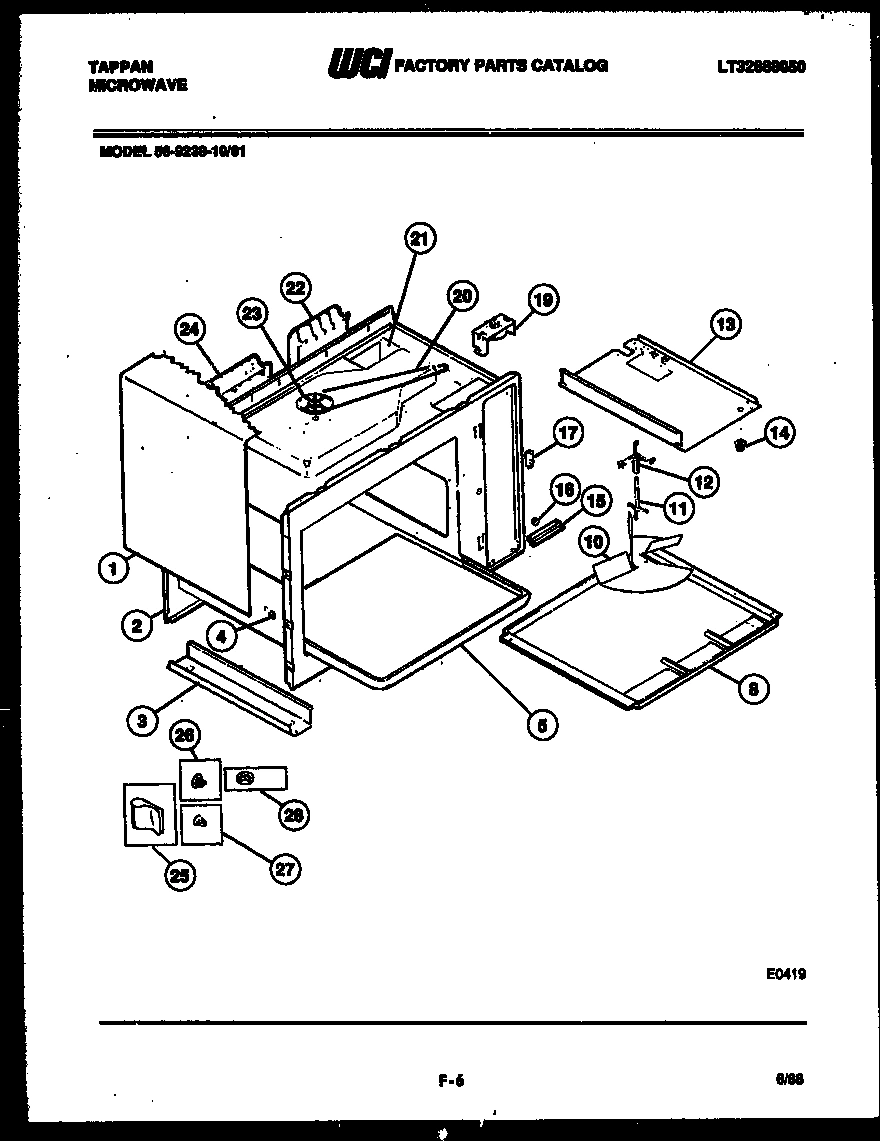

05 - BODY PARTS
Common parts from model Electrolux 56-9238-10-01 MICROWAVE
*13595
WCI 3017070 WCI 3017070 Contact Us For Availability
*13595
INSULATOR-H.V. MAG. TERM. WCI 331T143P01 Contact Us For Availability
*13597
SHIELD-OVEN LIGHT WCI 115T655P01 Contact Us For Availability
*13597
DUCT AIR FOAM WCI 211T053P02 Contact Us For Availability
*13597
LABEL COOKING GUIDE WCI 3016166 Contact Us For Availability
*13597
WCI 508T020P02 WCI 508T020P02 Contact Us For Availability
*13598
WCI 508T026P02 WCI 508T026P02 Contact Us For Availability
1
WCI 3017085 WCI 3017085 Contact Us For Availability
1
WCI 3017082 WCI 3017082 Contact Us For Availability
1
WCI 115T423P02 WCI 115T423P02 Contact Us For Availability
1
WCI 3017087 WCI 3017087 Contact Us For Availability
1A
SCREW-CONTROL PNL (4) (NON-ILLUSTRATED) WCI 636T096P26 Contact Us For Availability
2
PANEL-TOUCH COMPL WCI 3017084 Contact Us For Availability
2
SCREW, LATCH (2) WCI 636T145P02 Contact Us For Availability
2
CORD-POWER WCI 171T039P03 Contact Us For Availability
3
PLATE-SWITCH COVER WCI 3091565 Contact Us For Availability
3
WCI 008T486S02 WCI 008T486S02 Contact Us For Availability
3
WCI 3091197 WCI 3091197 Contact Us For Availability
3
WCI 136T327F01 WCI 136T327F01 Contact Us For Availability
4
WCI 8091081 WCI 8091081 Contact Us For Availability
5
WCI 3017086 WCI 3017086 Contact Us For Availability
5
WCI 115T239P02 WCI 115T239P02 Contact Us For Availability
5
GLASS-TRAY WCI 115T736P01 Contact Us For Availability
5A
SCREW, DOOR (4) (NON-ILLUSTRATED) WCI 636T069P05 Contact Us For Availability
6
SCREW-DOOR STRIKE WCI 636T148P01 Contact Us For Availability
6
DUCT-AIR (FAN) WCI 211T051P03 Contact Us For Availability
7
WCI 115T463P05 WCI 115T463P05 Contact Us For Availability
7A
SCREW-FAN MOTOR MTG (2) (NON-ILLUSTRATED) WCI 636T095P49 Contact Us For Availability
7B
NUT-MOTOR MTG (2) (NON-ILLUSTRATED) WCI 479T069P09 Contact Us For Availability
8
WCI 115T737P06 WCI 115T737P06 Contact Us For Availability
8
GLASS-STIRRER COVER WCI 174T320P01 Contact Us For Availability
9
FASTENER-WIRE CLIP (3) WCI 241T017P222 Contact Us For Availability
10
SCREW-TRANSFORMER MTG (4) WCI 636T101P14 Contact Us For Availability
10
WCI 3012284 WCI 3012284 Contact Us For Availability
11
FUSE (20 AMP) WCI 115T262P01 Contact Us For Availability
11
WCI 694T076P01 WCI 694T076P01 Contact Us For Availability
12
DIODE-HIGH V WCI 3091303 Contact Us For Availability
12
WCI 154T022P01 WCI 154T022P01 Contact Us For Availability
13
CAPACITOR-HIGH V WCI 115T157P01 Contact Us For Availability
13
CHANNEL-BASE RH WCI 136T325F07 Contact Us For Availability
14
RETAINER-CAPACITOR WCI 612T122F01 Contact Us For Availability
14
FOOT WCI 665T185P02 Contact Us For Availability
15
WCI 262T015P02 WCI 262T015P02 Contact Us For Availability
15
WCI 072T825F01 WCI 072T825F01 Contact Us For Availability
16
GROMMET DOOR WCI 287T003P12 Contact Us For Availability
17
WCI 115T695P03 WCI 115T695P03 Contact Us For Availability
17
BEZEL-LATCH WCI 3091410 Contact Us For Availability
18
SWITCH (LOWER) WCI 115T695P21 Contact Us For Availability
19
WCI 072T826S01 WCI 072T826S01 Contact Us For Availability
19
MOTOR-STIRRER W/ BELT WCI 463T095S01 Contact Us For Availability
20
WCI 115T695P13 WCI 115T695P13 Contact Us For Availability
20
WCI 044T002P03 WCI 044T002P03 Contact Us For Availability
21
WCI 665T177P01 WCI 665T177P01 Contact Us For Availability
22
DUCT, AIR, MAG WCI 211T055P01 Contact Us For Availability
23
PULLEY, STIRRER WCI 566T002P01 Contact Us For Availability
23A
WASHER-STIRRER PULLEY (NON-ILLUSTRATED) WCI 789T064P01 Contact Us For Availability
24
WCI 211T049P02 WCI 211T049P02 Contact Us For Availability
25
FASTENER-WRAPPER CLIP (2) WCI 241T017P234 Contact Us For Availability
26
PLUG BUTTON PROBE WCI 557T030P01 Contact Us For Availability
27
PLUG BUTTON TRAY WCI 557T029P01 Contact Us For Availability
28
FASTENER-TWIST NUT (4) WCI 241T017P243 Contact Us For Availability
× ![]()
