Model Electrolux 56-4994-10-07 MICROWAVE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - DOOR PARTS

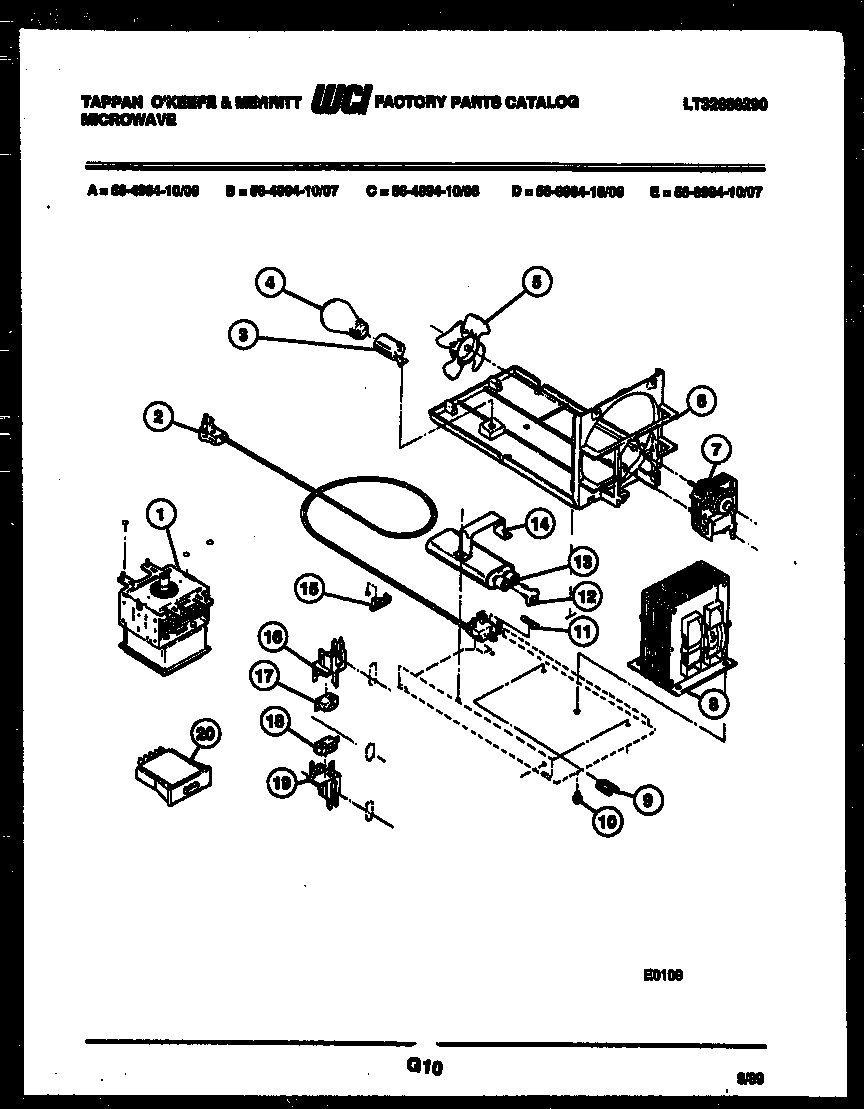

04 - POWER CONTROL

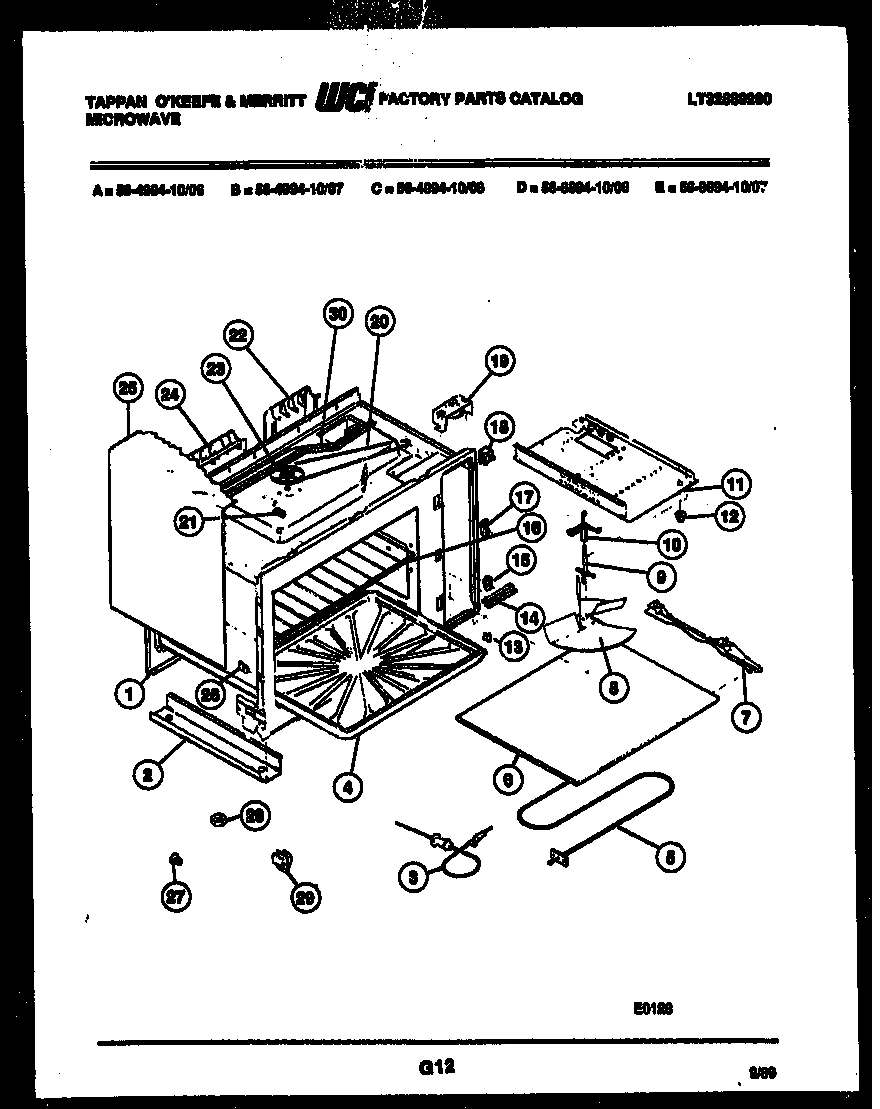

05 - BODY PARTS
Common parts from model Electrolux 56-4994-10-07 MICROWAVE
*30680
WCI 08037710 WCI 08037710 Contact Us For Availability
*30680
INSULATOR-MAGNETRON WCI 331T143P01 Contact Us For Availability
1
PANEL CONTROL WCI 521T117S17 Contact Us For Availability
1
WCI 296T108P13 WCI 296T108P13 Contact Us For Availability
1
WCI 115T423P02 WCI 115T423P02 Contact Us For Availability
1A
CLIP-WRAPPER (2) (NON-ILLUSTRATED) WCI 241T017P234 Contact Us For Availability
2
BUTTON WCI 106T045P01 Contact Us For Availability
2
SCREW-LATCH WCI 636T145P02 Contact Us For Availability
2
WCI 171T039P03 WCI 171T039P03 Contact Us For Availability
2
CHANNEL LH WCI 136T327F01 Contact Us For Availability
3
TOUCH PANEL WCI 3091233 Contact Us For Availability
3
WCI 008T486S02 WCI 008T486S02 Contact Us For Availability
3
SOCKET WCI 3091197 Contact Us For Availability
3
WCI 3201366 WCI 3201366 Contact Us For Availability
4
WCI 697T058P01 WCI 697T058P01 Contact Us For Availability
4
COVER DOOR WCI 3091232 Contact Us For Availability
4
GLASS-TRAY WCI 115T736P01 Contact Us For Availability
5
DOOR-COMPLETE WCI 3201725 Contact Us For Availability
5
WCI 115T239P02 WCI 115T239P02 Contact Us For Availability
5
WCI 220T013P01 WCI 220T013P01 Contact Us For Availability
6
SCREW-DOOR STRIKE WCI 636T148P01 Contact Us For Availability
6
DUCT-AIR (FAN) WCI 211T051P03 Contact Us For Availability
6
STIRRER COVER-GLASS WCI 277T212P01 Contact Us For Availability
7
HEX NUT WCI 479T069P09 Contact Us For Availability
7
MOTOR FAN (FAN MOTOR HAS SPLINE SHAFT) WCI 115T463P05 Contact Us For Availability
7
CHANNEL SUPPORT LH WCI 136T348P01 Contact Us For Availability
7A
WCI 135T348P02 WCI 135T348P02 Contact Us For Availability
8
WCI 115T737P06 WCI 115T737P06 Contact Us For Availability
8
FAN STIRRER WCI 239T050F01 Contact Us For Availability
9
CLIP-WIRE WCI 241T017P222 Contact Us For Availability
9
WCI 694T076P01 WCI 694T076P01 Contact Us For Availability
10
SCREW - TRANSFORMER WCI 636T101P14 Contact Us For Availability
10
WCI 154T022P01 WCI 154T022P01 Contact Us For Availability
11
FUSE - 20A WCI 115T262P01 Contact Us For Availability
11
WCI 3018904 WCI 3018904 Contact Us For Availability
12
DIODE HV WCI 115T198P02 Contact Us For Availability
12
WCI 665T185P02 WCI 665T185P02 Contact Us For Availability
13
CAPACITOR HV WCI 115T157P02 Contact Us For Availability
13
NUT RECEPTACLE WCI 479T084P01 Contact Us For Availability
14
CLAMP WCI 612T122F01 Contact Us For Availability
14
WCI 072T825F01 WCI 072T825F01 Contact Us For Availability
15
WCI 262T015P02 WCI 262T015P02 Contact Us For Availability
15
GROMMET DOOR WCI 287T003P12 Contact Us For Availability
16
WCI 3018844 WCI 3018844 Contact Us For Availability
16A
SPACER RACK (4) (NON-ILLUSTRATED) WCI 3018581 Contact Us For Availability
17
BEZEL LATCH WCI 3200551 Contact Us For Availability
18
SWITCH-LOWER WCI 115T695P03 Contact Us For Availability
18
WCI 587T048P01 WCI 587T048P01 Contact Us For Availability
19
WCI 072T826S01 WCI 072T826S01 Contact Us For Availability
19
MOTOR STIRRER WCI 463T095S01 Contact Us For Availability
20
WCI 3201602 WCI 3201602 Contact Us For Availability
20
WCI 044T002P03 WCI 044T002P03 Contact Us For Availability
21
SPACER WRAPPER WCI 665T177P01 Contact Us For Availability
22
DUCT, AIR, MAG WCI 211T055P01 Contact Us For Availability
23
WCI 566T002P01 WCI 566T002P01 Contact Us For Availability
24
WCI 3201371 WCI 3201371 Contact Us For Availability
25
WCI 809T024F01 WCI 809T024F01 Contact Us For Availability
27
PLUG BUTTON TRAY WCI 557T029P01 Contact Us For Availability
28
NUT WCI 241T017P243 Contact Us For Availability
29
SUPPORT-RACK (8) WCI 694T077P02 Contact Us For Availability
30
DUCT AIR FOAM WCI 211T053P02 Contact Us For Availability
× ![]()
