Model Electrolux 56-4678-10-02 MICROWAVE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - DOOR PARTS

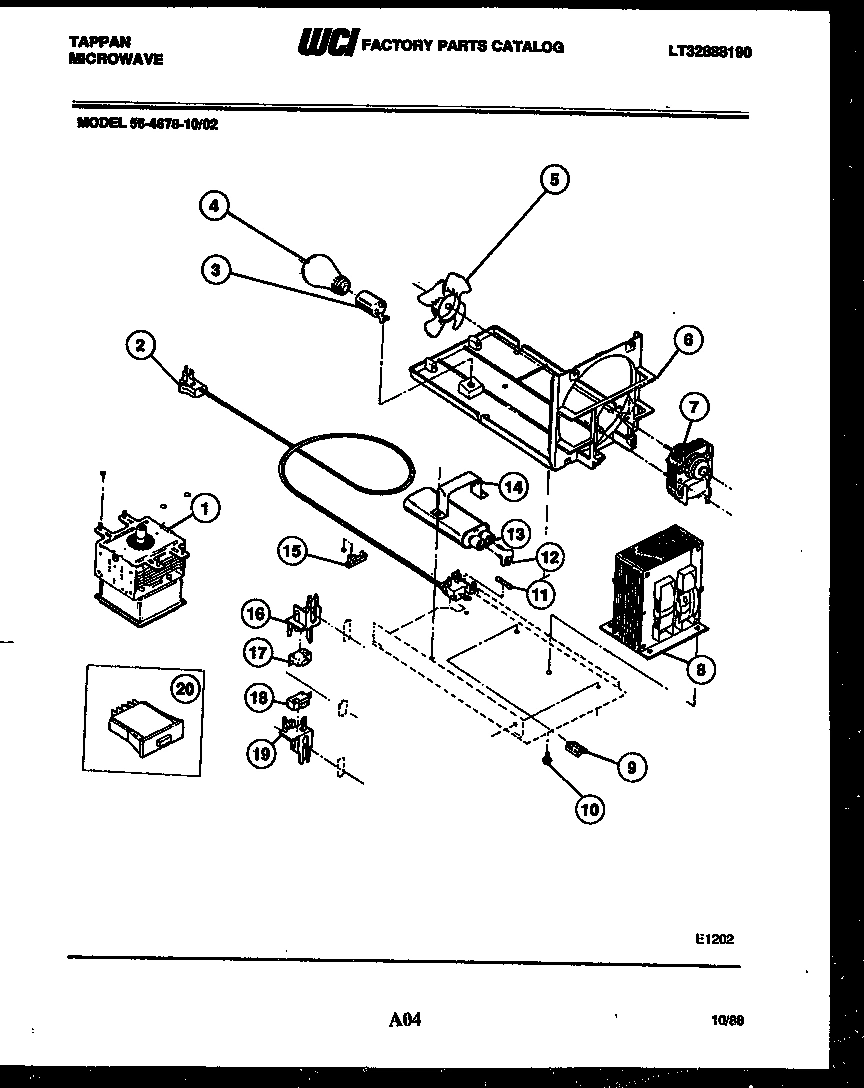

04 - POWER CONTROL

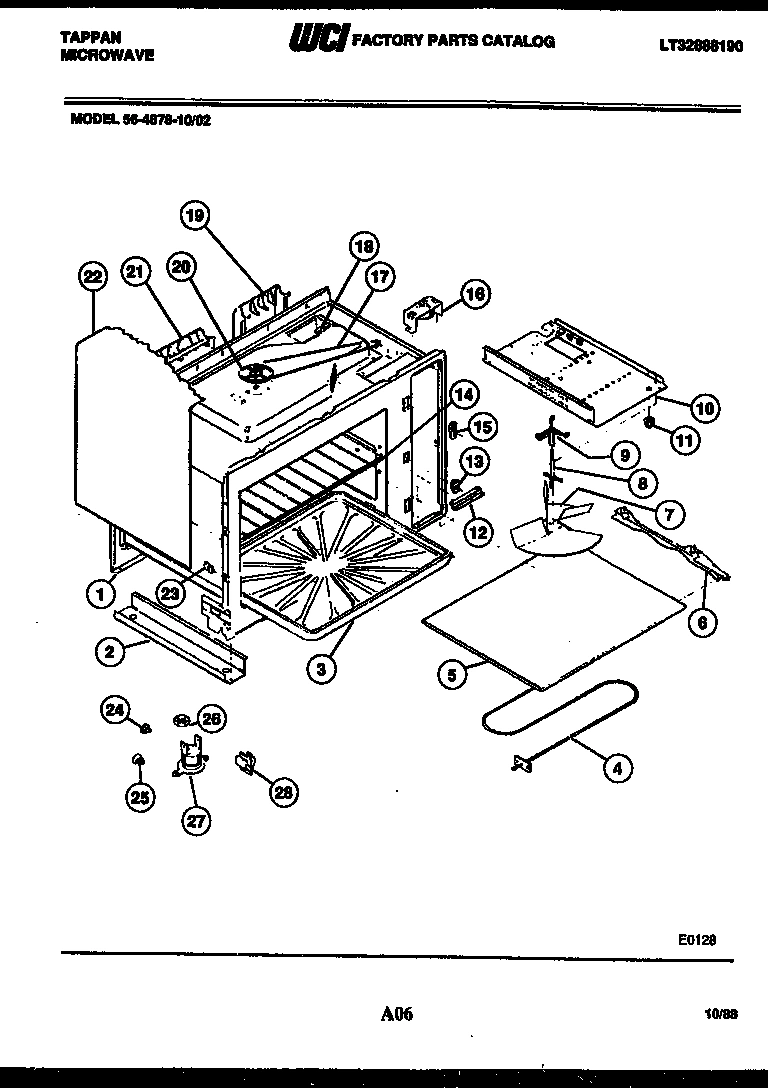

05 - BODY PARTS
Common parts from model Electrolux 56-4678-10-02 MICROWAVE
*79959
SHIELD-OVEN LIGHT (MYLAR) WCI 115T655P01 Contact Us For Availability
*79959
DUCT AIR FOAM WCI 211T053P02 Contact Us For Availability
*79959
LABEL - COOKING GUIDE WCI 3018849 Contact Us For Availability
*79960
WCI 508T020P02 WCI 508T020P02 Contact Us For Availability
*79962
SPACER RACK (4) WCI 3018581 Contact Us For Availability
1
WCI 3018586 WCI 3018586 Contact Us For Availability
1
WCI 296T108P13 WCI 296T108P13 Contact Us For Availability
1
WCI 115T423P02 WCI 115T423P02 Contact Us For Availability
2
TOUCH PANEL WCI 3017084 Contact Us For Availability
2
SCREW-LATCH MTG (8-32 X 5/8 SPEC LOPRO) (2) WCI 636T145P02 Contact Us For Availability
2
CORD, POWER WCI 171T039P01 Contact Us For Availability
2
WCI 136T327F01 WCI 136T327F01 Contact Us For Availability
3
WCI 3201800 WCI 3201800 Contact Us For Availability
3
WCI 008T486S02 WCI 008T486S02 Contact Us For Availability
3
WCI 3091197 WCI 3091197 Contact Us For Availability
3
GLASS WCI 115T736P01 Contact Us For Availability
4
WCI 3091417 WCI 3091417 Contact Us For Availability
4
WCI 3091081 WCI 3091081 Contact Us For Availability
4
WCI 220T013P10 WCI 220T013P10 Contact Us For Availability
5
LENS WCI 342T014P01 Contact Us For Availability
5
DOOR-COMPLETE WCI 3201725 Contact Us For Availability
5
WCI 5303203192 WCI 5303203192 Contact Us For Availability
5
WCI 277T212P01 WCI 277T212P01 Contact Us For Availability
5A
SCREW-DOOR (NON-ILLUSTRATED) WCI 636T069P05 Contact Us For Availability
6
WCI 106T054P01 WCI 106T054P01 Contact Us For Availability
6
SCREW-DOOR STRIKE WCI 636T148P01 Contact Us For Availability
6
DUCT-AIR (FAN) WCI 211T051P03 Contact Us For Availability
6
CHANNEL SUPPORT LH WCI 136T348P01 Contact Us For Availability
6A
CHANNEL SUPPORT RH WCI 136T348P02 Contact Us For Availability
7
HEX NUT WCI 479T069P09 Contact Us For Availability
7
WCI 115T463P05 WCI 115T463P05 Contact Us For Availability
7
FAN STIRRER WCI 239T050F01 Contact Us For Availability
8
WCI 115T737P06 WCI 115T737P06 Contact Us For Availability
8
WCI 694T076P01 WCI 694T076P01 Contact Us For Availability
9
FASTENER-WIRE CLIP (3) WCI 241T017P222 Contact Us For Availability
9
WCI 154T022P01 WCI 154T022P01 Contact Us For Availability
10
SCREW-TRANSFORMER MTG (1/4-20 X 5/8 SERR. HEX WCI 636T101P14 Contact Us For Availability
10
WCI 3018904 WCI 3018904 Contact Us For Availability
11
FUSE (20 AMP) WCI 115T262P01 Contact Us For Availability
12
DIODE HV WCI 115T198P02 Contact Us For Availability
12
WCI 072T780F01 WCI 072T780F01 Contact Us For Availability
13
WCI 115T157P02 WCI 115T157P02 Contact Us For Availability
13
GROMMET DOOR WCI 287T003P12 Contact Us For Availability
14
WCI 672T122F01 WCI 672T122F01 Contact Us For Availability
14
WCI 3018844 WCI 3018844 Contact Us For Availability
15
WCI 262T015P02 WCI 262T015P02 Contact Us For Availability
15
BEZEL-LATCH (2) WCI 3200551 Contact Us For Availability
16
MOTOR-STIRRER W/ BELT WCI 463T095S01 Contact Us For Availability
17
WCI 044T002P03 WCI 044T002P03 Contact Us For Availability
18
SWITCH WCI 115T695P03 Contact Us For Availability
18
WCI 665T177P01 WCI 665T177P01 Contact Us For Availability
19
WCI 072T826S01 WCI 072T826S01 Contact Us For Availability
19
DUCT, AIR, MAG WCI 211T055P01 Contact Us For Availability
20
WCI 3201602 WCI 3201602 Contact Us For Availability
20
PULLEY, STIRRER WCI 566T002P01 Contact Us For Availability
20A
WASHER-STIRRER PULLEY (NON-ILLUSTRATED) WCI 789T064P01 Contact Us For Availability
21
WCI 3201371 WCI 3201371 Contact Us For Availability
22
WCI 809T021F01 WCI 809T021F01 Contact Us For Availability
24
PLUG BUTTON PROBE WCI 3201365 Contact Us For Availability
25
PLUG BUTTON TRAY (2) WCI 557T029P01 Contact Us For Availability
26
NUT (CHANNEL SUPPORT) WCI 241T017P234 Contact Us For Availability
27
SWITCH-THERMAL CUTOUT WCI 115T695P02 Contact Us For Availability
28
SUPPORT-RACK (8) WCI 694T077P02 Contact Us For Availability
× ![]()
