Model Electrolux 56-4477-10-02 MICROWAVE – Common Parts & Diagrams

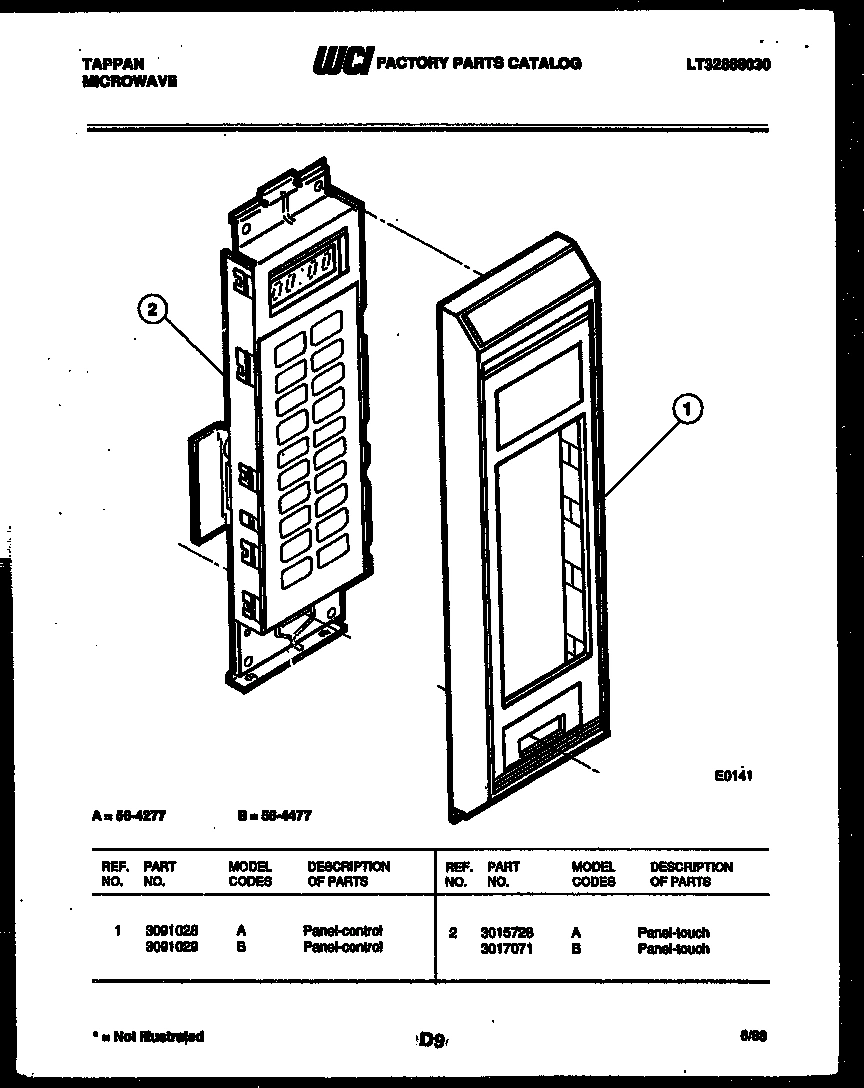

02 - CONTROL PANEL

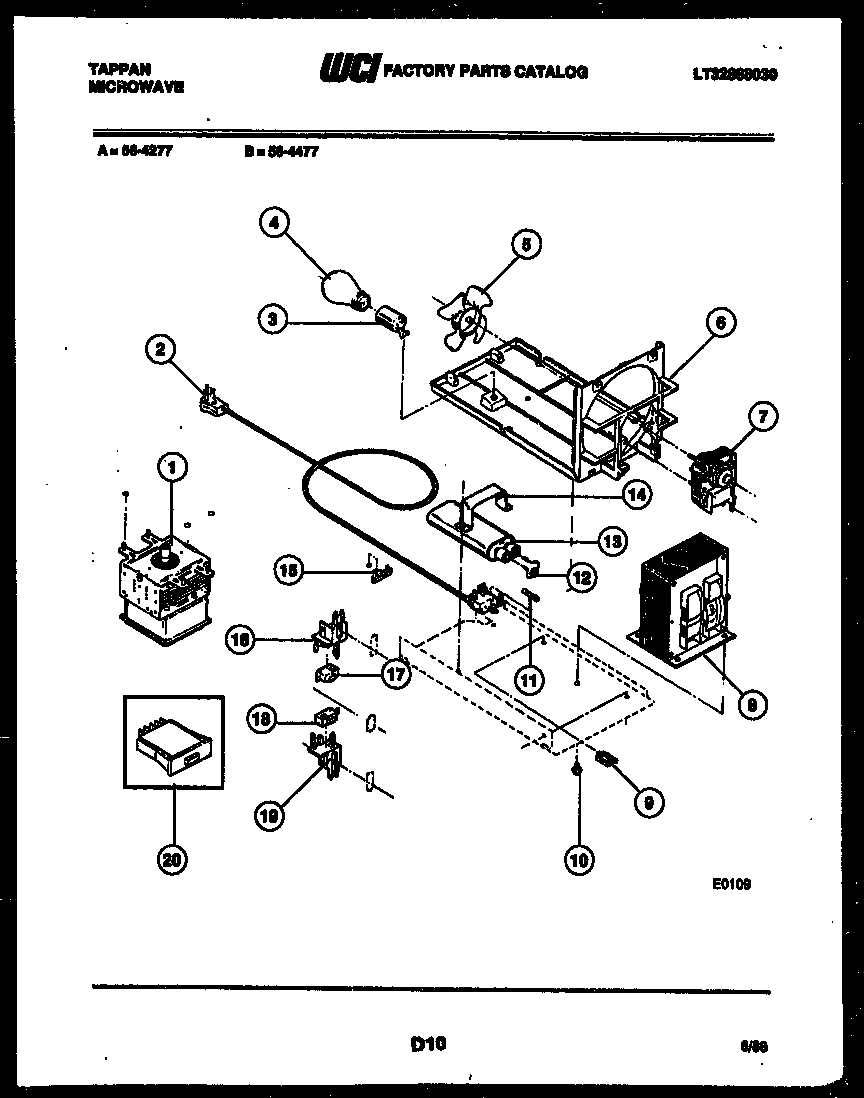

03 - POWER CONTROL

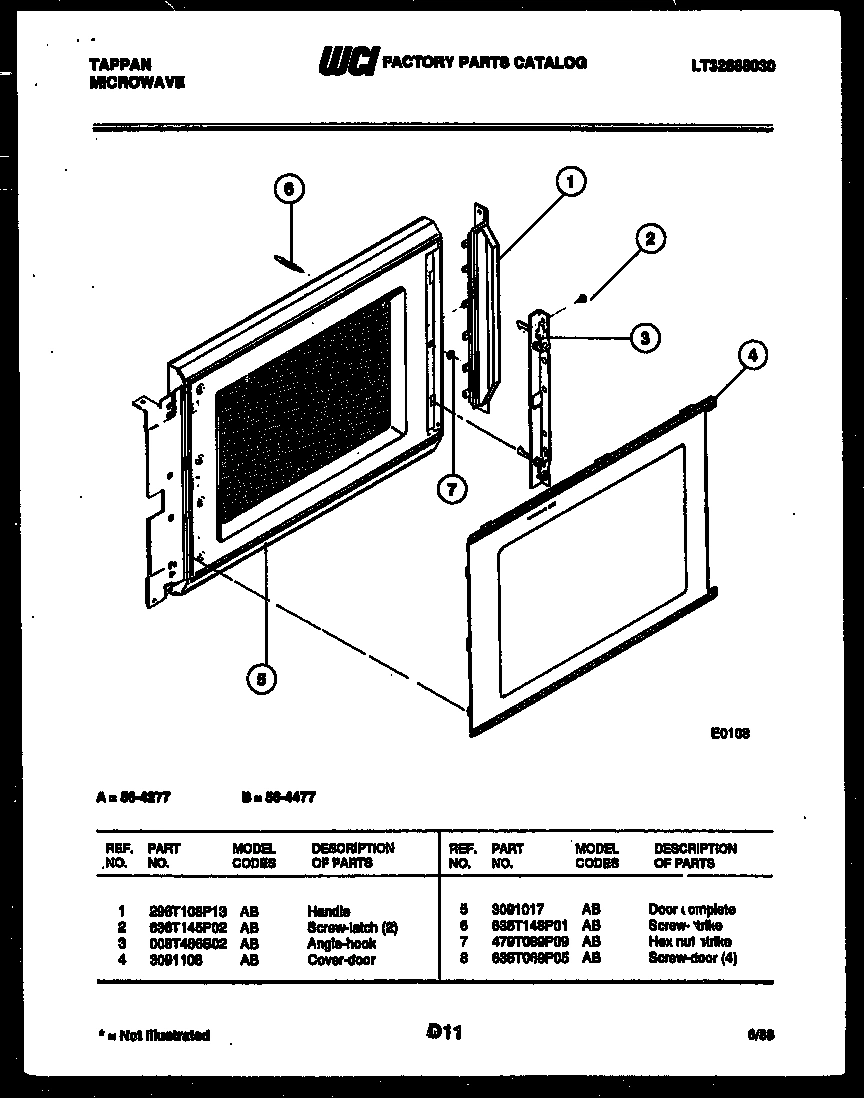

04 - DOOR PARTS

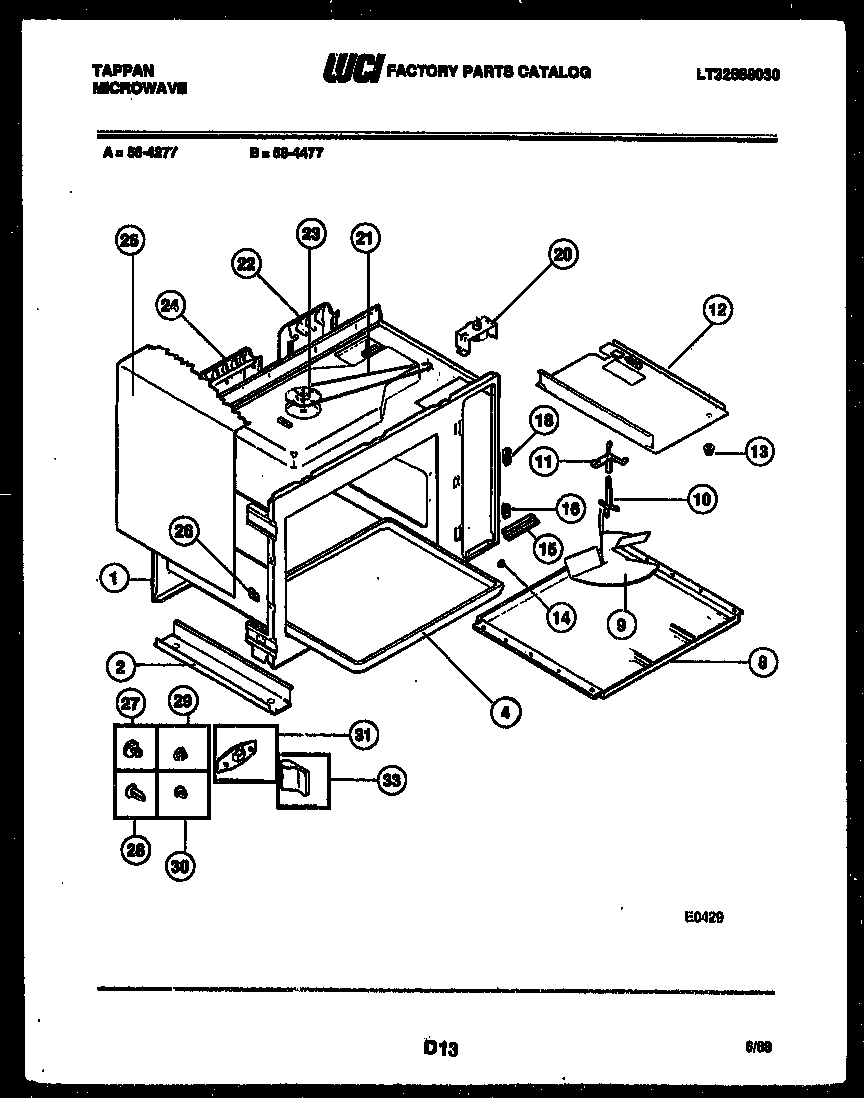

05 - BODY PARTS
Common parts from model Electrolux 56-4477-10-02 MICROWAVE
*12620
INSULATION-MAG TERMINAL WCI 331T143P01 Contact Us For Availability
*12623
SHIELD-OVEN LIGHT (MYLAR) WCI 115T655P01 Contact Us For Availability
*12623
DUCT AIR FOAM WCI 211T053P02 Contact Us For Availability
*12623
WCI 508T020P02 WCI 508T020P02 Contact Us For Availability
*12623
LABEL GUIDE WCI 560T786P01 Contact Us For Availability
1
WCI 3091029 WCI 3091029 Contact Us For Availability
1
WCI 115T423P02 WCI 115T423P02 Contact Us For Availability
1
WCI 296T108P13 WCI 296T108P13 Contact Us For Availability
2
WCI 3017071 WCI 3017071 Contact Us For Availability
2
CORD, POWER WCI 171T039P01 Contact Us For Availability
2
SCREW, LATCH (2) WCI 636T145P02 Contact Us For Availability
2
CHANNEL BASE LH WCI 136T327F01-18 Contact Us For Availability
3
WCI 115T662P01 WCI 115T662P01 Contact Us For Availability
3
WCI 008T486S02 WCI 008T486S02 Contact Us For Availability
4
WCI 3091108 WCI 3091108 Contact Us For Availability
4
GLASS-TRAY WCI 115T736P01 Contact Us For Availability
5
WCI 115T239P01 WCI 115T239P01 Contact Us For Availability
5
DOOR COMPLETE WCI 3091017 Contact Us For Availability
6
DUCT, AIR WCI 211T051P03 Contact Us For Availability
6
WCI 636T148P01 WCI 636T148P01 Contact Us For Availability
7
MOTOR WCI 115T463P02 Contact Us For Availability
7
HEX NUT, STRIKE WCI 479T069P09 Contact Us For Availability
8
WCI 115T737P06 WCI 115T737P06 Contact Us For Availability
8
SCREW-DOOR (4) WCI 636T069P05 Contact Us For Availability
8
COVER STIRRER WCI 174T259P01 Contact Us For Availability
9
FASTENER (3) WCI 241T017P222 Contact Us For Availability
9
WCI 239T049F03 WCI 239T049F03 Contact Us For Availability
10
SCREW (4) WCI 636T101P14 Contact Us For Availability
10
WCI 694T076P01 WCI 694T076P01 Contact Us For Availability
11
FUSE (20 AMP) WCI 115T262P01 Contact Us For Availability
11
COLLAR WCI 154T022P01 Contact Us For Availability
12
DIODE-HIGH VOLTAGE WCI 115T198P02 Contact Us For Availability
12
CHANNEL-BASE RH WCI 136T325F07 Contact Us For Availability
13
CAPACITOR HV WCI 115T157P01 Contact Us For Availability
13
SPACER FOOT KT (4) WCI 665T185P02 Contact Us For Availability
14
RETAINER-CAPACITOR WCI 612T122F01 Contact Us For Availability
14
NUT RECEPTACLE WCI 479T084P01 Contact Us For Availability
15
WCI 262T015P02 WCI 262T015P02 Contact Us For Availability
15
WCI 072T780F01 WCI 072T780F01 Contact Us For Availability
16
GROMMET DOOR WCI 287T003P12 Contact Us For Availability
17
SWITCH - INTERLOCK WCI 115T695P03 Contact Us For Availability
18
SWITCH-INTERLOCK AND LIGHT WCI 115T695P21 Contact Us For Availability
18
WCI 045T067P01 WCI 045T067P01 Contact Us For Availability
19
WCI 072T826S01 WCI 072T826S01 Contact Us For Availability
20
SWITCH, MON WCI 115T695P13 Contact Us For Availability
20
MOTOR-STIRRER WITH BELT WCI 463T095S01 Contact Us For Availability
21
SCREW-MOTOR (2) WCI 636T095P49 Contact Us For Availability
21
WCI 044T002P03 WCI 044T002P03 Contact Us For Availability
22
DUCT-AIR MAGNET WCI 211T055P01 Contact Us For Availability
23
WCI 3017070 WCI 3017070 Contact Us For Availability
23
PULLEY, STIRRER WCI 566T002P01 Contact Us For Availability
24
WCI 211T049P02 WCI 211T049P02 Contact Us For Availability
25
WCI 809T021F01 WCI 809T021F01 Contact Us For Availability
27
PLUG BTTN-RK GLIDES WCI 557T028P01 Contact Us For Availability
28
RIVET, ACCD WCI 615T030P03 Contact Us For Availability
29
PLUG BUTTON PROBE WCI 557T030P01 Contact Us For Availability
30
PLUG BUTTON TRAY WCI 557T029P01 Contact Us For Availability
31
PLUG-BUTTON BROWNER WCI 557T027P01 Contact Us For Availability
33
WCI 241T017P234 WCI 241T017P234 Contact Us For Availability
× ![]()
