Model Electrolux 56-2278-10-02 MICROWAVE – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL

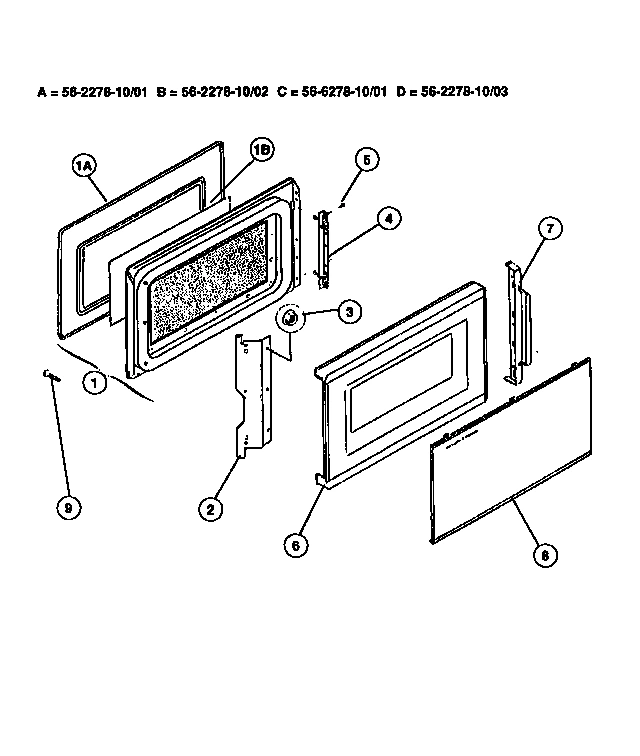

03 - DOOR

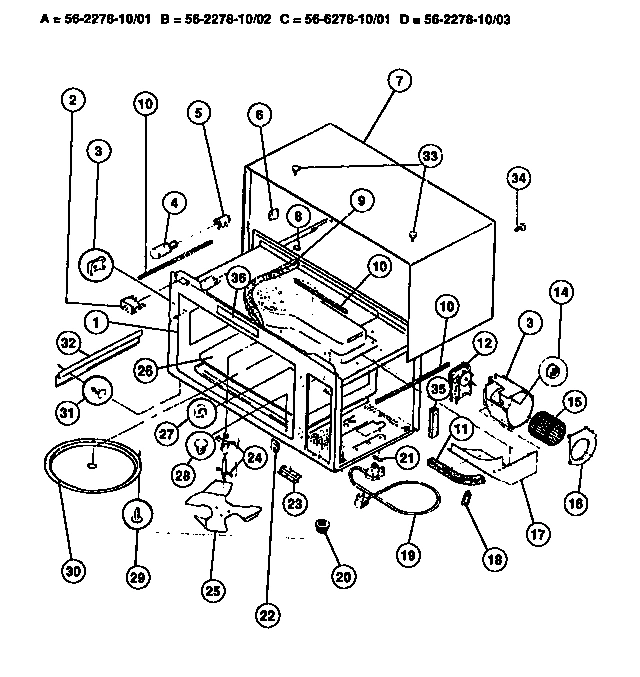

04 - WRAPPER/BODY

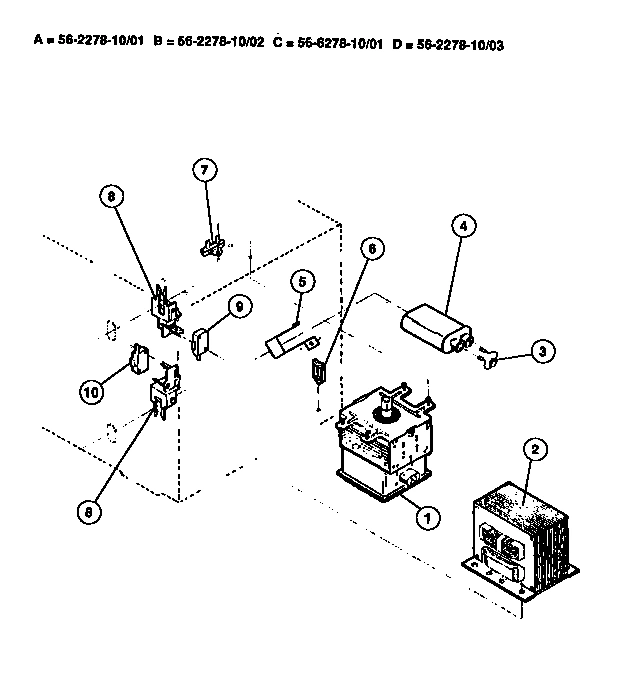

05 - MAGNETRON
Common parts from model Electrolux 56-2278-10-02 MICROWAVE
1
WCI 3017089 WCI 3017089 Contact Us For Availability
1
FRAME - DOOR WCI 3200487 Contact Us For Availability
1
LINER-WHITE WCI N/A Contact Us For Availability
1
WCI 3011673 WCI 3011673 Contact Us For Availability
2
SCREW (4) WCI 636T156P01 Contact Us For Availability
2
WCI 3012840 WCI 3012840 Contact Us For Availability
2
SWITCH-MONITOR (WHITE) WCI 3201602 Contact Us For Availability
2
WCI 3011702 WCI 3011702 Contact Us For Availability
3
WCI 3091565 WCI 3091565 Contact Us For Availability
3
NUT (3) WCI 479T069P42 Contact Us For Availability
3
WCI 3091303 WCI 3091303 Contact Us For Availability
4
PANEL-CONTROL WCI 3015223 Contact Us For Availability
4
WCI 3091313 WCI 3091313 Contact Us For Availability
4
LIGHT BULB 25 WATTS WCI 08037734 Contact Us For Availability
4
WCI 3011663 WCI 3011663 Contact Us For Availability
5
WCI 3018246 WCI 3018246 Contact Us For Availability
5
WCI 3014074 WCI 3014074 Contact Us For Availability
5
CLAMP WCI 612T115F01 Contact Us For Availability
6
WCI 3091015 WCI 3091015 Contact Us For Availability
6
FASTENER-WRAPPER CLIP WCI 3012322 Contact Us For Availability
6
WCI 24T017P222 WCI 24T017P222 Contact Us For Availability
7
WCI 3091444 WCI 3091444 Contact Us For Availability
7
WRAPPER WCI 3018592 Contact Us For Availability
7
WCI 3091280 WCI 3091280 Contact Us For Availability
8
COVER-DOOR WCI 3018589 Contact Us For Availability
8
WCI 3091269 WCI 3091269 Contact Us For Availability
8
BRACKET-SWITCH WCI 3011556 Contact Us For Availability
9
DUCT-AIR FOAM WCI 3011667 Contact Us For Availability
9
SWITCH-UPPER (LIGHT) WCI 3011689 Contact Us For Availability
10
TAPE-FOAM SEAL 29`` WCI 3017864 Contact Us For Availability
10
WCI 3011697 WCI 3011697 Contact Us For Availability
10A
WCI 3018209 WCI 3018209 Contact Us For Availability
11
TAPE-FOAM SEAL 9-1/2 WCI 3017865 Contact Us For Availability
12
MOTOR-FAN WCI 3011677 Contact Us For Availability
13
HOUSING-BLOWER WCI 3012868 Contact Us For Availability
14
HEX-NUT MOTOR MOUNTING (2) WCI 3013270 Contact Us For Availability
15
WHEEL-BLOWER WCI 3091501 Contact Us For Availability
16
COVER-BLOWER HSG WCI 3091309 Contact Us For Availability
17
WCI 3012197 WCI 3012197 Contact Us For Availability
18
FASTENER-WIRE CLIP WCI 3012316 Contact Us For Availability
19
WCI 3011862 WCI 3011862 Contact Us For Availability
20
FOOT WCI 3014097 Contact Us For Availability
21
FUSE WCI 3011670 Contact Us For Availability
22
WCI 3200551 WCI 3200551 Contact Us For Availability
23
WCI 3011555 WCI 3011555 Contact Us For Availability
24
KIT-STIRRER SUPPORT WCI 3922010 Contact Us For Availability
25
WCI 3201598 WCI 3201598 Contact Us For Availability
26
WCI 3091188 WCI 3091188 Contact Us For Availability
27
WCI 3013629 WCI 3013629 Contact Us For Availability
28
WCI 3013628 WCI 3013628 Contact Us For Availability
29
RIVET STIRRER COVER (4) WCI 3013807 Contact Us For Availability
30
WCI 3200541 WCI 3200541 Contact Us For Availability
31
FASTENER-CLIP (INCLUDED W/ REF 32) WCI 3012309 Contact Us For Availability
32
BAFFLE-AIR WCI 3091289 Contact Us For Availability
33
PLUG BUTTON-WRAPPER (2) WCI 3015230 Contact Us For Availability
34
SCREW - WRAPPER WCI 3091100 Contact Us For Availability
35
WCI 3011131 WCI 3011131 Contact Us For Availability
36
LABEL - COOKING GUIDE WCI 3018849 Contact Us For Availability
× ![]()
