Model LG 55XS4J-B – Common Parts & Diagrams

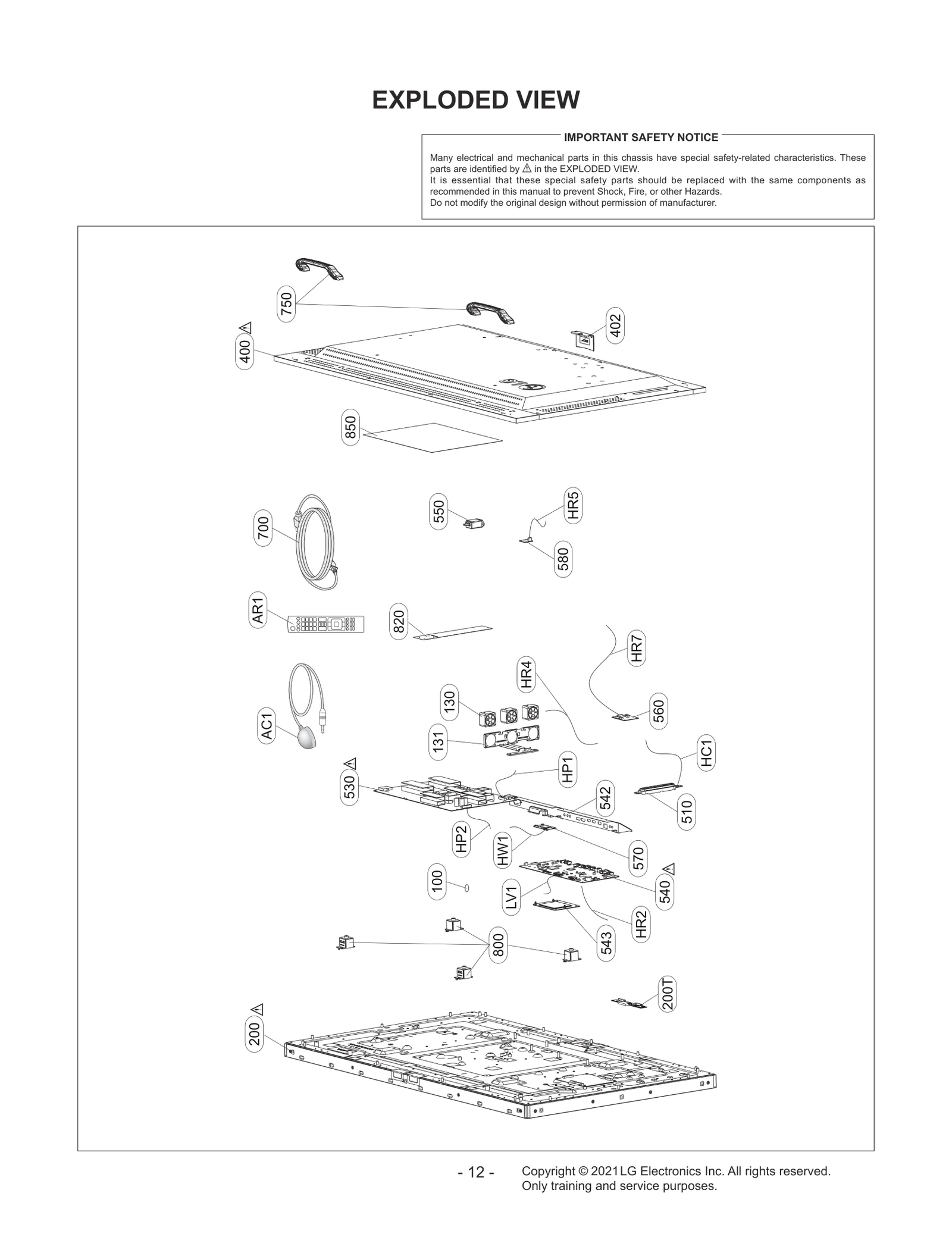

Diagram 0
Diagram 1
Common parts from model LG 55XS4J-B
100
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
130
Fan Module LGE EAL62340901 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65431502 Contact Us For Availability
200T
Time Control LGE EAT62993201 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88906011 Contact Us For Availability
402
Bracket LGE MAZ65086801 Contact Us For Availability
530
Power Supply Assembly LGE EAY64968602 Contact Us For Availability
542
Bracket LGE MAZ65388108 Contact Us For Availability
543
Frame Assembly LGE ADV76087904 Contact Us For Availability
550
Filter,AC Line LGE EAM33984416 Contact Us For Availability
560
Chassis Assembly LGE EBT66214001 Contact Us For Availability
580
Chassis Assembly LGE EBT66728801 Contact Us For Availability
750
Handle LGE MEB63735002 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB75095395 Contact Us For Availability
ARC1
Cover LGE MCK67552801 Contact Us For Availability
HC1
Harness,Single LGE EAD60732902 Contact Us For Availability
HP1
Harness,Single LGE EAD62825401 Contact Us For Availability
HP2
Harness,Single LGE EAD63046213 Contact Us For Availability
HR2
Harness,Single LGE EAD58345807 Contact Us For Availability
HR4
Harness,Single LGE EAD62595408 Contact Us For Availability
HR5
Harness,Single LGE EAD63525805 Contact Us For Availability
HR7
Harness,Single LGE EAD63525901 Contact Us For Availability
HW1
Harness,Single LGE EAD64126101 Contact Us For Availability
LV1
Cable,FFC LGE EAD63788005 Contact Us For Availability
× ![]()
