Model LG 55XF2B-B – Common Parts & Diagrams

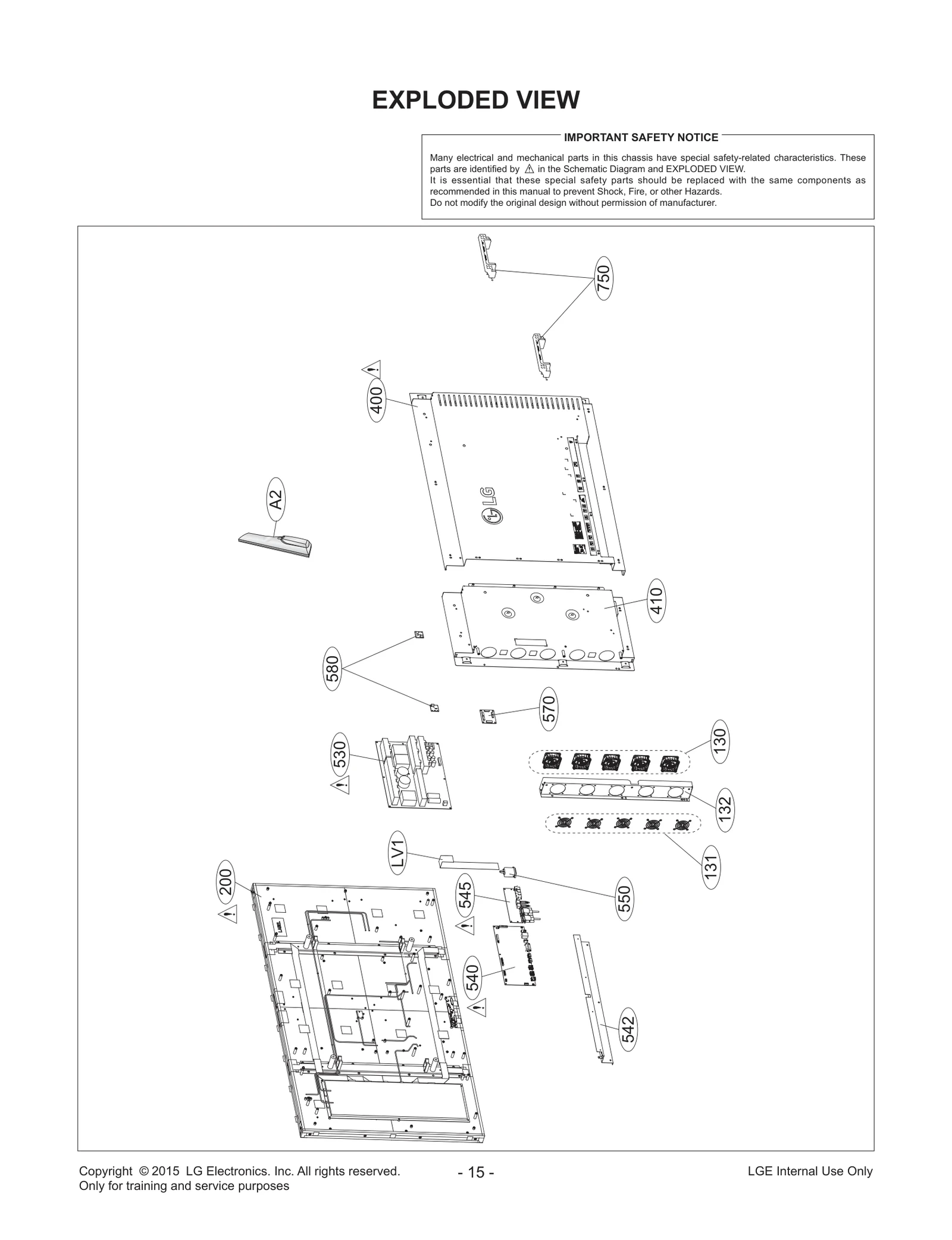

Diagram 0
Diagram 1
Common parts from model LG 55XF2B-B
130
Fan Module LGE EAL61300802 Contact Us For Availability
131
Grille LGE MDX62992702 Contact Us For Availability
132
Bracket LGE MAZ64764101 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63329601 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87931001 Contact Us For Availability
410
Cover Assembly,Rear LGE ACQ87951502 Contact Us For Availability
530
Power Supply Assembly LGE EAY62388603 Contact Us For Availability
542
Bracket LGE MAZ64803701 Contact Us For Availability
545
PCB Assembly,Sub LGE EBR77353001 Contact Us For Availability
570
Chassis Assembly LGE EBT62652602 Contact Us For Availability
A1
Manual Assembly LGE AFN77214211 Contact Us For Availability
LV1
Cable,FFC LGE EAD62572202 Contact Us For Availability
S1
Chassis Assembly LGE EBT62758502 Contact Us For Availability
S2
Harness,Single LGE EAD56480833 Contact Us For Availability
S3
Harness,Single LGE EAD63525901 Contact Us For Availability
S4
PCB Assembly,Sub LGE EBR77193303 Contact Us For Availability
S6
PCB Assembly,Sub LGE EBR77194501 Contact Us For Availability
S7
Harness,Single LGE EAD62388605 Contact Us For Availability
S8
Harness,Single LGE EAD62122710 Contact Us For Availability
S10
Harness,Single LGE EAD62386311 Contact Us For Availability
S11
Harness,Single LGE EAD38067201 Contact Us For Availability
S12
Harness,Single LGE EAD58345811 Contact Us For Availability
S13
Harness,Single LGE EAD62595401 Contact Us For Availability
S14
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
S15
Harness,Single LGE EAD62825402 Contact Us For Availability
× ![]()
