Model LG 55XE4F-M – Common Parts & Diagrams

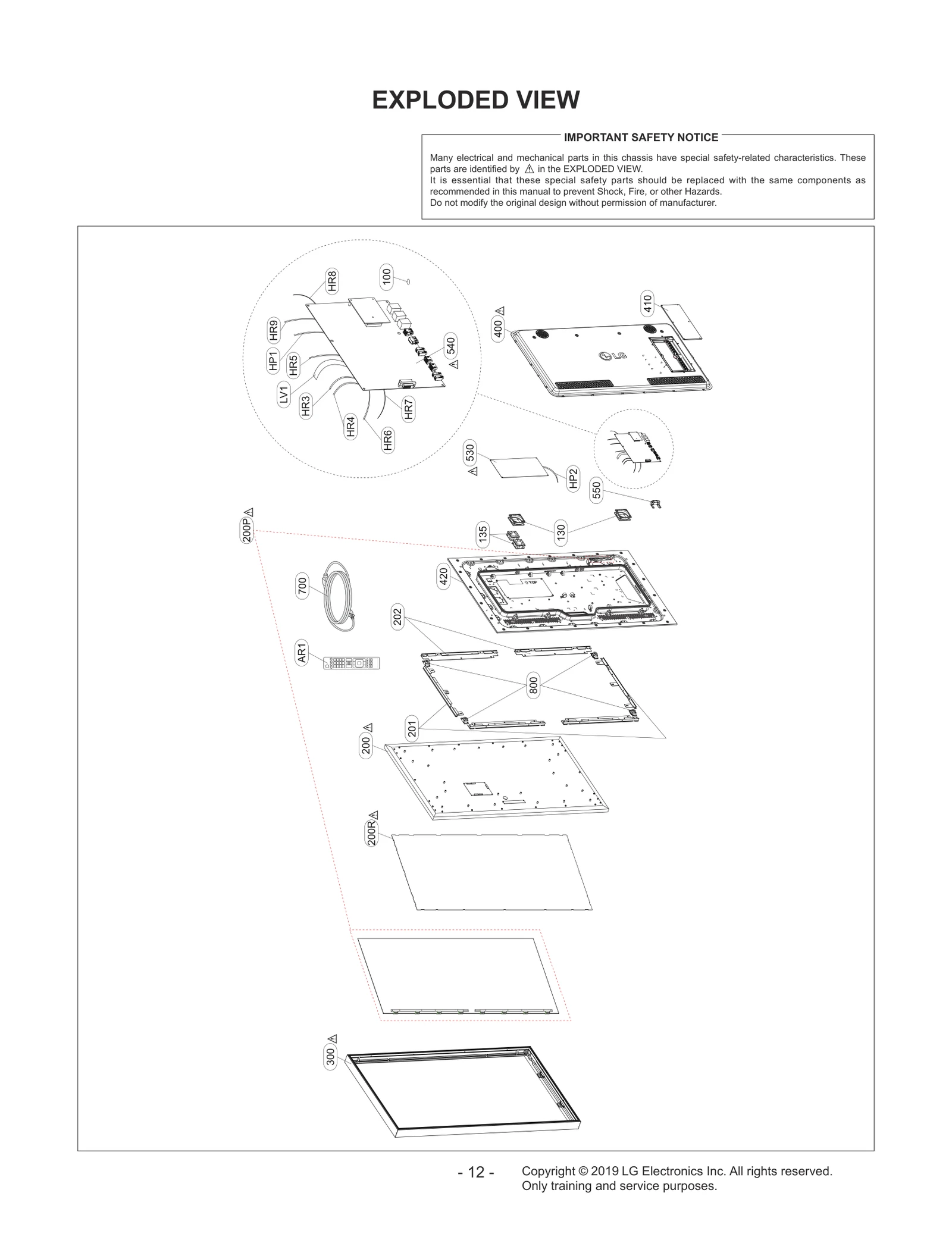

Diagram 0
Common parts from model LG 55XE4F-M
100
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65431501 Contact Us For Availability
200P
LCD,Panel-TFT LGE EAJ63708703 Contact Us For Availability
200P
LCD,Panel-TFT LGE EAJ30073501 Contact Us For Availability
200R
Plate,Diffuser LGE MGJ65983013 Contact Us For Availability
201
Bracket LGE MAZ67087401 Contact Us For Availability
202
Bracket LGE MAZ67087301 Contact Us For Availability
300
Cabinet Assembly LGE ABJ76487401 Contact Us For Availability
300
Package Assembly LGE AGF30010502 Contact Us For Availability
300
Package Assembly LGE AGF30010504 Contact Us For Availability
400
Cover Assembly LGE ACQ91455001 Contact Us For Availability
420
Cover Assembly LGE ACQ91455101 Contact Us For Availability
540
BPR Total Assembly LGE EBU66076801 Contact Us For Availability
550
Bracket Assembly LGE ABA77489701 Contact Us For Availability
700
Power Cord,Detach LGE EAD60817908 Contact Us For Availability
HP1
Harness,Single LGE EAD62595409 Contact Us For Availability
HP2
Harness,Single LGE EAD63046216 Contact Us For Availability
HR4
Cable,FFC LGE EAD61670725 Contact Us For Availability
HR6
Harness,Single LGE EAD58345804 Contact Us For Availability
HR7
Harness,Single LGE EAD62388605 Contact Us For Availability
HR8
Harness,Single LGE EAD63525901 Contact Us For Availability
HR9
Harness,Multi LGE EAD65605603 Contact Us For Availability
LV1
Cable,FFC LGE EAD63990501 Contact Us For Availability
× ![]()
