Model LG 55WV70MD-B – Common Parts & Diagrams

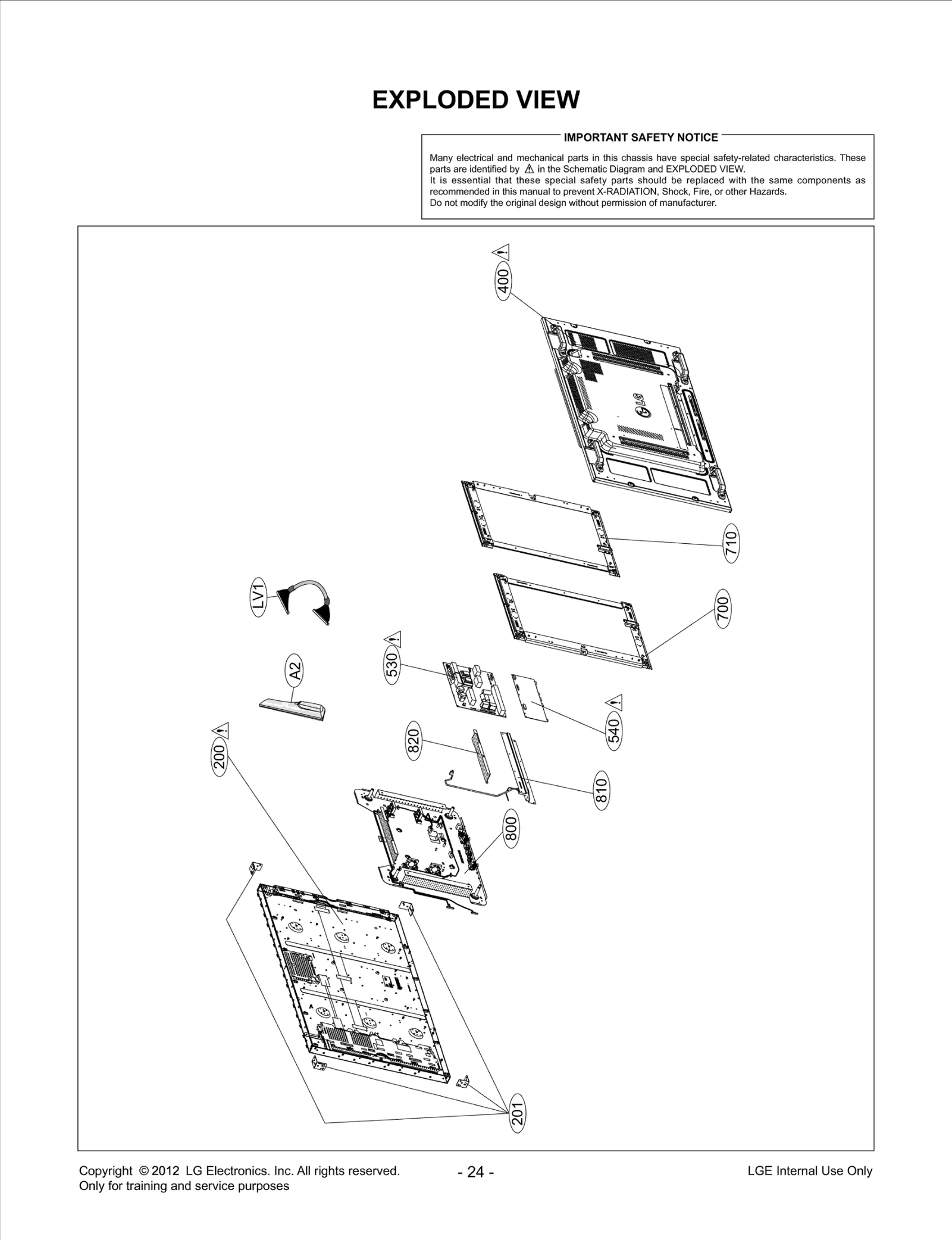

Diagram 0
Diagram 1
Common parts from model LG 55WV70MD-B
200
LCD,Module-TFT LGE EAJ62116601 Contact Us For Availability
201
Bracket LGE MAZ63476501 Contact Us For Availability
530
Power Supply Assembly LGE EAY60869003 Contact Us For Availability
540
PCB Assembly,Main LGE EBR75412602 Contact Us For Availability
700
Frame Assembly LGE ADV74287701 Contact Us For Availability
710
Frame Assembly LGE ADV74287901 Contact Us For Availability
800
Frame LGE MDQ63278101 Contact Us For Availability
810
Plate,Shield LGE MGJ63343801 Contact Us For Availability
820
Plate,Shield LGE MGJ63344603 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915299 Contact Us For Availability
A4
Cable,Assembly LGE EAD57734003 Contact Us For Availability
A5
Cable,Assembly LGE EAD57760001 Contact Us For Availability
A7
Cable,Assembly LGE EAD61485506 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
AR1205
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C113
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C225
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C238
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C246
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C264
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C310
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C313
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C448
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C502
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
C529
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C535
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C550
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C605
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C606
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C676
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C709
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C726
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C736
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C754
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C755
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C771
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C818
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C837
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C1102
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C1103
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C1104
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1107
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C1111
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C1402
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1407
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C1426
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C1428
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
D201
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D412
Diode,TVS LGE EAH61515101 Contact Us For Availability
D439
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D502
Diode,Switching LGE 0DSON00218A Contact Us For Availability
D601
Diode,TVS LGE EAH39491701 Contact Us For Availability
D808
Diode,TVS LGE EAH61232601 Contact Us For Availability
D902
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC105
S/W,Firmware LGE SAA36073104 Contact Us For Availability
IC106
Display SOC,Digital TV LGE EAN62354201 Contact Us For Availability
IC301
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC302
S/W,Firmware LGE SAA36073007 Contact Us For Availability
IC401
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC418
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC419
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC420
IC,Timer LGE EAN54696201 Contact Us For Availability
IC427
IC,Analog Switch LGE EAN62227501 Contact Us For Availability
IC427
IC,Analog Switch LGE EAN62227502 Contact Us For Availability
IC431
IC LGE 0IPH741400E Contact Us For Availability
IC433
IC,Video Amplifier LGE EAN60815201 Contact Us For Availability
IC438
IC,Tx/Rx LGE EAN62193401 Contact Us For Availability
IC439
S/W,Firmware LGE SAA35724204 Contact Us For Availability
IC503
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC505
IC,DC,DC Converter LGE EAN61013901 Contact Us For Availability
IC506
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC507
IC,Reset LGE EAN60670101 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC1001
IC,STANDARD LOGIC LGE 0ISTL00031A Contact Us For Availability
IC1101
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC1103
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC1202
IC,DDR3 SDRAM LGE EAN61829001 Contact Us For Availability
IC1302
S/W,Firmware LGE SAA36122203 Contact Us For Availability
IC1401
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC1402
IC,LAN LGE EAN61956501 Contact Us For Availability
IC1403
S/W,Firmware LGE SAA35604906 Contact Us For Availability
JK402
Jack,Phone LGE 6612F00006G Contact Us For Availability
JK403
Jack,DIN LGE EAG39323103 Contact Us For Availability
JK404
Connector,I/O LGE EAG60823003 Contact Us For Availability
JK901
Connector,BNC LGE EAG63150001 Contact Us For Availability
JK1401
Jack,Modular LGE EAG62892401 Contact Us For Availability
L6
Filter,Bead LGE EAM32500903 Contact Us For Availability
L469
FILTER(CIRC),EMC LGE 6200J00012A Contact Us For Availability
L479
Filter,Bead LGE EAM54407902 Contact Us For Availability
L511
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L706
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L1303
Filter,Bead LGE EAM58113401 Contact Us For Availability
LV1
Cable,FFC LGE EAD61858735 Contact Us For Availability
P1
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P2
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P408
Connector,DSUB LGE 6630TGA005S Contact Us For Availability
P410
Connector,DSUB LGE 6630G00004C Contact Us For Availability
P501
Connector,Wafer LGE EAG60376901 Contact Us For Availability
P601
Connector,Wafer LGE 6630V091112 Contact Us For Availability
P901
Connector,DSUB LGE EAG43472001 Contact Us For Availability
P1001
Connector,Wafer LGE EAG58732906 Contact Us For Availability
P1601
Connector,Wafer LGE 6630V93270J Contact Us For Availability
Q2
TR,Bipolar LGE 0TRKE80038A Contact Us For Availability
Q502
TR,Bipolar LGE EBK61012501 Contact Us For Availability
Q601
TRANSISTOR,FETS LGE 0TFIR80016B Contact Us For Availability
Q804
FET LGE EBK42767801 Contact Us For Availability
Q1101
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q1401
FET LGE EBK60752501 Contact Us For Availability
R123
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R125
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R148
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R253
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R283
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R363
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R414
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R538
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R541
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R545
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R546
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R552
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R553
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R554
Resistor,Chip LGE 0RJ2701D477 Contact Us For Availability
R555
RESISTOR,METAL GLAZE LGE 0RJ1211D477 Contact Us For Availability
R557
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R565
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R568
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R569
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R606
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R614
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R719
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R821
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R830
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R835
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R840
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R844
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R846
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R847
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R854
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R872
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R889
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R916
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R922
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R934
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R937
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R948
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R957
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R969
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R972
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R1009
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R1031
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R1042
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1102
Resistor,Chip LGE 0RJ1242D477 Contact Us For Availability
R1104
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R1111
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R1113
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R1114
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
R1116
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R1205
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1341
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R1345
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1346
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R1409
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1417
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R1419
Resistor,Chip LGE 0RJ8061C477 Contact Us For Availability
R1431
Resistor,Chip LGE 0RJ0492D477 Contact Us For Availability
R1447
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R1613
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
S3
Harness,Single LGE EAD60673314 Contact Us For Availability
S4
Plate LGE 4950TKS260B Contact Us For Availability
S5
Fan Module LGE 5900T52001L Contact Us For Availability
S6
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
S7
Filter,AC Line LGE EAM36140909 Contact Us For Availability
S8
Accessory,3D Glasses LGE EBX61528104 Contact Us For Availability
S9
Accessory,3D Glasses LGE EBX61528105 Contact Us For Availability
SW201
Switch,Tact LGE EBF32593901 Contact Us For Availability
SW301
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X201
Crystal LGE 6202TST001P Contact Us For Availability
X403
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
X1301
Crystal LGE EAW43548908 Contact Us For Availability
X1401
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
ZD401
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
Login and Registration Form
