Model LG 55WV70BS-B – Common Parts & Diagrams

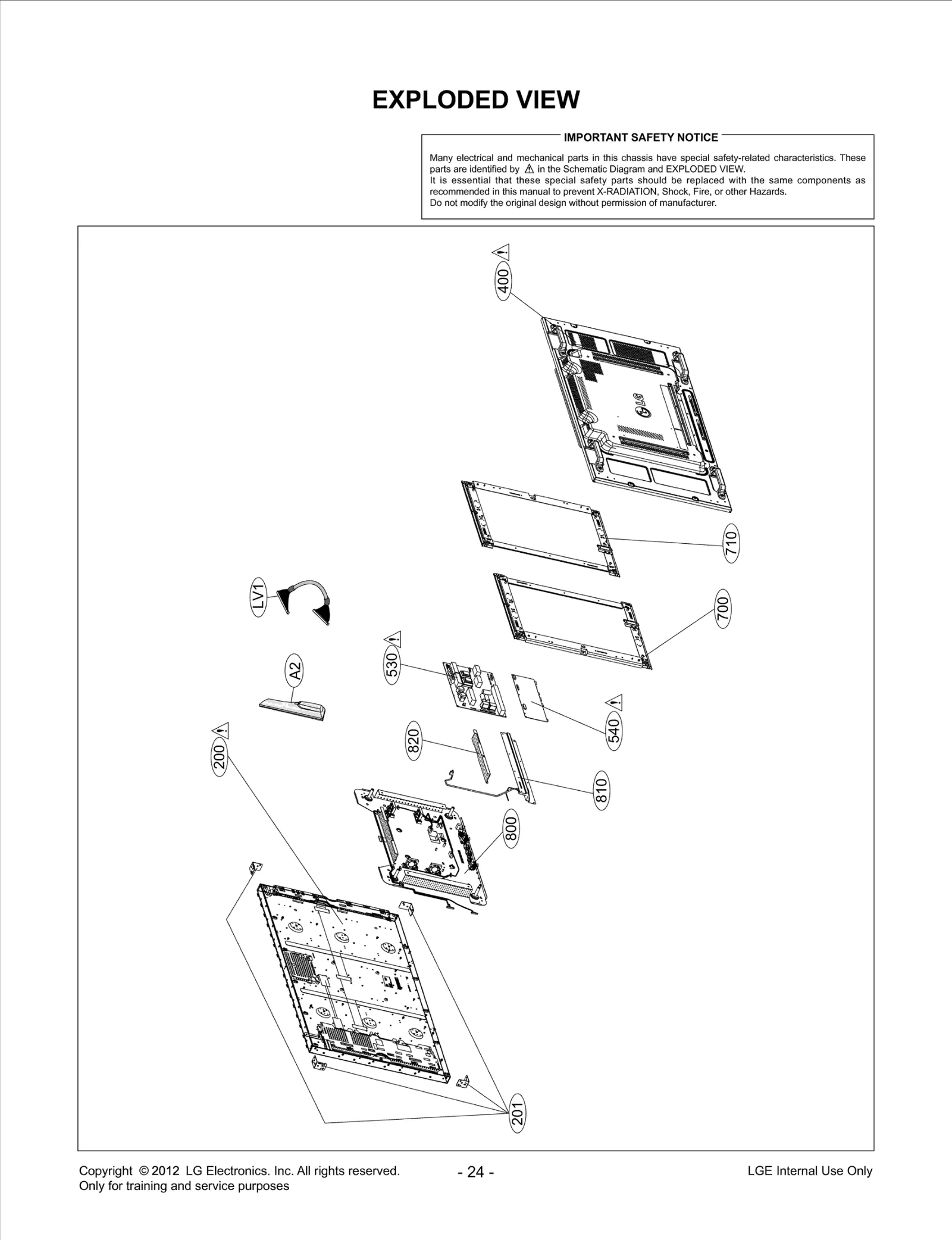

Diagram 0
Diagram 1
Common parts from model LG 55WV70BS-B
200
LCD,Module-TFT LGE EAJ62116701 Contact Us For Availability
201
Bracket LGE MAZ63476501 Contact Us For Availability
530
Power Supply Assembly LGE EAY60869003 Contact Us For Availability
540
PCB Assembly,Main LGE EBR74687403 Contact Us For Availability
700
Frame Assembly LGE ADV74287701 Contact Us For Availability
710
Frame Assembly LGE ADV74287901 Contact Us For Availability
800
Frame LGE MDQ63278101 Contact Us For Availability
810
Plate,Shield LGE MGJ63343801 Contact Us For Availability
820
Plate,Shield LGE MGJ63344601 Contact Us For Availability
A1
Title LGE SAC33111327 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915219 Contact Us For Availability
A4
Cable,Assembly LGE EAD57734003 Contact Us For Availability
A5
Cable,Assembly LGE EAD61485506 Contact Us For Availability
A7
Cable,Assembly LGE EAD57760001 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
AR402
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR431
Resistor,Array LGE EBC32260404 Contact Us For Availability
C7
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C406
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C412
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C415
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C440
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C450
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C454
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C547
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C550
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C585
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C587
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C588
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C590
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C599
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C602
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C613
Capacitor,AL,Chip LGE 0CE476WK6DC Contact Us For Availability
C618
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C639
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C646
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C658
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C663
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C674
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C680
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C688
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C736
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C754
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C763
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C775
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C780
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C818
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C1001
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1002
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C1404
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C1411
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
D403
Diode,Switching LGE 0DSON00218A Contact Us For Availability
D412
Diode,TVS LGE EAH61515101 Contact Us For Availability
D432
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D438
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D604
Diode,TVS LGE EAH39491701 Contact Us For Availability
D809
Diode,TVS LGE EAH61232601 Contact Us For Availability
IC402
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC403
S/W,Firmware LGE SAA35945101 Contact Us For Availability
IC404
S/W,Firmware LGE SAA36336201 Contact Us For Availability
IC405
Display SOC,Digital TV LGE EAN61856201 Contact Us For Availability
IC406
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC407
S/W,Firmware LGE SAA35947416 Contact Us For Availability
IC409
IC,DC,DC Converter LGE EAN61548102 Contact Us For Availability
IC410
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC412
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC413
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC414
IC,DC,DC Converter LGE EAN61013901 Contact Us For Availability
IC415
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC418
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC419
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC420
IC,Timer LGE EAN54696201 Contact Us For Availability
IC421
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC422
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC422
IC,Audio Amplifier LGE EAN62449901 Contact Us For Availability
IC426
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC427
IC,Analog Switch LGE EAN62227502 Contact Us For Availability
IC431
IC LGE 0IPH741400E Contact Us For Availability
IC433
IC,Video Amplifier LGE EAN60815201 Contact Us For Availability
IC438
IC,Tx/Rx LGE EAN62193401 Contact Us For Availability
IC439
S/W,Firmware LGE SAA35944801 Contact Us For Availability
IC441
IC,DDR3 SDRAM LGE EAN61570701 Contact Us For Availability
IC1001
IC,STANDARD LOGIC LGE 0ISTL00031A Contact Us For Availability
IC1402
IC,Ethernet LGE EAN62219202 Contact Us For Availability
IC1403
IC,Reset LGE EAN60670101 Contact Us For Availability
JK402
Jack,Phone LGE 6612F00006G Contact Us For Availability
JK403
Jack,DIN LGE EAG39323103 Contact Us For Availability
JK404
Connector,I/O LGE EAG60823003 Contact Us For Availability
JK407
Jack,Modular LGE EAG38645702 Contact Us For Availability
JK901
Connector,BNC LGE EAG63150001 Contact Us For Availability
L421
Filter,Bead LGE EAM58113401 Contact Us For Availability
L430
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L454
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L472
FILTER(CIRC),EMC LGE 6200J00012A Contact Us For Availability
L480
Filter,Bead LGE EAM54407902 Contact Us For Availability
L493
Filter,Bead LGE EAM32500903 Contact Us For Availability
LD401
LED,Chip LGE EAV59914601 Contact Us For Availability
LV1
Cable,FFC LGE EAD61858727 Contact Us For Availability
P402
Connector,Wafer LGE EAG60376901 Contact Us For Availability
P406
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
P408
Connector,DSUB LGE 6630TGA005S Contact Us For Availability
P409
Connector,DSUB LGE EAG43472001 Contact Us For Availability
P410
Connector,DSUB LGE 6630G00004C Contact Us For Availability
P411
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P601
Connector,Wafer LGE 6630V091112 Contact Us For Availability
P602
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P603
Connector,FFC/FPC/PIC LGE EAG58469801 Contact Us For Availability
P1001
Connector,Wafer LGE EAG58732906 Contact Us For Availability
Q405
TR,Bipolar LGE EBK61012501 Contact Us For Availability
Q410
TRANSISTOR,FETS LGE 0TFIR80016B Contact Us For Availability
Q437
FET LGE EBK60752501 Contact Us For Availability
Q603
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q805
FET LGE EBK42767801 Contact Us For Availability
R4
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R18
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R209
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R521
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R523
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R534
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R584
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R592
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R611
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R652
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R674
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R677
Resistor,Chip LGE 0RH5100D622 Contact Us For Availability
R679
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R685
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R690
Resistor,Chip LGE 0RJ5102E472 Contact Us For Availability
R702
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R703
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R707
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R710
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R718
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R719
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R724
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R725
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R726
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R731
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R732
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R733
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R736
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R745
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R752
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R775
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R794
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R809
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R829
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R837
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R840
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R844
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R871
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R873
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R883
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R885
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R909
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R934
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R956
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R959
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R969
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R972
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R984
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1005
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R1009
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R1019
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1022
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1055
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1082
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R1303
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1419
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R1447
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
S3
Fan Module LGE 5900T52001L Contact Us For Availability
S4
Harness,Single LGE EAD60673314 Contact Us For Availability
S5
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
S6
Filter,AC Line LGE EAM36140909 Contact Us For Availability
SW401
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X403
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
X1401
Crystal LGE 6212AB2872B Contact Us For Availability
ZD401
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
Login and Registration Form
