Model LG 55VSH7J-H – Common Parts & Diagrams

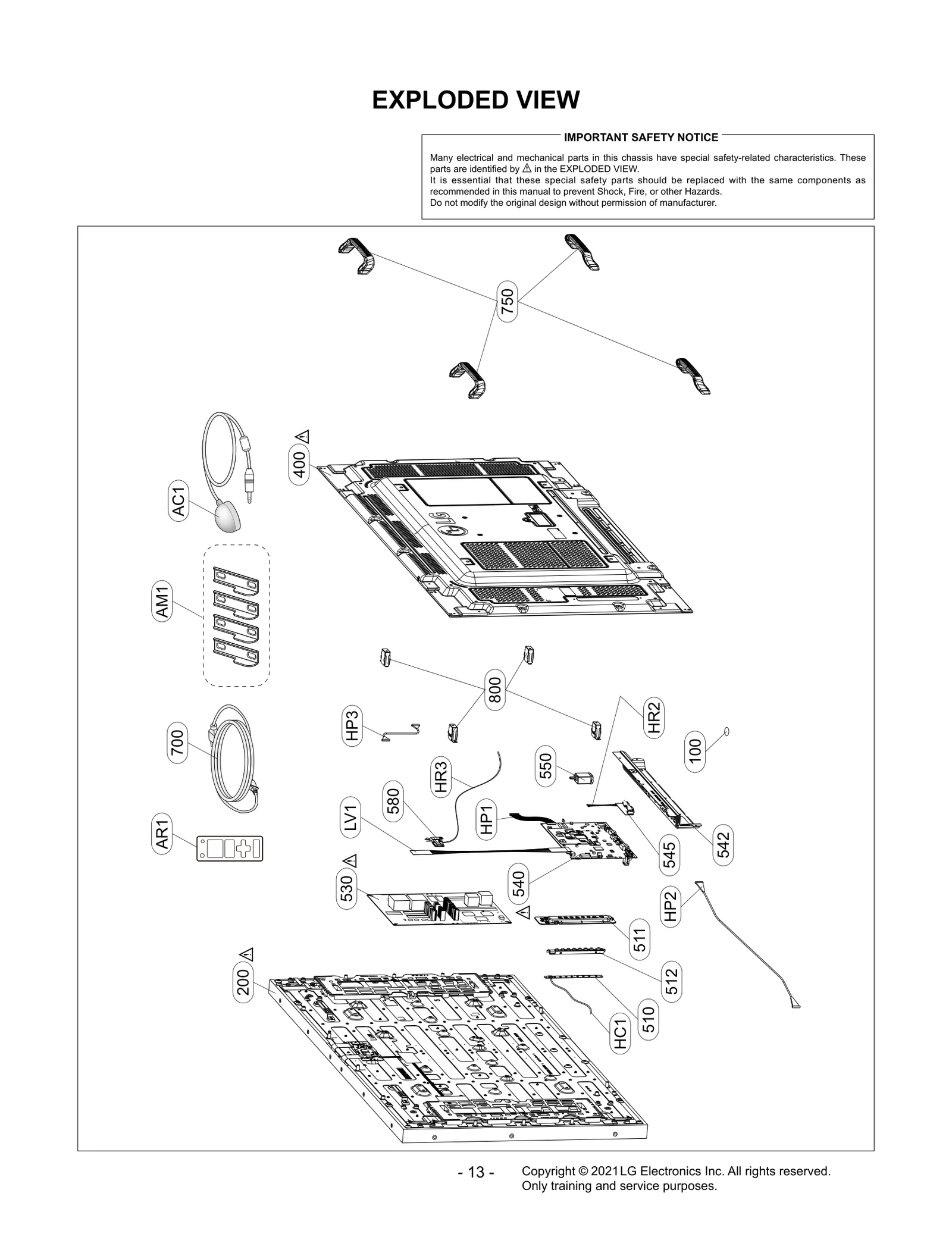

Diagram 0
Diagram 1
Common parts from model LG 55VSH7J-H
100
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
100
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ90439615 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR75626607 Contact Us For Availability
511
Cover LGE MCK68748302 Contact Us For Availability
512
Knob LGE MEY63294002 Contact Us For Availability
530
Power Supply Assembly LGE EAY64109008 Contact Us For Availability
550
Filter,AC Line LGE EAM36140912 Contact Us For Availability
580
DMS Chassis Assembly LGE EBT30190801 Contact Us For Availability
750
Handle LGE MEB63735005 Contact Us For Availability
800
Bracket LGE MAZ65665304 Contact Us For Availability
AM1
Bracket LGE MAZ66271002 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB76039803 Contact Us For Availability
HC1
Harness,Single LGE EAD52821216 Contact Us For Availability
HP1
Harness,Single LGE EAD62595302 Contact Us For Availability
HP2
Harness,Single LGE EAD62122710 Contact Us For Availability
HP3
Harness,Single LGE EAD62386302 Contact Us For Availability
HR2
Harness,Single LGE EAD61987102 Contact Us For Availability
HR3
Harness,Single LGE EAD62388606 Contact Us For Availability
LV1
Cable,FFC LGE EAD63788005 Contact Us For Availability
P101
Connector,Wafer LGE 6630V90141B Contact Us For Availability
R102
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R105
Resistor,Chip LGE 0RH1302D622 Contact Us For Availability
× ![]()
