Model LG 55VM5J-H – Common Parts & Diagrams

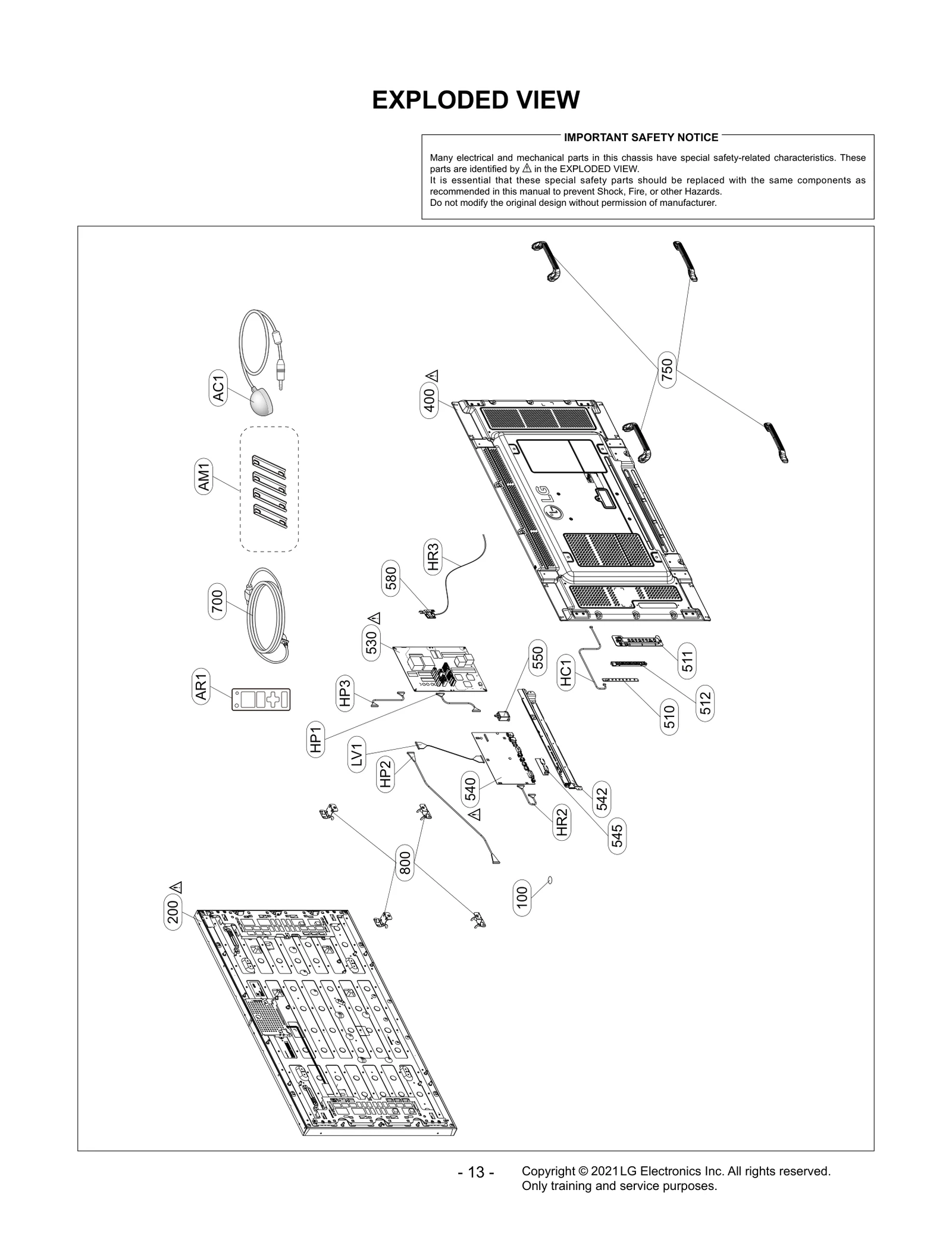

Diagram 0
Common parts from model LG 55VM5J-H
100
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
100
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR75626607 Contact Us For Availability
511
Cover LGE MCK68748302 Contact Us For Availability
511
Cover LGE MCK68748301 Contact Us For Availability
512
Knob LGE MEY63294001 Contact Us For Availability
512
Knob LGE MEY63294002 Contact Us For Availability
530
Power Supply Assembly LGE EAY64109005 Contact Us For Availability
540
Main Board,BPR Total Assembly LGE EBU66575801 Contact Us For Availability
542
Frame Assembly LGE ADV75705521 Contact Us For Availability
545
PCB Assembly,Sub LGE EBR80581402 Contact Us For Availability
550
Filter,AC Line LGE EAM36140912 Contact Us For Availability
580
DMS Chassis Assembly LGE EBT66930301 Contact Us For Availability
580
DMS Chassis Assembly LGE EBT66174602 Contact Us For Availability
750
Handle LGE MEB63735002 Contact Us For Availability
800
Bracket LGE MAZ64826602 Contact Us For Availability
AM1
Bracket LGE MAZ67580302 Contact Us For Availability
AR1
Package Assembly LGE AGF77627217 Contact Us For Availability
HC1
Harness,Single LGE EAD52821216 Contact Us For Availability
HP1
Harness,Single LGE EAD62595302 Contact Us For Availability
HP2
Harness,Single LGE EAD62122710 Contact Us For Availability
HP3
Harness,Single LGE EAD62386302 Contact Us For Availability
HR2
Harness,Single LGE EAD61987102 Contact Us For Availability
HR3
Harness,Single LGE EAD62388606 Contact Us For Availability
LV1
Cable,FFC LGE EAD63788005 Contact Us For Availability
× ![]()
