Model LG 55UT7000PUA – Common Parts & Diagrams

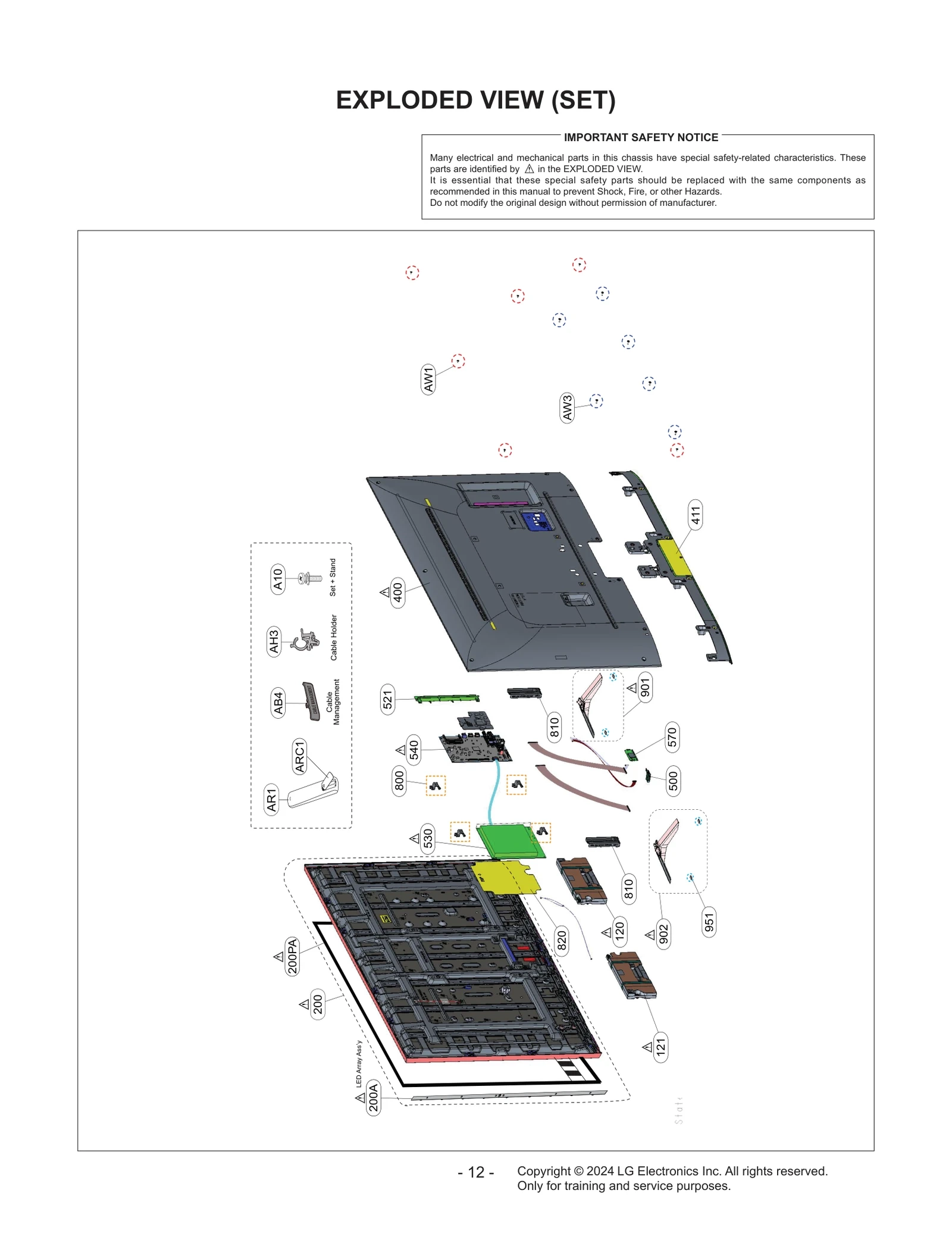

Diagram 0

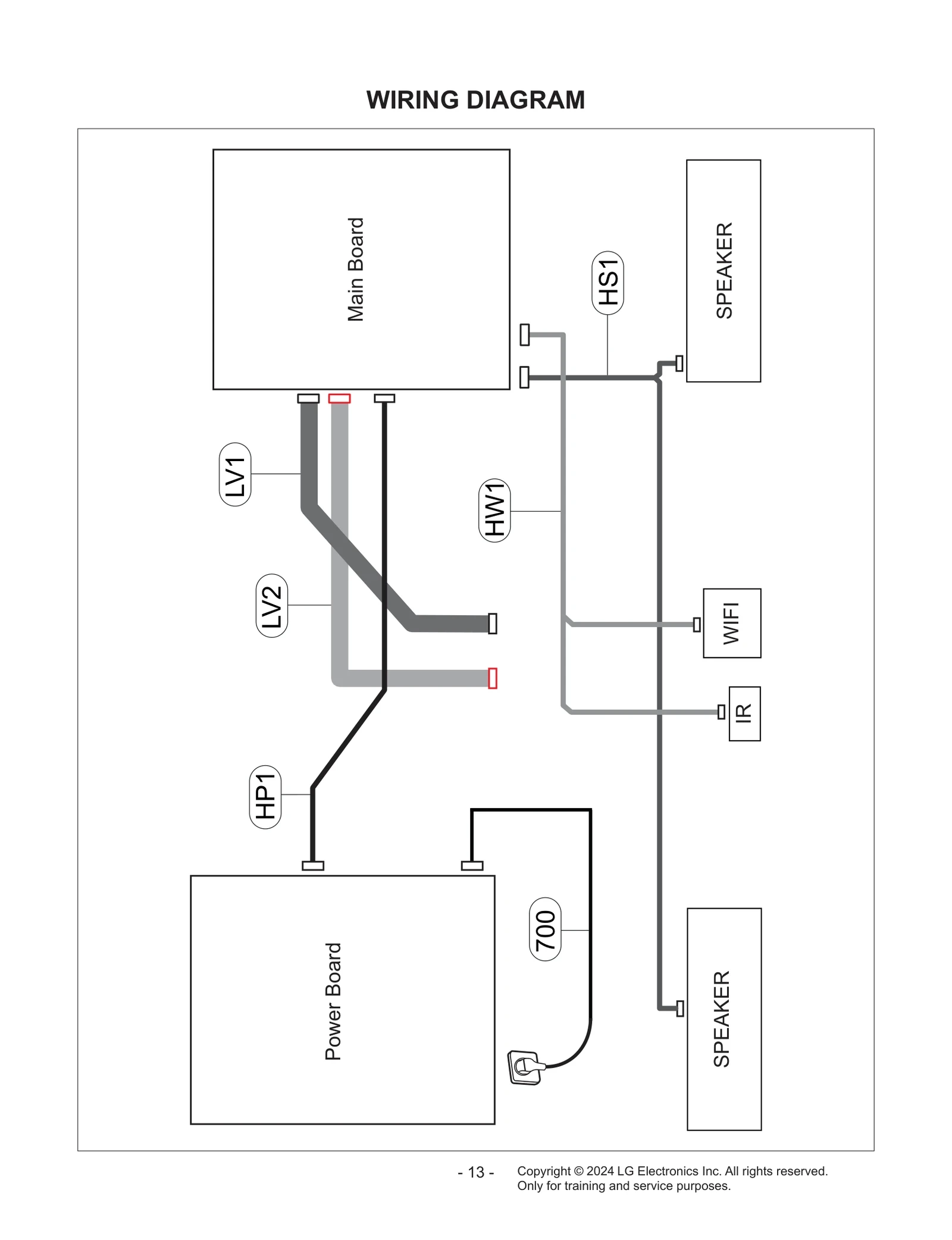

Diagram 1
Common parts from model LG 55UT7000PUA
200
LCD,Module-TFT LGE EAJ65957804 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65957801 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF30320602 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30660417 Contact Us For Availability
411
Cover,Rear LGE MCK71437401 Contact Us For Availability
521
Bracket LGE MAZ67455411 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU68006601 Contact Us For Availability
570
Module,Wifi Bluetooth Module LGE EAT65166901 Contact Us For Availability
800
Supporter,VESA LGE MJH64334001 Contact Us For Availability
810
Bracket LGE MAZ67462902 Contact Us For Availability
820
Insulator LGE MEV67702101 Contact Us For Availability
901
Base Assembly LGE AAN30078373 Contact Us For Availability
902
Base Assembly LGE AAN30078374 Contact Us For Availability
951
Damper LGE MCQ68894002 Contact Us For Availability
AH3
Holder LGE MEG61841309 Contact Us For Availability
ARC1
Cover LGE MCK67552801 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
AW3
Screw,Taptite LGE FAB31639801 Contact Us For Availability
HP1
Harness,Single LGE EAD64586009 Contact Us For Availability
× ![]()
