Model LG 55UT570H9UA – Common Parts & Diagrams

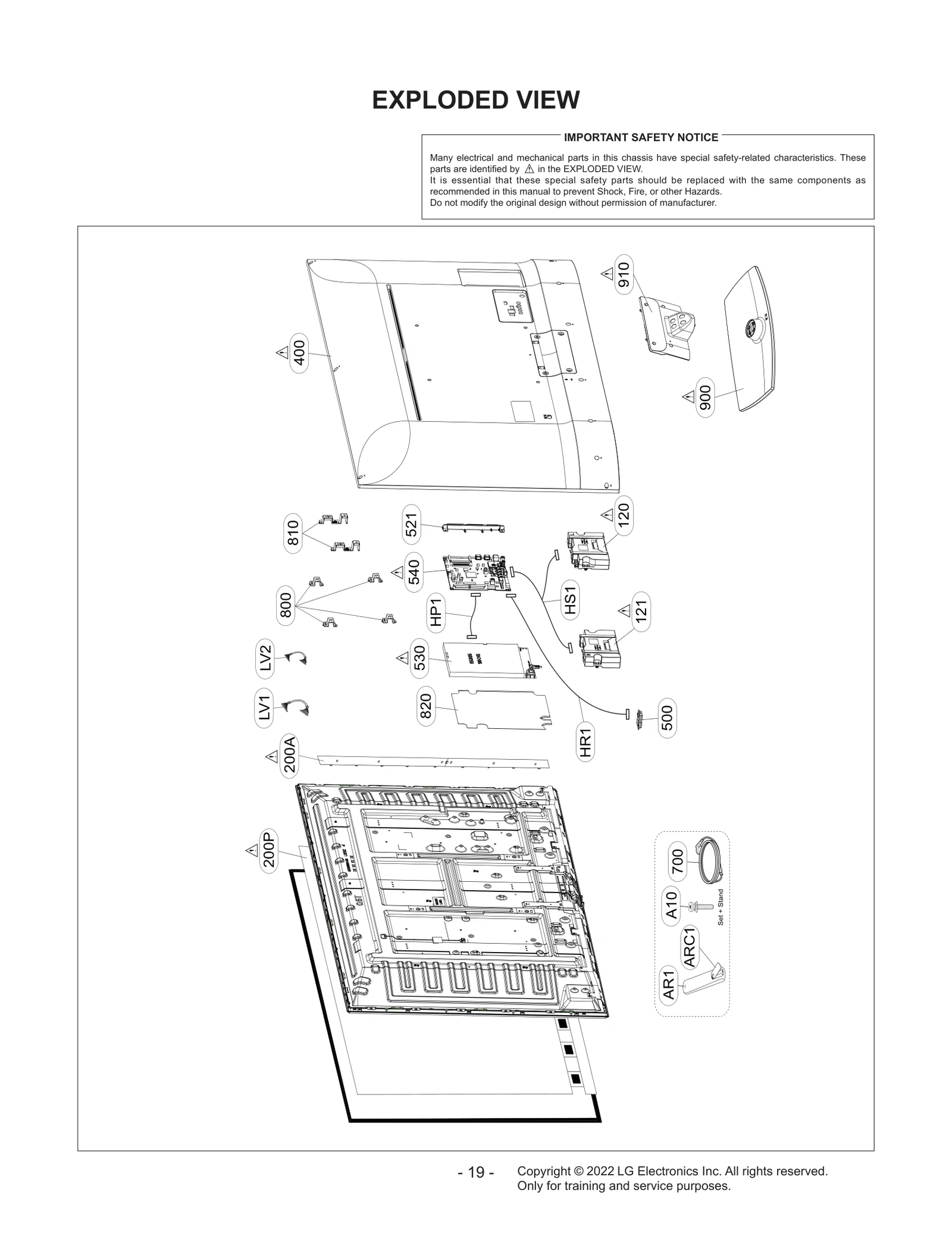

Diagram 0

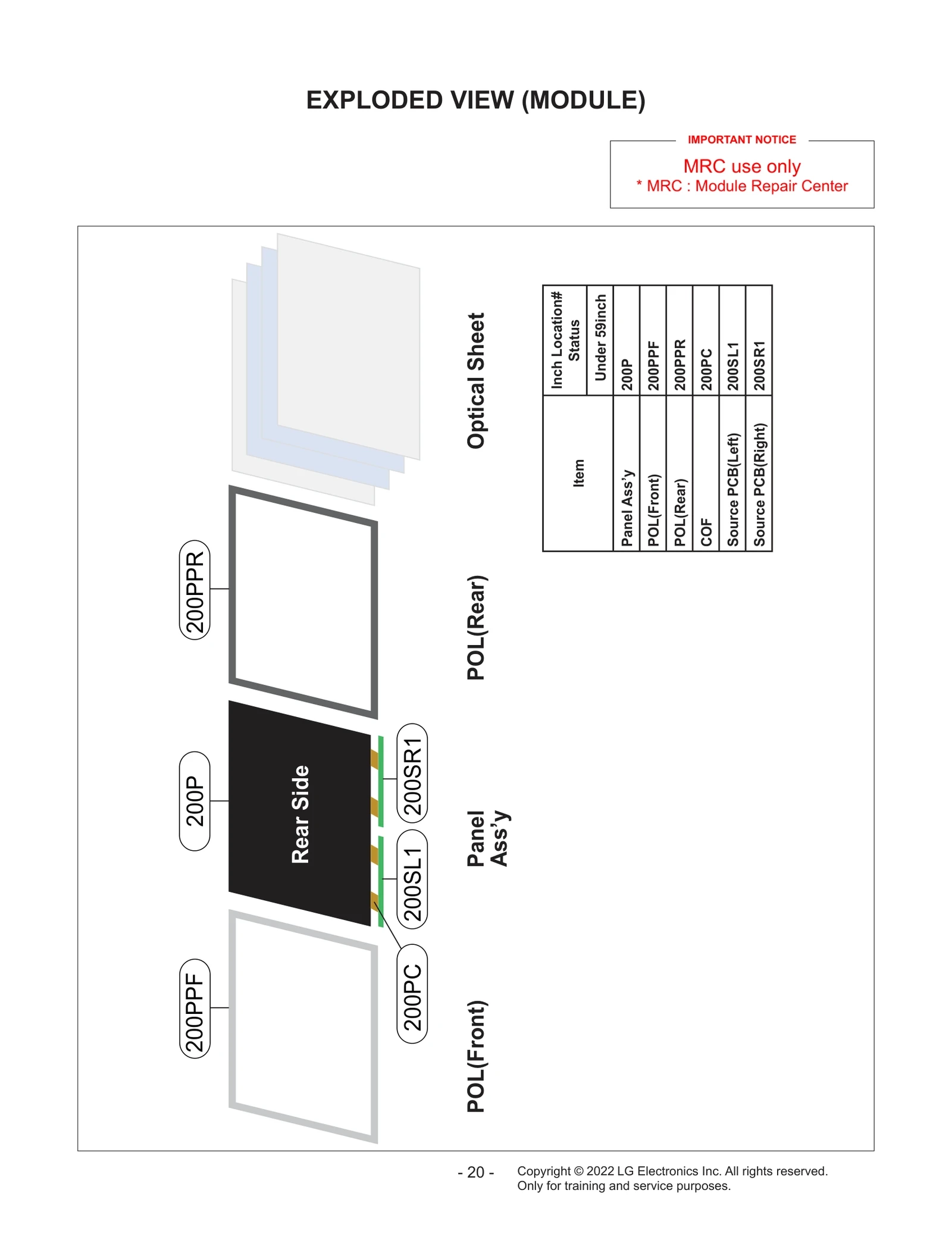

Diagram 1
Diagram 2
Common parts from model LG 55UT570H9UA
200
LCD,Module-TFT LGE EAJ65430601 Contact Us For Availability
200A
LED Array,Parts Assembly,SVC LGE AGM76689202 Contact Us For Availability
200PC
COF,Local Sourcing Parts LGE CLS31361801 Contact Us For Availability
200PPF
Polarizer,Local Sourcing Parts LGE CLS31901301 Contact Us For Availability
200PPR
Polarizer,Local Sourcing Parts LGE CLS31901302 Contact Us For Availability
200SL1
Source PCB,Local Sourcing Parts LGE CLS31860001 Contact Us For Availability
200SR1
Source PCB,Local Sourcing Parts LGE CLS31860002 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30010021 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30010022 Contact Us For Availability
500
PCB Assembly,IR Key LGE EBR87149002 Contact Us For Availability
521
Bracket LGE MAZ66165276 Contact Us For Availability
530
Power Supply Assembly LGE EAY65149308 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU66612301 Contact Us For Availability
810
Supporter LGE MJH64433202 Contact Us For Availability
820
Insulator LGE MEV66931201 Contact Us For Availability
900
Base Assembly LGE AAN75850004 Contact Us For Availability
900
Base Assembly LGE AAN75850006 Contact Us For Availability
910
Bracket LGE MAZ67085402 Contact Us For Availability
ARC1
Cover,Rear LGE MCK62976101 Contact Us For Availability
HP1
Harness,Single LGE EAD64586003 Contact Us For Availability
LV1
Cable,FFC LGE EAD64666101 Contact Us For Availability
LV2
Cable,FFC LGE EAD64666102 Contact Us For Availability
× ![]()
