Model LG 55UH7J-H – Common Parts & Diagrams

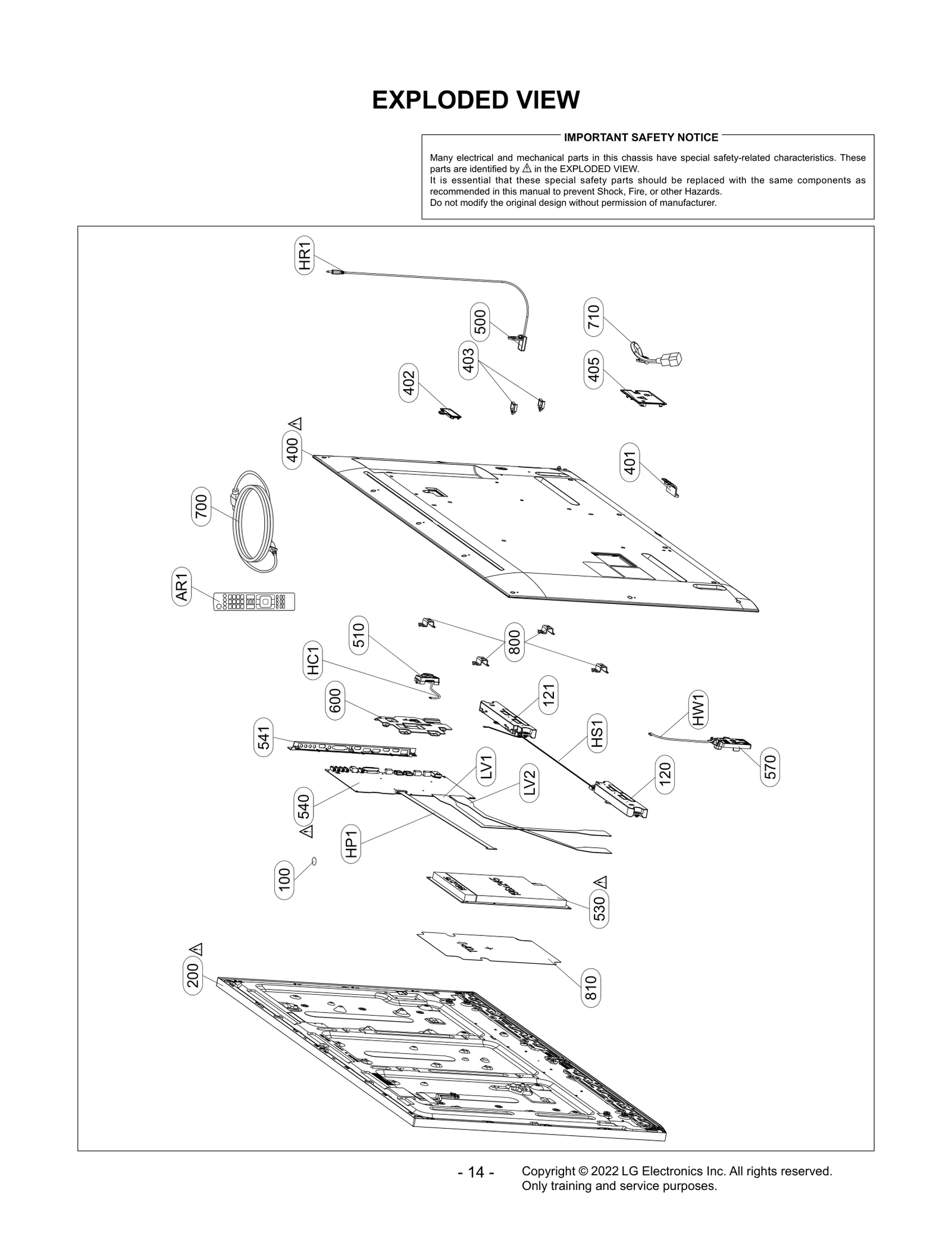

Diagram 0
Common parts from model LG 55UH7J-H
100
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
100
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
120
Speaker Assembly LGE EAB63628204 Contact Us For Availability
121
Speaker Assembly LGE EAB63628203 Contact Us For Availability
200
LCM,Parts Assembly,SVC LGE AGM30012501 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65703201 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ91465622 Contact Us For Availability
401
Bracket LGE MAZ67107402 Contact Us For Availability
402
Cover LGE MCK71069901 Contact Us For Availability
403
Holder LGE 4930V00218C Contact Us For Availability
405
Cover LGE MCK71090402 Contact Us For Availability
500
Chassis Assembly LGE EBT63756604 Contact Us For Availability
530
Power Supply Assembly LGE EAY65728702 Contact Us For Availability
540
Main Board,BPR Total Assembly LGE EBU67156101 Contact Us For Availability
541
Bracket LGE MAZ67087609 Contact Us For Availability
800
Supporter,VESA LGE MJH64334001 Contact Us For Availability
810
Insulator LGE MEV67433301 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB75095395 Contact Us For Availability
HR1
Cable,Assembly LGE EAD63406601 Contact Us For Availability
HS1
Harness,Multi LGE EAD63727341 Contact Us For Availability
HW1
Harness,Single LGE EAD64126111 Contact Us For Availability
LV1
Cable,FFC LGE EAD64666211 Contact Us For Availability
LV2
Cable,FFC LGE EAD64666212 Contact Us For Availability
× ![]()
