Model LG 55UF8600 – Common Parts & Diagrams

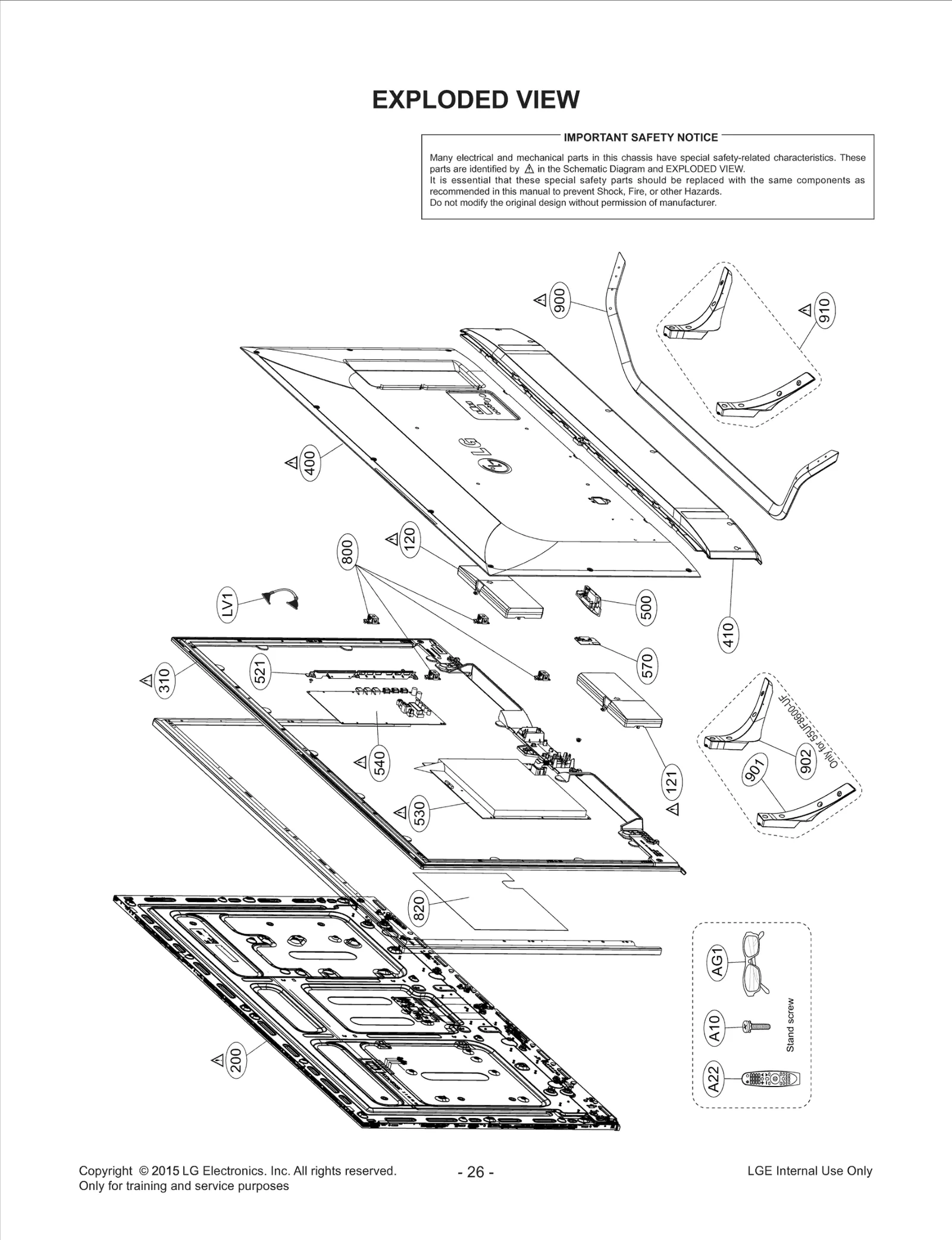

Diagram 0

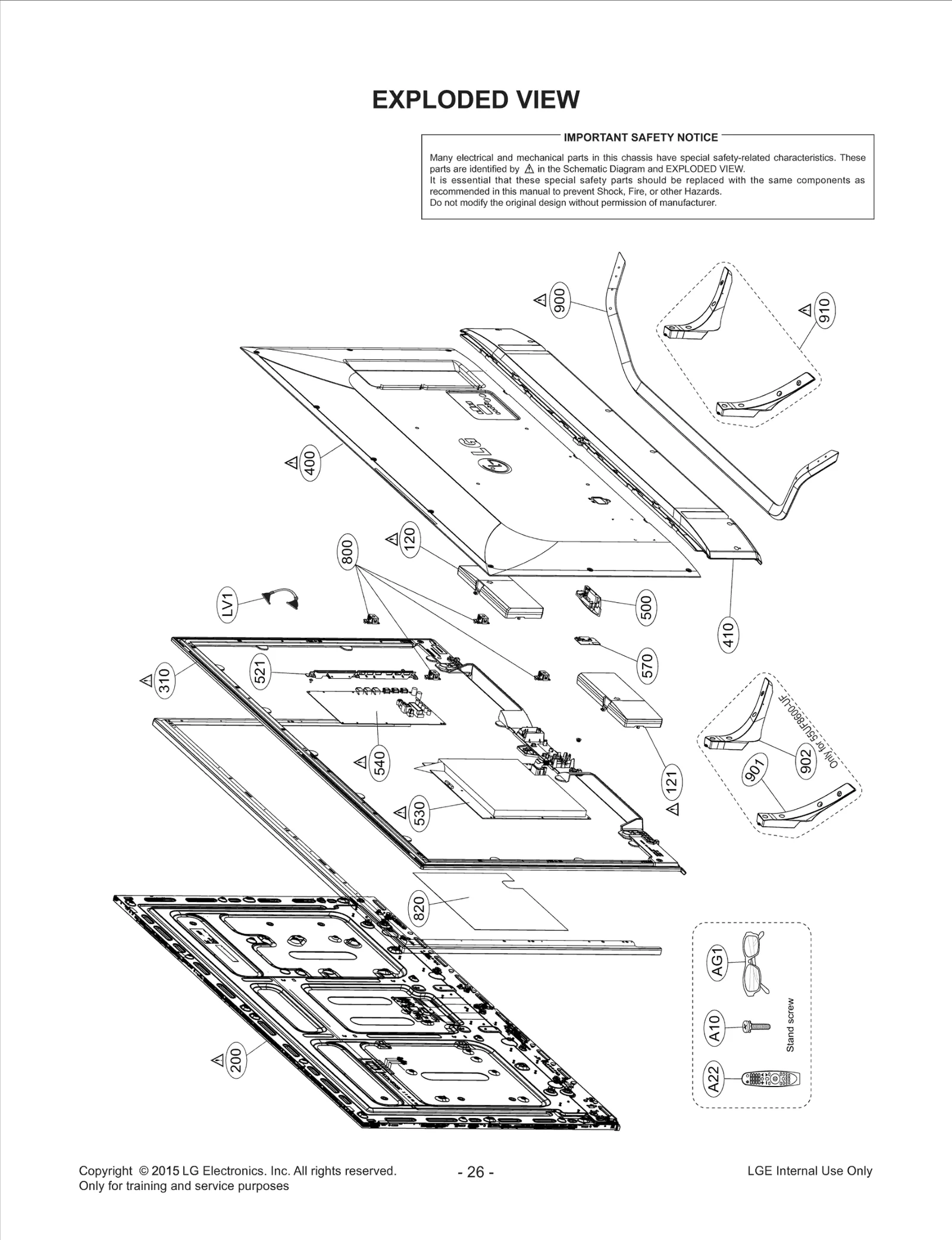

Diagram 1
Common parts from model LG 55UF8600
200
LCD,Module-TFT LGE EAJ63389001 Contact Us For Availability
310
Cabinet Assembly LGE ABJ74707704 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87692524 Contact Us For Availability
410
Cover Assembly,Rear LGE ACQ87730316 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR79942901 Contact Us For Availability
521
Bracket LGE MAZ64546009 Contact Us For Availability
540
Chassis Assembly LGE EBT63812902 Contact Us For Availability
800
Supporter LGE MJH63133501 Contact Us For Availability
820
Insulator LGE MEV65152401 Contact Us For Availability
901
Base Assembly LGE AAN75070246 Contact Us For Availability
902
Base Assembly LGE AAN75070245 Contact Us For Availability
A22
Remocon kit,Package Assembly LGE AGF77840201 Contact Us For Availability
AG1
AG-F310---3D Glasses LGE EBX61668501 Contact Us For Availability
AM
Manual Assembly LGE AFN76832102 Contact Us For Availability
AM1
Manual,Owners LGE MFL68741502 Contact Us For Availability
AR418
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR3000
Resistor,Array LGE EBC62582702 Contact Us For Availability
AR4102
Resistor,Array LGE EBC62582706 Contact Us For Availability
AR7101
Resistor,Array LGE EBC62582704 Contact Us For Availability
AR8102
Resistor,Array LGE EBC32260501 Contact Us For Availability
AR8104
Resistor,Array LGE EBC32260401 Contact Us For Availability
AR13106
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR13201
Resistor,Array LGE EBC62582701 Contact Us For Availability
B1
Box LGE MAY67070202 Contact Us For Availability
B2
Box LGE MAY66251025 Contact Us For Availability
C212
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C231
Capacitor,Ceramic,Ch LGE EAE30281901 Contact Us For Availability
C414
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C431
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C519
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C603
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C624
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C2301
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2329
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C2330
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C2337
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C2342
Capacitor,TA,Polymer LGE EAE62987401 Contact Us For Availability
C2343
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C2347
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C2357
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C2502
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C3003
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C3800
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C3817
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C4105
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5813
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5819
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C5824
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C6101
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C6108
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C6519
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C6708
Capacitor,Ceramic,Chip LGE 0CK102EY48A Contact Us For Availability
C13312
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C13315
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C13444
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
CA1
Harness,Multi LGE EAD63305304 Contact Us For Availability
CA2
Harness,Multi LGE EAD62847614 Contact Us For Availability
CA4
Harness,Multi LGE EAD63286702 Contact Us For Availability
D1900
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D3000
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3305
Diode,Switching LGE EAH61714301 Contact Us For Availability
D4302
Diode,TVS LGE EAH61515101 Contact Us For Availability
D4304
Diode,TVS LGE EAH61232601 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN63728101 Contact Us For Availability
IC200
IC,Analog Switch LGE EAN62658501 Contact Us For Availability
IC404
IC,DDR3 SDRAM LGE EAN63391401 Contact Us For Availability
IC405
IC,DDR3 SDRAM LGE EAN63667401 Contact Us For Availability
IC407
IC,LDO Voltage Regulator LGE EAN63492401 Contact Us For Availability
IC1901
IC,Serial Flash Memory LGE EAN62459301 Contact Us For Availability
IC1901
IC,Serial Flash Memory LGE EAN62459501 Contact Us For Availability
IC2301
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC2302
IC,DC,DC Converter LGE EAN62653301 Contact Us For Availability
IC2303
IC,DC,DC Converter LGE EAN63530101 Contact Us For Availability
IC2305
IC,DC,DC Converter LGE EAN62911501 Contact Us For Availability
IC2309
FET LGE EBK61313102 Contact Us For Availability
IC2500
Display SOC,Digital TV LGE EAN63010001 Contact Us For Availability
IC2501
IC,DC,DC Converter LGE EAN63530201 Contact Us For Availability
IC2900
IC,DDR3 SDRAM LGE EAN63511401 Contact Us For Availability
IC4100
IC,Analog Switch LGE EAN63047601 Contact Us For Availability
IC4300
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC5800
IC,Audio Amplifier LGE EAN62886102 Contact Us For Availability
IC6100
IC,Audio Amplifier LGE EAN62668301 Contact Us For Availability
JK3800
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK3802
Jack,RCA LGE EAG60968213 Contact Us For Availability
JK4302
Connector,USB LGE EAG62571101 Contact Us For Availability
JK5000
Jack,Modular LGE EAG35781010 Contact Us For Availability
JK5000
Jack,Modular LGE EAG35781015 Contact Us For Availability
L200
Filter,Bead LGE EAM61130602 Contact Us For Availability
L2301
Filter,Bead LGE EAM38769505 Contact Us For Availability
L2312
Inductor,Wire Wound,Chip LGE EAP63025901 Contact Us For Availability
L2313
Inductor,Wire Wound,Chip LGE EAP62506410 Contact Us For Availability
L2322
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L5803
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L13415
Inductor,Wire Wound,Chip LGE EAP62886505 Contact Us For Availability
M4109
Gasket LGE MDS62110225 Contact Us For Availability
M13502
Connector,BtoB LGE EAG64250901 Contact Us For Availability
M13511
Gasket LGE MDS62110209 Contact Us For Availability
P4100
Connector,Wafer LGE EAG63590901 Contact Us For Availability
Q2300
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q7100
FET LGE EBK62072501 Contact Us For Availability
Q7105
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R130
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R143
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R144
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R175
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R185
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R428
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R618
Resistor,Chip LGE EBC35273701 Contact Us For Availability
R632
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R633
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R1925
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R2302
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R2305
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R2307
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R2308
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R2309
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R2318
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R2332
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R2336
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2342
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R2351
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R2352
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R2504
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R2506
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R2508
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R3033
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R3034
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R3302
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R3335
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R3800
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R3808
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R4115
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R4306
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R5808
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R5813
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R6517
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R13121
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R13134
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R13206
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R13401
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R13410
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R13413
RESISTOR,METAL GLAZE LGE 0RJ2203D677 Contact Us For Availability
R13422
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R13423
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R13425
Resistor,Chip LGE 0RH3903D622 Contact Us For Availability
SW1901
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TU6705
Tuner,Analog/Digital LGE EBL61540001 Contact Us For Availability
VA3300
Varistor LGE EAF61530101 Contact Us For Availability
VA3307
Varistor LGE EAF61530301 Contact Us For Availability
VA3805
Varistor LGE EAF61630101 Contact Us For Availability
VA5003
Varistor LGE EAF61530201 Contact Us For Availability
X600
Crystal LGE EAW61645502 Contact Us For Availability
X3000
Crystal LGE EAW58239602 Contact Us For Availability
ZD13401
Diode,TVS LGE EAH62134701 Contact Us For Availability
× ![]()
