Model LG 55UF6700 – Common Parts & Diagrams

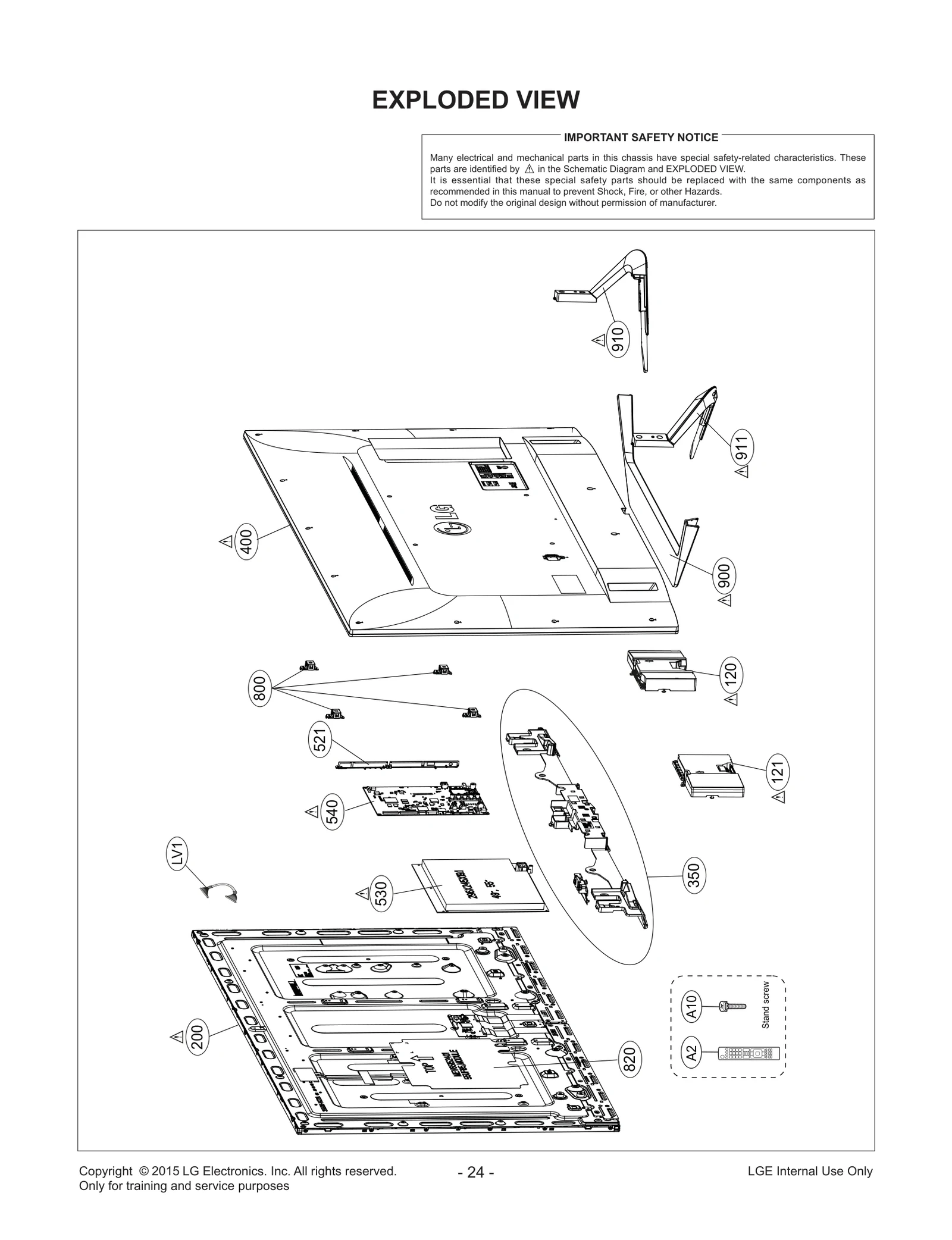

Diagram 0
Diagram 1
Common parts from model LG 55UF6700
121
Speaker Assembly LGE EAB63688301 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63327901 Contact Us For Availability
350
Bracket Assembly LGE ABA75269006 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87687716 Contact Us For Availability
521
Bracket LGE MAZ64584302 Contact Us For Availability
540
Chassis Assembly LGE EBT63714408 Contact Us For Availability
800
Supporter LGE MJH63133501 Contact Us For Availability
820
Insulator LGE MEV65152401 Contact Us For Availability
900
Base Assembly LGE AAN75070105 Contact Us For Availability
910
Base Assembly LGE AAN75070214 Contact Us For Availability
911
Base Assembly LGE AAN75070213 Contact Us For Availability
AM1
Manual,Owners LGE MFL68685902 Contact Us For Availability
AR101
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR1352
Resistor,Array LGE EBC62582701 Contact Us For Availability
AR1394
Resistor,Array LGE EBC62582702 Contact Us For Availability
B1
Box LGE MAY67050701 Contact Us For Availability
C113
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C200
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C213
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C216
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C220
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C233
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C284
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C416
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C419
Capacitor,Ceramic,Chip LGE 0CK393CK56A Contact Us For Availability
C423
Capacitor,Ceramic,Chip LGE 0CC271BK4AA Contact Us For Availability
C425
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C428
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C433
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C2803
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C3701
Capacitor,Ceramic,Chip LGE 0CK102EY48A Contact Us For Availability
C4604
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5605
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C5608
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C5616
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5621
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C5623
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C5631
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C13404
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C13406
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C13412
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C136069
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C136072
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C136089
Capacitor,Ceramic,Ch LGE EAE30281901 Contact Us For Availability
D1395
Diode,Switching LGE EAH61714301 Contact Us For Availability
IC101
Display SOC,Monitor LGE EAN62929501 Contact Us For Availability
IC104
IC,EEPROM LGE EAN62389502 Contact Us For Availability
IC401
IC,Voltage Detector LGE EAN61829902 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN62911401 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC405
IC,DC,DC Converter LGE EAN63530101 Contact Us For Availability
IC406
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC1300
IC,Serial Flash Memory LGE EAN63127201 Contact Us For Availability
IC1351
IC,Serial Flash Memory LGE EAN62459501 Contact Us For Availability
IC1392
IC,EEPROM LGE 0IMMRAL014E Contact Us For Availability
IC1392
IC,EEPROM LGE EAN63486001 Contact Us For Availability
IC5600
IC,Audio Amplifier LGE EAN62886102 Contact Us For Availability
IC13402
IC,DC,DC Converter LGE EAN62870301 Contact Us For Availability
JK700
Connector,USB LGE EAG62571101 Contact Us For Availability
JK3000
Jack,Phone LGE EAG61030009 Contact Us For Availability
L405
Inductor,Wire Wound,Chip LGE EAP62886506 Contact Us For Availability
L408
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L411
Filter,Bead LGE EAM62091201 Contact Us For Availability
L5600
Filter,Bead LGE EAM38769505 Contact Us For Availability
L5605
Inductor,Wire Wound,Chip LGE EAP38274505 Contact Us For Availability
L13403
Inductor,Wire Wound,Chip LGE EAP62886505 Contact Us For Availability
L13404
Inductor,Wire Wound,Chip LGE EAP62506407 Contact Us For Availability
Q401
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q401
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q405
FET LGE EBK61313102 Contact Us For Availability
Q405
FET LGE EBK61232301 Contact Us For Availability
Q406
FET LGE EBK61913702 Contact Us For Availability
Q13005
FET LGE EBK62072501 Contact Us For Availability
Q13033
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R106
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R112
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R147
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R165
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R187
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R197
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R200
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R240
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R418
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R431
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R435
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R450
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R1382
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1403
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R1418
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R1915
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R2800
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R2859
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R3738
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R5607
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R5609
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R13036
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R13042
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R13400
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R13403
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R13405
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R13406
Resistor,Chip LGE EBC34656201 Contact Us For Availability
R13407
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R13408
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R13409
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R13411
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R13412
Resistor,Chip LGE EBC35293401 Contact Us For Availability
R13413
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R13414
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R13416
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R13417
Resistor,Chip LGE ERHZ0000242 Contact Us For Availability
R13556
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R13563
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R13588
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R13593
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
X1351
Crystal LGE EAW61645502 Contact Us For Availability
ZD13400
Diode,TVS LGE EAH62134701 Contact Us For Availability
× ![]()
