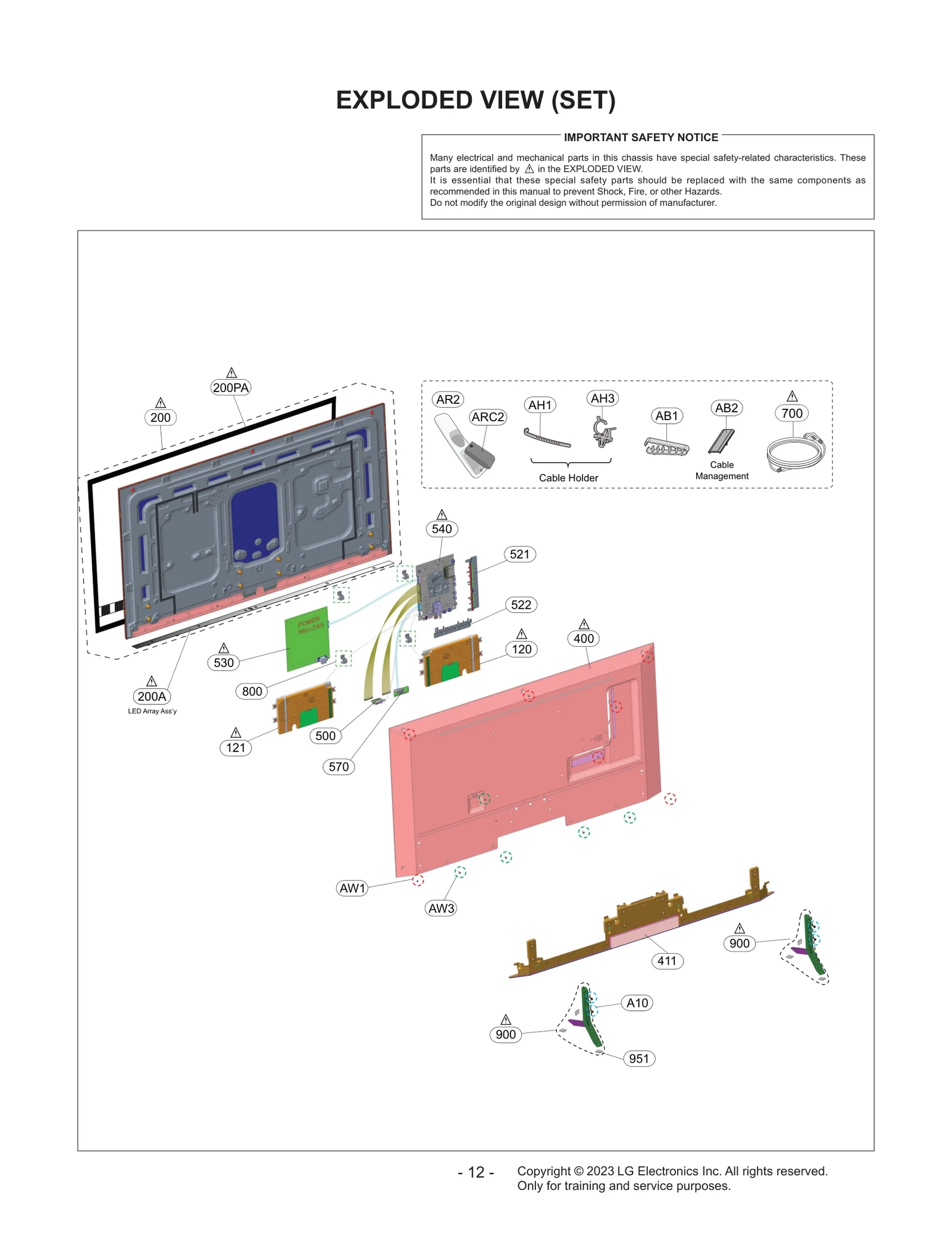

Model LG 55QNED75URA – Common Parts & Diagrams

121
Speaker Assembly
Speaker Assembly LGE EAB65828104 Contact Us For Availability
View on Model
200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ65866901 Contact Us For Availability
View on Model
200A
Package Assembly,LED Array
Package Assembly,LED Array LGE AGF30442301 Contact Us For Availability
View on Model
200L
Plate Assembly,Light Guide
Plate Assembly,Light Guide LGE AGU30085601 Contact Us For Availability
View on Model
200PA
LCD Panel Kit
LCD Panel Kit LGE EAJ65826708 Contact Us For Availability
View on Model
411
Cover Assembly
Cover Assembly LGE ACQ30463717 Contact Us For Availability
View on Model
521
Bracket
Bracket LGE MAZ67472146 Contact Us For Availability
View on Model
522
Bracket
Bracket LGE MAZ67472278 Contact Us For Availability
View on Model
540
Mainboard,BPR Total Assembly,SVC
Mainboard,BPR Total Assembly,SVC LGE EBU67455511 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN30013464 Contact Us For Availability
View on Model
AB1
Bracket
Bracket LGE MAZ67110806 Contact Us For Availability
View on Model
AB2
Bracket
Bracket LGE MAZ67464206 Contact Us For Availability
View on Model
AH3
Holder
Holder LGE MEG61841309 Contact Us For Availability
View on Model
AW1
Screw,Machine
Screw,Machine LGE FAB31843211 Contact Us For Availability
View on Model
AW3
Screw,Taptite
Screw,Taptite LGE FAB31639801 Contact Us For Availability
View on Model
HP1
Harness,Single
Harness,Single LGE EAD64586108 Contact Us For Availability
View on Model
HS1
Harness,Multi
Harness,Multi LGE EAD63727354 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD64666325 Contact Us For Availability
View on Model
