Model LG 55LY970H – Common Parts & Diagrams

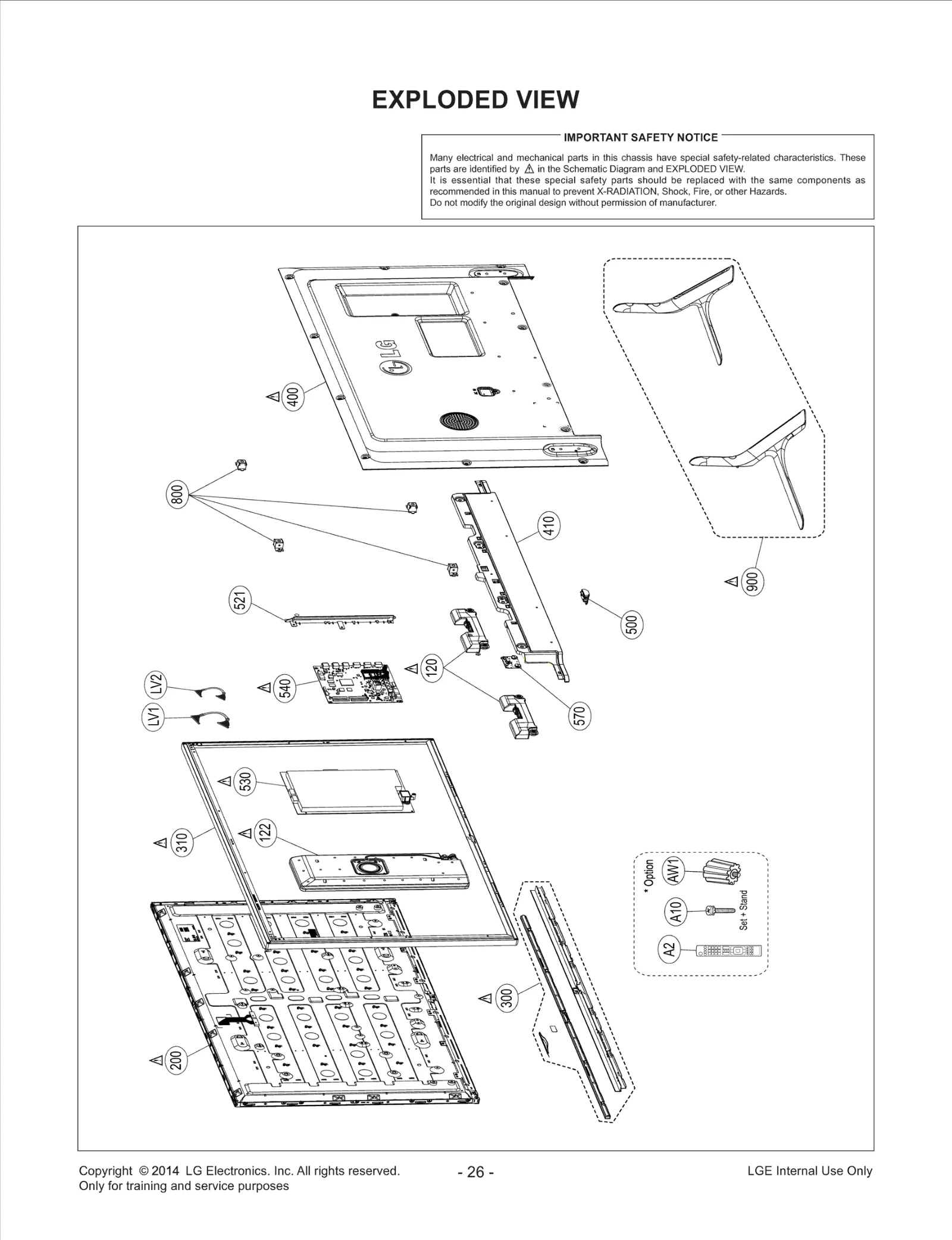

Diagram 0
Diagram 1
Common parts from model LG 55LY970H
122
Speaker Assembly LGE EAB63030701 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63247801 Contact Us For Availability
300
Cabinet Assembly LGE ABJ74267816 Contact Us For Availability
310
Cabinet Assembly LGE ABJ74167806 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86828134 Contact Us For Availability
410
Cover Assembly,Rear LGE ACQ86835905 Contact Us For Availability
521
Bracket Assembly LGE ABA74669834 Contact Us For Availability
540
Chassis Assembly LGE EBT63437907 Contact Us For Availability
A2
Package Assembly LGE AGF76692627 Contact Us For Availability
A2S
Remote Controller Assembly LGE AKB73756573 Contact Us For Availability
AM
Manual Assembly LGE AFN76212015 Contact Us For Availability
AM1
Manual,Owners LGE MFL68080315 Contact Us For Availability
AR3201
Resistor,Array LGE EBC62582701 Contact Us For Availability
AR8102
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR8104
Resistor,Array LGE EBC32260401 Contact Us For Availability
AR8200
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AW1
Package Assembly LGE AGF77022213 Contact Us For Availability
B1
Box LGE MAY66026202 Contact Us For Availability
B2
Box LGE MAY65262777 Contact Us For Availability
C102
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C107
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C343
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C348
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C618
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C2312
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C2322
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C2328
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2330
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C2343
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C2344
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C3402
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C5611
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5631
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C7701
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C7705
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C7707
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C8205
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C8211
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C8430
Capacitor,Ceramic,Chip LGE EAE60663801 Contact Us For Availability
C8615
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C8657
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C8659
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C8662
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C8702
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C8724
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C8804
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C8806
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C8918
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C8922
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C8928
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C9005
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C9026
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C9102
Capacitor,Ceramic,Ch LGE 0CK335FK66A Contact Us For Availability
C9108
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C9114
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C9408
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C9410
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C9425
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
CA1
Harness,Multi LGE EAD62353221 Contact Us For Availability
CA2
Harness,Multi LGE EAD62688001 Contact Us For Availability
CA3
Harness,Single LGE EAD62595303 Contact Us For Availability
D3206
Diode,Schottky LGE EAH40478101 Contact Us For Availability
D3207
Diode,Switching LGE EAH61714301 Contact Us For Availability
D3208
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3211
Diode,TVS LGE EAH62135001 Contact Us For Availability
D4301
Diode,TVS LGE EAH62094301 Contact Us For Availability
D7701
Diode,Rectifier LGE EAH61515701 Contact Us For Availability
D7706
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D8805
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D8910
Diode,Schottky LGE 0DSKE00058A Contact Us For Availability
D9004
Varistor LGE EAF61530201 Contact Us For Availability
D9100
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62869001 Contact Us For Availability
IC402
IC,DDR3 SDRAM LGE EAN62571101 Contact Us For Availability
IC501
IC,DDR3 SDRAM LGE EAN61829204 Contact Us For Availability
IC2300
IC,DC,DC Converter LGE EAN62870701 Contact Us For Availability
IC2301
IC,DC,DC Converter LGE EAN62870301 Contact Us For Availability
IC2302
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC2303
IC,DC,DC Converter LGE EAN62870501 Contact Us For Availability
IC2304
IC,DC,DC Converter LGE EAN62911501 Contact Us For Availability
IC2306
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC3200
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC3202
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC3801
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC5600
IC,Audio Amplifier LGE EAN62886101 Contact Us For Availability
IC7703
IC,PMIC LGE EAN62886201 Contact Us For Availability
IC8100
IC,MCP,eMMC LGE EAN62886901 Contact Us For Availability
IC8200
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC8601
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC8701
IC,Microcontrollers LGE EAN61015302 Contact Us For Availability
IC8702
IC,EEPROM LGE EAN60743402 Contact Us For Availability
IC8704
IC,CMOS LGE EAN61000301 Contact Us For Availability
IC8800
IC,DC,DC Converter LGE EAN62206101 Contact Us For Availability
IC8900
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC8901
IC,LDO Voltage Regulator LGE EAN61387601 Contact Us For Availability
IC9000
IC,Ethernet LGE EAN62219202 Contact Us For Availability
IC9003
IC,Analog Switch LGE EAN63047601 Contact Us For Availability
IC9102
IC,DC,DC Converter LGE EAN60993001 Contact Us For Availability
IC9400
IC,Voltage Detector LGE EAN60916901 Contact Us For Availability
IC9403
IC,Video Processors LGE EAN62096701 Contact Us For Availability
JK3401
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK3402
Jack,RCA LGE EAG60968213 Contact Us For Availability
JK4302
Connector,USB LGE EAG62571101 Contact Us For Availability
JK8700
Jack,Modular LGE EAG61453603 Contact Us For Availability
JK8900
Jack,Modular LGE 6612E00008C Contact Us For Availability
JK8901
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK9000
Jack,Modular LGE EAG35781010 Contact Us For Availability
L305
Filter,Bead LGE EAM54407902 Contact Us For Availability
L2305
Inductor,Wire Wound,Chip LGE EAP61746701 Contact Us For Availability
L2309
Inductor,Wire Wound,Chip LGE EAP62026301 Contact Us For Availability
L2311
Inductor,Wire Wound,Chip LGE EAP62506410 Contact Us For Availability
L5604
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L5607
Filter,Bead LGE EAM38769505 Contact Us For Availability
L7703
Inductor,Wire Wound,Chip LGE EAP61006801 Contact Us For Availability
L7704
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L8604
Inductor,Wire Wound,Chip LGE EAP61606601 Contact Us For Availability
L8800
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L9400
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD8200
LED,Chip LGE 0DL210009GC Contact Us For Availability
LV2
Cable,FFC LGE EAD62593901 Contact Us For Availability
P103
Connector,Wafer LGE 6602T12004J Contact Us For Availability
P4000
Connector,Wafer LGE EAG63590901 Contact Us For Availability
P5600
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P7702
Connector,FFC/FPC/PIC LGE EAG63612101 Contact Us For Availability
Q3202
TRANSISTOR,FETS LGE 0TFON80004C Contact Us For Availability
Q3203
FET LGE EBK62091801 Contact Us For Availability
Q7702
FET LGE EBK60752601 Contact Us For Availability
Q8725
FET LGE EBK61913601 Contact Us For Availability
Q8901
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q8903
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q8907
TR,Bipolar LGE EBK61012701 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R172
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R326
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R356
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R374
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R376
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R378
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R2301
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R2302
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R2303
Resistor,Chip LGE EBC35293401 Contact Us For Availability
R2305
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R2308
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R2312
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R2313
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R2315
Resistor,Chip LGE EBC34656201 Contact Us For Availability
R2316
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R2317
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R2319
RESISTOR,METAL GLAZE LGE 0RJ9101C478 Contact Us For Availability
R2320
Resistor,Chip LGE EBC61496201 Contact Us For Availability
R2321
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R2322
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R2326
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2329
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R2331
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R2333
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R2341
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R2345
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R2347
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R2358
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R2359
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R3210
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R3212
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R3400
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R4015
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R5615
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R7700
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R7704
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R7718
Resistor,Chip LGE EBC60972101 Contact Us For Availability
R7719
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R7739
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R8204
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R8213
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R8424
Resistor,Chip LGE 0RJ1691D477 Contact Us For Availability
R8715
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R8745
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R8760
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R8774
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R8775
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R8811
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R8812
Resistor,Chip LGE 0RH1602D622 Contact Us For Availability
R8912
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R8928
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R8937
Resistor,Chip LGE EBC60973201 Contact Us For Availability
R8947
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R8956
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R8957
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R8970
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R9011
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R9100
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R9107
Resistor,Chip LGE 0RJ1503D677 Contact Us For Availability
R9114
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R9118
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
TH7700
Thermistor,NTC LGE 6322A00028A Contact Us For Availability
VA3208
Varistor LGE EAF61530301 Contact Us For Availability
VA3403
Varistor LGE EAF61530101 Contact Us For Availability
VA3404
Varistor LGE EAF61630101 Contact Us For Availability
X101
Crystal LGE EAW61645502 Contact Us For Availability
X8400
Crystal LGE 6212AB2015C Contact Us For Availability
X8700
Crystal LGE EAW30067102 Contact Us For Availability
X9000
Crystal LGE 6212AB2872B Contact Us For Availability
× ![]()
Login and Registration Form
