Model LG 55LY750H – Common Parts & Diagrams

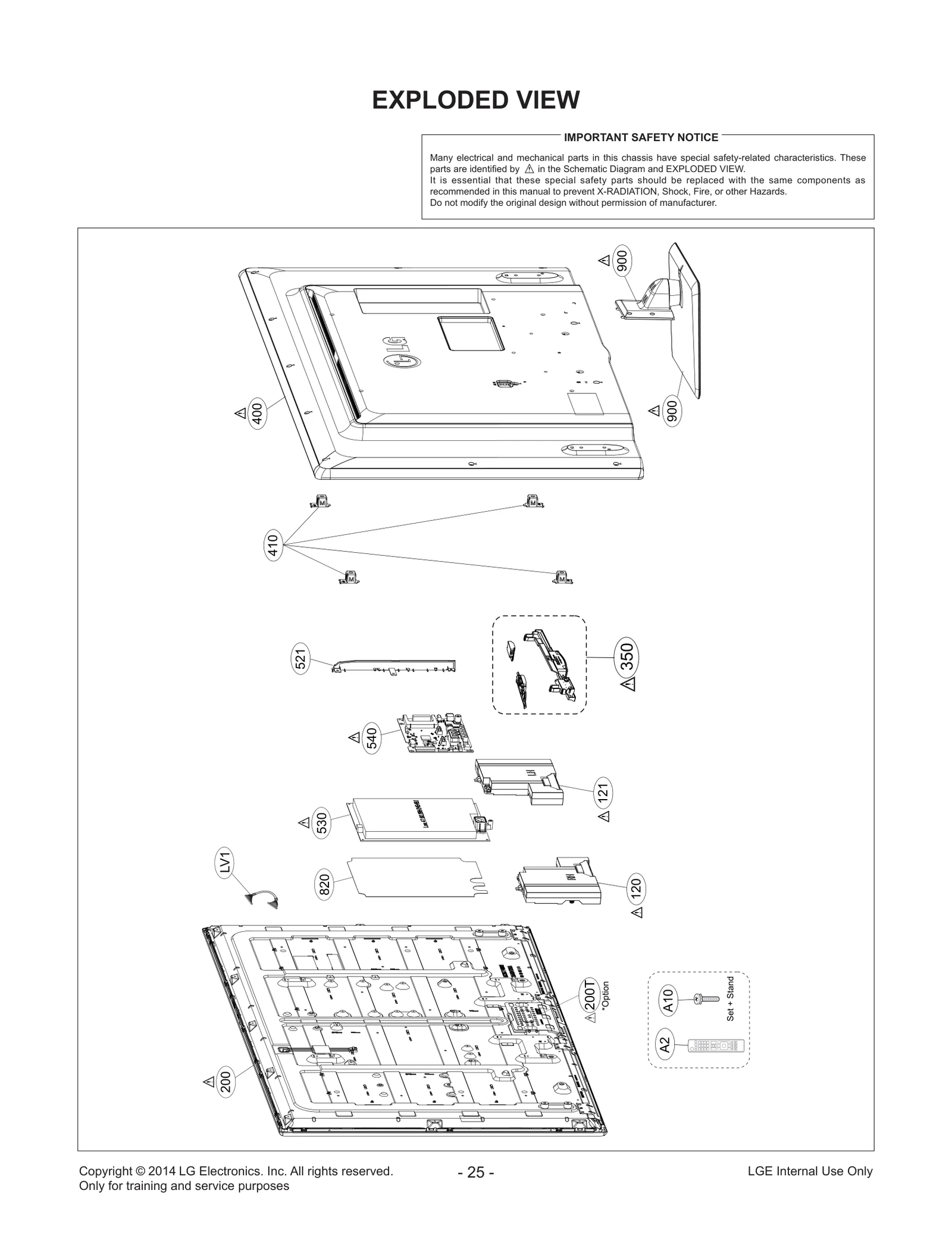

Diagram 0
Diagram 1
Common parts from model LG 55LY750H
200
LCD,Module-TFT LGE EAJ62747801 Contact Us For Availability
350
Cover Assembly LGE ACQ87250816 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86683274 Contact Us For Availability
521
Bracket Assembly LGE ABA74789731 Contact Us For Availability
820
Insulator LGE MEV64571001 Contact Us For Availability
900
Base Assembly LGE AAN74669703 Contact Us For Availability
910
Bracket LGE MAZ64132002 Contact Us For Availability
A2
Remocon kit,Package Assembly LGE AGF76692613 Contact Us For Availability
AM1
Manual,Owners LGE MFL68080312 Contact Us For Availability
AR8101
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR8103
Resistor,Array LGE EBC32260401 Contact Us For Availability
B2
Box LGE MAY65262719 Contact Us For Availability
C115
Capacitor,Ceramic,Ch LGE 0CK2R7BK0DA Contact Us For Availability
C312
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C343
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C355
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C504
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C520
Capacitor,Ceramic,Chip LGE EAE62764101 Contact Us For Availability
C706
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C2405
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C2428
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C2431
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2447
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C3809
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C4310
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C4347
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C4349
Capacitor,Ceramic,Ch LGE 0CK335FK66A Contact Us For Availability
C5422
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C5431
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5435
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C5444
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C8430
Capacitor,Ceramic,Chip LGE EAE60663801 Contact Us For Availability
C8606
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C8609
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C8616
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C8619
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C8661
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C8671
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C8702
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C8717
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C8724
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C9005
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C9200
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C9207
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C9210
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C9222
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
CA2
Harness,Single LGE EAD61646293 Contact Us For Availability
D3302
Diode,Switching LGE EAH61714301 Contact Us For Availability
D3305
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D3325
Diode,TVS LGE EAH62135001 Contact Us For Availability
D3803
Diode,Switching LGE EAH60666101 Contact Us For Availability
D4104
Varistor LGE EAF61530101 Contact Us For Availability
D4303
Diode,TVS LGE EAH61515101 Contact Us For Availability
D8602
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D8804
Diode,TVS LGE EAH33945901 Contact Us For Availability
D9100
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
IC100
IC,EEPROM LGE EAN61925802 Contact Us For Availability
IC104
IC,EEPROM LGE EAN61548301 Contact Us For Availability
IC105
Display SOC,Digital TV LGE EAN62408001 Contact Us For Availability
IC704
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC2403
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC2404
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC2405
IC,DC,DC Converter LGE EAN61950701 Contact Us For Availability
IC3306
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC3801
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC4303
IC,Analog Switch LGE EAN62231201 Contact Us For Availability
IC5400
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC6500
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC8100
IC,MCP,eMMC LGE EAN62886901 Contact Us For Availability
IC8600
IC,DC,DC Converter LGE EAN62206101 Contact Us For Availability
IC8601
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC8705
IC,FRAM LGE 0IMMRRA001B Contact Us For Availability
IC9000
IC,Ethernet LGE EAN62219202 Contact Us For Availability
IC9102
IC,DC,DC Converter LGE EAN60993001 Contact Us For Availability
IC9200
IC,Voltage Detector LGE EAN60916901 Contact Us For Availability
IC9202
IC,Video Processors LGE EAN62096701 Contact Us For Availability
JK3601
Jack,RCA LGE EAG60968108 Contact Us For Availability
JK3602
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK3803
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK4304
Connector,USB LGE EAG62571101 Contact Us For Availability
JK8700
Jack,Modular LGE EAG61453603 Contact Us For Availability
JK8701
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK8800
Jack,Modular LGE 6612E00008C Contact Us For Availability
JK9001
Jack,Modular LGE EAG35781010 Contact Us For Availability
L2408
Filter,Bead LGE EAM32500903 Contact Us For Availability
L2409
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L5402
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L8404
Filter,Bead LGE EAM38769505 Contact Us For Availability
L8603
Inductor,Wire Wound,Chip LGE EAP61606601 Contact Us For Availability
L9200
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD62572203 Contact Us For Availability
P2401
Connector,Wafer LGE EAG63590901 Contact Us For Availability
P5400
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P7100
Connector,Wafer LGE 6630V93270J Contact Us For Availability
Q4301
FET LGE EBK61913601 Contact Us For Availability
Q8711
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q8724
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R123
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R185
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R330
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R334
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R343
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R379
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R500
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R716
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R733
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1006
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R2404
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R2409
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R2427
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R2432
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R2433
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R2434
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R2439
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R2441
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R3360
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R3361
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R3392
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R4107
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R4328
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R4330
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R4331
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R4347
Resistor,Chip LGE 0RJ1503D677 Contact Us For Availability
R4350
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R5410
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R5418
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R6517
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R8406
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R8424
Resistor,Chip LGE 0RJ1691D477 Contact Us For Availability
R8465
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R8648
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R8649
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R8674
Resistor,Chip LGE 0RH1602D622 Contact Us For Availability
R8804
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R8806
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R9068
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R9100
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R9114
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R9256
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R87044
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R87049
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
TU6500
Tuner,Analog/Digital LGE EBL61060101 Contact Us For Availability
X100
Crystal LGE EAW61645503 Contact Us For Availability
X8400
Crystal LGE 6212AB2015C Contact Us For Availability
X8700
Crystal LGE EAW30067102 Contact Us For Availability
X9000
Crystal LGE 6212AB2872B Contact Us For Availability
ZD301
Diode,Zener LGE EAH61752501 Contact Us For Availability
ZD4301
Varistor LGE EAF61630101 Contact Us For Availability
× ![]()
