Model LG 55LY340C – Common Parts & Diagrams

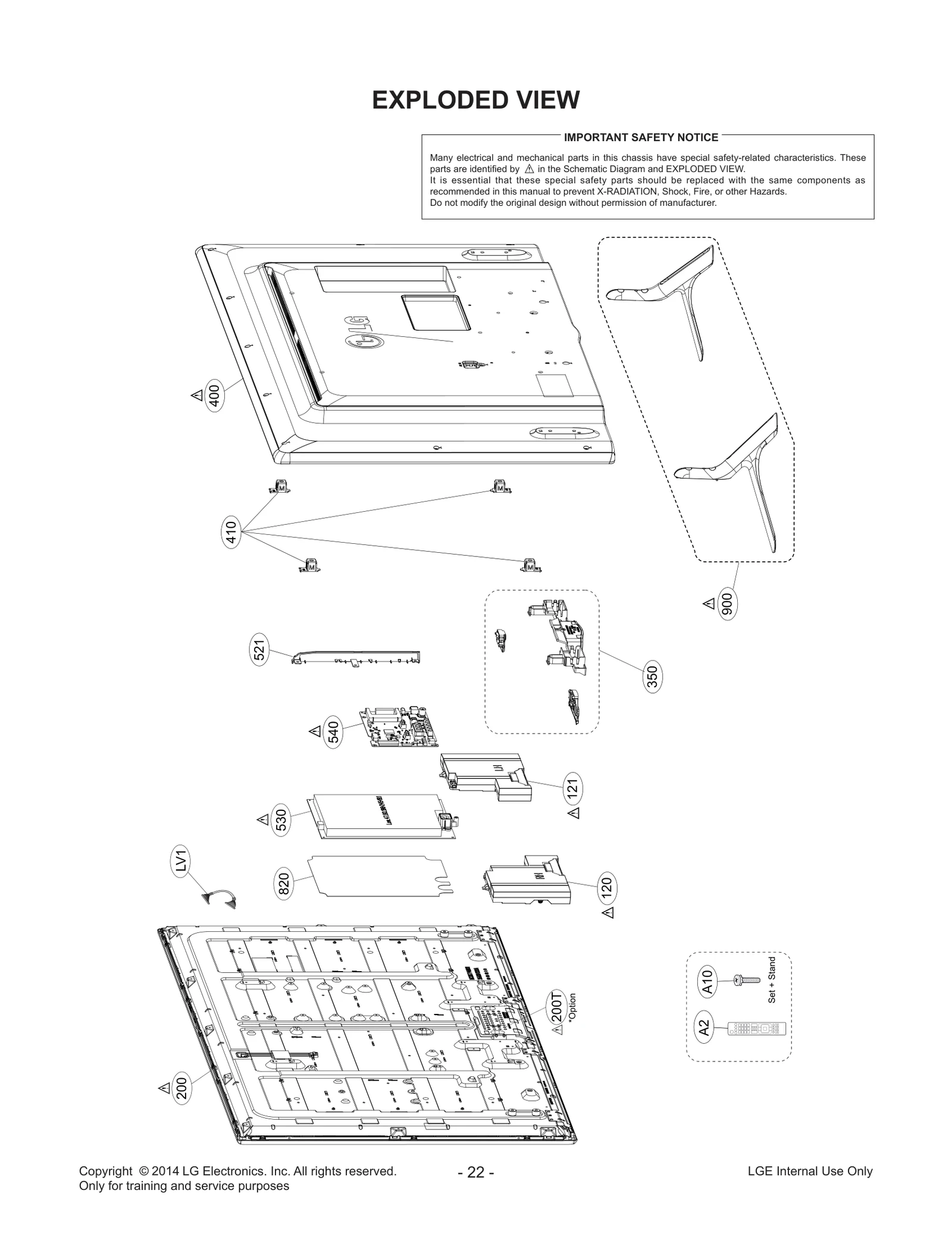

Diagram 0
Diagram 1
Common parts from model LG 55LY340C
121
Speaker Assembly LGE EAB62972101 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62567701 Contact Us For Availability
350
Cover Assembly LGE ACQ86682658 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86683266 Contact Us For Availability
521
Bracket Assembly LGE ABA74789727 Contact Us For Availability
540
Chassis Assembly LGE EBT62961101 Contact Us For Availability
820
Insulator LGE MEV64571001 Contact Us For Availability
A2
Remocon kit,Package Assembly LGE AGF76631012 Contact Us For Availability
AM
Manual Assembly LGE AFN76212062 Contact Us For Availability
AM1
Manual,Owners LGE MFL68080362 Contact Us For Availability
AR104
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
B1
Box LGE MAY66026202 Contact Us For Availability
B2
Box LGE MAY65262777 Contact Us For Availability
C203
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C209
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C233
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C248
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C271
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C411
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C412
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C416
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C419
Capacitor,Ceramic,Chip LGE 0CK393CK56A Contact Us For Availability
C427
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C428
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C431
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C433
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C434
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C902
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C912
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C914
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C918
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C924
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C1002
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1602
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C4602
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C4604
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5608
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C5611
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C5613
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C5615
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C5616
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C5628
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C5630
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C5640
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
CA1
Harness,Single LGE EAD62526502 Contact Us For Availability
CA3
Harness,Single LGE EAD61646293 Contact Us For Availability
D400
Diode,Schottky LGE EAH40478101 Contact Us For Availability
D800
Diode,Switching LGE EAH61714301 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62887201 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN35669103 Contact Us For Availability
IC104
IC,EEPROM LGE EAN61548301 Contact Us For Availability
IC104
IC,EEPROM LGE EAN62389501 Contact Us For Availability
IC400
IC,DC,DC Converter LGE EAN62911301 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN62911401 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC901
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC1300
IC,Serial Flash Memory LGE EAN55718402 Contact Us For Availability
IC5600
IC,Audio Amplifier LGE EAN62494901 Contact Us For Availability
JK700
Connector,USB LGE EAG62571101 Contact Us For Availability
JK705
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK706
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1001
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1702
Jack,RCA LGE EAG60968213 Contact Us For Availability
L201
Filter,Bead LGE EAM32500903 Contact Us For Availability
L220
Inductor,Multilayer,Chip LGE EAP39314712 Contact Us For Availability
L402
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L405
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L406
Filter,Bead LGE EAM62091201 Contact Us For Availability
L407
Inductor,Wire Wound,Chip LGE EAP62326501 Contact Us For Availability
L702
Filter,Bead LGE EAM54407902 Contact Us For Availability
L905
Inductor,Wire Wound,Chip LGE EAP61606601 Contact Us For Availability
L5600
Filter,Bead LGE EAM38769505 Contact Us For Availability
L5603
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
LV1
Cable,FFC LGE EAD62572203 Contact Us For Availability
P401
Connector,Wafer LGE EAG63590901 Contact Us For Availability
P1100
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P5600
Connector,Wafer LGE EAG61091601 Contact Us For Availability
Q401
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q405
FET LGE EBK61913601 Contact Us For Availability
Q4617
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R109
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R217
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R236
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R242
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R254
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R255
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R422
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R427
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R428
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R431
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R437
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R439
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R450
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R451
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R466
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R719
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R800
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R805
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R812
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R817
Resistor,Chip LGE ERHZ0000461 Contact Us For Availability
R1209
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1703
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1707
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R4600
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R4604
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R5607
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R5608
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R5609
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
VA703
Varistor LGE EAF61530301 Contact Us For Availability
VA1701
Varistor LGE EAF61530101 Contact Us For Availability
ZD403
Diode,TVS LGE EAH62134701 Contact Us For Availability
× ![]()
