Model LG 55LX774M – Common Parts & Diagrams

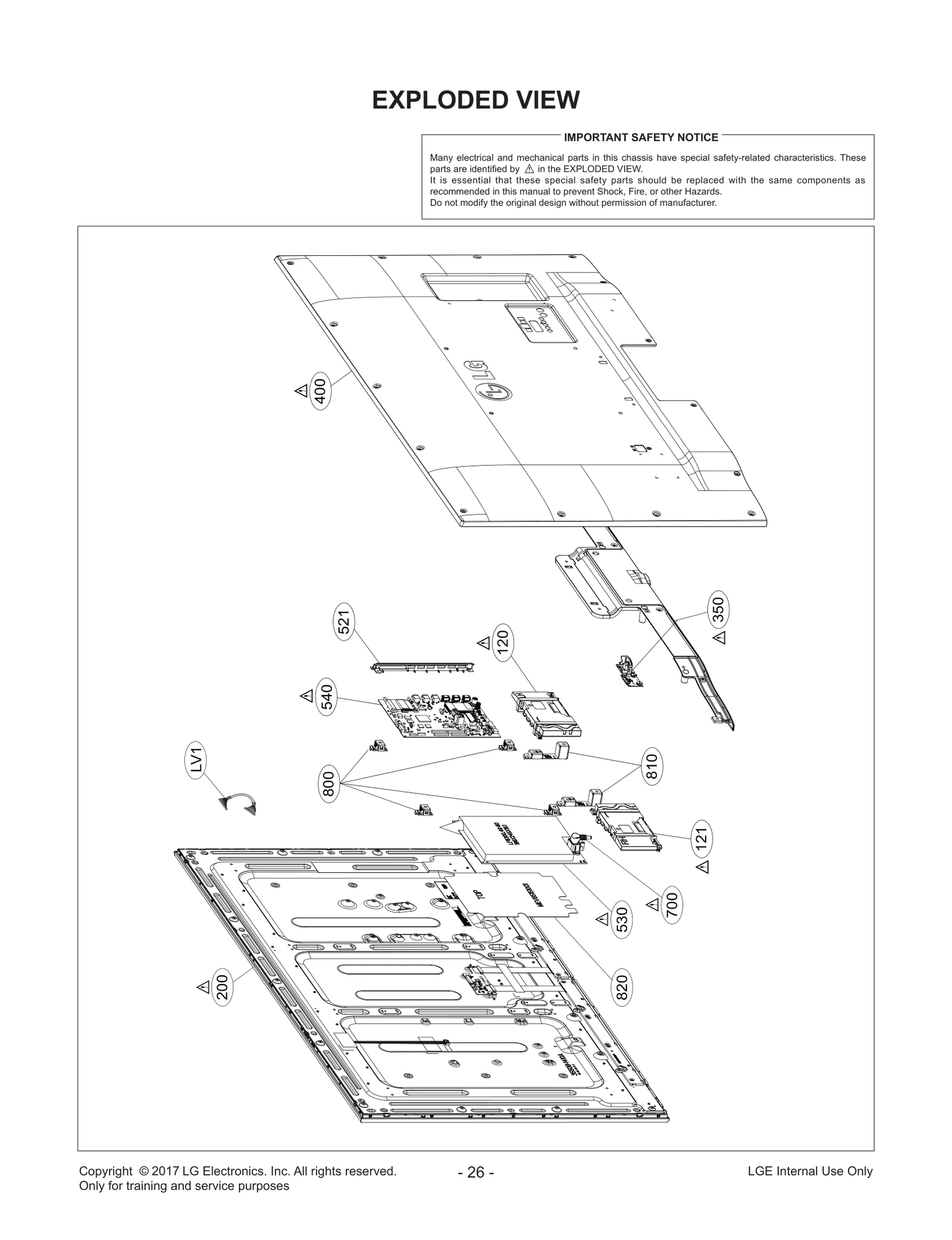

Diagram 0
Diagram 1
Common parts from model LG 55LX774M
120
Speaker Assembly LGE EAB63650701 Contact Us For Availability
121
Speaker Assembly LGE EAB63650702 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63368301 Contact Us For Availability
350
Cover Assembly,Rear LGE ACQ87656389 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR79942702 Contact Us For Availability
521
Bracket LGE MAZ64427841 Contact Us For Availability
521
Bracket LGE MAZ64427876 Contact Us For Availability
530
Power Supply Assembly LGE EAY63689103 Contact Us For Availability
540
Chassis Assembly LGE EBT64405401 Contact Us For Availability
800
Supporter,VESA LGE MJH64334001 Contact Us For Availability
810
Supporter LGE MJH63693201 Contact Us For Availability
820
Insulator LGE MEV65151003 Contact Us For Availability
B1
Box LGE MAY66798103 Contact Us For Availability
C336
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C350
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C605
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C8607
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C8624
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C8940
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C9502
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C9504
CAPACITOR,FIXED CERA LGE 0CK105EJ56A Contact Us For Availability
C9505
CAPACITOR,FIXED CERA LGE 0CK152CK51A Contact Us For Availability
C9512
Capacitor,Ceramic,Chip LGE 0CH3223K516 Contact Us For Availability
CA2
Harness,Multi LGE EAD63266901 Contact Us For Availability
CA3
Harness,Multi LGE EAD62806804 Contact Us For Availability
LV1
Cable,FFC LGE EAD63265812 Contact Us For Availability
× ![]()
