Model LG 55LX341C – Common Parts & Diagrams

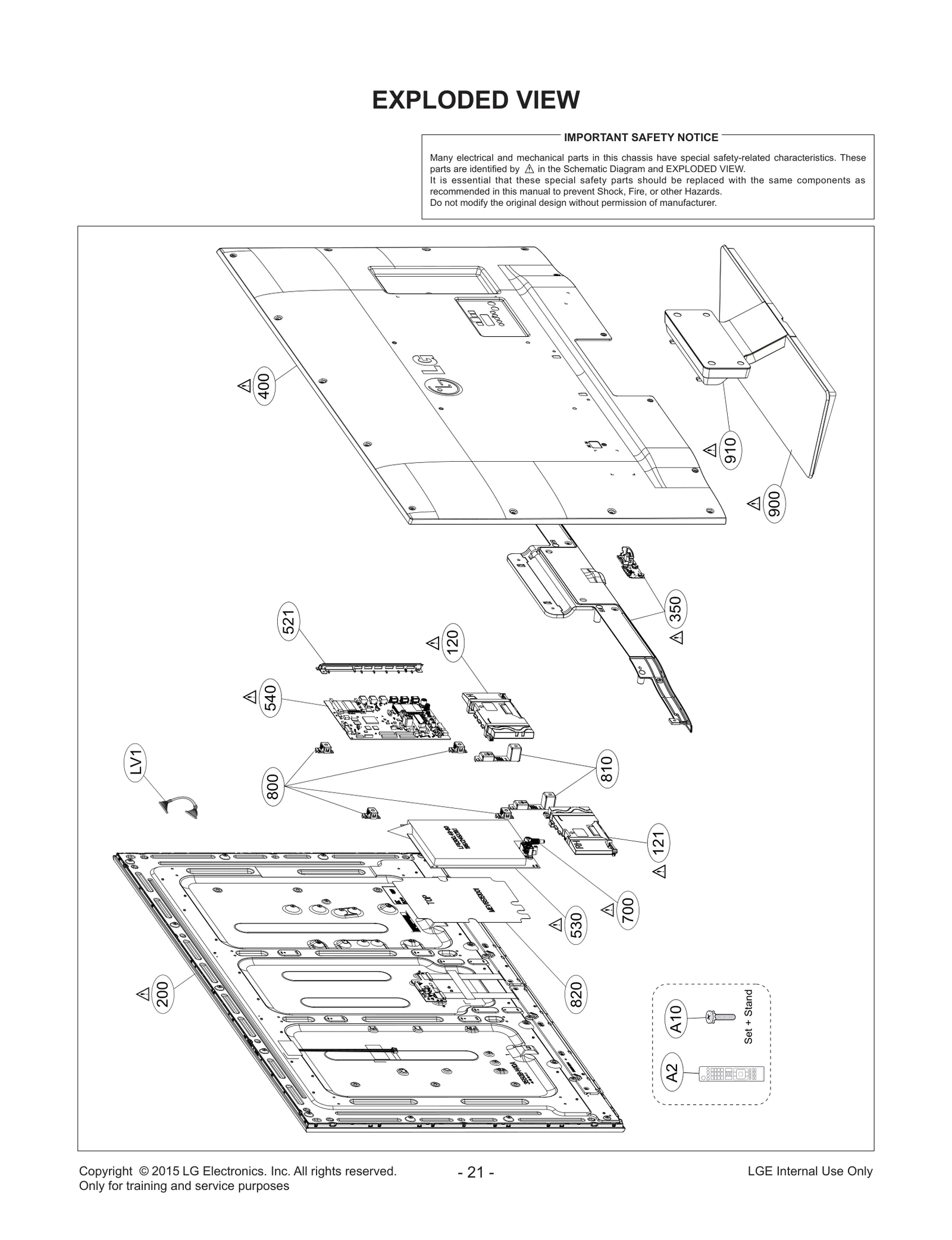

Diagram 0
Diagram 1
Common parts from model LG 55LX341C
121
Speaker Assembly LGE EAB63650702 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63368301 Contact Us For Availability
350
Cover Assembly,Rear LGE ACQ87656394 Contact Us For Availability
350
Cover Assembly,Rear LGE ACQ87656379 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87617396 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87617379 Contact Us For Availability
521
Bracket LGE MAZ64427836 Contact Us For Availability
521
Bracket LGE MAZ64427874 Contact Us For Availability
530
Power Supply Assembly LGE EAY63689103 Contact Us For Availability
540
Chassis Assembly LGE EBT63893901 Contact Us For Availability
800
Supporter LGE MJH63133501 Contact Us For Availability
810
Supporter LGE MJH63693202 Contact Us For Availability
810
Supporter LGE MJH63693201 Contact Us For Availability
820
Insulator LGE MEV65151001 Contact Us For Availability
900
Base Assembly LGE AAN75029304 Contact Us For Availability
910
Bracket Assembly LGE ABA75209012 Contact Us For Availability
910
Bracket Assembly LGE ABA75209013 Contact Us For Availability
A2
Remocon kit,Package Assembly LGE AGF76692632 Contact Us For Availability
A2S
Remote Controller Assembly LGE AKB74475455 Contact Us For Availability
AM
Manual Assembly LGE AFN76974102 Contact Us For Availability
AM1
Manual,Owners LGE MFL68925802 Contact Us For Availability
AR104
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR803
Resistor,Chip LGE EBC62798406 Contact Us For Availability
AR804
Resistor,Array LGE EBC62582709 Contact Us For Availability
AR1800
Resistor,Array LGE EBC62582704 Contact Us For Availability
B1
Box LGE MAY66798103 Contact Us For Availability
C211
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C219
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C234
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C236
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C240
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C248
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C418
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C420
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C424
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C427
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C428
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C432
Capacitor,Ceramic,Chip LGE 0CK105CFG6A Contact Us For Availability
C438
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C440
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C442
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C446
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C700
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C2900
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C3200
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C3400
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C3407
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C3412
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C3415
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C4603
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C5609
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C5615
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C5617
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C5629
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C5631
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C5635
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C9100
Capacitor,Ceramic,Chip LGE 0CK102EY48A Contact Us For Availability
C9113
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
CA1
Harness,Multi LGE EAD63266901 Contact Us For Availability
CA3
Harness,Single LGE EAD62526505 Contact Us For Availability
D800
Diode,Switching LGE EAH61714301 Contact Us For Availability
D804
Diode,TVS LGE EAH62135001 Contact Us For Availability
D3202
Diode,Switching LGE EAH60666101 Contact Us For Availability
IC101
Display SOC,Monitor LGE EAN62929501 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60708703 Contact Us For Availability
IC400
IC,DC,DC Converter LGE EAN63530601 Contact Us For Availability
IC401
IC,Voltage Detector LGE EAN61829902 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC405
IC,DC,DC Converter LGE EAN63530101 Contact Us For Availability
IC1300
IC,Serial Flash Memory LGE EAN63127201 Contact Us For Availability
IC3400
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC5600
IC,Audio Amplifier LGE EAN62494901 Contact Us For Availability
JK700
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1001
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK4400
Jack,RCA LGE EAG60968213 Contact Us For Availability
L404
Filter,Bead LGE EAM62091201 Contact Us For Availability
L413
Inductor,Wire Wound,Chip LGE EAP62506401 Contact Us For Availability
L415
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L2901
Inductor,Multilayer,Chip LGE EAP39314712 Contact Us For Availability
L3302
Filter,Bead LGE EAM54407902 Contact Us For Availability
L3401
Inductor,Wire Wound,Chip LGE EAP61606601 Contact Us For Availability
L5600
Filter,Bead LGE EAM38769505 Contact Us For Availability
L5604
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
LV1
Cable,FFC LGE EAD63265812 Contact Us For Availability
P401
Connector,Wafer LGE EAG63590906 Contact Us For Availability
P3200
Connector,DSUB LGE 6630G00001E Contact Us For Availability
P3300
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
Q401
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q405
FET LGE EBK61913702 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R121
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R128
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R136
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R209
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R235
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R238
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R406
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R409
Resistor,Chip LGE EBC34656201 Contact Us For Availability
R411
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R413
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R417
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R418
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R430
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R431
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R435
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R445
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R446
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R450
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R452
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R453
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R468
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R469
Resistor,Chip LGE EBC35293401 Contact Us For Availability
R471
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R472
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R701
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R802
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R813
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R1209
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R3300
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R3303
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R3402
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R3408
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R4400
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R4407
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R5607
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R5608
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R5609
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
TU9101
Tuner,Analog/Digital LGE EBL61540001 Contact Us For Availability
VA801
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
VA802
Varistor LGE EAF61530101 Contact Us For Availability
VA4601
Varistor LGE EAF61530301 Contact Us For Availability
× ![]()
