Model LG 55LW5700 – Common Parts & Diagrams

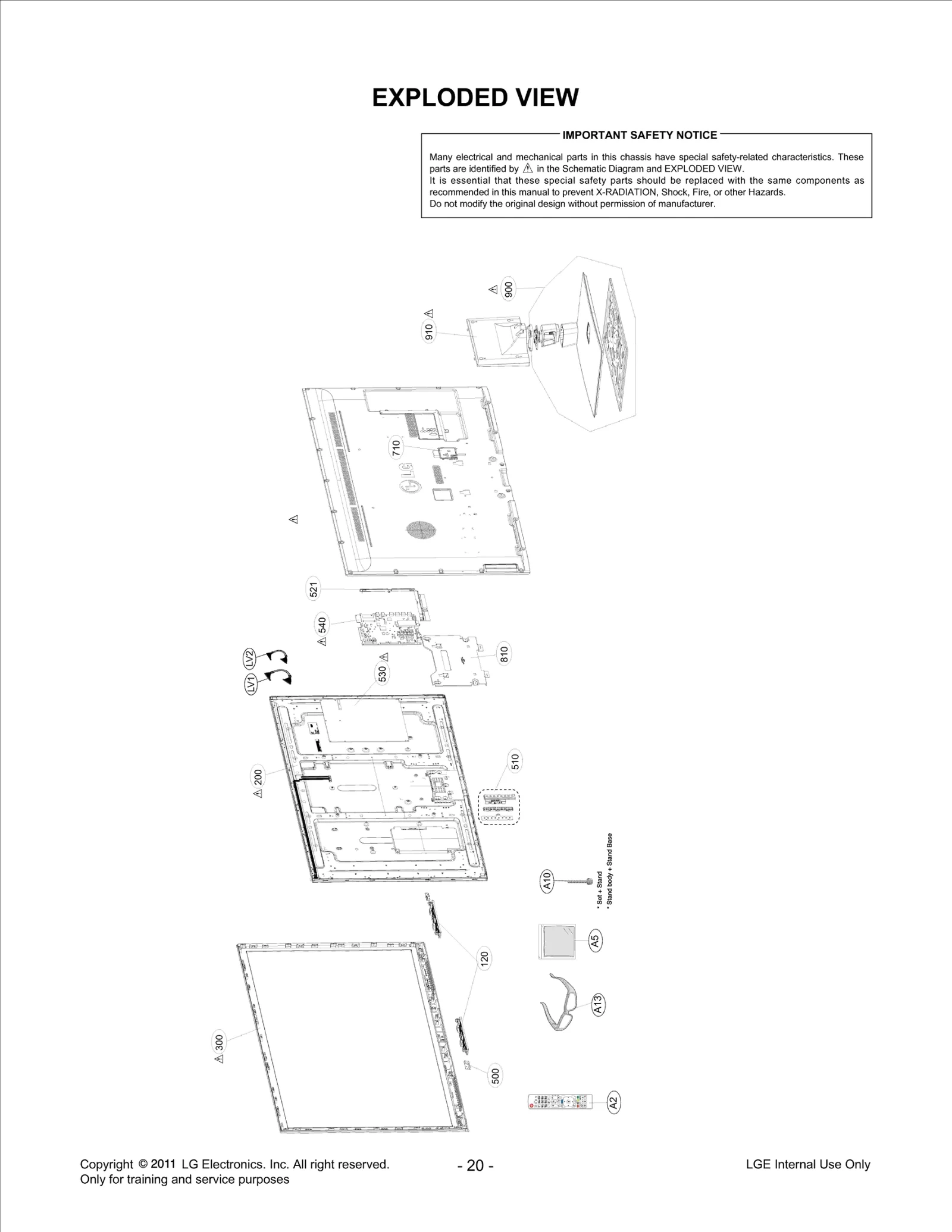

Diagram 0
Diagram 1
Common parts from model LG 55LW5700
200
LCD,Module-TFT LGE EAJ61928201 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61750001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73389507 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ84673618 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR73361101 Contact Us For Availability
540
BPR Insert PCB Assembly LGE EBR72816704 Contact Us For Availability
710
Bracket LGE MAZ62827604 Contact Us For Availability
810
Supporter LGE MJH62256304 Contact Us For Availability
900
Base Assembly LGE AAN73489003 Contact Us For Availability
910
Supporter LGE MJH62256207 Contact Us For Availability
A1
Manual,Owners LGE MFL62882756 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915238 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A7
Module,WLAN LGE EAT60713301 Contact Us For Availability
A7
AN-WF100---Wi-Fi dongle LGE EAT60713302 Contact Us For Availability
A7
Module,WLAN LGE EAT60713304 Contact Us For Availability
A13
Accessory,3D Glasses LGE EBX61508301 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
AR405
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR5309
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C105
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C113
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C214
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C233
Filter,LCR LGE EAM62070601 Contact Us For Availability
C262
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C286
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C301
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C412
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C417
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C421
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C507
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C509
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C515
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C516
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C530
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C538
Capacitor,Ceramic,Chip LGE EAE58165801 Contact Us For Availability
C539
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C545
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C551
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C552
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C555
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C593
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C594
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C603
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C609
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C809
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C818
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C825
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C829
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C1002
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C1004
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C1125
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1724
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C1728
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C1737
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C1744
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C1774
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1786
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C2106
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C2151
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C2180
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C5231
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C5408
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C5409
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C5418
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
CA1
Harness,Single LGE EAD52821203 Contact Us For Availability
CA2
Harness,Single LGE EAD57675122 Contact Us For Availability
CA7
Harness,Single LGE EAD61653801 Contact Us For Availability
CAB1
Cable,Assembly LGE EAD61077702 Contact Us For Availability
CAB1
Cable,Assembly LGE EAD61273102 Contact Us For Availability
CAB2
Cable,Assembly LGE EAD61077701 Contact Us For Availability
D707
Diode,Schottky LGE EAH61113201 Contact Us For Availability
D713
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D802
Diode,TVS LGE EAH39491701 Contact Us For Availability
D1206
Diode,TVS LGE EAH42720601 Contact Us For Availability
D1206
Diode,TVS LGE EAH60994401 Contact Us For Availability
D1406
Diode,TVS LGE EAH33945901 Contact Us For Availability
D1406
Diode,TVS LGE EAH60667401 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN61888701 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN61000101 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN61000102 Contact Us For Availability
IC103
IC,EEPROM LGE EAN61548301 Contact Us For Availability
IC103
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC402
IC,DDR3 SDRAM LGE EAN61667501 Contact Us For Availability
IC501
IC,DC,DC Converter LGE EAN61849201 Contact Us For Availability
IC502
IC,Reset LGE EAN60670101 Contact Us For Availability
IC504
IC,LDO Voltage Regulator LGE EAN61387601 Contact Us For Availability
IC505
IC,DC,DC Converter LGE EAN60660601 Contact Us For Availability
IC506
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC601
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC601
IC,EEPROM LGE EAN61146201 Contact Us For Availability
IC602
IC,Microcontrollers LGE EAN61367101 Contact Us For Availability
IC701
IC,Analog Switch LGE EAN61859001 Contact Us For Availability
IC802
IC,EEPROM LGE 0IMMRAL014E Contact Us For Availability
IC802
IC,EEPROM LGE EAN60997601 Contact Us For Availability
IC804
IC,Audio Amplifier LGE EAN60724701 Contact Us For Availability
IC1204
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC1702
IC,Audio Amplifier LGE EAN61850701 Contact Us For Availability
IC2103
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC5202
IC,NOR Flash Memory LGE EAN61868201 Contact Us For Availability
IC5202
IC,Serial Flash Memory LGE EAN60915401 Contact Us For Availability
IC5301
IC,DDR3 SDRAM LGE EAN61829001 Contact Us For Availability
IC5401
IC,DC,DC Converter LGE EAN60922901 Contact Us For Availability
IC5402
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC5403
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
JK703
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK802
Jack,Fiber Optic LGE EAG37842004 Contact Us For Availability
JK803
Jack,Phone LGE EAG61030003 Contact Us For Availability
JK803
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK804
Connector,DSUB LGE EAG62012201 Contact Us For Availability
JK805
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1001
Connector,I/O LGE EAG61008301 Contact Us For Availability
JK1102
Jack,Phone LGE EAG61030002 Contact Us For Availability
JK1102
Jack,Phone LGE EAG61030004 Contact Us For Availability
JK1202
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1401
Jack,Modular LGE EAG62012404 Contact Us For Availability
JK1401
Jack,Modular LGE EAG62012402 Contact Us For Availability
L220
Inductor,Multilayer,Chip LGE ELCH0010109 Contact Us For Availability
L503
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L505
Inductor,Wire Wound,Chip LGE EAP61746701 Contact Us For Availability
L805
Filter,Bead LGE EAM38769501 Contact Us For Availability
L807
Filter,Bead LGE EAM54407902 Contact Us For Availability
L1107
Inductor,Multilayer,Chip LGE EAP39314717 Contact Us For Availability
L1708
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
L1708
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L5202
Filter,Bead LGE EAM58113401 Contact Us For Availability
L5403
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
LV2
Cable,FFC LGE EAD61652507 Contact Us For Availability
M2
Gasket LGE MDS62110209 Contact Us For Availability
M23
Gasket LGE MDS62110213 Contact Us For Availability
P100
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P901
Connector,Wafer LGE 6630V90141D Contact Us For Availability
P1702
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P3501
Conector,Wafer LGE 6630V93270A Contact Us For Availability
P3501
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P3502
Connector,Wafer LGE 6630V93270C Contact Us For Availability
P3502
Connector,Wafer LGE 6630V93270K Contact Us For Availability
P3503
Connector,Wafer LGE 6630V90141C Contact Us For Availability
Q102
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q502
TR,Bipolar LGE EBK61012501 Contact Us For Availability
Q503
FET LGE EBK61492001 Contact Us For Availability
Q507
FET LGE EBK60752501 Contact Us For Availability
Q507
FET LGE EBK61011501 Contact Us For Availability
Q508
FET LGE EBK61491901 Contact Us For Availability
Q906
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q1001
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q2105
TR,Bipolar LGE EBK61012701 Contact Us For Availability
QASA
Tape,Polyester LGE RAB33015606 Contact Us For Availability
R101
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R103
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R104
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R140
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R210
Resistor,Chip LGE ERHY0017701 Contact Us For Availability
R211
Resistor,Chip LGE EBC43209201 Contact Us For Availability
R213
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R311
Resistor,Chip LGE EBC60972201 Contact Us For Availability
R411
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R422
Resistor,Chip LGE 0RJ4991C478 Contact Us For Availability
R427
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ2701D477 Contact Us For Availability
R513
RESISTOR,METAL GLAZE LGE 0RJ1211D477 Contact Us For Availability
R517
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R545
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R548
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R549
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R559
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R568
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R570
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R571
Resistor,Chip LGE 0RJ3601C478 Contact Us For Availability
R578
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R592
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R646
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R711
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R741
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R754
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R775
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R776
Resistor,Chip LGE EBC61495701 Contact Us For Availability
R804
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R813
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R821
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R822
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R867
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R920
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R928
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R1002
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R1118
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R1717
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R1721
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R1737
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R1755
Wire Pad LGE EBC40167001 Contact Us For Availability
R2135
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R2143
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R5206
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R5223
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R5234
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R5237
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R5240
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R5252
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R5321
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R5402
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R5406
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R5407
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R5408
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R5410
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R5412
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R5414
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
SW107
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SXDS
Damper LGE MCQ66005514 Contact Us For Availability
TU2101
Tuner,Analog/Digital LGE EBL60860104 Contact Us For Availability
X101
Crystal LGE EAW58812611 Contact Us For Availability
X101
Crystal LGE EAW58239604 Contact Us For Availability
X602
Crystal LGE EAW58239602 Contact Us For Availability
X602
Crystal LGE EAW30067102 Contact Us For Availability
X5201
Crystal LGE EAW43548908 Contact Us For Availability
ZD1107
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
ZSDAS
Tape,Polyester LGE RAB33015603 Contact Us For Availability
ZXDA
Gasket LGE 4850V00047U Contact Us For Availability
× ![]()
Login and Registration Form
