Model LG 55LV9500 – Common Parts & Diagrams

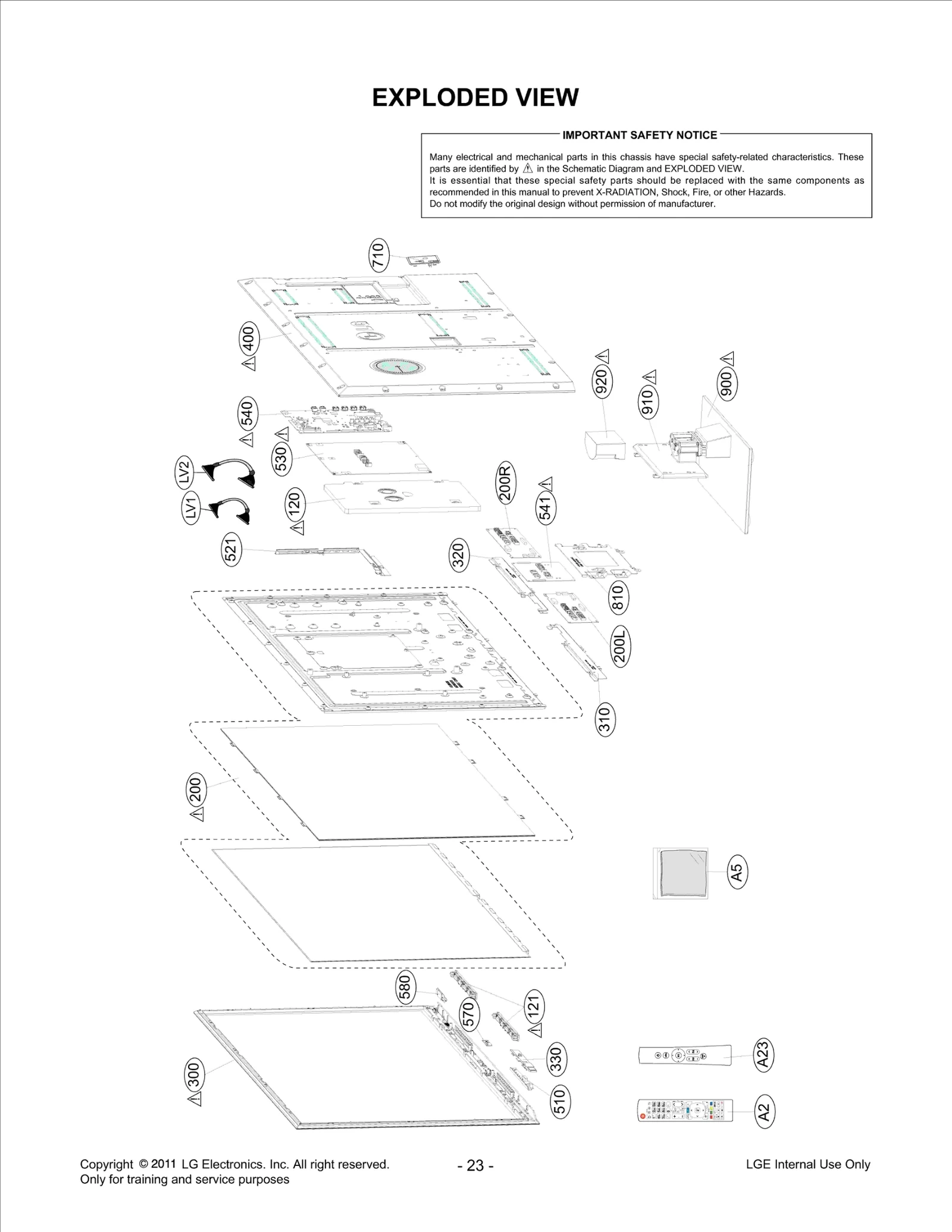

Diagram 0
Diagram 1
Common parts from model LG 55LV9500
120
Speaker Assembly LGE EAB62089701 Contact Us For Availability
121
Speaker,Full Range LGE EAB62089001 Contact Us For Availability
200
LCD Assembly,LCM LGE AFB73130512 Contact Us For Availability
200L
PCB Assembly,LED Driver LGE EBR72899101 Contact Us For Availability
200R
PCB Assembly,LED Driver LGE EBR72899201 Contact Us For Availability
300
Cover Assembly LGE ACQ84669010 Contact Us For Availability
320
Supporter LGE MJH62273802 Contact Us For Availability
330
Bracket LGE MAZ62844501 Contact Us For Availability
400
Cover Assembly LGE ACQ84669111 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72670301 Contact Us For Availability
530
Power Supply Assembly LGE EAY62169701 Contact Us For Availability
540
PCB Assembly,Main LGE EBR73282101 Contact Us For Availability
541
BPR Total Assembly LGE EBU61391501 Contact Us For Availability
570
Module,WLAN LGE EAT61333101 Contact Us For Availability
580
PCB Assembly,RF LGE EBR72499601 Contact Us For Availability
710
Bracket LGE MAZ62909104 Contact Us For Availability
900
Base Assembly LGE AAN73549003 Contact Us For Availability
910
Hanger LGE MEC62045104 Contact Us For Availability
920
Bracket LGE MAZ62904302 Contact Us For Availability
A1
Manual,Owners LGE MFL62882756 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72914042 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A22
Cover LGE MCK66265801 Contact Us For Availability
A23
Remote Controller Assembly LGE AKB73295502 Contact Us For Availability
AR204
Resistor,Array LGE EBC32260405 Contact Us For Availability
AR401
Resistor,Array LGE EBC39283301 Contact Us For Availability
C113
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C262
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C287
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C300
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C342
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C400
Capacitor,Ceramic,Chip LGE 0CC560BK41A Contact Us For Availability
C404
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C404
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C407
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C407
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C416
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C422
Capacitor,Ceramic,Ch LGE EAE35171501 Contact Us For Availability
C428
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C446
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C447
Capacitor,Ceramic,Ch LGE 0CK224DK46A Contact Us For Availability
C453
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C507
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C515
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C530
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C538
Capacitor,Ceramic,Chip LGE EAE58165801 Contact Us For Availability
C539
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C545
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C555
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C567
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C570
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C603
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C682
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C823
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C829
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C1002
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C1114
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C1177
Filter,LCR LGE EAM62070601 Contact Us For Availability
C1204
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C1217
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C1731
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C1733
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C1737
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C1763
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C1786
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C2112
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C2116
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C2122
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C2180
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
CA10
Cable,FFC LGE EAD61445803 Contact Us For Availability
CA11
Harness,Single LGE 6631900049B Contact Us For Availability
CA13
Harness,Single LGE EAD57675114 Contact Us For Availability
CA14
Harness,Single LGE EAD61052411 Contact Us For Availability
CAB2
Cable,Assembly LGE EAD61273102 Contact Us For Availability
D401
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D402
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D802
Diode,TVS LGE EAH39491701 Contact Us For Availability
D1404
Diode,TVS LGE EAH60667401 Contact Us For Availability
DXEW
Ribbon LGE MGY31802403 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN61888701 Contact Us For Availability
IC102
IC,Serial Flash Memory LGE EAN61009404 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN61000102 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN61000101 Contact Us For Availability
IC201
IC,DDR3 SDRAM LGE EAN61829001 Contact Us For Availability
IC203
IC,Voltage Regulator LGE EAN61868101 Contact Us For Availability
IC300
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC301
IC,LDO Voltage Regulator LGE EAN61387601 Contact Us For Availability
IC302
IC,DC,DC Converter LGE EAN60660601 Contact Us For Availability
IC400
IC,Bus Controller LGE 0IPRP00782A Contact Us For Availability
IC401
IC,PMIC LGE EAN61925901 Contact Us For Availability
IC403
IC,PMIC LGE EAN61888301 Contact Us For Availability
IC502
IC,Reset LGE EAN60670101 Contact Us For Availability
IC600
IC,EEPROM LGE EAN43372502 Contact Us For Availability
IC601
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC602
IC,Microcontrollers LGE EAN61367101 Contact Us For Availability
IC700
Display SOC,Digital TV LGE EAN61871201 Contact Us For Availability
IC701
IC,Analog Switch LGE EAN61859001 Contact Us For Availability
IC804
IC,Audio Amplifier LGE EAN60724701 Contact Us For Availability
JK704
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK802
Jack,Fiber Optic LGE EAG37842004 Contact Us For Availability
JK804
Connector,DSUB LGE EAG62012201 Contact Us For Availability
JK805
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1201
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1401
Jack,Modular LGE EAG62012402 Contact Us For Availability
L202
Filter,Bead LGE EAM58113401 Contact Us For Availability
L220
Inductor,Multilayer,Chip LGE ELCH0010109 Contact Us For Availability
L400
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L403
Inductor,Wire Wound,Chip LGE ELCP0009409 Contact Us For Availability
L505
Inductor,Wire Wound,Chip LGE EAP61746701 Contact Us For Availability
L516
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L804
Filter,Bead LGE EAM38769501 Contact Us For Availability
L808
Filter,Bead LGE EAM54407902 Contact Us For Availability
L1001
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L1708
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
LV1
Cable,FFC LGE EAD61668610 Contact Us For Availability
LV4
Cable,FFC LGE 6631900038G Contact Us For Availability
M9
Gasket LGE MDS62110205 Contact Us For Availability
P101
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P101
Connector,Wafer LGE 6630V90209C Contact Us For Availability
P102
Connector,Wafer LGE 6602T12004J Contact Us For Availability
P500
Conector,Wafer LGE 6630V93270A Contact Us For Availability
P502
Connector,FFC/FPC/PIC LGE EAG61008602 Contact Us For Availability
P503
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P1702
Connector,Wafer LGE EAG61091601 Contact Us For Availability
Q101
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q400
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q401
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q503
FET LGE EBK61492001 Contact Us For Availability
Q508
FET LGE EBK61491901 Contact Us For Availability
Q1002
FET LGE EBK60752501 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R129
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R140
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R154
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R159
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R188
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R189
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R199
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R208
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R210
Resistor,Chip LGE ERHY0017701 Contact Us For Availability
R211
Resistor,Chip LGE EBC43209201 Contact Us For Availability
R219
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R229
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R240
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R303
Resistor,Chip LGE EBC60972201 Contact Us For Availability
R304
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R305
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R307
Resistor,Chip LGE 0RJ4302D677 Contact Us For Availability
R311
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R313
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R314
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
R318
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R326
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R327
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R329
RESISTOR,METAL GLAZE LGE 0RJ2001D477 Contact Us For Availability
R331
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R411
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R417
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R418
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R422
Resistor,Chip LGE 0RJ4991C478 Contact Us For Availability
R426
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
R430
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R439
Resistor,Chip LGE 0RJ0222D477 Contact Us For Availability
R454
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ2701D477 Contact Us For Availability
R513
RESISTOR,METAL GLAZE LGE 0RJ1211D477 Contact Us For Availability
R517
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R548
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R549
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R559
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R568
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R570
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R615
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R620
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R646
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R714
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R741
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R920
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R928
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R1002
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R1106
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1117
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1131
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R1206
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R1233
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1711
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R1717
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R1721
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R1756
Wire Pad LGE EBC40167001 Contact Us For Availability
R2143
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R2167
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
SW700
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TH400
Thermistor,NTC LGE 6322A00028A Contact Us For Availability
TU2101
Tuner,Analog/Digital LGE EBL60860102 Contact Us For Availability
X602
Crystal LGE EAW58239602 Contact Us For Availability
X1201
Crystal LGE EAW43548908 Contact Us For Availability
ZD1116
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
Login and Registration Form
