Model LG 55LV75A-5B – Common Parts & Diagrams

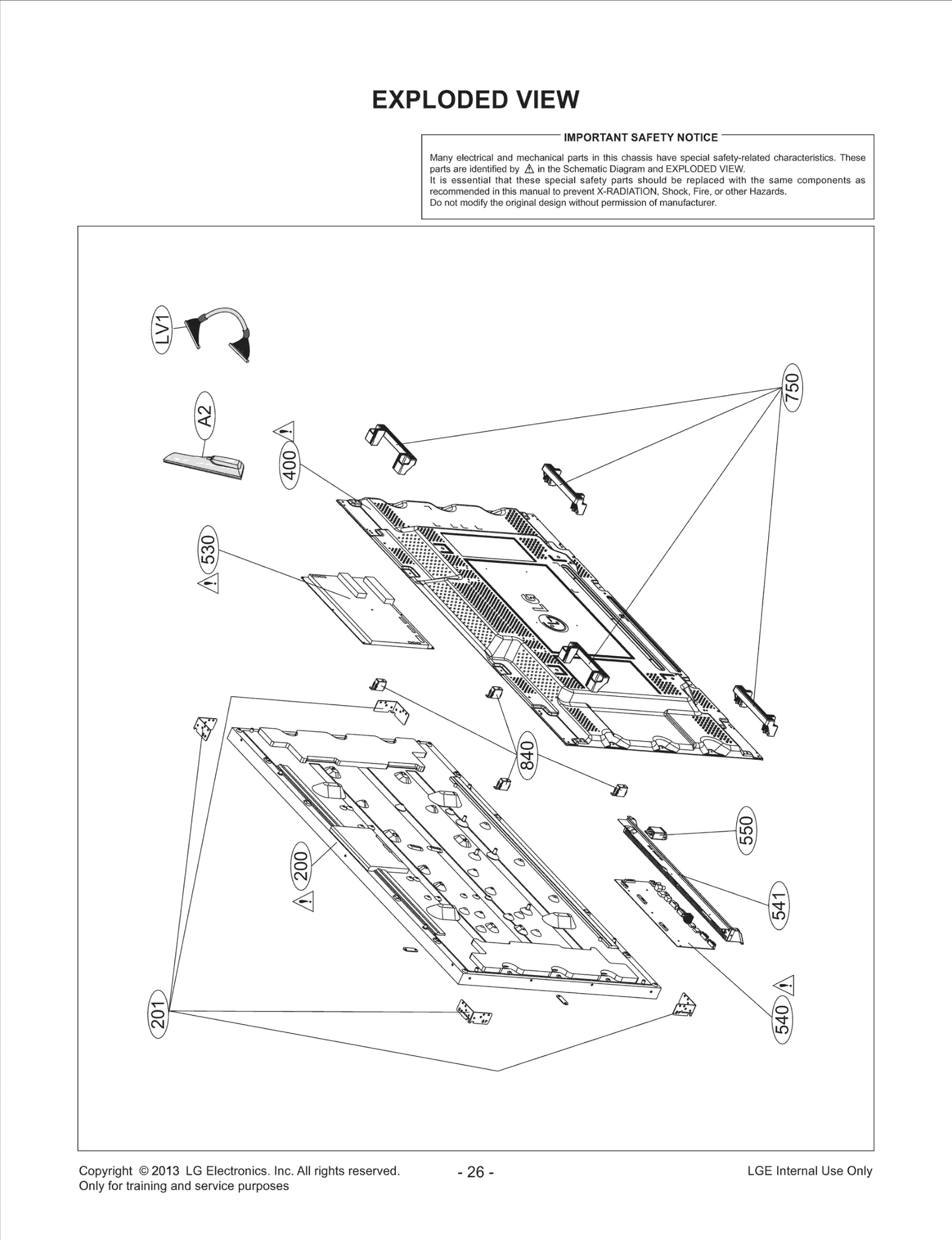

Diagram 0
Diagram 1
Common parts from model LG 55LV75A-5B
200
LCD,Module-TFT LGE EAJ62628801 Contact Us For Availability
201
Bracket LGE MAZ64007101 Contact Us For Availability
530
Power Supply Assembly LGE EAY63228801 Contact Us For Availability
540
BPR Total Assembly LGE EBU62381801 Contact Us For Availability
541
Plate,Shield LGE MGJ63763001 Contact Us For Availability
550
Filter,AC Line LGE EAM36140909 Contact Us For Availability
840
Plate,Metal LGE MGJ63552201 Contact Us For Availability
A1
Title LGE SAC36033302 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73715642 Contact Us For Availability
A4
Cable,Assembly LGE EAD61485506 Contact Us For Availability
A6
Cable,Assembly LGE EAD62111306 Contact Us For Availability
AR2
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR203
Resistor,Array LGE EBC32260404 Contact Us For Availability
C5
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C14
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C19
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C223
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C229
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C240
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C244
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C247
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C442
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C443
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C479
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C502
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C534
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C549
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C551
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C618
Capacitor,Ceramic,Chip LGE 0CH2682K516 Contact Us For Availability
C625
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C701
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C749
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C752
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C761
Capacitor,Ceramic,Chip LGE EAE58165801 Contact Us For Availability
C1109
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C1215
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1243
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C1249
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
D502
Diode,Switching LGE 0DSON00218A Contact Us For Availability
D702
Diode,TVS LGE EAH61232601 Contact Us For Availability
D713
Diode,TVS LGE EAH61515101 Contact Us For Availability
D802
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D806
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D1406
Diode,TVS LGE EAH61515001 Contact Us For Availability
F501
Fuse,Time Delay LGE EAF61870002 Contact Us For Availability
IC1
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC3
S/W,Firmware LGE SAA36865106 Contact Us For Availability
IC4
Display SOC,Digital TV LGE EAN61860501 Contact Us For Availability
IC5
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC6
S/W,Firmware LGE SAA36859204 Contact Us For Availability
IC202
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
IC203
S/W,Firmware LGE SAA36832202 Contact Us For Availability
IC501
IC,DC,DC Converter LGE EAN61548102 Contact Us For Availability
IC502
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC505
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC506
IC,DC,DC Converter LGE EAN61013901 Contact Us For Availability
IC507
IC,DC,DC Converter LGE EAN60922902 Contact Us For Availability
IC508
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC601
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC603
IC,Timer LGE EAN54696201 Contact Us For Availability
IC604
IC,OP Amplifier LGE EAN61829701 Contact Us For Availability
IC703
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC704
IC,Analog Switch LGE EAN62227502 Contact Us For Availability
IC705
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC802
IC,STANDARD LOGIC LGE 0ISTL00031A Contact Us For Availability
IC902
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC1101
IC,Ethernet LGE EAN62219202 Contact Us For Availability
IC1201
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC1202
IC,Tx/Rx LGE EAN63046401 Contact Us For Availability
IC1301
S/W,Firmware LGE SAA36826006 Contact Us For Availability
IC1303
IC,EEPROM LGE 0IMMRAL014E Contact Us For Availability
JK602
JACK,PHONE LGE 6612F00059C Contact Us For Availability
JK604
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK802
Connector,DSUB LGE EAG63030202 Contact Us For Availability
JK803
Connector,DSUB LGE EAG62012201 Contact Us For Availability
JK804
Connector,BNC LGE EAG63150002 Contact Us For Availability
L511
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L513
Filter,Bead LGE EAM58113401 Contact Us For Availability
L515
Filter,Bead LGE EAM32500903 Contact Us For Availability
L610
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L808
Filter,Bead LGE EAM54407902 Contact Us For Availability
LV1
Cable,FFC LGE EAD62046924 Contact Us For Availability
P1
Connector,Wafer LGE EAG58732906 Contact Us For Availability
P701
Connector,DSUB LGE 6630TGA005S Contact Us For Availability
P1001
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P1101
Jack,Modular LGE EAG62012404 Contact Us For Availability
P1301
Connector,Wafer LGE 6630V091104 Contact Us For Availability
Q502
FET LGE EBK60752601 Contact Us For Availability
Q503
TR,Bipolar LGE EBK61012501 Contact Us For Availability
Q605
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q702
FET LGE EBK60752501 Contact Us For Availability
Q704
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R11
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R49
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R66
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R129
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R149
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R226
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R232
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R255
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R266
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R278
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R517
Resistor,Chip LGE 0RJ5102E472 Contact Us For Availability
R533
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R536
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R537
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R539
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R540
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R544
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R545
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R550
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R558
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R559
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R565
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R567
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R571
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R617
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R640
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R649
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R652
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R659
RESISTOR,METAL GLAZE LGE 0RJ1302D677 Contact Us For Availability
R711
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R715
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R723
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R725
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R727
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R731
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R736
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R741
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R747
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R759
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R764
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R784
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R806
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R808
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R836
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R838
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R847
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R930
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1011
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1118
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R1119
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1205
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R1207
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R1318
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1350
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R1358
RESISTOR,METAL GLAZE LGE 0RJ2490C477 Contact Us For Availability
R1411
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R1425
Resistor,Chip LGE 0RJ0202C678 Contact Us For Availability
R1438
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
S1
Heat Sink LGE MED61890901 Contact Us For Availability
S2
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
S3
Harness,Single LGE EAD62595302 Contact Us For Availability
S4
Harness,Single LGE EAD62122710 Contact Us For Availability
S5
Harness,Single LGE EAD62105904 Contact Us For Availability
SW1
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW1301
Switch,Tact LGE EBF55334201 Contact Us For Availability
VA604
Varistor LGE EAF61530201 Contact Us For Availability
VA802
Varistor LGE EAF61530301 Contact Us For Availability
VR701
VARISTOR LGE 6102W5V016A Contact Us For Availability
X1101
Crystal LGE 6212AB2872B Contact Us For Availability
ZD701
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
Login and Registration Form
