Model LG 55LV555H – Common Parts & Diagrams

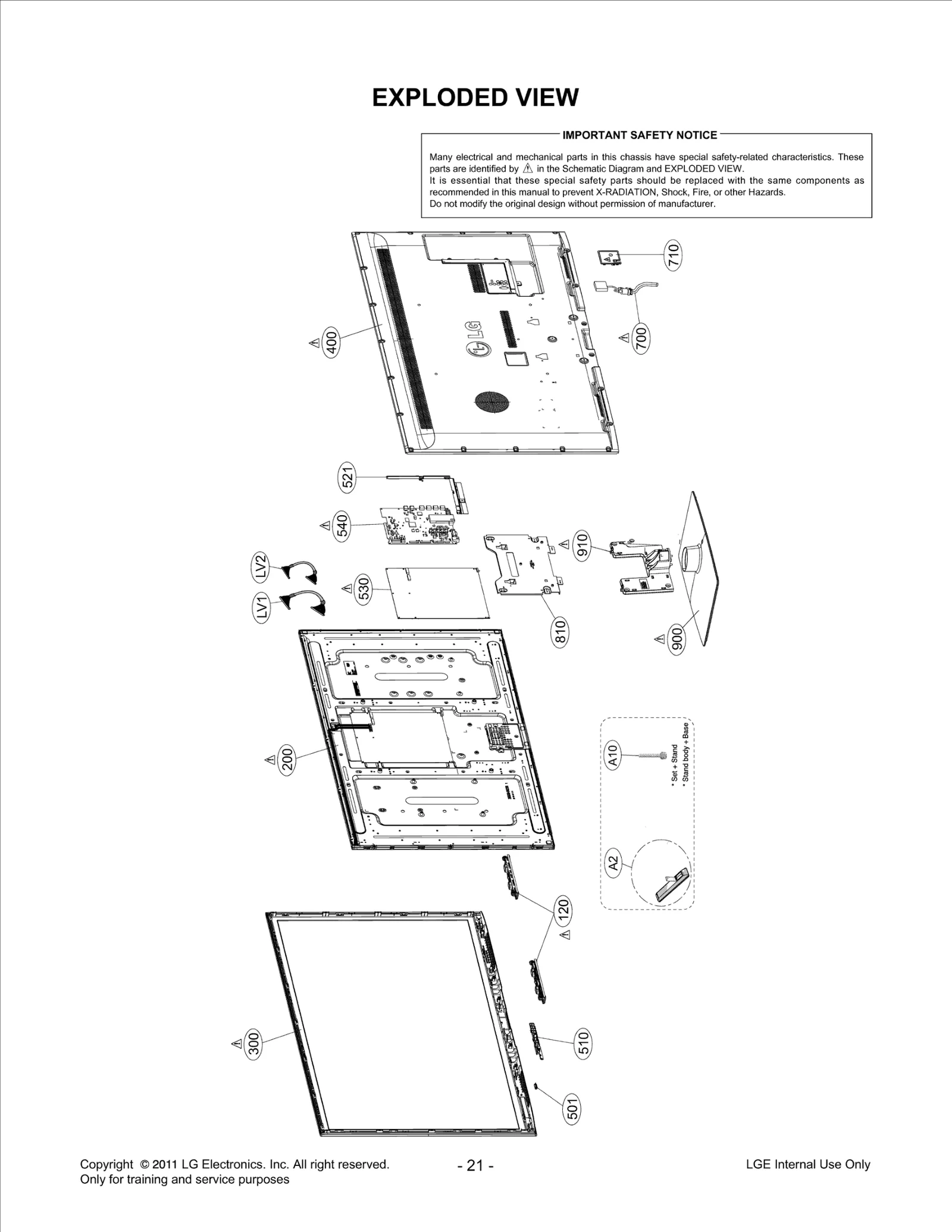

Diagram 0
Diagram 1
Common parts from model LG 55LV555H
120
Speaker,Full Range LGE EAB62088403 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61768501 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73329122 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ84673639 Contact Us For Availability
501
Indicator LGE MES62378302 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72671003 Contact Us For Availability
521
Plate,Metal LGE MGJ63061103 Contact Us For Availability
540
BPR Total Assembly LGE EBU61790401 Contact Us For Availability
700
Power Cord,Attach LGE EAD60817905 Contact Us For Availability
710
Bracket LGE MAZ62827604 Contact Us For Availability
810
Supporter LGE MJH62256304 Contact Us For Availability
900
Base Assembly LGE AAN73489009 Contact Us For Availability
910
Supporter LGE MJH62256207 Contact Us For Availability
A1
Manual,Owners LGE MFL62883102 Contact Us For Availability
A2
Remote Controller LGE MKJ40653832 Contact Us For Availability
AR607
Resistor,Array LGE EBC37094001 Contact Us For Availability
AR1508
RESISTOR,METAL GLAZE LGE 0RJ0512C687 Contact Us For Availability
C324
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C328
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C340
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C421
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C422
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C426
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C482
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C485
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C507
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C514
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C525
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C650
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C714
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C906
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C909
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C1004
Capacitor,Ceramic,Chip LGE EAE60685701 Contact Us For Availability
C1026
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1032
Capacitor,Ceramic,Chip LGE EAE60685801 Contact Us For Availability
C1034
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C1149
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C1340
Filter,LCR LGE EAM62070601 Contact Us For Availability
C1344
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1402
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1413
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C1505
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C1543
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C1639
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C1720
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1802
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C1818
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C1930
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1932
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C1933
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
CA2
Harness,Single LGE EAD57675122 Contact Us For Availability
D201
Diode,TVS LGE EAH33945901 Contact Us For Availability
D401
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D500
Diode,Schottky LGE 0DSKE00058A Contact Us For Availability
D1403
Diode,TVS LGE EAH42720601 Contact Us For Availability
IC101
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC300
IC,Audio Amplifier LGE EAN62169301 Contact Us For Availability
IC301
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC401
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN62206101 Contact Us For Availability
IC504
IC,CMOS LGE EAN61000301 Contact Us For Availability
IC603
IC,DDR2 SDRAM LGE EAN61129702 Contact Us For Availability
IC800
IC,Video Processors LGE EAN62096701 Contact Us For Availability
IC900
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC902
IC,NAND Flash Memory LGE EAN61009301 Contact Us For Availability
IC903
IC,Reset LGE EAN60670101 Contact Us For Availability
IC1300
IC,Protocol Controller LGE EAN61150101 Contact Us For Availability
IC1301
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC1501
IC,Video Decode LGE 0IPRP00630E Contact Us For Availability
IC1602
IC,LDO Voltage Regulator LGE EAN61387601 Contact Us For Availability
IC1605
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC1606
IC,DC,DC Converter LGE EAN60991601 Contact Us For Availability
IC1903
IC,DC,DC Converter LGE EAN60922901 Contact Us For Availability
IC2000
IC,Serial Flash Memory LGE EAN61008501 Contact Us For Availability
JK200
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK500
Jack,Modular LGE 6612E00043A Contact Us For Availability
JK501
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK1400
Jack,Modular LGE EAG35781004 Contact Us For Availability
JK1401
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1402
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1701
Jack,Phone LGE EAG61030002 Contact Us For Availability
L410
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L707
Filter,Bead LGE EAM58113401 Contact Us For Availability
L1900
Filter,Bead LGE EAM32500903 Contact Us For Availability
LV1
Cable,FFC LGE EAD61652502 Contact Us For Availability
M2
Gasket LGE MDS62110205 Contact Us For Availability
M5
Gasket LGE MDS62110209 Contact Us For Availability
P300
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P701
Conector,Wafer LGE 6630V93270A Contact Us For Availability
P702
Connector,Wafer LGE 6630V93270C Contact Us For Availability
P704
Connector,Wafer LGE 6630V90141D Contact Us For Availability
P1700
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
Q403
FET LGE EBK60752501 Contact Us For Availability
Q411
FET LGE EBK60706901 Contact Us For Availability
Q504
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q514
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1806
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R112
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R133
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R144
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R314
Resistor,Chip LGE 0RJ1100D677 Contact Us For Availability
R410
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R429
RESISTOR CHIP 75K 1/10W 5 D.R/ LGE 0RH7502D622 Contact Us For Availability
R432
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R433
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R438
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R611
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R810
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R921
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R936
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R995
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R1008
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R1014
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R1102
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1112
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R1120
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R1149
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1153
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1332
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R1508
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R1512
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R1524
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R1606
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R1624
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R1627
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R1630
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R1700
Resistor,Chip LGE 0RJ0342D477 Contact Us For Availability
R1728
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R1768
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R1800
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1803
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R1921
RESISTOR,METAL GLAZE LGE 0RJ9101C478 Contact Us For Availability
R1922
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1925
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R5009
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R5024
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R5050
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R5128
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
TU100
Tuner,Analog/Digital LGE EBL60860105 Contact Us For Availability
TU1800
Tuner,RF Modulator LGE EBL61020101 Contact Us For Availability
X1300
Crystal LGE 6212AB2015C Contact Us For Availability
X1500
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
ZD1500
DIODE,ZENERS LGE 0DZRM00218A Contact Us For Availability
× ![]()
