Model LG 55LV3700 – Common Parts & Diagrams

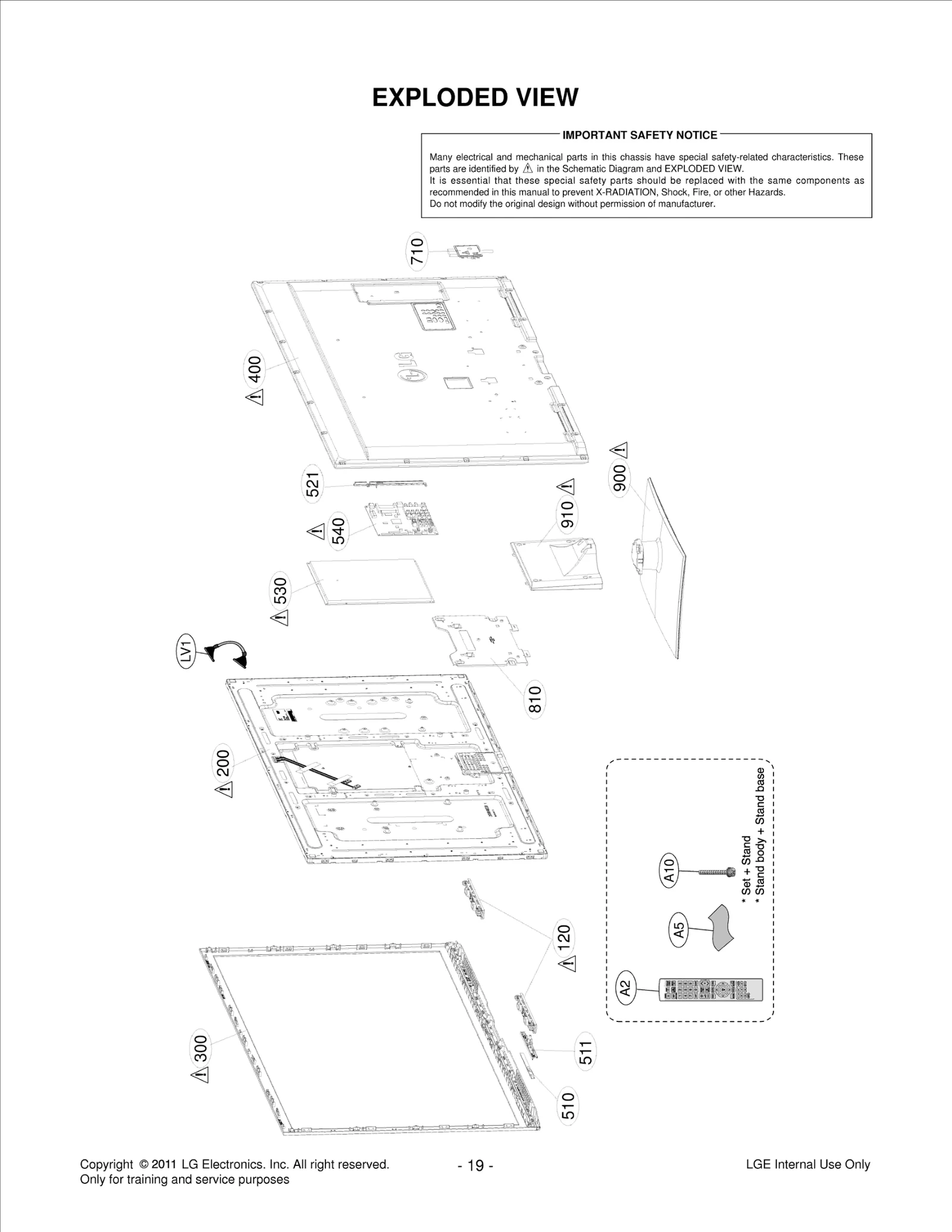

Diagram 0
Diagram 1
Common parts from model LG 55LV3700
120
Speaker,Full Range LGE EAB62088401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61768501 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73267808 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83490405 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72671401 Contact Us For Availability
511
Bracket LGE MAZ62827902 Contact Us For Availability
540
BPR Total Assembly LGE EBU61285609 Contact Us For Availability
710
Bracket LGE MAZ62827604 Contact Us For Availability
810
Supporter LGE MJH62256304 Contact Us For Availability
900
Base Assembly LGE AAN73489003 Contact Us For Availability
A1
Manual,Owners LGE MFL62882756 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915240 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A14
AN-WF100---Wi-Fi dongle LGE EAT60713302 Contact Us For Availability
A14
Module,WLAN LGE EAT60713301 Contact Us For Availability
A14
Module,WLAN LGE EAT60713304 Contact Us For Availability
A21
Cover,Rear LGE MCK62976001 Contact Us For Availability
C106
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C114
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C204
Filter,LCR LGE EAM62070601 Contact Us For Availability
C236
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C252
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C301
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C310
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C403
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C507
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C515
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C519
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C527
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C538
Capacitor,Ceramic,Chip LGE EAE58165801 Contact Us For Availability
C546
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C552
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C594
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C602
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C609
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C1002
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C1106
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1114
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C3715
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C3812
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C3825
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C3829
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C4914
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C4924
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C4928
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5119
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C5122
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
CA10
Harness,Single LGE EAD57675115 Contact Us For Availability
CA10
Harness,Single LGE EAD61653802 Contact Us For Availability
CAB1
Cable,Assembly LGE EAD61077701 Contact Us For Availability
CAB2
Cable,Assembly LGE EAD61273102 Contact Us For Availability
CAB2
Cable,Assembly LGE EAD61077702 Contact Us For Availability
D3715
Diode,Schottky LGE EAH61113201 Contact Us For Availability
D3716
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3801
Diode,TVS LGE EAH39491701 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN61000101 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN61000102 Contact Us For Availability
IC103
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC501
IC,DC,DC Converter LGE EAN61849201 Contact Us For Availability
IC503
IC,Reset LGE EAN60670101 Contact Us For Availability
IC505
IC,DC,DC Converter LGE EAN61950701 Contact Us For Availability
IC601
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC601
IC,EEPROM LGE EAN61146201 Contact Us For Availability
IC602
IC,Microcontrollers LGE EAN61367101 Contact Us For Availability
IC1203
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC3802
IC,EEPROM LGE EAN60997601 Contact Us For Availability
IC3802
IC,EEPROM LGE 0IMMRAL014E Contact Us For Availability
IC4901
IC,Audio Amplifier LGE EAN61850701 Contact Us For Availability
JHGCF
Tape,Non Woven LGE RAB33013801 Contact Us For Availability
JK1001
Connector,I/O LGE EAG61008301 Contact Us For Availability
JK1102
Jack,Phone LGE EAG61030002 Contact Us For Availability
JK1201
Connector,USB LGE EAG62571101 Contact Us For Availability
JK3702
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK3801
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK3802
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK3803
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK3803
Jack,Phone LGE EAG61030003 Contact Us For Availability
L220
Inductor,Multilayer,Chip LGE ELCH0010109 Contact Us For Availability
L511
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L3804
Filter,Bead LGE EAM38769501 Contact Us For Availability
LV2
Cable,FFC LGE EAD61652507 Contact Us For Availability
M2
Gasket LGE MDS62110209 Contact Us For Availability
M20
Gasket LGE MDS62110213 Contact Us For Availability
P101
Connector,Wafer LGE 6630V90209C Contact Us For Availability
P601
Connector,Wafer LGE 6602T12004L Contact Us For Availability
P1501
Conector,Wafer LGE 6630V93270A Contact Us For Availability
P1502
Connector,Wafer LGE 6630V93270C Contact Us For Availability
P1601
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P3801
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
P3802
Connector,DSUB LGE 6630G00001E Contact Us For Availability
P4901
Connector,Wafer LGE EAG61091601 Contact Us For Availability
Q901
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R106
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R121
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R140
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R195
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R210
Resistor,Chip LGE ERHY0017701 Contact Us For Availability
R263
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R411
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R420
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R423
Resistor,Chip LGE 0RJ4991C478 Contact Us For Availability
R426
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ2701D477 Contact Us For Availability
R513
RESISTOR,METAL GLAZE LGE 0RJ1211D477 Contact Us For Availability
R517
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R520
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R534
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R545
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R549
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R557
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R570
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R571
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R595
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
R646
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R928
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R1118
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R1127
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R1132
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R3707
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R3717
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R3727
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R3744
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R3804
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R3806
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R3812
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R3814
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R3821
Wire Pad LGE EBC40167001 Contact Us For Availability
R4902
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R4917
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R4924
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R5115
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R5117
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R5118
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
SW1
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X101
Crystal LGE EAW58239604 Contact Us For Availability
X101
Crystal LGE EAW58812611 Contact Us For Availability
ZD1117
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
