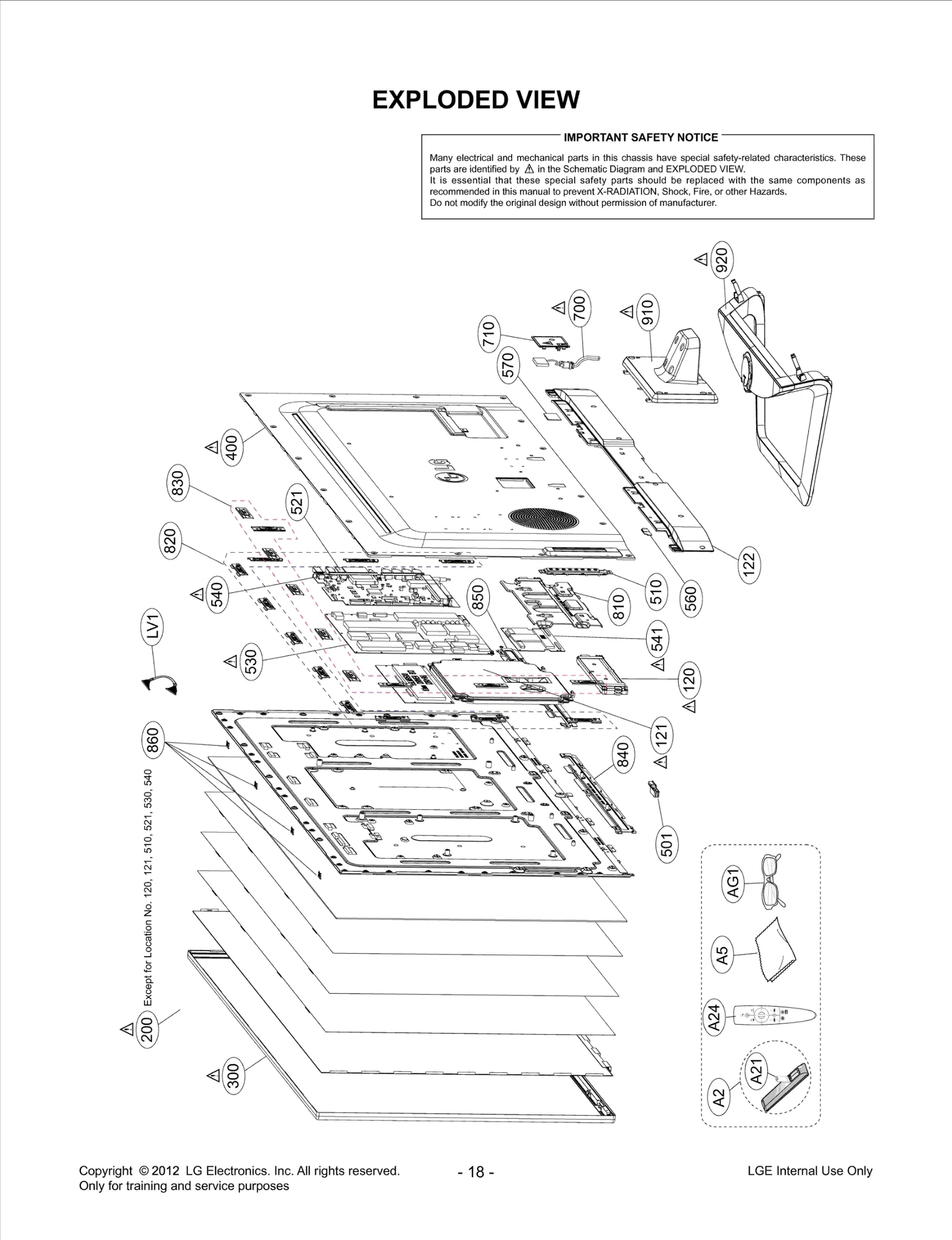

Model LG 55LM9600 – Common Parts & Diagrams

1
Screw,Machine
Screw,Machine LGE FAB31339405 Contact Us For Availability
View on Model
2
Gasket
Gasket LGE MDS63740313 Contact Us For Availability
View on Model
120
Speaker Assembly
Speaker Assembly LGE EAB62649401 Contact Us For Availability
View on Model
121
Speaker Assembly
Speaker Assembly LGE EAB62628401 Contact Us For Availability
View on Model
122
Cover Assembly
Cover Assembly LGE ACQ85928810 Contact Us For Availability
View on Model
200
LCD Assembly,LCM
LCD Assembly,LCM LGE AFB73389311 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ85890411 Contact Us For Availability
View on Model
502
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR74986801 Contact Us For Availability
View on Model
510
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR75289101 Contact Us For Availability
View on Model
521
Plate Assembly
Plate Assembly LGE AGU73908212 Contact Us For Availability
View on Model
530
Power Supply Assembly
Power Supply Assembly LGE EAY62169701 Contact Us For Availability
View on Model
540
PCB Assembly,Main
PCB Assembly,Main LGE EBR75320901 Contact Us For Availability
View on Model
541
PCB Assembly,Main
PCB Assembly,Main LGE EBR75304001 Contact Us For Availability
View on Model
710
Bracket
Bracket LGE MAZ62827604 Contact Us For Availability
View on Model
810
Supporter
Supporter LGE MJH62636602 Contact Us For Availability
View on Model
A24
Remote Controller Assembly
Remote Controller Assembly LGE AKB73615313 Contact Us For Availability
View on Model
AG1
AG-F310---3D Glasses
AG-F310---3D Glasses LGE EBX61668501 Contact Us For Availability
View on Model
C4206
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
View on Model
C5202
Capacitor,Ceramic,Chip
Capacitor,Ceramic,Chip LGE 0CC560BK41A Contact Us For Availability
View on Model
L5211
Inductor,Multilayer,Chip
Inductor,Multilayer,Chip LGE ELCH0005825 Contact Us For Availability
View on Model
LV1
Harness,Single
Harness,Single LGE EAD61750701 Contact Us For Availability
View on Model
N/A2
Adhesive
Adhesive LGE 7254000057B Contact Us For Availability
View on Model
N/A3
Label
Label LGE 3850VK0001U Contact Us For Availability
View on Model
N/A4
Ribbon
Ribbon LGE MGY31802403 Contact Us For Availability
View on Model
P100
Connector,Wafer
Connector,Wafer LGE 6630V90141B Contact Us For Availability
View on Model
P7200
Connector,Wafer
Connector,Wafer LGE 6630V93270J Contact Us For Availability
View on Model
R101
Resistor,Chip
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
View on Model
R103
Resistor,Chip
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
View on Model
R105
Resistor,Chip
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
View on Model
R107
RESISTOR,METAL GLAZE
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
View on Model
R184
Resistor,Chip
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
View on Model
R514
Resistor,Chip
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
View on Model
R629
Resistor,Chip
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
View on Model
R2309
Resistor,Chip
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
View on Model
R2363
Resistor,Chip
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
View on Model
R2378
Resistor,Chip
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
View on Model
R3028
Resistor,Chip
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
View on Model
R3029
Resistor,Chip
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
View on Model
R3200
Resistor,Chip
Resistor,Chip LGE 0RJ6202D677 Contact Us For Availability
View on Model
R6531
Resistor,Chip
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
View on Model
R9329
Resistor,Chip
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
View on Model
SW104
SWITCH,TACT
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
View on Model
