Model LG 55LM5800 – Common Parts & Diagrams

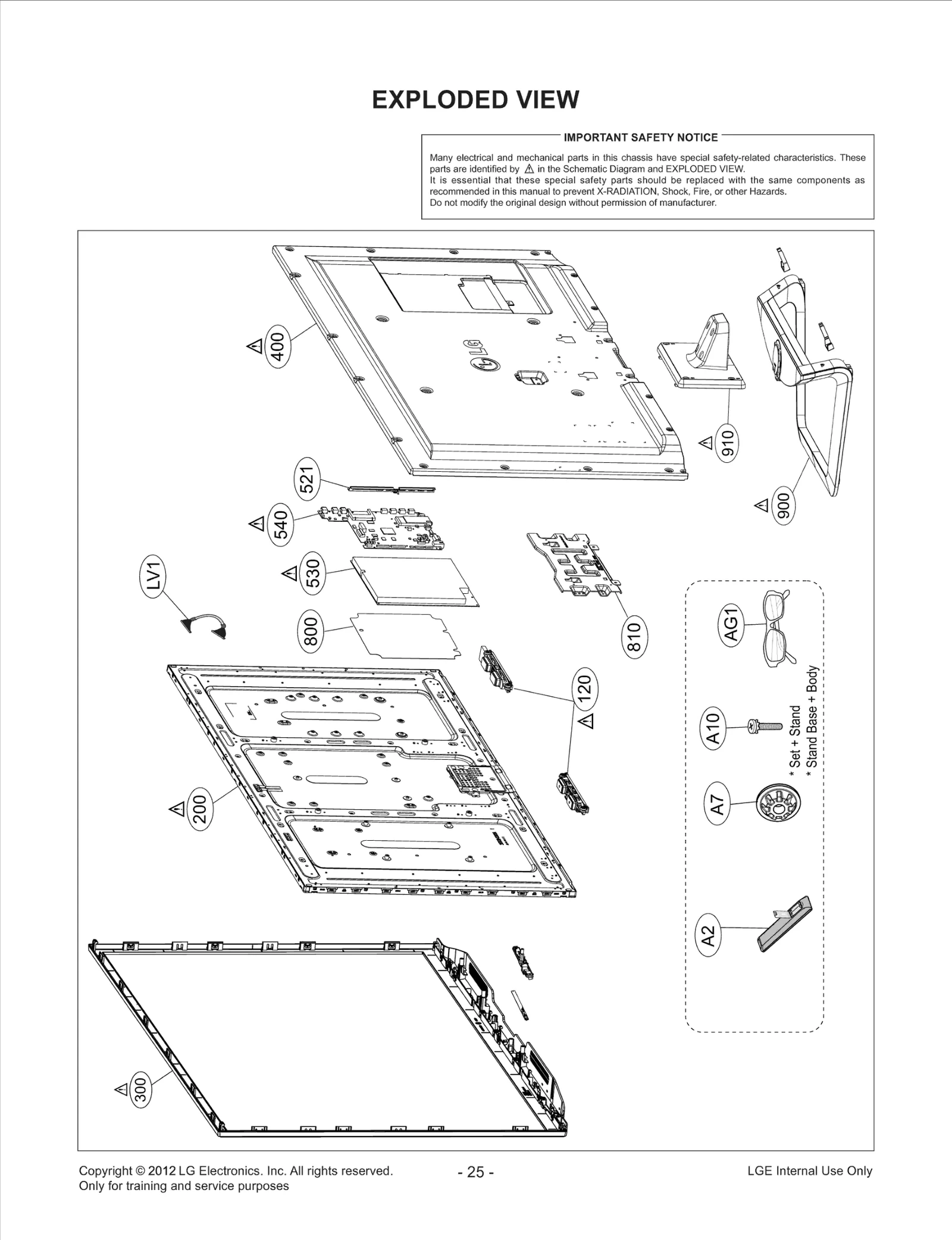

Diagram 0
Diagram 1
Common parts from model LG 55LM5800
200
LCD,Module-TFT LGE EAJ62088501 Contact Us For Availability
300
Cover Assembly LGE ACQ85737339 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85736827 Contact Us For Availability
521
Plate LGE MGJ63185408 Contact Us For Availability
540
BPR Total Assembly LGE EBU61792243 Contact Us For Availability
900
Base Assembly LGE AAN73950905 Contact Us For Availability
910
Supporter LGE MJH62635702 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73615315 Contact Us For Availability
AG1
AG-F310---3D Glasses LGE EBX61668501 Contact Us For Availability
AR102
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C200
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C225
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C236
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C423
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C437
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C438
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C443
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C447
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C467
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C472
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C488
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C494
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C509
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C523
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C528
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C532
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C536
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C540
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1251
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C1625
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C3711
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C4042
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C4044
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C4045
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C4069
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
CA2
Harness,Single LGE EAD60678817 Contact Us For Availability
D200
Diode,Switching LGE EAH41961301 Contact Us For Availability
D1115
Diode,Switching LGE EAH61714301 Contact Us For Availability
D1612
Varistor LGE EAF61530201 Contact Us For Availability
D1617
Varistor LGE EAF61530101 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62325801 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62354101 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN35669102 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN61508001 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN62206401 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC407
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC408
IC,Reset LGE EAN60670101 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC1202
IC,DDR3 SDRAM LGE EAN61829001 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN55718402 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC1450
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC3703
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
JK803
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK1102
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK1104
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1450
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1601
Jack,RCA LGE EAG61008001 Contact Us For Availability
JK2100
Jack,Modular LGE EAG35781005 Contact Us For Availability
L223
Filter,Bead LGE EAM32500903 Contact Us For Availability
L407
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L415
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L506
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L1202
Filter,Bead LGE EAM58113401 Contact Us For Availability
L1606
Inductor,Multilayer,Chip LGE EAP39314717 Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P703
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P1000
Connector,Wafer LGE 6630V90141B Contact Us For Availability
Q402
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q409
FET LGE EBK60752501 Contact Us For Availability
R112
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R146
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R200
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R258
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R403
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R404
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R406
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R416
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R423
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R432
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R438
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R442
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R456
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R473
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R482
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R512
Resistor,Chip LGE EBC32174501 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R837
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R891
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R1226
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1227
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1235
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1620
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1625
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R2405
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R2432
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R3761
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R4002
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R4023
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R4025
Resistor,Chip LGE EBC32176201 Contact Us For Availability
TU3700
Tuner,Analog/Digital LGE EBL61060101 Contact Us For Availability
× ![]()
