Model LG 55LM4700 – Common Parts & Diagrams

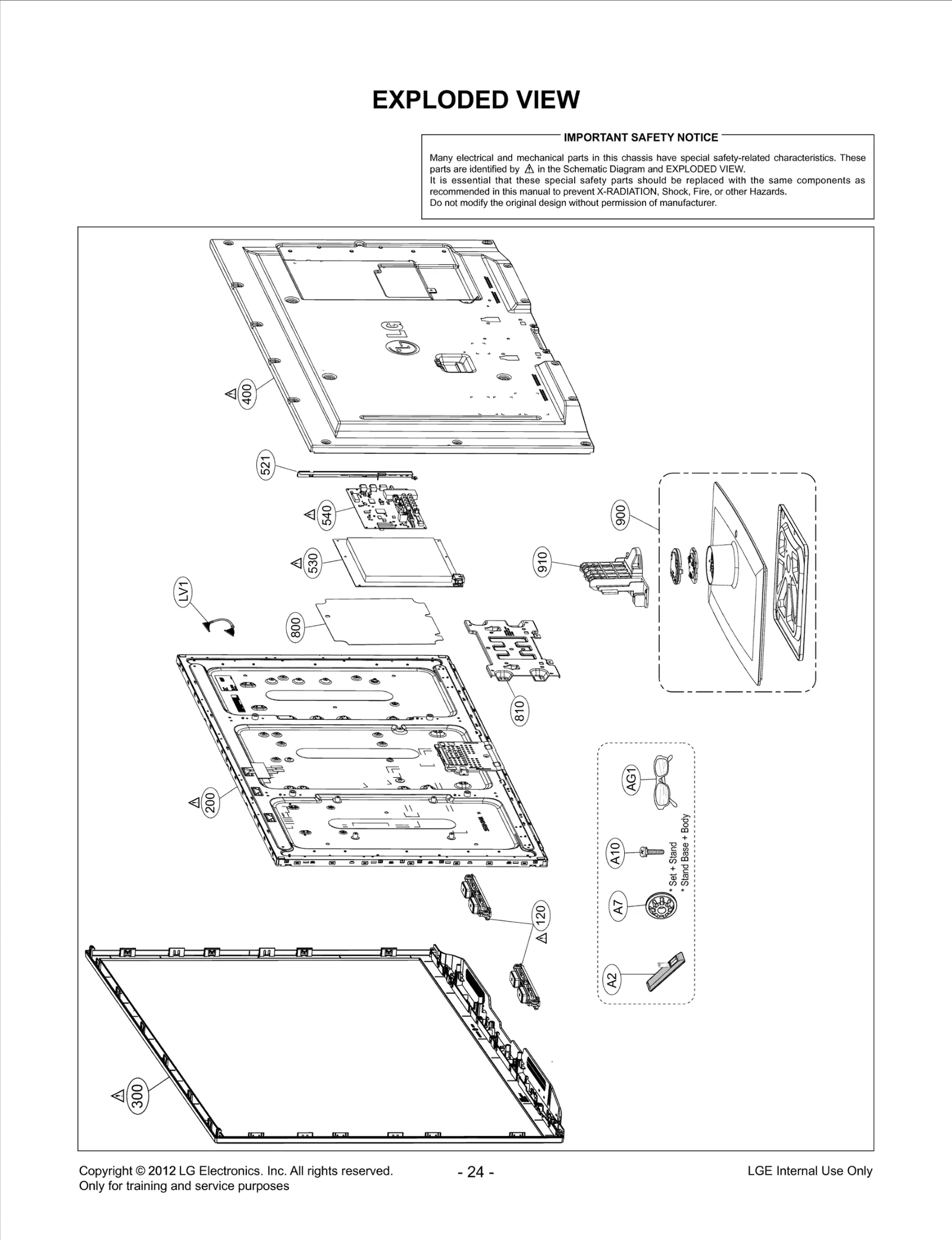

Diagram 0
Diagram 1
Common parts from model LG 55LM4700
1
Screw,Machine LGE FAB31339402 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62111301 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73747209 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85718311 Contact Us For Availability
521
Plate LGE MGJ63185408 Contact Us For Availability
540
PCB Assembly,Main LGE EBR75303418 Contact Us For Availability
900
Base Assembly LGE AAN73028905 Contact Us For Availability
A2
Package Assembly LGE AGF76578735 Contact Us For Availability
AG1
AG-F310---3D Glasses LGE EBX61668501 Contact Us For Availability
AR101
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C231
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C237
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C249
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C438
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C443
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C444
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C447
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C467
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C472
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C488
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C494
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C501
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C506
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C507
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C524
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C533
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C534
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C536
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C1227
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C1451
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C1627
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C3713
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C4042
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C4045
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C4068
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
CA1
Harness,Single LGE EAD60678817 Contact Us For Availability
D200
Diode,Switching LGE EAH41961301 Contact Us For Availability
D821
Diode,Switching LGE EAH61714301 Contact Us For Availability
D1609
Varistor LGE EAF61530101 Contact Us For Availability
D1612
Varistor LGE EAF61530201 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62354101 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62325801 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN35669102 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN61508001 Contact Us For Availability
IC104
IC,EEPROM LGE EAN61548301 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN62206401 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC407
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC409
IC,Reset LGE EAN60670101 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61829001 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61836301 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN55718402 Contact Us For Availability
IC1401
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC1450
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC3703
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
JK803
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK1102
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK1103
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK1104
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK1450
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1601
Jack,RCA LGE EAG61008006 Contact Us For Availability
JK2100
Jack,Modular LGE EAG35781006 Contact Us For Availability
JK2100
Jack,Modular LGE EAG35781005 Contact Us For Availability
L202
Filter,Bead LGE EAM32500903 Contact Us For Availability
L404
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L413
Filter,Bead LGE EAM58113401 Contact Us For Availability
L415
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L504
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L1605
Inductor,Multilayer,Chip LGE EAP39314717 Contact Us For Availability
P407
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P703
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P1000
Connector,Wafer LGE 6630V90141B Contact Us For Availability
Q402
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q403
FET LGE EBK60752501 Contact Us For Availability
R137
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R148
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R200
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R233
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R403
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R416
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R423
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R432
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R438
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R442
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R456
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R480
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R482
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R513
Resistor,Chip LGE EBC32174501 Contact Us For Availability
R517
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R835
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R889
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R897
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1001
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1203
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1228
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1608
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1625
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R2405
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R2426
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R2432
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R3733
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R3735
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R3741
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R3766
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R4003
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R4019
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R4023
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R4024
Resistor,Chip LGE EBC32176201 Contact Us For Availability
TU3700
Tuner,Analog/Digital LGE EBL61060101 Contact Us For Availability
× ![]()
