Model LG 55EW5PG-S – Common Parts & Diagrams

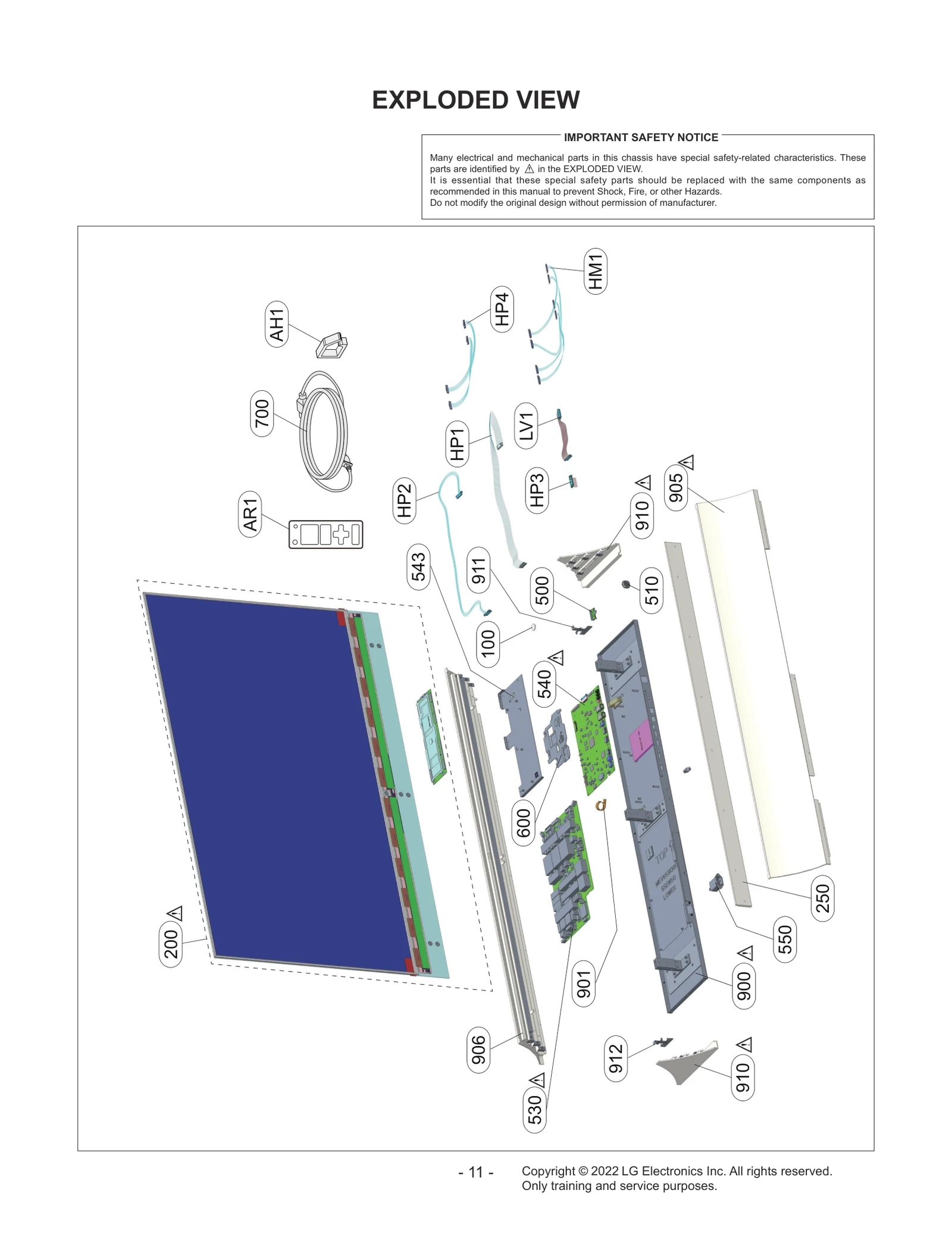

Diagram 0
Common parts from model LG 55EW5PG-S
100
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
100
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
200
Package Assembly LGE AGF30091102 Contact Us For Availability
250
Frame Assembly LGE ADV77707006 Contact Us For Availability
500
Cover Assembly,PCB LGE ACQ30472601 Contact Us For Availability
510
Cover Assembly,PCB LGE ACQ30472501 Contact Us For Availability
530
Power Supply Assembly LGE EAY64408802 Contact Us For Availability
530
Power Supply Assembly LGE EAY64408801 Contact Us For Availability
540
BPR Total Assembly,SVC LGE EBU67135401 Contact Us For Availability
543
Frame Assembly LGE ADV77145801 Contact Us For Availability
600
Heat Sink LGE MED64870901 Contact Us For Availability
600
Heat Sink LGE MED64870902 Contact Us For Availability
900
Base Assembly LGE AAN30041701 Contact Us For Availability
905
Base Assembly LGE AAN30041502 Contact Us For Availability
906
Base Assembly LGE AAN30041501 Contact Us For Availability
910
Base Assembly LGE AAN30041601 Contact Us For Availability
911
Bracket,Stand LGE MAZ67613801 Contact Us For Availability
911
Bracket LGE MAZ67671201 Contact Us For Availability
912
Bracket LGE MAZ67671202 Contact Us For Availability
AH1
Holder LGE MEG61874114 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB75095395 Contact Us For Availability
HM1
Harness,Single LGE EAD63967303 Contact Us For Availability
HP1
Harness,Single LGE EAD62122706 Contact Us For Availability
HP2
Harness,Single LGE EAD62825404 Contact Us For Availability
HP4
Harness,Single LGE EAD65849202 Contact Us For Availability
LV1
Cable,FFC LGE EAD62572214 Contact Us For Availability
× ![]()
