Model LG 55EF5K-L – Common Parts & Diagrams

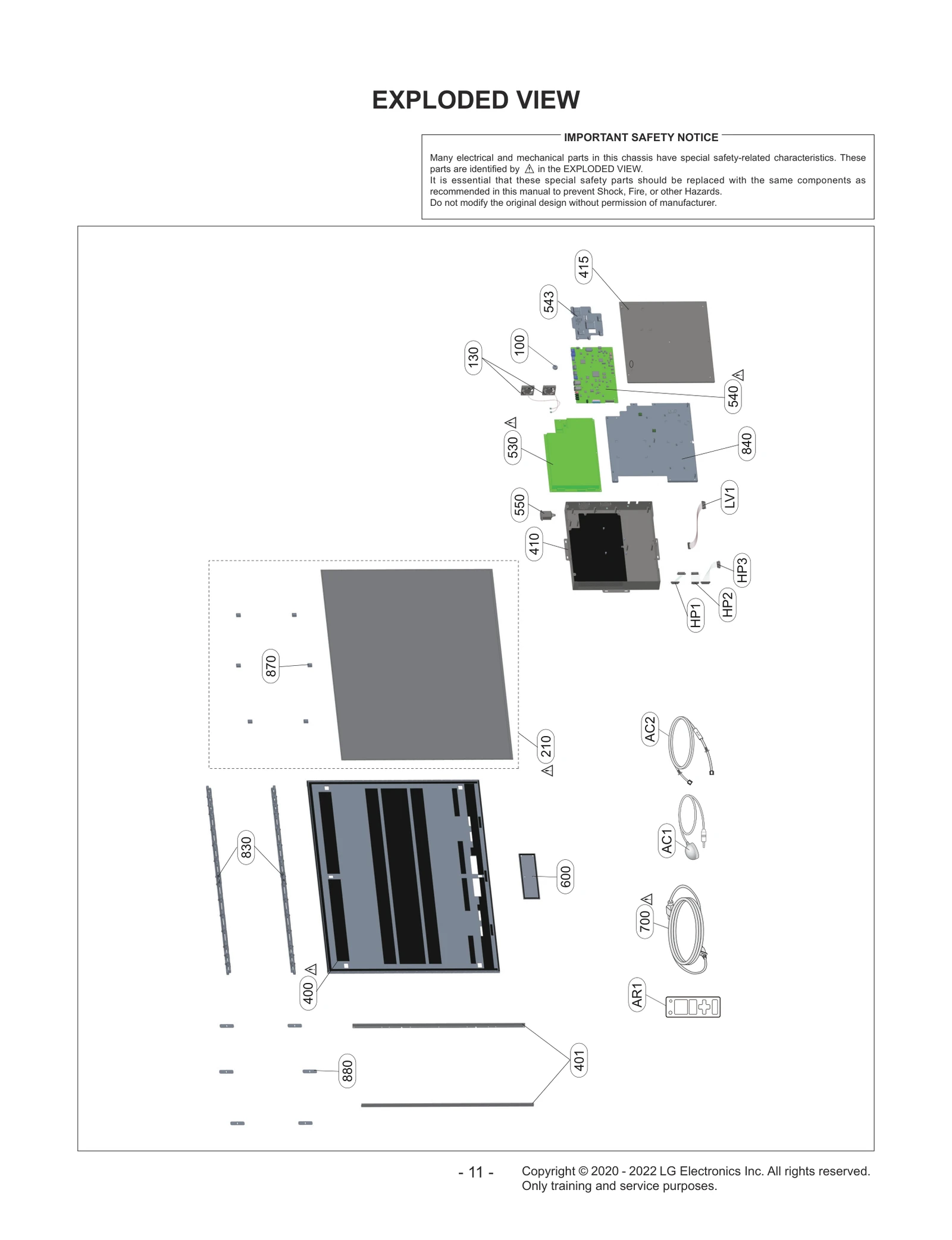

Diagram 0
Common parts from model LG 55EF5K-L
100
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
100
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
210
Package Assembly LGE AGF30098904 Contact Us For Availability
400
Cover Assembly LGE ACQ91559706 Contact Us For Availability
401
Cabinet LGE MBH64942205 Contact Us For Availability
410
Frame Assembly LGE ADV76987402 Contact Us For Availability
530
Power Supply Assembly LGE EAY64408802 Contact Us For Availability
530
Power Supply Assembly LGE EAY64408803 Contact Us For Availability
540
BPR Total Assembly,SVC LGE EBU67092701 Contact Us For Availability
543
Heat Sink LGE MED64870903 Contact Us For Availability
543
Heat Sink LGE MED64870904 Contact Us For Availability
600
Plate Assembly LGE AGU76988202 Contact Us For Availability
830
Frame Assembly LGE ADV77165501 Contact Us For Availability
840
Frame Assembly LGE ADV77045803 Contact Us For Availability
870
Bracket Assembly LGE ABA30022901 Contact Us For Availability
880
Bracket LGE MAZ67470501 Contact Us For Availability
AC1
Cable,Assembly LGE EAD61273144 Contact Us For Availability
AC2
Harness,Single LGE EAD64709002 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB75095395 Contact Us For Availability
HP1
Harness,Single LGE EAD62825413 Contact Us For Availability
HP2
Harness,Single LGE EAD63026115 Contact Us For Availability
HP3
Harness,Single LGE EAD63966202 Contact Us For Availability
× ![]()
