Model LG 52LG50 – Common Parts & Diagrams

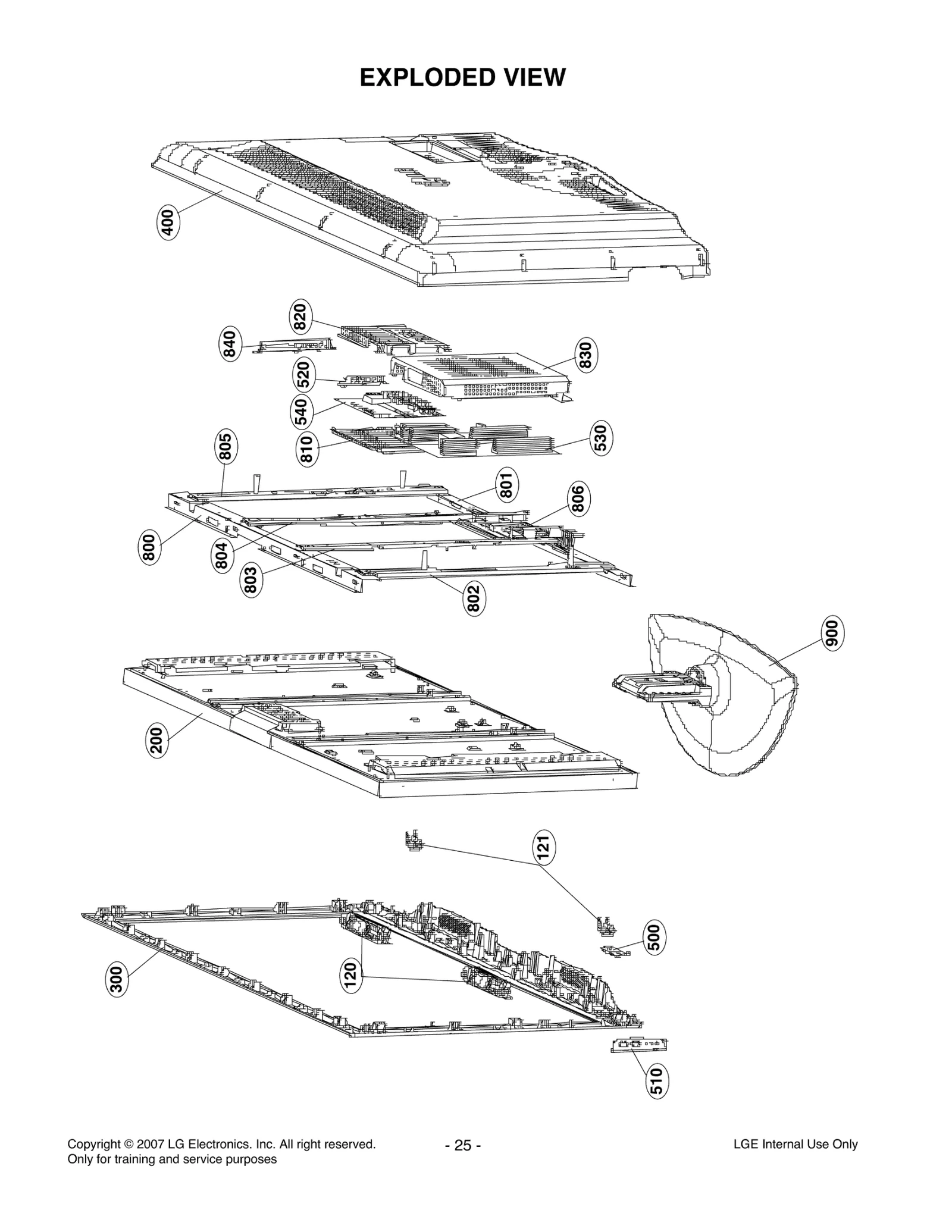

Diagram 0
Diagram 1
Common parts from model LG 52LG50
120
Speaker,Full Range LGE EAB41280401 Contact Us For Availability
121
Speaker,Tweeter LGE EAB41284402 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ56934501 Contact Us For Availability
300
Cabinet Assembly LGE ABJ35821718 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ35820614 Contact Us For Availability
500
PCB Assembly,Front LGE EBR42597903 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR43332902 Contact Us For Availability
510
PCB Assembly LGE EBR57357401 Contact Us For Availability
520
Plate,Shield LGE MGJ40651702 Contact Us For Availability
540
Main Total Assembly LGE EBU41909802 Contact Us For Availability
800
Plate,Metal LGE MGJ40618901 Contact Us For Availability
801
Plate,Metal LGE MGJ40619201 Contact Us For Availability
802
Plate,Metal LGE MGJ40616201 Contact Us For Availability
803
Plate,Metal LGE MGJ40618501 Contact Us For Availability
804
Plate,Metal LGE MGJ40618601 Contact Us For Availability
805
Plate,Metal LGE MGJ40618801 Contact Us For Availability
806
Plate,Metal LGE MGJ40935201 Contact Us For Availability
810
Plate LGE MGJ40315501 Contact Us For Availability
820
Plate,Metal LGE MGJ40652303 Contact Us For Availability
830
Plate Assembly LGE AGU67935101 Contact Us For Availability
840
Bracket Assembly LGE ABA35569904 Contact Us For Availability
900
Base Assembly LGE AAN35804112 Contact Us For Availability
A4
Manual,Owners LGE MFL34797048 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
AR200
Resistor,Array LGE 0RJ1001C687 Contact Us For Availability
AR354
Resistor,Array LGE EBC32260404 Contact Us For Availability
AR356
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
C240
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C241
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C257
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C303
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C310
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C334
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C357
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C389
Capacitor,Ceramic,Ch LGE EAE32479401 Contact Us For Availability
C407
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C410
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C429
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C506
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C511
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C520
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C527
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C532
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C540
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C570
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C577
CAPACITOR,CHIP[AL. E LGE 0CH8226F691 Contact Us For Availability
C728
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C813
Capacitor,AL,Chip LGE EAE30840401 Contact Us For Availability
C826
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C830
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C832
CAPACITOR,FIXED CERA LGE 0CK476FD67A Contact Us For Availability
C852
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C871
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C917
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C918
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C2601
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C8801
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C8802
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C8813
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
D402
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D701
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC101
S/W,Firmware LGE SAA31588524 Contact Us For Availability
IC102
IC,EEPROM LGE 0IMMRCS012D Contact Us For Availability
IC201
IC,Analog Switch LGE EAN30267601 Contact Us For Availability
IC301
IC,DDR SDRAM LGE EAN41786801 Contact Us For Availability
IC304
IC,POWER MANAGEMENT LGE 0IPMG78391A Contact Us For Availability
IC401
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC403
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC405
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC406
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC408
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC500
IC,Bus Controller LGE 0IPRP00665A Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN32404602 Contact Us For Availability
IC502
IC,PERIPHERALS LGE 0IPRPCI013A Contact Us For Availability
IC503
IC,BiCMOS LGE EAN33624801 Contact Us For Availability
IC600
IC,Analog Switch LGE EAN39310001 Contact Us For Availability
IC702
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC808
IC,PERIPHERALS LGE 0IPRPFA015B Contact Us For Availability
IC809
IC,POWER MANAGEMENT LGE 0IPMG00027A Contact Us For Availability
IC810
IC,LDO Voltage Regul LGE 0IPMGS1006B Contact Us For Availability
IC811
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC812
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
JK402
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK500
Jack,RCA LGE EAG35542202 Contact Us For Availability
JK501
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK600
Jack,DIN LGE 6612B00015C Contact Us For Availability
JK701
Jack,Complex LGE 6612J00062H Contact Us For Availability
JK704
Jack,RCA LGE 6612J10043A Contact Us For Availability
JK705
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK705
Connector,DSUB LGE 6630TGA004P Contact Us For Availability
JK708
Jack,DIN LGE EAG42025501 Contact Us For Availability
L206
Inductor,Wire Wound, LGE EAP37991401 Contact Us For Availability
L302
Filter,Line Noise LGE 6200J000091 Contact Us For Availability
L602
FILTER(CIRC),EMC LGE 6210TCE001Z Contact Us For Availability
L701
Inductor,Multilayer, LGE 6210TCE001T Contact Us For Availability
L802
Inductor,Multilayer, LGE EAP39314701 Contact Us For Availability
L804
Filter,Bead LGE 6210TCE001E Contact Us For Availability
L804
Filter,Bead LGE EAM42641602 Contact Us For Availability
L805
FILTER(CIRC),EMC LGE 6200J000123 Contact Us For Availability
L807
Filter,Bead LGE EAM30764101 Contact Us For Availability
L910
Filter,Bead LGE EAM38769505 Contact Us For Availability
L910
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD803
LED LGE 0DL233309AC Contact Us For Availability
LV1
Harness,Single LGE EAD42557902 Contact Us For Availability
P100
Connector,Wafer LGE 6602T12005C Contact Us For Availability
P501
WAFER LGE 6602T25009C Contact Us For Availability
P800
Connector,Wafer LGE EAG39798201 Contact Us For Availability
P901
Connector,Wafer LGE EAG33942601 Contact Us For Availability
Q600
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q612
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
Q614
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
R106
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R107
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R188
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R202
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R206
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R212
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R437
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R456
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R493
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ0471G676 Contact Us For Availability
R518
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R539
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R541
Resistor,Chip LGE 0RJ1100D677 Contact Us For Availability
R547
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R554
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R690
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R693
Resistor,Chip LGE 0RJ0342D477 Contact Us For Availability
R702
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R706
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R721
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R773
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R807
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R821
Resistor,Chip LGE 0RJ6341D477 Contact Us For Availability
R822
RESISTOR,METAL GLAZE LGE 0RJ4300D677 Contact Us For Availability
R825
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R826
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R862
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R863
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R877
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R879
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R2161
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R2163
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R2421
Resistor,Chip LGE 0RZZ000067A Contact Us For Availability
R2440
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R2600
Resistor,Chip LGE EBC37049601 Contact Us For Availability
R2638
Resistor,Chip LGE 0RJ0272C678 Contact Us For Availability
R2643
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R2644
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R2671
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R2677
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R2680
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R2913
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R3000
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R3041
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R3055
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R3122
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R3128
Resistor,Chip LGE 0RJ3000C478 Contact Us For Availability
R3143
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R3193
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R3601
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R3604
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R3605
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
SW105
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW105
Switch,Tact LGE EBF55334201 Contact Us For Availability
SW400
Switch,Tact LGE EBF32593901 Contact Us For Availability
TU1
Tuner,Analog/Digital LGE EBL37676801 Contact Us For Availability
VR700
VARISTOR LGE 6102W5V016A Contact Us For Availability
X200
Crystal LGE 6212AA2600B Contact Us For Availability
ZD102
Diode,TVS LGE EAH33945901 Contact Us For Availability
ZD600
Diode,Zener LGE 0DZDI00078A Contact Us For Availability
ZD707
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
ZD748
DIODE,ZENERS LGE 0DZRM00218A Contact Us For Availability
× ![]()
Login and Registration Form
