Model Whirlpool 51IMWEX1 ICE MACHINE – Common Parts & Diagrams

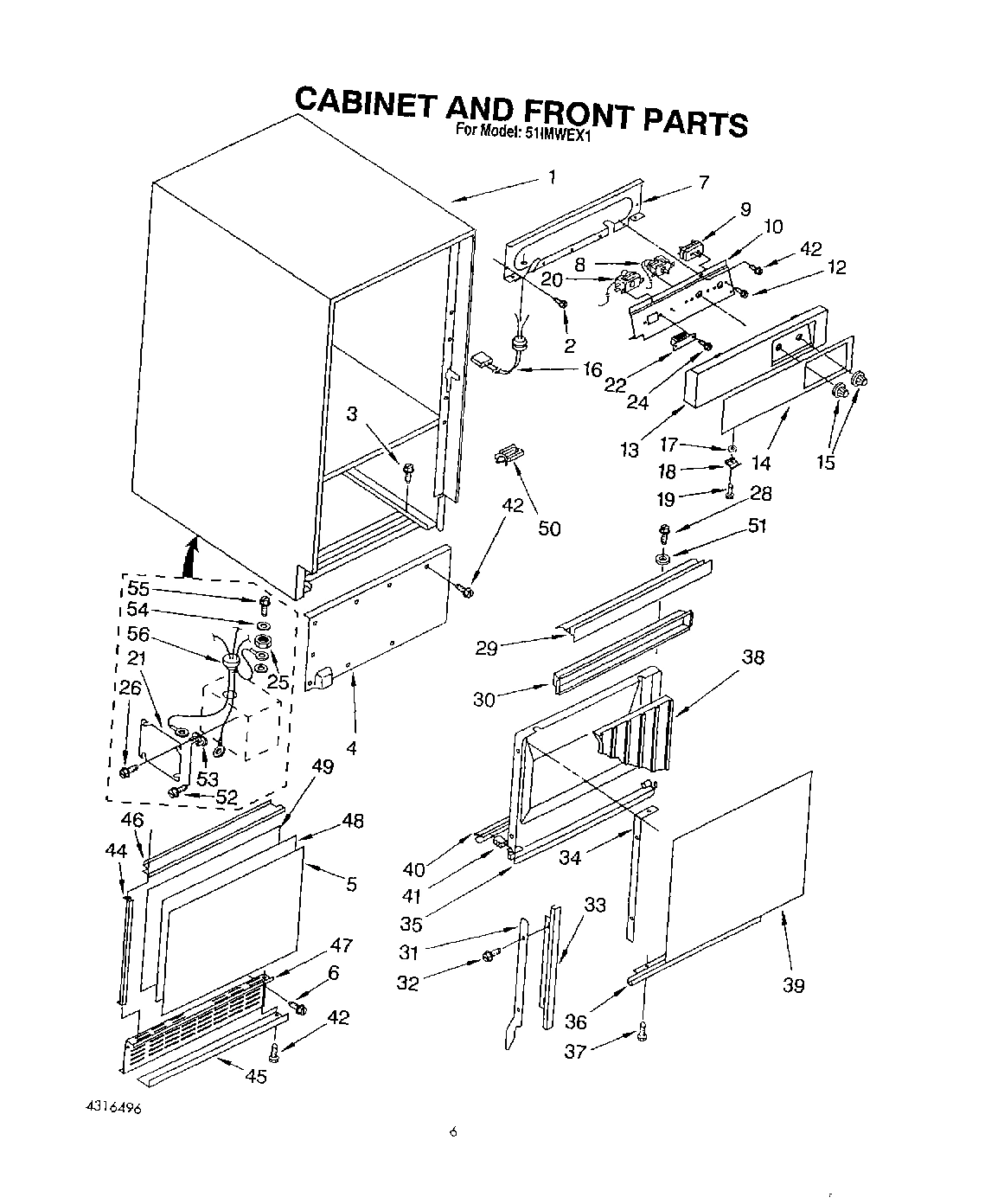

04 - CABINET AND FRONT

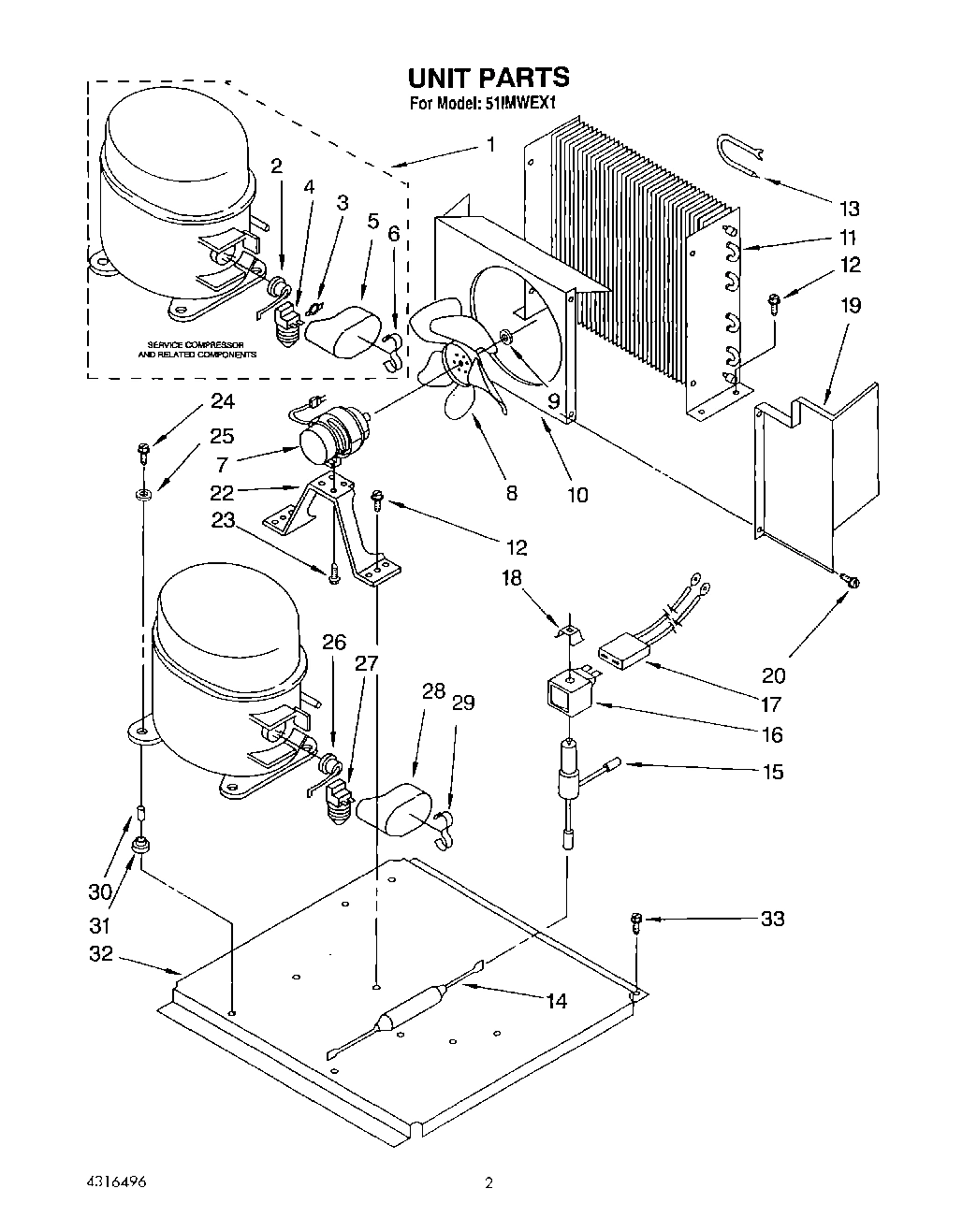

02 - UNIT, LIT/OPTIONAL

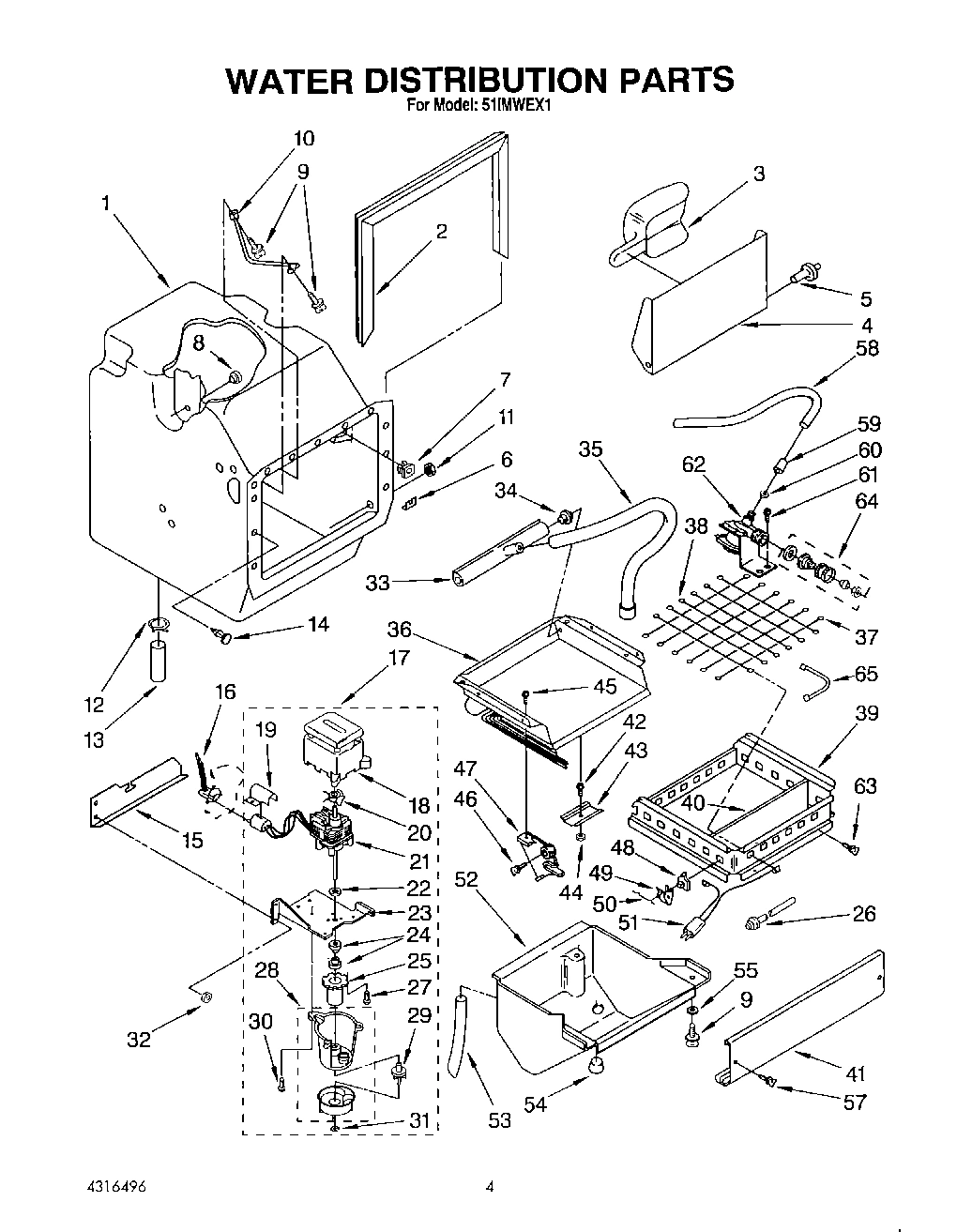

03 - WATER DISTRIBUTION

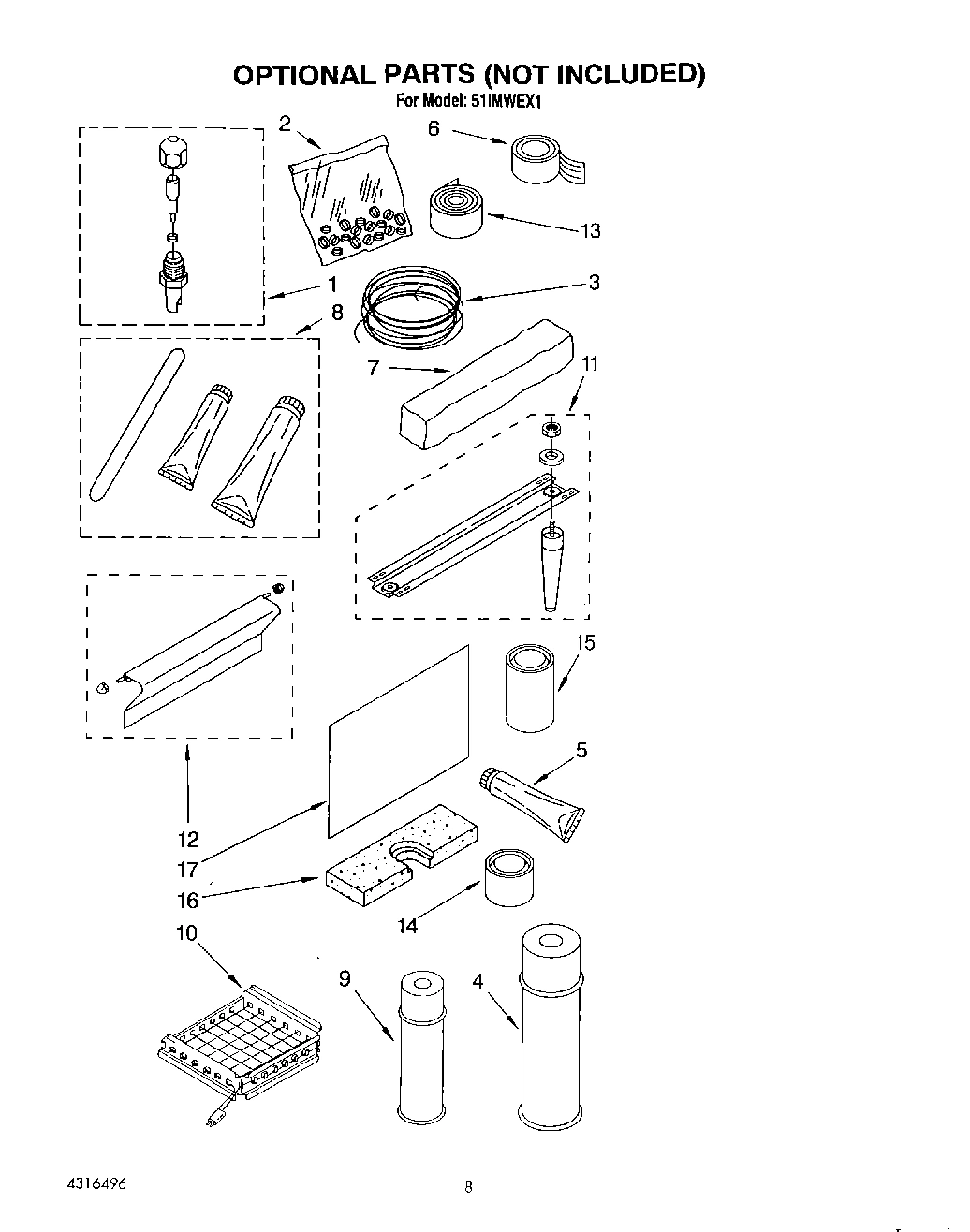

05 - OPTIONAL
Common parts from model Whirlpool 51IMWEX1 ICE MACHINE
Owners Instructions WPL LIT2165109 Contact Us For Availability
List, Repair Parts WPL LIT4316496 Contact Us For Availability
1
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
1
Compressor, Service Kit WPL 598814 Contact Us For Availability
1
Liner (Includes No.s 5, 6, 7, 11, 14) WPL 756350 Contact Us For Availability
1
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
2
Overload WPL 598196 Contact Us For Availability
2
Gasket, Liner WPL 758921 Contact Us For Availability
2
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
3
Spring, Overload WPL 549086 Contact Us For Availability
3
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
3
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
3
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
3
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
3
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
3
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
3
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
4
Relay, Start WPL 598195 Contact Us For Availability
4
Door, Inner WPL 756330 Contact Us For Availability
4
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
5
Cover, Terminal WPL 549342 Contact Us For Availability
5
Stud, Inner Door Mtg. (2) WPL 758220 Contact Us For Availability
6
Retainer, Cover WPL 560849 Contact Us For Availability
6
Washer, Clip WPL 758492 Contact Us For Availability
7
Motor, Fan (Includes No.23) WPL 593821 Contact Us For Availability
7
Grommet WPL 596807 Contact Us For Availability
8
Nut, Well (3) WPL 596715 Contact Us For Availability
8
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
9
Screw, Thumb 10 x 1/2 WPL 681419 Contact Us For Availability
9
Nut, Hex 1/4-20 WPL 681650 Contact Us For Availability
9
Paint, Spray (Leveler, Enamel) WPL 206925 Contact Us For Availability
10
Shroud, Condenser WPL 757955 Contact Us For Availability
10
Thermostat, Well Bin WPL 593183 Contact Us For Availability
10
Grid, Cutter (1-1/4`` - Cubes (Complete Assem WPL 758469 Contact Us For Availability
10
Grid, Cutter (3/4`` - Cubes) WPL 758470 Contact Us For Availability
11
Condenser WPL 756299 Contact Us For Availability
11
Nut, Hex 1/4 (2) WPL 681542 Contact Us For Availability
11
Leg, Leveling Kit WPL 876649 Contact Us For Availability
12
Clamp, Hose (2) WPL 596023 Contact Us For Availability
12
Ice Deflector Kit WPL 702354 Contact Us For Availability
13
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
13
Accumulator WPL 756298 Contact Us For Availability
13
Connector, Hose WPL 593577 Contact Us For Availability
14
Clip, Linner (12) WPL 596812 Contact Us For Availability
15
Valve, Solenoid Coil WPL 598086 Contact Us For Availability
15
Shelf, Water Pan WPL 585853 Contact Us For Availability
16
Harness, Wiring (Cutter Grid) WPL 757464 Contact Us For Availability
16
Coil, Solenoid WPL 593639 Contact Us For Availability
16
Harness, Wiring (Water Pump) WPL 569434 Contact Us For Availability
16
Insulation, Kit (Bin Bottom) WPL 588490 Contact Us For Availability
17
Harness, Wiring (Solenoid Coil) WPL 587971 Contact Us For Availability
17
Pump, Water (Complete Assembly) WPL 757413 Contact Us For Availability
17
Panel, Door (Stainless Steel) WPL 755340 Contact Us For Availability
17
Panel, Door (White & Black) WPL 755364 Contact Us For Availability
17
Panel, Door (Almond & Harvest Gold) WPL 755371 Contact Us For Availability
17
Panel, Door (Walnut) WPL 756870 Contact Us For Availability
17
Panel WPL 758740 Contact Us For Availability
17
WPL 758745 WPL 758745 Contact Us For Availability
18
Latch, Door WPL 759123 Contact Us For Availability
18
Retainer, Solenoid Coil WPL 564234 Contact Us For Availability
18
Housing, Motor WPL 583155 Contact Us For Availability
19
Screw WPL 680964 Contact Us For Availability
19
Deflector, Air WPL 758811 Contact Us For Availability
19
Sheild, Wiring WPL 756124 Contact Us For Availability
20
Thermostat, Ice Bin WPL 2165478 Contact Us For Availability
20
Blade, Fan WPL 587096 Contact Us For Availability
21
Cover, Box WPL 573468 Contact Us For Availability
21
Motor, Pump WPL 1127835 Contact Us For Availability
22
Transformer WPL 758309 Contact Us For Availability
22
Bracket, Fan Motor WPL 560817 Contact Us For Availability
22
Washer WPL 583424 Contact Us For Availability
23
Screw, 8-36 x 1/2 (4) WPL 489199 Contact Us For Availability
23
Bracket, Pump WPL 756122 Contact Us For Availability
24
Screw, 8-32 x 3/8 (2) WPL 681036 Contact Us For Availability
24
Screw, 5/16-18 x 1-1/4 (4) WPL 680233 Contact Us For Availability
24
Grommet (2) WPL 596016 Contact Us For Availability
25
Nut, No. 1/4 (3) WPL 680637 Contact Us For Availability
25
Washer, Flat (4) WPL 595230 Contact Us For Availability
25
Sleeve WPL 593229 Contact Us For Availability
26
Screw WPL 486214 Contact Us For Availability
26
Overload WPL 758638 Contact Us For Availability
26
Tube, Water Fill WPL 759213 Contact Us For Availability
27
Relay, Start WPL 758637 Contact Us For Availability
28
Cover, Terminal WPL 1108115 Contact Us For Availability
28
Pump, Assembly WPL 583518 Contact Us For Availability
29
Handle, Door WPL 758622 Contact Us For Availability
29
Retainer, Terminal Cover WPL 938384 Contact Us For Availability
29
Impeller, Pump (Includes No. 31) WPL 583426 Contact Us For Availability
30
Pocket, Handle WPL 758752 Contact Us For Availability
30
Sleeve (4) WPL 585564 Contact Us For Availability
30
Screw, 8-18 x 3/4 WPL 681391 Contact Us For Availability
31
Rail, Door (Right Side) WPL 593184 Contact Us For Availability
31
Rail, Door (Left Side) WPL 593185 Contact Us For Availability
31
Grommet (4) WPL 596355 Contact Us For Availability
31
Ring, Retaining WPL 681301 Contact Us For Availability
32
Screw, No.8-32 1/2 (6) WPL 681459 Contact Us For Availability
32
Base, Unit WPL 758810 Contact Us For Availability
32
Nut (3) WPL 681770 Contact Us For Availability
33
Trim, Door (2) WPL 758748 Contact Us For Availability
33
Screw, 10-24 x 1/2 (4) WPL 680811 Contact Us For Availability
33
Dispenser, Water WPL 585813 Contact Us For Availability
34
Strip, Tapping (2) WPL 593104 Contact Us For Availability
34
Plug, WPL 758597 Contact Us For Availability
35
Liner, Door WPL 758655 Contact Us For Availability
35
Hose, Dispenser WPL 585856 Contact Us For Availability
36
Trim, Door WPL 758400 Contact Us For Availability
36
Evaporator WPL 758028 Contact Us For Availability
37
Screw, No.8-32 x 1/2 WPL 681196 Contact Us For Availability
37
Wire, Cutter (Includes 9 Wires) WPL 587503 Contact Us For Availability
38
Insulation, Door WPL 758608 Contact Us For Availability
38
Wire, Cutter (Includes 10 Wires) WPL 587504 Contact Us For Availability
39
Panel, Door (White & Black) WPL 758746 Contact Us For Availability
39
Frame, Grid WPL 759201 Contact Us For Availability
40
Gasket, Door WPL 758169 Contact Us For Availability
40
Sheild, Grid WPL 564069 Contact Us For Availability
41
Plug, Hinge WPL 593192 Contact Us For Availability
41
Panel, Grid WPL 593171 Contact Us For Availability
42
Screw, 10-32 x 1/2 WPL 596037 Contact Us For Availability
43
Clamp WPL 587662 Contact Us For Availability
44
Trim, Sides (2) WPL 758714 Contact Us For Availability
44
Nut, 10-32 WPL 681676 Contact Us For Availability
45
Trim, Top & Bottom WPL 758717 Contact Us For Availability
46
Support Panel WPL 758718 Contact Us For Availability
46
Screw, Thumb 10-32 x 1`` WPL 681611 Contact Us For Availability
47
Grille, Panel WPL 759132 Contact Us For Availability
47
Bracket, Grid (2) WPL 756564 Contact Us For Availability
48
Filler, Grille Panel WPL 758770 Contact Us For Availability
48
Insulator, Grid Wires (38) WPL 598277 Contact Us For Availability
49
Panel, Inner Grille WPL 758771 Contact Us For Availability
49
Clip, Grid Wires (38) WPL 759197 Contact Us For Availability
50
Retainer, Wire WPL 758844 Contact Us For Availability
50
Pin, Grid Wires (4) WPL 587112 Contact Us For Availability
51
Washer (2) WPL 681613 Contact Us For Availability
51
Harness, Wiring (Cutter Grid) WPL 587638 Contact Us For Availability
52
Pan, Water WPL 756659 Contact Us For Availability
53
Connector, Terminal WPL 938329 Contact Us For Availability
53
Hose, Overflow WPL 759109 Contact Us For Availability
54
Lockwasher 1/4 WPL 668347 Contact Us For Availability
54
Plug, Pan WPL 759043 Contact Us For Availability
55
Washer, WPL 681245 Contact Us For Availability
55
Screw, 1/4-20 x 1-1/4 WPL 681333 Contact Us For Availability
56
Harness, Cabinet WPL 758406 Contact Us For Availability
57
Screw, Thumb 10-32 x 3/4 (2) WPL 681534 Contact Us For Availability
61
Screw WPL 681305 Contact Us For Availability
62
Valve, Water WPL 759294 Contact Us For Availability
63
Screw, Thumb 10-32 WPL 680930 Contact Us For Availability
64
WPL 2165477 WPL 2165477 Contact Us For Availability
65
WPL 587106 WPL 587106 Contact Us For Availability
× ![]()
