Model LG 50UK660H0LA – Common Parts & Diagrams

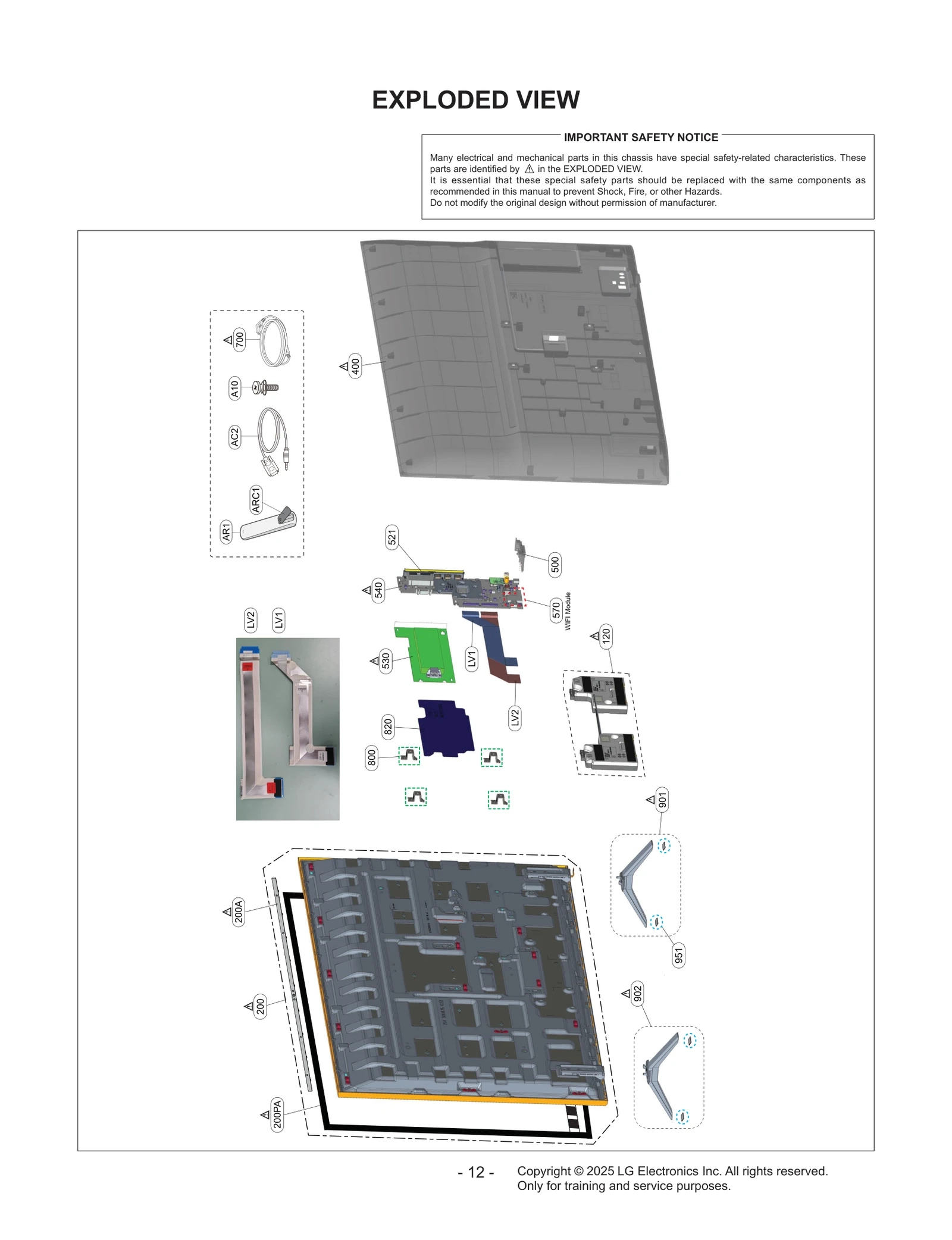

Diagram 0
Common parts from model LG 50UK660H0LA
200
LCD,Module-TFT LGE EAJ65952801 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF04080501 Contact Us For Availability
200PA
LCD Panel Kit LGE EAJ30034001 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30744916 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30744928 Contact Us For Availability
500
Cover Assembly,LED LGE ACQ30745803 Contact Us For Availability
521
Bracket LGE MAZ67874310 Contact Us For Availability
521
Bracket LGE MAZ67874312 Contact Us For Availability
530
Power Supply Assembly LGE EAY65920781 Contact Us For Availability
530
Power Supply Assembly LGE EAY65920751 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU30228101 Contact Us For Availability
570
Module,Wifi Bluetooth Module LGE EAT65235202 Contact Us For Availability
700
Power Cord,Detach LGE EAD61891001 Contact Us For Availability
800
Supporter,VESA LGE MJH64333101 Contact Us For Availability
820
Insulator LGE MEV67818501 Contact Us For Availability
901
Base Assembly LGE AAN30078392 Contact Us For Availability
902
Base Assembly LGE AAN30078393 Contact Us For Availability
951
Damper LGE MCQ68894002 Contact Us For Availability
AC2
Cable,Assembly LGE EAD62707906 Contact Us For Availability
ARC1
Cover,Rear LGE MCK62976101 Contact Us For Availability
LV1
Cable,FFC LGE EAD66038319 Contact Us For Availability
LV2
Cable,FFC LGE EAD66038320 Contact Us For Availability
× ![]()
