Model LG 50QNED82AUA – Common Parts & Diagrams

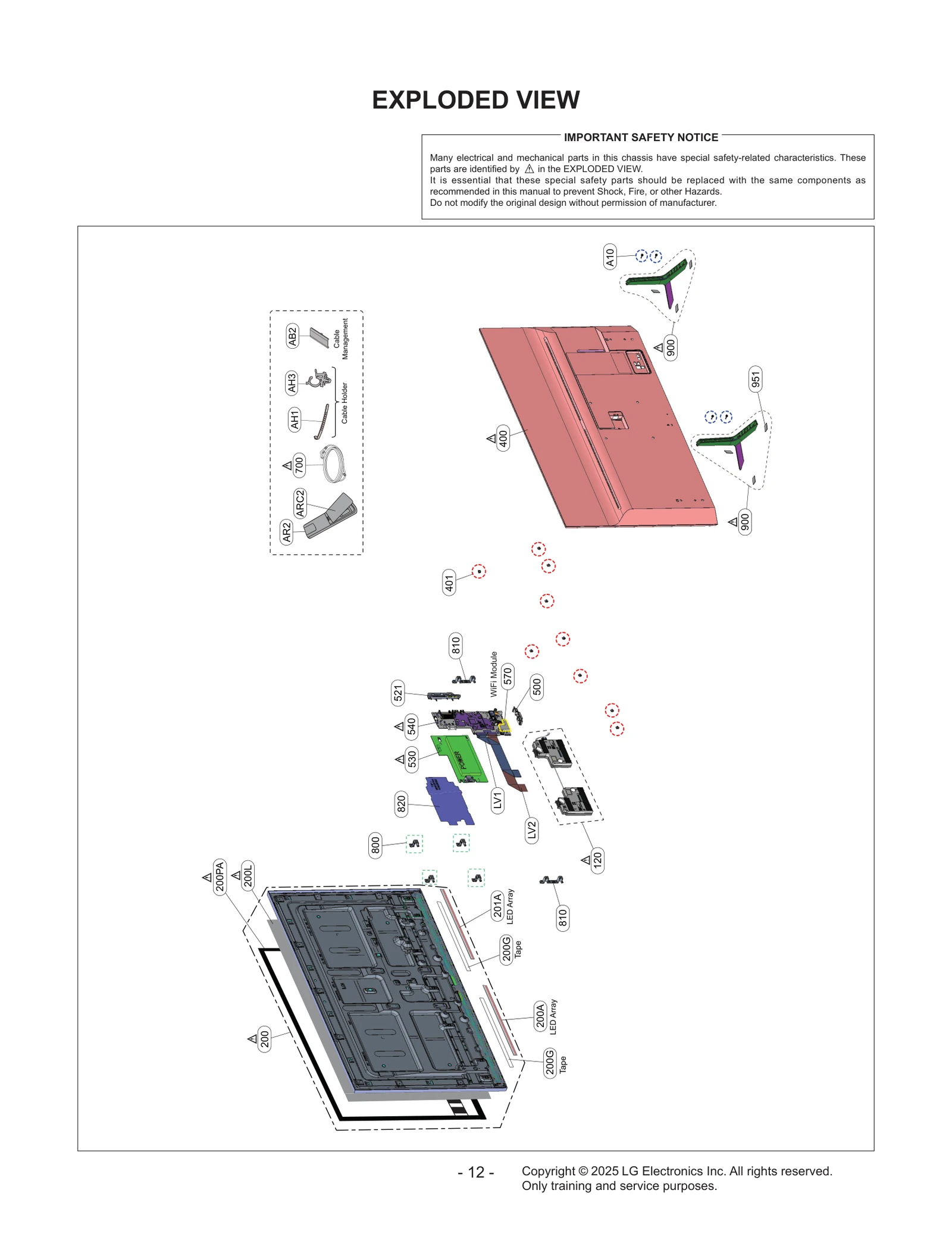

Diagram 0
Common parts from model LG 50QNED82AUA
120
Speaker Assembly LGE EAB65837401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65952201 Contact Us For Availability
200A
LED Assembly LGE EAV30048201 Contact Us For Availability
200G
Gasket LGE MDS67680301 Contact Us For Availability
200L
Plate Assembly,Light Guide LGE AGU30003301 Contact Us For Availability
200PA
LCD Panel Kit LGE EAJ30038801 Contact Us For Availability
201A
LED Assembly LGE EAV30048301 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30740811 Contact Us For Availability
401
Holder LGE MEG66749601 Contact Us For Availability
500
Cover Assembly,LED LGE ACQ30736502 Contact Us For Availability
521
Bracket LGE MAZ67862602 Contact Us For Availability
530
Power Supply Assembly LGE EAY65898251 Contact Us For Availability
530
Power Supply Assembly LGE EAY65920801 Contact Us For Availability
540
Mainboard,ORP Total Assembly,SVC LGE EBU30217101 Contact Us For Availability
570
Module,Wifi Bluetooth Module LGE EAT65235201 Contact Us For Availability
570
Module,Wifi Bluetooth Module LGE EAT65235202 Contact Us For Availability
810
Supporter LGE MJH66472801 Contact Us For Availability
820
Insulator LGE MEV67817401 Contact Us For Availability
900
Base Assembly LGE AAN30154424 Contact Us For Availability
AB2
Bracket LGE MAZ67464209 Contact Us For Availability
AR2
Remote Controller Assembly LGE AKB76046602 Contact Us For Availability
ARC2
Part LGE EBZ30385903 Contact Us For Availability
LV1
Cable,FFC LGE EAD66038319 Contact Us For Availability
LV2
Cable,FFC LGE EAD66038320 Contact Us For Availability
× ![]()
