Model LG 50PX4DRH – Common Parts & Diagrams
Diagram 0

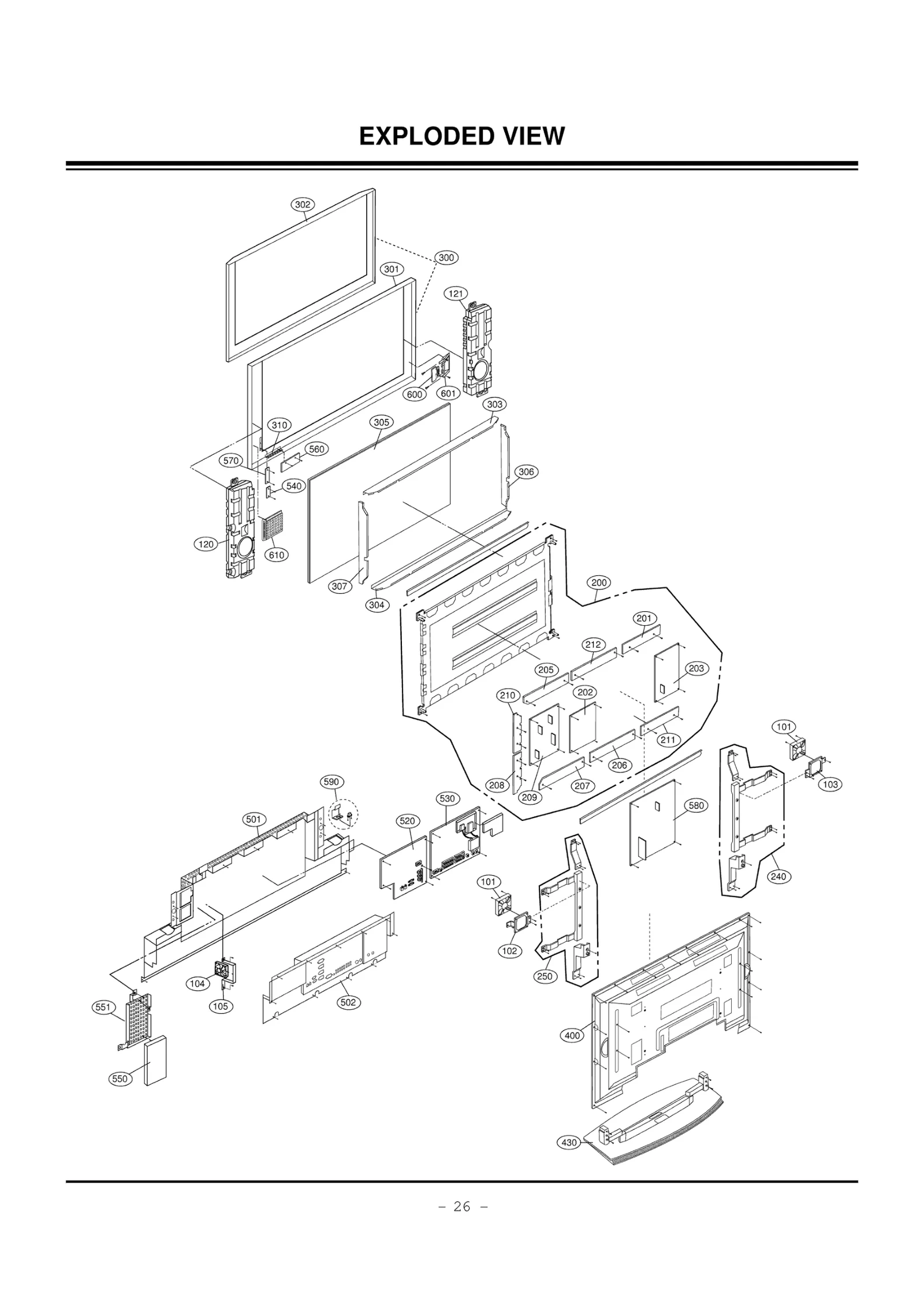

Diagram 1
Common parts from model LG 50PX4DRH
101
FAN,DC LGE 5900V12003B Contact Us For Availability
102
SUPPORTER LGE 4980V01017A Contact Us For Availability
103
SUPPORTER LGE 4980V01018A Contact Us For Availability
104
FAN,DC LGE 5900V04010A Contact Us For Availability
105
SUPPORTER LGE 4980V00327B Contact Us For Availability
120
SPEAKER ASSEMBLY LGE 6401VD0024A Contact Us For Availability
121
SPEAKER ASSEMBLY LGE 6401VD0025A Contact Us For Availability
200
PDP NO FILTER LGE 6348Q-C037F Contact Us For Availability
201
PWB(PCB) ASSEMBLY,DI LGE 6871QRH041C Contact Us For Availability
202
PWB(PCB) ASSEMBLY,DI LGE 6871QCH045A Contact Us For Availability
203
PWB(PCB) ASSEMBLY,DI LGE 6871QZH036B Contact Us For Availability
205
PWB(PCB) ASSEMBLY,DI LGE 6871QLH035C Contact Us For Availability
206
PWB(PCB) ASSEMBLY,DI LGE 6871QXH025C Contact Us For Availability
207
PWB(PCB) ASSEMBLY,DI LGE 6871QLH036C Contact Us For Availability
208
PWB(PCB) ASSEMBLY,DI LGE 6871QDH081A Contact Us For Availability
209
PWB(PCB) ASSEMBLY,DI LGE 6871QYH032B Contact Us For Availability
210
PWB(PCB) ASSEMBLY,DI LGE 6871QDH080A Contact Us For Availability
211
PWB(PCB) ASSEMBLY,DI LGE 6871QRH042C Contact Us For Availability
212
PWB(PCB) ASSEMBLY,DI LGE 6871QXH024C Contact Us For Availability
240
SUPPORTER LGE 4980V01195C Contact Us For Availability
250
SUPPORTER LGE 4980V01194C Contact Us For Availability
300
CABINET ASSEMBLY LGE 3091V00740B Contact Us For Availability
301
CABINET LGE 3090V00635A Contact Us For Availability
302
FRAME ASSEMBLY LGE 3211V00186B Contact Us For Availability
303
SUPPORTER LGE 4980V01138B Contact Us For Availability
304
SUPPORTER LGE 4980V01140B Contact Us For Availability
305
FILTER(MECH) LGE 5230V00017B Contact Us For Availability
306
SUPPORTER LGE 4980V01144B Contact Us For Availability
307
SUPPORTER LGE 4980V01142B Contact Us For Availability
310
BUTTON LGE 5020V01023B Contact Us For Availability
400
BACK COVER ASSEMBLY LGE 3809V00515C Contact Us For Availability
430
BASE ASSEMBLY LGE 3501V00209A Contact Us For Availability
501
PLATE ASSEMBLY LGE 3301V00086M Contact Us For Availability
502
PLATE ASSEMBLY LGE 3301V00093C Contact Us For Availability
520
PWB(PCB) ASSEMBLY,MA LGE 6871VMMT71D Contact Us For Availability
530
PWB(PCB) ASSEMBLY,SU LGE 6871VSMG76D Contact Us For Availability
540
PWB(PCB) ASSEMBLY,SU LGE 6871VSMS31A Contact Us For Availability
550
HDD,3.5 LGE 6744B00040A Contact Us For Availability
551
SHIELD LGE 4814V00535B Contact Us For Availability
560
PWB(PCB) ASSEMBLY,SU LGE 6871VSMS39A Contact Us For Availability
571
PWB(PCB) ASSEMBLY,SU LGE 68719SM077A Contact Us For Availability
580
POWER SUPPLY ASSEMBL LGE 6709V00002A Contact Us For Availability
590
CHASSIS ASSEMBLY LGE 3141VSN930C Contact Us For Availability
600
PWB(PCB) ASSEMBLY,SU LGE 6871VSMT96A Contact Us For Availability
601
BRACKET ASSEMBLY LGE 4811V00168C Contact Us For Availability
610
CHASSIS ASSEMBLY LGE 3141VSNJ22A Contact Us For Availability
A1
MANUAL,OWNERS LGE 3828VA0528A Contact Us For Availability
A2
REMOTE CONTROLLER LGE 6710V00141T Contact Us For Availability
A3
POWER CORD LGE 6410VUH005E Contact Us For Availability
A5
CABLE ASSEMBLY LGE 6851V00019A Contact Us For Availability
A6
CABLE ASSEMBLY LGE 6851V00023B Contact Us For Availability
A7
FIXER LGE 4972V00178A Contact Us For Availability
ANT2
JACK,RCA LGE 6612J00042G Contact Us For Availability
AR111
Resistor,Array LGE 0RRZVTA001C Contact Us For Availability
AR801
RESISTOR,ARRAY LGE 0RRZVTA001D Contact Us For Availability
B810
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
C1
CABLE,USB LGE 6850U00002C Contact Us For Availability
C3
CABLE,DVI LGE 6850J00005C Contact Us For Availability
C5
CABLE,COAXIAL LGE 6851V00022C Contact Us For Availability
C6
CABLE,USB LGE 6850U00002D Contact Us For Availability
C7
CONNECTOR ASSEMBLY LGE 387-G04R Contact Us For Availability
C8
CONNECTOR ASSEMBLY LGE 387-J06R Contact Us For Availability
C9
CONNECTOR ASSEMBLY LGE 387-J08R Contact Us For Availability
C10
CONNECTOR ASSY LGE 387-J12N Contact Us For Availability
C11
CONNECTOR ASSEMBLY LGE 6631V00045B Contact Us For Availability
C12
CONNECTOR ASSEMBLY LGE 6631V10004A Contact Us For Availability
C13
CONNECTOR ASSEMBLY LGE 6631V10004Z Contact Us For Availability
C14
CONNECTOR ASSEMBLY LGE 6631V25032C Contact Us For Availability
C16
CONNECTOR ASSEMBLY LGE 6631V25051B Contact Us For Availability
C17
CONNECTOR ASSEMBLY LGE 6631V25083C Contact Us For Availability
C18
CONNECTOR ASSEMBLY LGE 6631V25084B Contact Us For Availability
C19
Socket,Card LGE 6630CE00168 Contact Us For Availability
C20
CONNECTOR ASSEMBLY LGE 387-G03P Contact Us For Availability
C21
CONNECTOR ASSEMBLY LGE 6631V39015A Contact Us For Availability
C22
CONNECTOR ASSEMBLY LGE 6631V39016A Contact Us For Availability
C23
CONNECTOR (CIRC),WAF LGE 366-036B Contact Us For Availability
C100
Capacitor,TA,Niobium LGE 0CS335EFKDC Contact Us For Availability
C103
Capacitor,AL,Radial LGE 0CE4763F618 Contact Us For Availability
C104
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE106SF6DC Contact Us For Availability
C126
CAPACITOR,FIXED ELEC LGE 0CE336SD6DC Contact Us For Availability
C190
Capacitor,Film,DIP LGE 0CF4741L438 Contact Us For Availability
C207
CAPACITOR,FIXED ELEC LGE 0CE477EK630 Contact Us For Availability
C223
Capacitor,AL,Chip LGE 0CE477SF6DC Contact Us For Availability
C227
CAPACITOR,FIXED CERA LGE 0CC100CK11A Contact Us For Availability
C234
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C255
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C370
CAPACITOR,FIXED CERA LGE 0CK105DF64A Contact Us For Availability
C375
Capacitor,AL,Chip LGE 0CE106SH6DC Contact Us For Availability
C504
Capacitor,AL,Chip LGE 0CE476WK6DC Contact Us For Availability
C611
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C619
Capacitor,Ceramic,Chip LGE 0CK472CK56A Contact Us For Availability
C815
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C843
CAPACITOR,FIXED CERA LGE 0CK823CF56A Contact Us For Availability
C849
LGE 0CK822CK46A LGE 0CK822CK46A Contact Us For Availability
C920
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C923
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C927
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C1203
Capacitor,Ceramic,Chip LGE 0CK392CK56A Contact Us For Availability
C1208
Capacitor,Ceramic,Chip LGE 0CC561CK41A Contact Us For Availability
C1211
CAPACITOR,FIXED CERA LGE 0CK271CK46A Contact Us For Availability
C1226
CAPACITOR,FIXED CERA LGE 0CK220CK4DA Contact Us For Availability
C1229
Capacitor,Ceramic,Chip LGE 0CC180CKH1A Contact Us For Availability
C1258
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C1363
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1516
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C1542
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C1728
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C1735
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C8041
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C8075
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
CN1000
CONNECTOR (CIRC),WAF LGE 6630VE01268 Contact Us For Availability
CN1101
CONNECTOR (CIRC),USB LGE 6630SD01709 Contact Us For Availability
CN1201
Connector,Wafer LGE 366-921D Contact Us For Availability
CN1202
Jack,Phone LGE 6612F00055B Contact Us For Availability
CN1300
Connector,Wafer LGE 6602T12007D Contact Us For Availability
CN1700
Connector,Wafer LGE 366-921L Contact Us For Availability
CN1702
Connector,Wafer LGE 366-932B Contact Us For Availability
CN1708
Connector,Wafer LGE 366-921B Contact Us For Availability
D111
DIODE,ZENERS LGE 0DZRM00248A Contact Us For Availability
D901
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
F1101
Inductor,Wire Wound,Chip LGE 6140VB0021A Contact Us For Availability
IC101
IC,SONY LGE 0ISO206900A Contact Us For Availability
IC102
IC,POWER MANAGEMENT LGE 0IMCRFA015A Contact Us For Availability
IC103
LED ASSEMBLY LGE 6301V00004A Contact Us For Availability
IC111
IC,MICRO CONTROLLER LGE 0IMCRMN027D Contact Us For Availability
IC200
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC201
IC,LINEAR LGE 0ILNR00015A Contact Us For Availability
IC201
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC203
IC,FPGA LGE 0IMCRXL004A Contact Us For Availability
IC205
IC,Buffer LGE 0IMCRCY002A Contact Us For Availability
IC208
IC,MICRO CONTROLLER LGE 0IMCRFA010A Contact Us For Availability
IC300
IC,MICRO CONTROLLER LGE 0IMCRSO025A Contact Us For Availability
IC301
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC302
IC,TOKO LGE 0ITK118100B Contact Us For Availability
IC303
IC,MEMORIES LGE 0IMMRHY038E Contact Us For Availability
IC305
IC,PERIPHERALS LGE 0IPRP00538A Contact Us For Availability
IC305
SOFT WARE LGE 6927V1276AL Contact Us For Availability
IC306
SOFT WARE LGE 6927V1277AL Contact Us For Availability
IC307
SOFT WARE LGE 6927V1278AL Contact Us For Availability
IC308
SOFT WARE LGE 6927V1279AL Contact Us For Availability
IC401
IC,CUSTOMIZED LGE 0ICTMLG009C Contact Us For Availability
IC402
IC,MICRO CONTROLLER LGE 0IMCRTI028C Contact Us For Availability
IC404
SOFT WARE LGE 6927V1211AU Contact Us For Availability
IC405
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC502
Filter,Saw LGE 6200QL3002E Contact Us For Availability
IC503
IC,MEMORIES LGE 0IMMRSS041F Contact Us For Availability
IC504
IC,MICRO CONTROLLER LGE 0IMCRCY001A Contact Us For Availability
IC504
IC,Video Amplifier LGE 0IMCRTI035A Contact Us For Availability
IC505
IC,CUSTOMIZED LGE 0ICTMLG013A Contact Us For Availability
IC506
IC,MICRO CONTROLLER LGE 0IMCRFA004A Contact Us For Availability
IC601
IC,CRYSTAL SEMICONDUCTOR LGE 0ICB533100A Contact Us For Availability
IC602
IC,OP Amplifier LGE 0IMO330780B Contact Us For Availability
IC603
IC,Multiplexer LGE 0ITO741570C Contact Us For Availability
IC604
IC,MEMORIES LGE 0ISS416162D Contact Us For Availability
IC604
IC,CRYSTAL SEMICONDU LGE 0ICB841500B Contact Us For Availability
IC605
IC,POWER MANAGEMENT LGE 0IPMGKE032A Contact Us For Availability
IC606
IC,POWER MANAGEMENT LGE 0IPMGSG018C Contact Us For Availability
IC607
IC,PERIPHERALS LGE 0IPRPFA015A Contact Us For Availability
IC800
IC,PERIPHERALS LGE 0IPRPS5006A Contact Us For Availability
IC801
IC,A/D Converter LGE 0IPRPAD008B Contact Us For Availability
IC802
IC,LDO Voltage Regulator LGE 0ISJ111733A Contact Us For Availability
IC804
IC,MEMORIES LGE 0IMMRAL014B Contact Us For Availability
IC805
IC,PERIPHERALS LGE 0IPRPFA016A Contact Us For Availability
IC900
IC,MICRO CONTROLLER LGE 0IMCRXL003B Contact Us For Availability
IC902
IC,PERIPHERALS LGE 0IPRP00009A Contact Us For Availability
IC1001
IC,Transceiver LGE 0ICTMLG017A Contact Us For Availability
IC1002
IC,MICRO CONTROLLER LGE 0IMCRFA013A Contact Us For Availability
IC1003
IC,Analog Switch LGE 0IMCRLT002A Contact Us For Availability
IC1100
IC,MICRO CONTROLLER LGE 0IMCR02014A Contact Us For Availability
IC1101
IC,POWER MANAGEMENT LGE 0IPMG00028A Contact Us For Availability
IC1200
IC,Microcontrollers LGE 0IMCRMP007A Contact Us For Availability
IC1201
IC,Microcontrollers LGE 0IMCRMT003A Contact Us For Availability
IC1202
IC,Multiplexer LGE 0IMO744053B Contact Us For Availability
IC1203
IC,Comparator LGE 0IPMGNS026A Contact Us For Availability
IC1204
IC,Microcontrollers LGE 0IMCRMP006A Contact Us For Availability
IC1301
IC,MICRO CONTROLLER LGE 0IMCRSJ001A Contact Us For Availability
IC1302
IC,MICRO CONTROLLER LGE 0IMCRTH002A Contact Us For Availability
IC1305
IC,CUSTOMIZED LGE 0ICTMLG018B Contact Us For Availability
IC1400
IC,CUSTOMIZED LGE 0ICTMLG011A Contact Us For Availability
IC1500
IC,MICRO CONTROLLER LGE 0IMCR02015A Contact Us For Availability
IC1601
IC,Video Processors LGE 0ILNRBR001A Contact Us For Availability
IC1603
IC,STANDARD LOGIC LGE 0ISTLPH051A Contact Us For Availability
IC1700
IC,MITSUBISHI LGE 0IMI623200B Contact Us For Availability
IC1701
IC,PERIPHERALS LGE 0IPRPNS054A Contact Us For Availability
IC1704
IC,POWER MANAGEMENT LGE 0IMCRSJ001B Contact Us For Availability
J1
PWB(PCB) ASSEMBLY,SU LGE 6871VSMQ67A Contact Us For Availability
JK101
JACK ASSEMBLY LGE 6613V00026A Contact Us For Availability
JK300
CONNECTOR (CIRC),D-S LGE 6630G70016A Contact Us For Availability
JK407
JACK,RCA LGE 6612J00040B Contact Us For Availability
JK410
JACK,PHONE LGE 6612F00087A Contact Us For Availability
JOPT101
JACK,DIN LGE 6612BBBHN4D Contact Us For Availability
JOPT102
JACK,DIN LGE 6612BBBHN4E Contact Us For Availability
L116
Filter,Bead LGE 6210VC0005A Contact Us For Availability
L130
COIL,CHOKE LGE 6140VB0032A Contact Us For Availability
L6608
Filter,Bead LGE 6210VC0006A Contact Us For Availability
LD101
LED LGE 0DL200000CA Contact Us For Availability
LED301
LED LGE 0DL233309AC Contact Us For Availability
P100
Connector,Wafer LGE 366-922C Contact Us For Availability
P101
LGE 366-922E LGE 366-922E Contact Us For Availability
P101
LGE 366-922G LGE 366-922G Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 366-922L Contact Us For Availability
P401
Connector,Wafer LGE 366-921G Contact Us For Availability
P409
Connector,Wafer LGE 366-932C Contact Us For Availability
PA101
REMOTE CONTROLLER RE LGE 6712000010B Contact Us For Availability
Q207
TRANSISTOR LGE 0TR102008AA Contact Us For Availability
Q305
TR,Bipolar LGE 0TRKE80038A Contact Us For Availability
Q801
TRANSISTOR LGE 0TR102009AG Contact Us For Availability
Q808
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1201
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q1205
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q6603
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
R1716
Resistor,Carbon Film LGE 0RD0272H609 Contact Us For Availability
R1754
Resistor,Carbon Film LGE 0RD0332H609 Contact Us For Availability
SW104
SWITCH TACT 4LEAD 160G H4.7 LGE 140-315A Contact Us For Availability
SW301
ADAPTER,RF LGE 6634D00010B Contact Us For Availability
TU301
TUNER LGE 6700AN0002C Contact Us For Availability
TU500
TUNER LGE 6700NC0001B Contact Us For Availability
VA1104
VARISTOR LGE 6102W5V016A Contact Us For Availability
VX500
OSCILLATOR LGE 6204B60001B Contact Us For Availability
X103
RESONATOR,CRYSTAL LGE 6212AB3004D Contact Us For Availability
X104
Crystal LGE 6212AB2015A Contact Us For Availability
X200
Crystal LGE 6202VDT002H Contact Us For Availability
X200
Oscillator,Crystal LGE 6204B47985L Contact Us For Availability
X801
RESONATOR,CRYSTAL LGE 6212AB2845A Contact Us For Availability
X1000
Crystal LGE 6212AC2001D Contact Us For Availability
X1100
Oscillator,Crystal LGE 6204B47985M Contact Us For Availability
X1500
Crystal LGE 6212AB2015C Contact Us For Availability
X1600
OSCILLATOR LGE 6204B47985N Contact Us For Availability
X6602
RESONATOR,CRYSTAL LGE 6212AB2806A Contact Us For Availability
× ![]()
Login and Registration Form
