Model LG 50PX2DC-UD – Common Parts & Diagrams

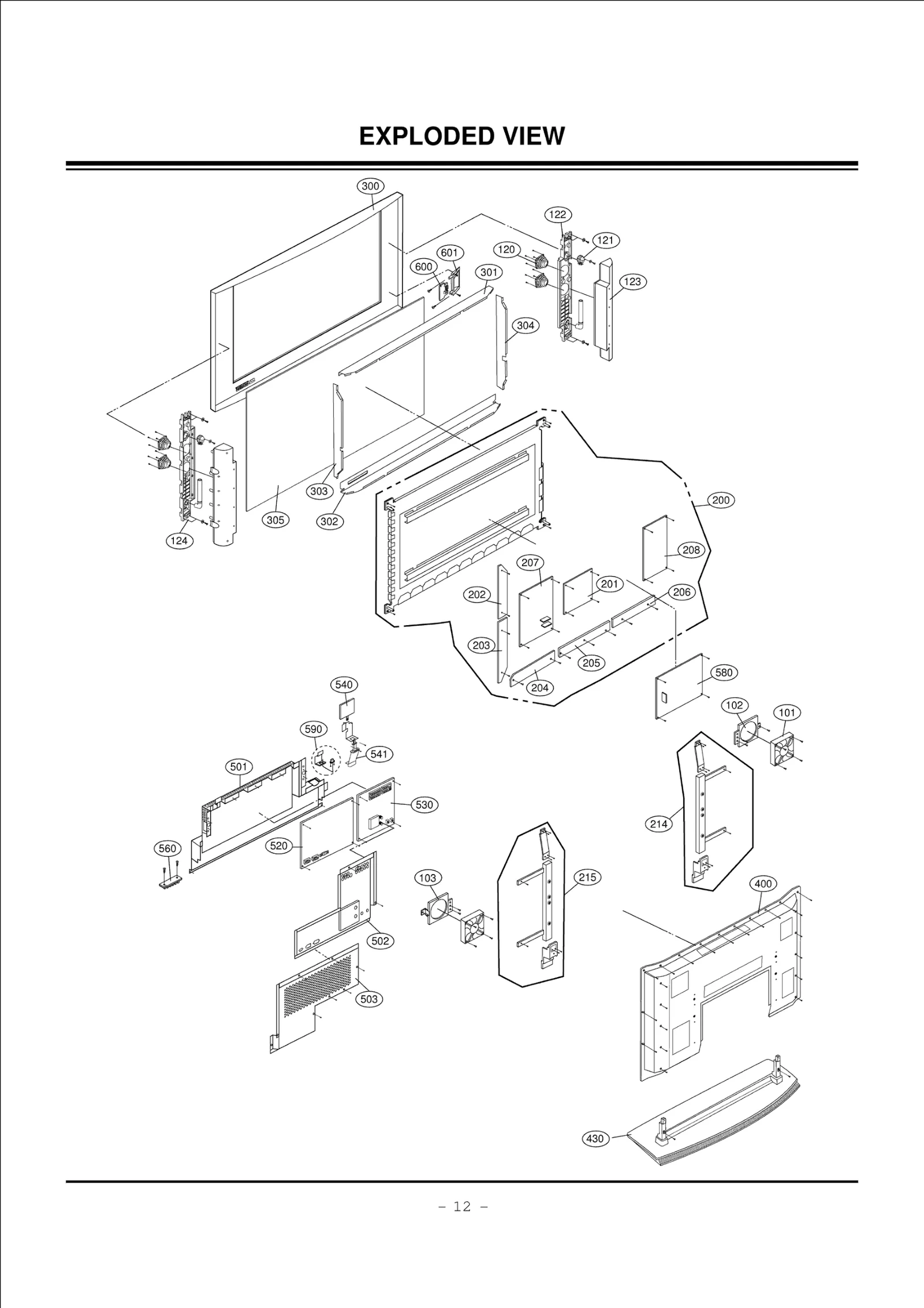

Diagram 0
Diagram 1
Common parts from model LG 50PX2DC-UD
120
SPEAKER ASSEMBLY LGE 6401VD0011E Contact Us For Availability
120
SPEAKER ASSEMBLY LGE 6401VD0012E Contact Us For Availability
200
PDP Module NO FILTER LGE 6348Q-C049H Contact Us For Availability
201
PWB(PCB) ASSEMBLY,DI LGE 6871QCH059A Contact Us For Availability
202
PWB(PCB) ASSEMBLY,DI LGE 6871QDH088A Contact Us For Availability
203
PWB(PCB) ASSEMBLY,DI LGE 6871QDH089A Contact Us For Availability
205
PWB(PCB) ASSEMBLY,DI LGE 6871QXH030A Contact Us For Availability
206
PWB(PCB) ASSEMBLY,DI LGE 6871QRH057A Contact Us For Availability
207
PWB(PCB) ASSEMBLY,DI LGE 6871QYH039A Contact Us For Availability
208
PWB(PCB) ASSEMBLY,DI LGE 6871QZH044A Contact Us For Availability
214
SUPPORTER LGE 4980V00D78B Contact Us For Availability
215
SUPPORTER LGE 4980V00D77B Contact Us For Availability
300
CABINET ASSEMBLY LGE 3091V00678C Contact Us For Availability
301
SUPPORTER LGE 4980V01112E Contact Us For Availability
302
SUPPORTER LGE 4980V01113E Contact Us For Availability
303
SUPPORTER LGE 4980V01114E Contact Us For Availability
304
SUPPORTER LGE 4980V01115E Contact Us For Availability
305
FILTER(MECH) LGE 5230V00017B Contact Us For Availability
400
BACK COVER ASSEMBLY LGE 3809V00463R Contact Us For Availability
430
Base Assembly LGE 3501V00186P Contact Us For Availability
501
PLATE ASSEMBLY LGE 3301V00070E Contact Us For Availability
503
Plate Assembly LGE 3301900002C Contact Us For Availability
520
CHASSIS ASSEMBLY LGE 31419MF981A Contact Us For Availability
520
PWB(PCB) ASSEMBLY,MA LGE 6871VMM903B Contact Us For Availability
530
PWB(PCB) ASSEMBLY,SU LGE 68719SM145A Contact Us For Availability
541
Button LGE 5020V01068E Contact Us For Availability
560
CHASSIS ASSEMBLY LGE 31419SF039A Contact Us For Availability
570
CHASSIS ASSEMBLY LGE 31419SF007A Contact Us For Availability
580
POWER SUPPLY ASSEMBL LGE 6709V00001A Contact Us For Availability
590
CHASSIS ASSEMBLY LGE 31419SF004A Contact Us For Availability
600
CHASSIS ASSEMBLY LGE 31419SF005A Contact Us For Availability
601
Bracket Assembly LGE 4811V00118W Contact Us For Availability
A1
MANUAL LGE 3828VA0528Y Contact Us For Availability
A2
Remote Controller LGE MKJ39927810 Contact Us For Availability
A3
POWER CORD LGE 6410VUH005E Contact Us For Availability
ANT1
JACK,RCA LGE 6612J00042G Contact Us For Availability
C120
CAPACITOR,FIXED CERA LGE 0CK105DF64A Contact Us For Availability
C208
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C216
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C1133
CAPACITOR,FIXED ELEC LGE 0CE227SF6DC Contact Us For Availability
IC100
IC,MEMORIES LGE 0IMMRAL014B Contact Us For Availability
IC101
IC,MICRO CONTROLLER LGE 0IMCRSO025A Contact Us For Availability
IC102
LGE 0IPH740800M LGE 0IPH740800M Contact Us For Availability
IC103
IC,SONY LGE 0ISO206900A Contact Us For Availability
IC104
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC201
IC,MICRO CONTROLLER LGE 0IMCRFA010A Contact Us For Availability
JK100
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK101
CONNECTOR (CIRC),D-S LGE 6630G70016A Contact Us For Availability
L101
Filter,Bead LGE 6210VC0005A Contact Us For Availability
LV1
CONNECTOR ASSEMBLY LGE 6631V39016E Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 366-922L Contact Us For Availability
P200
CONNECTOR (CIRC),WAF LGE 6630VE00725 Contact Us For Availability
Q118
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q140
TRANSISTOR LGE 0TR102008AA Contact Us For Availability
Q141
TRANSISTOR LGE 0TR102009AG Contact Us For Availability
SW200
ADAPTER,RF LGE 6634D00010B Contact Us For Availability
X100
RESONATOR,CRYSTAL LGE 6212AB3004D Contact Us For Availability
X101
Crystal LGE 6212AB2015A Contact Us For Availability
× ![]()
