Model LG 50PV450C – Common Parts & Diagrams

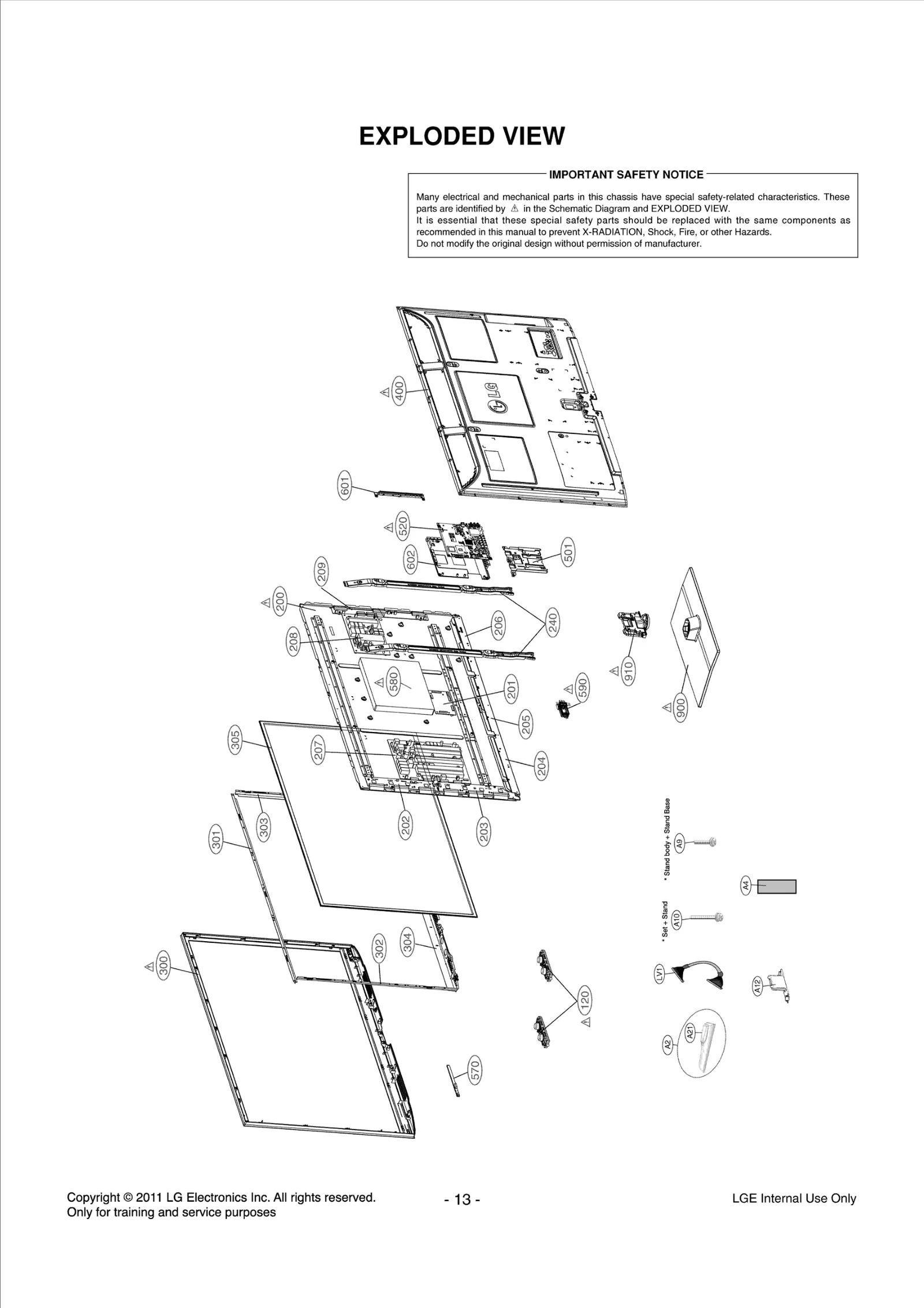

Diagram 0
Diagram 1
Common parts from model LG 50PV450C
120
Speaker,Full Range LGE EAB62028901 Contact Us For Availability
200
PDP,Module-FullHD LGE EAJ61527906 Contact Us For Availability
201
Hand Insert PCB Assembly LGE EBR71727804 Contact Us For Availability
202
Hand Insert PCB Assembly LGE EBR69839104 Contact Us For Availability
203
Hand Insert PCB Assembly LGE EBR69839204 Contact Us For Availability
206
Hand Insert PCB Assembly LGE EBR71728504 Contact Us For Availability
207
Hand Insert PCB Assembly LGE EBR69839002 Contact Us For Availability
208
Package Assembly LGE AGF76816801 Contact Us For Availability
209
Hand Insert PCB Assembly LGE EBR71728004 Contact Us For Availability
240
Supporter LGE MJH62356101 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73308805 Contact Us For Availability
301
Supporter Assembly LGE AJJ73198505 Contact Us For Availability
302
Supporter Assembly LGE AJJ73198710 Contact Us For Availability
303
Supporter Assembly LGE AJJ73198709 Contact Us For Availability
304
Supporter Assembly LGE AJJ73198605 Contact Us For Availability
305
Filter LGE MDJ63005409 Contact Us For Availability
305
Filter LGE MDJ63105702 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83110327 Contact Us For Availability
501
Supporter LGE MJH62433701 Contact Us For Availability
520
BPR Insert PCB Assembly LGE EBR68293435 Contact Us For Availability
570
PCB Assembly,Sub LGE EBR72650102 Contact Us For Availability
570
PCB Assembly,Sub LGE EBR72650101 Contact Us For Availability
590
Filter,AC Line LGE EAM62090704 Contact Us For Availability
601
Bracket Assembly LGE ABA73488807 Contact Us For Availability
900
Base Assembly LGE AAN73430006 Contact Us For Availability
910
Supporter LGE MJH62195302 Contact Us For Availability
A1
Manual,Owners LGE MFL62861007 Contact Us For Availability
A1
Manual,Owners LGE MFL61960302 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72914287 Contact Us For Availability
A4
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A10
Screw Assembly LGE FAB30016424 Contact Us For Availability
A12
Cover LGE MCK65832102 Contact Us For Availability
A13
Filter,Ferrite Core LGE EAM62154801 Contact Us For Availability
A21
Cover,Rear LGE MCK62976101 Contact Us For Availability
ADS
Adhesive LGE 7254Q00002B Contact Us For Availability
AR203
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR403
Resistor,Array LGE 0RR0472T621 Contact Us For Availability
C13
Capacitor,Ceramic,Chip LGE EAE38454201 Contact Us For Availability
C15
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C40
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C41
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C108
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C312
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C355
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C360
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C402
Capacitor,Ceramic,Chip LGE 0CC560BK41A Contact Us For Availability
C403
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C404
Capacitor,Ceramic,Ch LGE EAE35171501 Contact Us For Availability
C405
Capacitor,Ceramic,Ch LGE 0CC390BK4AA Contact Us For Availability
C407
Capacitor,Ceramic,Chip LGE EAE58746801 Contact Us For Availability
C413
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C442
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C450
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C462
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C623
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C628
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C721
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C735
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C739
Capacitor,Ceramic,Chip LGE 0CH2122K516 Contact Us For Availability
C808
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C810
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C814
Capacitor,AL,Chip LGE EAE60171702 Contact Us For Availability
C817
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C821
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C826
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C830
Capacitor,Ceramic,Chip LGE 0CK472CK56A Contact Us For Availability
C833
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C836
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
CA1
Harness,Single LGE EAD61646601 Contact Us For Availability
CA2
Harness,Single LGE EAD61646204 Contact Us For Availability
CA3
Harness,Single LGE EAD61649310 Contact Us For Availability
D1
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D401
Diode,TVS LGE EAH36618701 Contact Us For Availability
D402
Diode,Switching LGE EAH60666101 Contact Us For Availability
D502
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D617
Diode,TVS LGE EAH39491701 Contact Us For Availability
IC1
Display SOC,Digital TV LGE EAN60351402 Contact Us For Availability
IC201
IC,DDR2 SDRAM LGE EAN60763003 Contact Us For Availability
IC301
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC304
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC304
IC,Voltage Regulator LGE EAN60994801 Contact Us For Availability
IC307
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC308
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC401
IC,Tuner LGE EAN61857401 Contact Us For Availability
IC402
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC501
IC,EEPROM LGE EAN61925801 Contact Us For Availability
IC501
IC,EEPROM LGE EAN62344701 Contact Us For Availability
IC501
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC504
IC,EEPROM LGE EAN35989901 Contact Us For Availability
IC504
IC,EEPROM LGE EAN60997601 Contact Us For Availability
IC704
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC801
IC,Audio Amplifier LGE EAN60354701 Contact Us For Availability
JK401
Connector,RF LGE EAG60685102 Contact Us For Availability
JK503
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK601
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK602
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK603
Jack,RCA LGE EAG61007601 Contact Us For Availability
JK604
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK609
Jack,RCA LGE EAG61007801 Contact Us For Availability
JK701
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK702
Connector,USB LGE EAG62571101 Contact Us For Availability
L6
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L313
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L403
Inductor,Wire Wound,Chip LGE EAP59193504 Contact Us For Availability
L405
Inductor,Wire Wound,Chip LGE EAP59177601 Contact Us For Availability
M10
Gasket LGE MDS62110205 Contact Us For Availability
P301
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P701
Connector,FFC/FPC/PIC LGE EAG61008602 Contact Us For Availability
P704
Connector,Wafer LGE EAG58732901 Contact Us For Availability
P802
Connector,Wafer LGE EAG61091601 Contact Us For Availability
Q302
FET LGE EBK60752501 Contact Us For Availability
Q502
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q702
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R6
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R14
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R16
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R26
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R30
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R218
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R221
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R304
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R354
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R355
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R406
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ4991C478 Contact Us For Availability
R412
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R414
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R429
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R437
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R507
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R516
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R527
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R626
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R641
Resistor,Chip LGE 0RJ0272C678 Contact Us For Availability
R654
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R661
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R663
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R665
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R707
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R723
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R804
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R807
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R811
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R821
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
VR504
VARISTOR LGE 6102W5V016A Contact Us For Availability
VR504
Varistor LGE EAF61451601 Contact Us For Availability
X401
Crystal LGE EAW43548907 Contact Us For Availability
X402
Crystal LGE 6212AB2015C Contact Us For Availability
× ![]()
