Model LG 50PS30-UB – Common Parts & Diagrams
Diagram 0

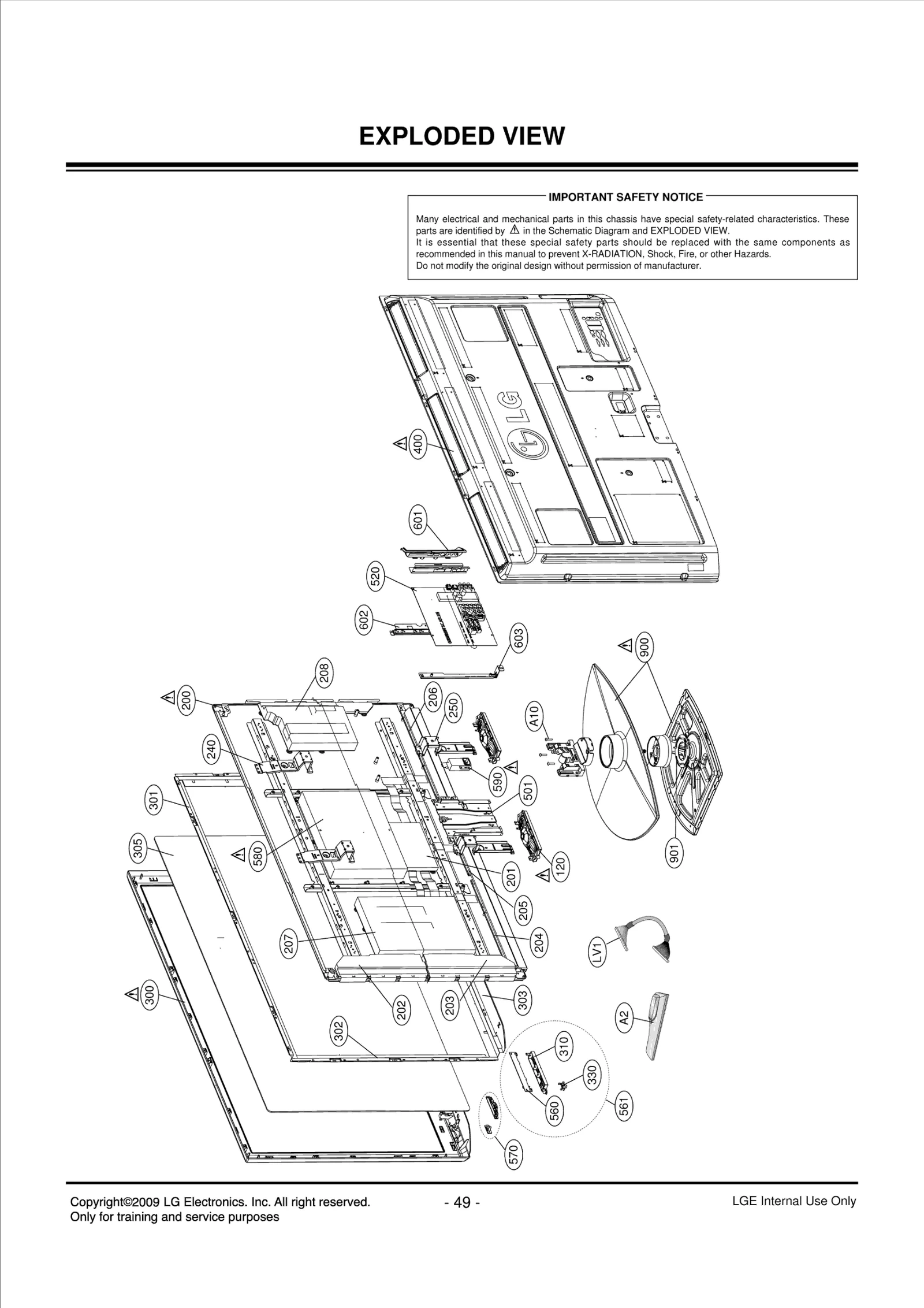

Diagram 1
Common parts from model LG 50PS30-UB
120
Speaker,Full Range LGE EAB58534501 Contact Us For Availability
200
PDP,Module-FullHD LGE EAJ39979011 Contact Us For Availability
201
Hand Insert PCB Assembly LGE EBR54863601 Contact Us For Availability
202
Hand Insert PCB Assembly LGE EBR55460001 Contact Us For Availability
203
Hand Insert PCB Assembly LGE EBR55460101 Contact Us For Availability
204
Hand Insert PCB Assembly LGE EBR54873801 Contact Us For Availability
205
Hand Insert PCB Assembly LGE EBR54874101 Contact Us For Availability
206
Hand Insert PCB Assembly LGE EBR54874201 Contact Us For Availability
207
Hand Insert PCB Assembly LGE EBR55360601 Contact Us For Availability
208
Hand Insert PCB Assembly LGE EBR55360701 Contact Us For Availability
240
Supporter Assembly LGE AJJ66016102 Contact Us For Availability
250
Supporter Assembly LGE AJJ69472502 Contact Us For Availability
300
Cabinet Assembly LGE ABJ68643008 Contact Us For Availability
301
Supporter Assembly LGE AJJ68643103 Contact Us For Availability
302
Supporter Assembly LGE AJJ68643203 Contact Us For Availability
303
Supporter Assembly LGE AJJ68643303 Contact Us For Availability
305
Filter LGE MDJ61575108 Contact Us For Availability
310
Button,Control LGE MBG57154202 Contact Us For Availability
330
Button,Power LGE MBG57154302 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ68643413 Contact Us For Availability
501
Supporter LGE MJH55248301 Contact Us For Availability
520
Chassis Assembly LGE EBT60692407 Contact Us For Availability
560
Chassis Assembly LGE EBT60692702 Contact Us For Availability
570
PCB Assembly,Front LGE EBR60009601 Contact Us For Availability
590
Filter,AC Line LGE EAM60352502 Contact Us For Availability
601
Bracket Assembly LGE ABA66370516 Contact Us For Availability
602
Plate LGE MGJ56878807 Contact Us For Availability
603
Plate LGE MGJ56880404 Contact Us For Availability
900
Base Assembly LGE AAN68643505 Contact Us For Availability
901
Supporter LGE MJH56850102 Contact Us For Availability
A
S/W,Firmware LGE SAA33726014 Contact Us For Availability
A2
Remote Controller LGE MKJ42519617 Contact Us For Availability
AR3
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR502
Resistor,Array LGE 0RR0472T621 Contact Us For Availability
AR801
Resistor,Array LGE EBC32260501 Contact Us For Availability
C7
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C10
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C34
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C37
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C331
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C430
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C432
Capacitor,Ceramic,Chip LGE 0CK472CK56A Contact Us For Availability
C433
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C515
Capacitor,AL,Chip LGE EAE36144701 Contact Us For Availability
C540
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C542
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C548
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C621
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C630
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C633
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C634
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C641
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1018
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C1029
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C1037
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C1040
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C1041
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C1048
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C1051
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C1063
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
D618
Diode,TVS LGE EAH39491701 Contact Us For Availability
D627
Diode,TVS LGE EAH37828901 Contact Us For Availability
D802
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D1001
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
IC1
Display SOC,Digital TV LGE EAN60351401 Contact Us For Availability
IC202
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC203
IC,DDR2 SDRAM LGE EAN54839201 Contact Us For Availability
IC204
IC,Serial Flash Memory LGE EAN60245201 Contact Us For Availability
IC302
IC,DC,DC Converter LGE EAN33143501 Contact Us For Availability
IC503
IC,POWER MANAGEMENT LGE 0IPMGKE044A Contact Us For Availability
IC504
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC505
IC,POWER MANAGEMENT LGE 0IPMG00048A Contact Us For Availability
IC802
IC,EEPROM LGE EAN35989901 Contact Us For Availability
IC804
IC,Analog Switch LGE EAN60223701 Contact Us For Availability
IC1001
IC,Audio Amplifier LGE EAN60354701 Contact Us For Availability
JK601
Jack,Complex LGE EAG59951701 Contact Us For Availability
JK606
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK607
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK802
Jack,DIN LGE EAG39789401 Contact Us For Availability
L502
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L504
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L507
Inductor,Multilayer,Chip LGE EAP57674101 Contact Us For Availability
L508
Inductor,Multilayer,Chip LGE EAP43931506 Contact Us For Availability
LD501
LED,Chip LGE 0DL210009GC Contact Us For Availability
LV1
Harness,Single LGE EAD60679325 Contact Us For Availability
P1001
Connector,Wafer LGE EAG58732901 Contact Us For Availability
P1003
Connector,FFC/FPC/PIC LGE EAG60692001 Contact Us For Availability
Q501
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q801
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R47
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R58
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R65
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R68
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R103
RESISTOR FIXED CARBON FILM APG LGE 0RD3601F609 Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD6200F609 Contact Us For Availability
R107
Resistor,Carbon Film LGE 0RD9101F609 Contact Us For Availability
R120
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R206
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R326
Resistor,Chip LGE 0RJ0562D477 Contact Us For Availability
R327
Resistor,Chip LGE 0RJ1180D477 Contact Us For Availability
R329
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R342
Resistor,Chip LGE 0RJ3601D677 Contact Us For Availability
R504
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R531
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R659
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R670
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R672
Resistor,Chip LGE 0RJ0272D677 Contact Us For Availability
R675
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R681
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R693
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R881
Resistor,Chip LGE 0RH1800D422 Contact Us For Availability
R882
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R923
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R1032
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1037
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R1038
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R1044
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R1048
RESISTOR,METAL GLAZE LGE 0RJ2000D477 Contact Us For Availability
R1056
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1060
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1061
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
SW101
Switch,Push Button LGE 6600M000052 Contact Us For Availability
SW108
SWITCH TACT 4LEAD 160G H4.7 LGE 140-315A Contact Us For Availability
TU501
Tuner,Analog/Digital LGE EBL60152901 Contact Us For Availability
VR922
VARISTOR LGE 6102W5V016A Contact Us For Availability
X501
Crystal LGE 6212AB2015C Contact Us For Availability
× ![]()
