Model LG 50PN4500 – Common Parts & Diagrams

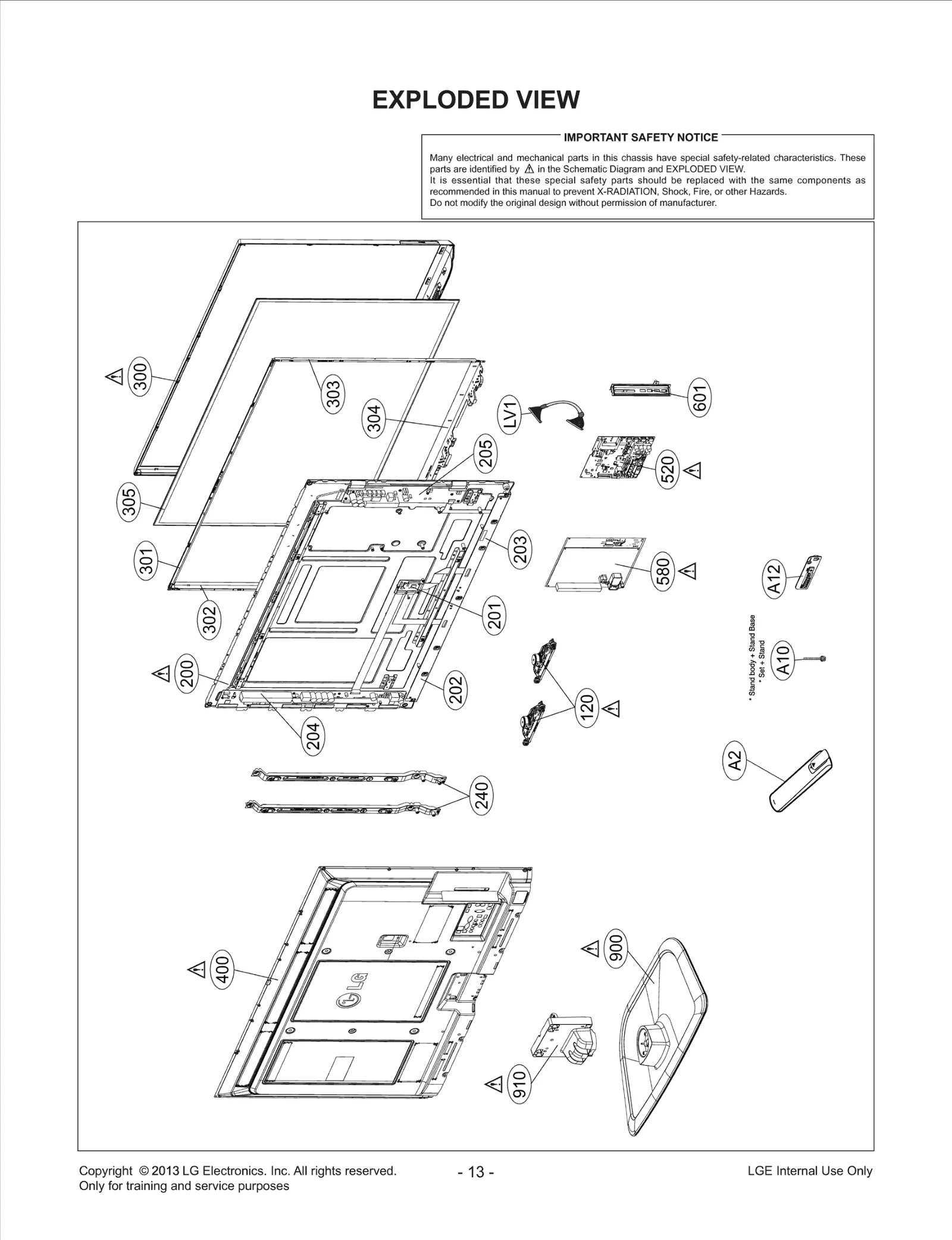

Diagram 0
Diagram 1
Common parts from model LG 50PN4500
201
Hand Insert PCB Assembly LGE EBR75655801 Contact Us For Availability
202
Hand Insert PCB Assembly LGE EBR75598501 Contact Us For Availability
203
Hand Insert PCB Assembly LGE EBR75515001 Contact Us For Availability
204
Hand Insert PCB Assembly LGE EBR74825301 Contact Us For Availability
205
Hand Insert PCB Assembly LGE EBR74824801 Contact Us For Availability
240
Supporter Assembly LGE AJJ73660702 Contact Us For Availability
300
Cover Assembly LGE ACQ86468701 Contact Us For Availability
303
Supporter Assembly LGE AJJ73660402 Contact Us For Availability
305
Filter LGE MDJ63408105 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86126524 Contact Us For Availability
520
PCB Assembly LGE EBR75727102 Contact Us For Availability
580
SMPS,AC/DC LGE EAY62812501 Contact Us For Availability
590
Filter,Ferrite Core LGE EAM62154801 Contact Us For Availability
601
Bracket Assembly LGE ABA74310104 Contact Us For Availability
910
Supporter LGE MJH62838902 Contact Us For Availability
A2
Package Assembly LGE AGF76692601 Contact Us For Availability
AR600
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR1216
Resistor,Array LGE EBC39283301 Contact Us For Availability
C226
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C405
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C409
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C446
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C446
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C455
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C466
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C469
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C492
Capacitor,Ceramic,Chip LGE EAE62764101 Contact Us For Availability
C520
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C620
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C623
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C626
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C628
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C633
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C685
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C686
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C687
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C694
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
CA2
Harness,Single LGE EAD62292802 Contact Us For Availability
D400
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D400
Diode,Switching LGE EAH41961301 Contact Us For Availability
D500
Diode,Switching LGE EAH61714301 Contact Us For Availability
D503
Varistor LGE EAF61530301 Contact Us For Availability
IC400
Display SOC,Digital TV LGE EAN62575501 Contact Us For Availability
IC503
IC,EEPROM LGE EAN43349003 Contact Us For Availability
IC505
IC,Serial Flash Memory LGE EAN62626201 Contact Us For Availability
IC601
IC,LDO Voltage Regulator LGE EAN62673301 Contact Us For Availability
IC603
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC604
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC606
IC,Audio Amplifier LGE EAN62668201 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61836301 Contact Us For Availability
JK201
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK204
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK206
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK208
Jack,RCA LGE EAG60968202 Contact Us For Availability
L401
Filter,Bead LGE EAM62091101 Contact Us For Availability
L409
Filter,Bead LGE EAM62272001 Contact Us For Availability
L409
Filter,Bead LGE EAM32500903 Contact Us For Availability
L604
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L605
Inductor,Wire Wound,Chip LGE EAP62107401 Contact Us For Availability
L612
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L1202
Filter,Bead LGE EAM58113401 Contact Us For Availability
L1202
Filter,Bead LGE EAM62091201 Contact Us For Availability
LV1
Cable,FFC LGE EAD61858737 Contact Us For Availability
P503
Connector,FFC/FPC/PIC LGE EAG60692001 Contact Us For Availability
P600
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P601
Connector,Wafer LGE EAG61091601 Contact Us For Availability
Q603
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q604
FET LGE EBK60752501 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R204
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R237
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R255
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R259
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R309
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R403
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R404
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R421
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R433
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R579
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R611
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R614
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R617
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R619
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R621
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R637
RESISTOR,METAL GLAZE LGE 0RJ0392D677 Contact Us For Availability
R648
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R673
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R1202
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1203
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1235
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
TU303
Tuner,Digital LGE EBL61240001 Contact Us For Availability
VA212
Varistor LGE EAF61530101 Contact Us For Availability
VA217
Varistor LGE EAF61630101 Contact Us For Availability
X400
Crystal LGE EAW61645501 Contact Us For Availability
× ![]()
