Model LG 50PG1DD-UA – Common Parts & Diagrams

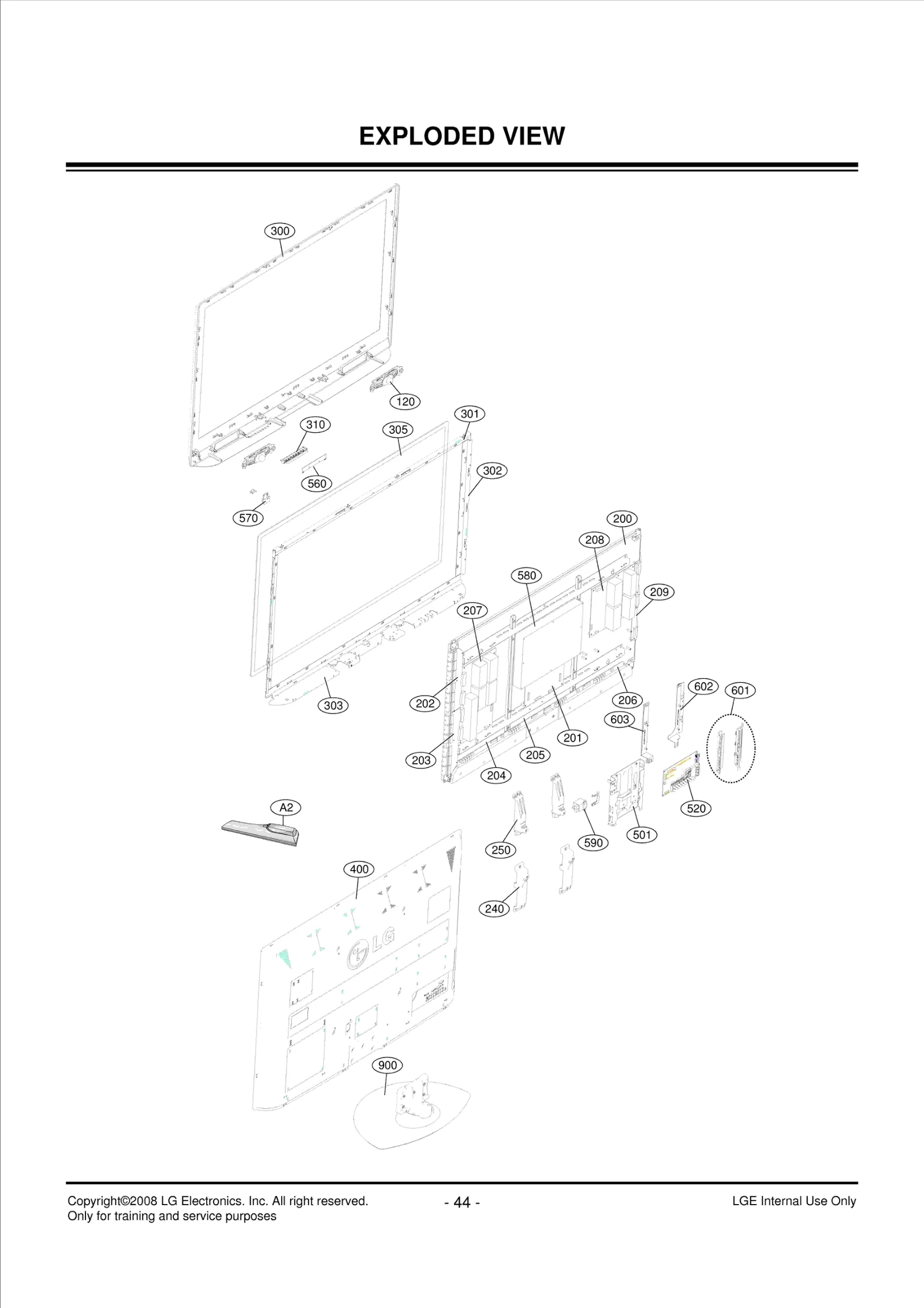

Diagram 0
Diagram 1
Common parts from model LG 50PG1DD-UA
1
Gasket LGE MDS41482308 Contact Us For Availability
5
Gasket LGE MDS41482310 Contact Us For Availability
120
Speaker,Full Range LGE EAB33775101 Contact Us For Availability
200
PDP,Module-XGA LGE EAJ41970611 Contact Us For Availability
202
Hand Insert PCB Assembly LGE EBR38374701 Contact Us For Availability
203
Hand Insert PCB Assembly LGE EBR38374801 Contact Us For Availability
204
Hand Insert PCB Assembly LGE EBR38299201 Contact Us For Availability
206
Hand Insert PCB Assembly LGE EBR38299701 Contact Us For Availability
207
Hand Insert PCB Assembly LGE EBR38374401 Contact Us For Availability
208
Hand Insert PCB Assembly LGE EBR38374501 Contact Us For Availability
240
Supporter Assembly LGE AJJ35707606 Contact Us For Availability
250
Supporter Assembly LGE AJJ35707506 Contact Us For Availability
300
Cabinet Assembly LGE ABJ35755211 Contact Us For Availability
301
Supporter Assembly LGE AJJ35805205 Contact Us For Availability
305
Filter LGE MDJ42351005 Contact Us For Availability
310
Button,Control LGE MBG41117202 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ35758918 Contact Us For Availability
501
Supporter LGE MJH40272502 Contact Us For Availability
520
Hand Insert PCB Assembly,Main LGE EBR50473101 Contact Us For Availability
560
PCB Assembly,Sub LGE EBR49994401 Contact Us For Availability
570
PCB Assembly,Sub LGE EBR50004801 Contact Us For Availability
580
SMPS,AC/DC LGE EAY41360901 Contact Us For Availability
590
Filter,AC Line LGE EAM35012711 Contact Us For Availability
601
Bracket Assembly LGE ABA35619217 Contact Us For Availability
602
Plate LGE MGJ41164513 Contact Us For Availability
A
Bracket LGE MAZ40267903 Contact Us For Availability
A1
Manual,Owners LGE MFL42539505 Contact Us For Availability
A1
Manual,Owners LGE MFL42539504 Contact Us For Availability
A2
Remote Controller LGE MKJ39170826 Contact Us For Availability
AR402
Resistor,Array LGE EBC32260601 Contact Us For Availability
C104
CAPACITOR,FIXED CERA LGE 0CK225DFK4A Contact Us For Availability
C121
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C150
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C220
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C413
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C433
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C442
CAPACITOR,FIXED CERA LGE 0CK271CK46A Contact Us For Availability
C505
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C507
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C511
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C515
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C630
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C643
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C713
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C714
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C726
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C775
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C803
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C811
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C815
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C823
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C833
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C936
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C992
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
D505
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D636
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D638
Diode,TVS LGE EAH33945901 Contact Us For Availability
D801
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC100
IC,Video Processors LGE EAN37156404 Contact Us For Availability
IC102
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC104
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC201
IC,DDR SDRAM LGE EAN31729202 Contact Us For Availability
IC400
IC,Data Controller LGE 0ICTMLG019C Contact Us For Availability
IC502
IC,Audio Amplifier LGE EAN41584001 Contact Us For Availability
IC602
IC,STANDARD LOGIC LGE 0ISTL00031A Contact Us For Availability
IC702
IC,POWER MANAGEMENT LGE 0IPMG00027A Contact Us For Availability
IC703
IC,DC,DC Converter LGE EAN33143501 Contact Us For Availability
IC709
IC,LDO Voltage Regul LGE 0IPMG78346A Contact Us For Availability
IC715
IC,MITSUBISHI LGE 0IMI623200B Contact Us For Availability
IC802
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC803
IC,Analog Switch LGE EAN41347201 Contact Us For Availability
JK601
Jack,Complex LGE EAG35541101 Contact Us For Availability
JK606
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK607
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK608
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK802
Jack,DIN LGE EAG39789401 Contact Us For Availability
L402
INDUCTOR,CHIP LGE 0LCML00020B Contact Us For Availability
L407
Inductor,Multilayer, LGE EAP39314701 Contact Us For Availability
L605
Filter,Bead LGE EAM38769501 Contact Us For Availability
L711
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L930
Filter,Bead LGE EAM38769502 Contact Us For Availability
L933
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD400
LED,Chip LGE 0DL210009GC Contact Us For Availability
LD703
LED LGE 0DL233309AC Contact Us For Availability
P701
Connector,Wafer LGE EAG42057301 Contact Us For Availability
Q703
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q706
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
Q801
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R112
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R175
Resistor,Chip LGE EBC32306001 Contact Us For Availability
R236
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R423
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R426
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R537
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R538
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R601
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R660
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R677
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R707
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R725
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R726
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R737
RESISTOR,METAL GLAZE LGE 0RJ2203D677 Contact Us For Availability
R742
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R758
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R805
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R860
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R861
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R6150
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R6154
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
TU400
Tuner,Analog/Digital LGE EBL37676801 Contact Us For Availability
VR812
VARISTOR LGE 6102W5V016A Contact Us For Availability
X400
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
× ![]()
