Model LG 50PB560B – Common Parts & Diagrams

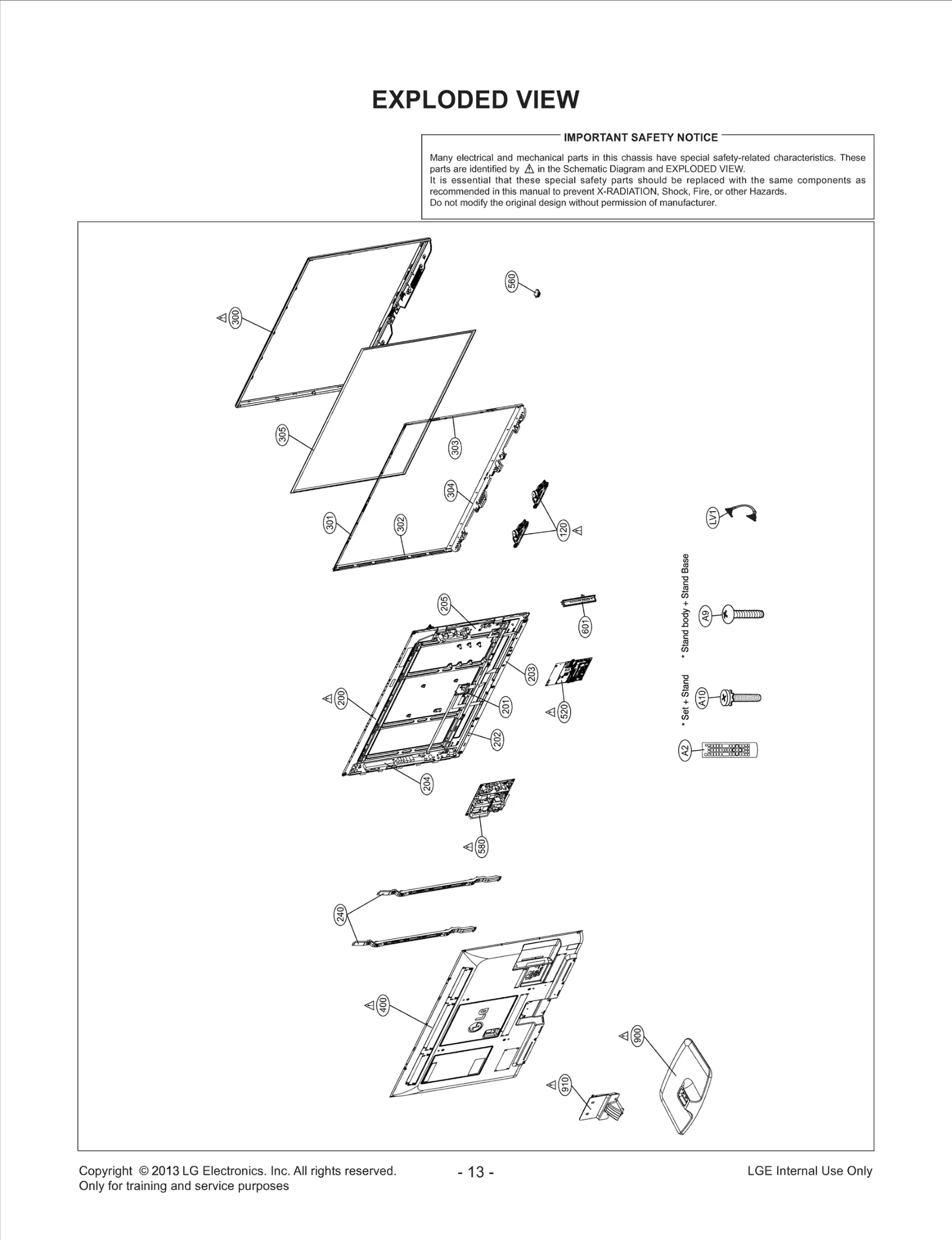

Diagram 0
Diagram 1
Common parts from model LG 50PB560B
200
PDP,Module-XGA LGE EAJ62430439 Contact Us For Availability
201
Hand Insert PCB Assembly LGE EBR77141501 Contact Us For Availability
202
Hand Insert PCB Assembly LGE EBR77100901 Contact Us For Availability
203
Hand Insert PCB Assembly LGE EBR77101001 Contact Us For Availability
204
Hand Insert PCB Assembly LGE EBR77287801 Contact Us For Availability
205
Hand Insert PCB Assembly LGE EBR77287401 Contact Us For Availability
240
Supporter LGE MJH63101402 Contact Us For Availability
301
Supporter Assembly LGE AJJ73919302 Contact Us For Availability
302
Supporter Assembly LGE AJJ73919602 Contact Us For Availability
304
Supporter Assembly LGE AJJ73919402 Contact Us For Availability
305
Filter LGE MDJ63647801 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86692904 Contact Us For Availability
520
Chassis Assembly LGE EBT62854104 Contact Us For Availability
560
PCB Assembly,Sub LGE EBR78101501 Contact Us For Availability
580
SMPS,AC/DC LGE EAY63168601 Contact Us For Availability
601
Bracket Assembly LGE ABA74533607 Contact Us For Availability
900
Base Assembly LGE AAN74392903 Contact Us For Availability
900
Base Assembly LGE AAN74392906 Contact Us For Availability
910
Supporter LGE MJH63101503 Contact Us For Availability
A2
Package Assembly LGE AGF77103901 Contact Us For Availability
A2S
Remote Controller Assembly LGE AKB73715698 Contact Us For Availability
AM
Manual Assembly LGE AFN76092102 Contact Us For Availability
B1
Box LGE MAY66328102 Contact Us For Availability
C406
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C430
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C434
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C435
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C474
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C520
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C600
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C604
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C620
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C623
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C624
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C626
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C637
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C643
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C651
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C657
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C662
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C663
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C670
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
CA1
Harness,Single LGE EAD62292803 Contact Us For Availability
CA2
Harness,Single LGE EAD60958305 Contact Us For Availability
D400
Diode,Switching LGE EAH41961301 Contact Us For Availability
IC202
Diode,TVS LGE EAH61515001 Contact Us For Availability
IC400
Display SOC,Digital TV LGE EAN62738601 Contact Us For Availability
IC503
IC,EEPROM LGE EAN43349004 Contact Us For Availability
IC503
IC,EEPROM LGE EAN43349005 Contact Us For Availability
IC505
IC,Serial Flash Memory LGE EAN62527401 Contact Us For Availability
IC505
IC,Serial Flash Memory LGE EAN62626201 Contact Us For Availability
IC600
IC,LDO Voltage Regulator LGE EAN62869101 Contact Us For Availability
IC603
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC606
IC,Audio Amplifier LGE EAN62494901 Contact Us For Availability
IC613
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
JK204
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK206
Jack,Phone LGE EAG61030012 Contact Us For Availability
JK209
Connector,USB LGE EAG62571101 Contact Us For Availability
JK210
Jack,RCA LGE EAG60968215 Contact Us For Availability
L605
Inductor,Wire Wound,Chip LGE EAP62107401 Contact Us For Availability
L612
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
LV1
Cable,FFC LGE EAD61858760 Contact Us For Availability
P503
Connector,FFC/FPC/PIC LGE EAG60692001 Contact Us For Availability
P600
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P601
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P603
CONNECTOR (CIRC),WAF LGE 6602T12004C Contact Us For Availability
Q203
TR,Bipolar LGE EBK61012701 Contact Us For Availability
R218
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R255
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R256
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R305
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R308
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R403
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R426
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R427
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R434
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R445
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R447
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R464
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R530
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R603
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R605
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R617
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R619
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R631
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R633
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R673
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R674
Resistor,Chip LGE ERHZ0000242 Contact Us For Availability
R675
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
VA211
Varistor LGE EAF61530101 Contact Us For Availability
VA217
Varistor LGE EAF61630101 Contact Us For Availability
X400
Crystal LGE EAW61645501 Contact Us For Availability
× ![]()
