Model LG 50PB4D – Common Parts & Diagrams
Diagram 0

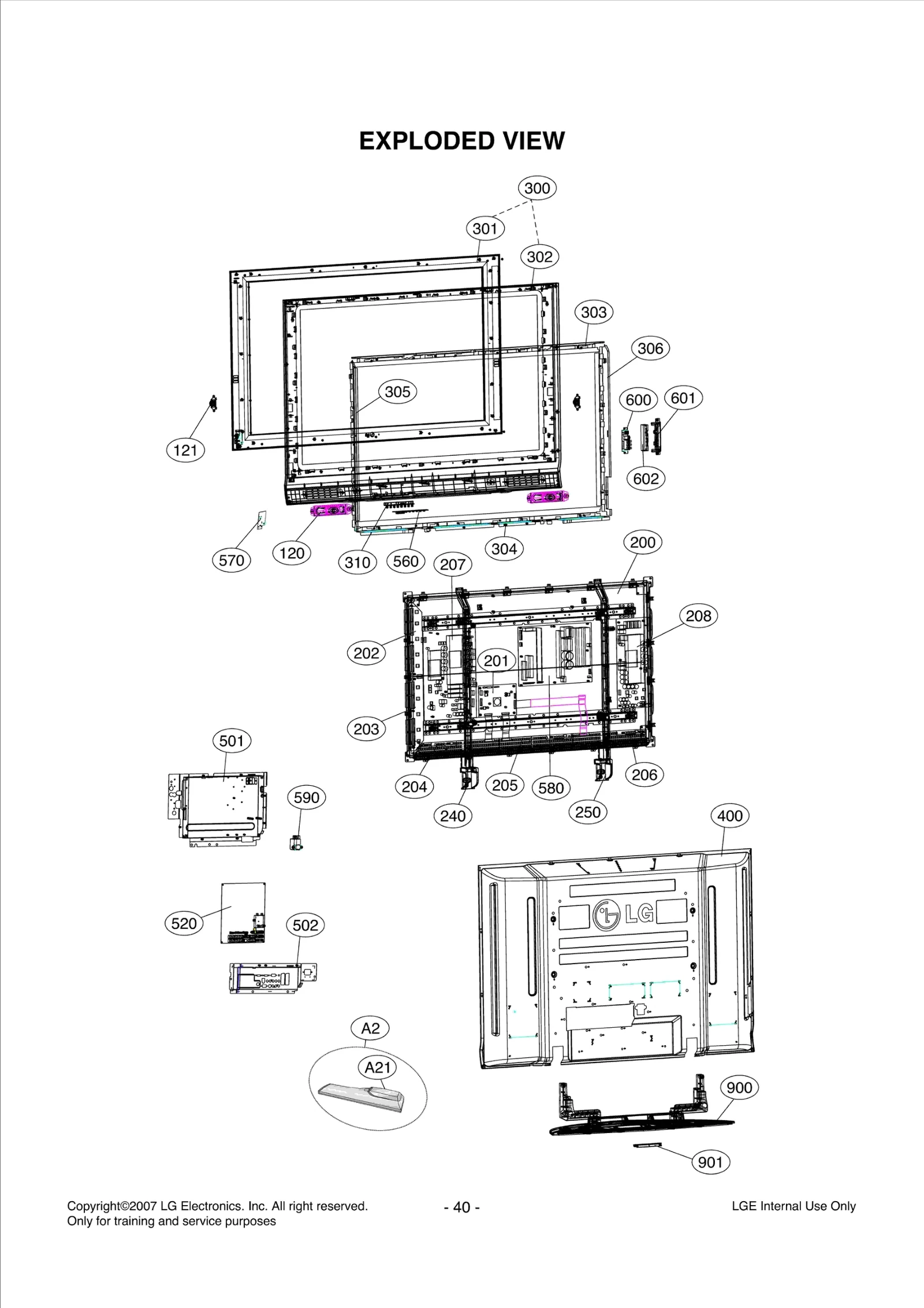

Diagram 1
Common parts from model LG 50PB4D
121
Speaker,Tweeter LGE EAB33893101 Contact Us For Availability
200
PDP,Module-XGA LGE EAJ38981501 Contact Us For Availability
201
Hand Insert PCB Asse LGE EBR35959201 Contact Us For Availability
202
Hand Insert PCB Asse LGE EBR37397801 Contact Us For Availability
207
Hand Insert PCB Asse LGE EBR37284101 Contact Us For Availability
208
Hand Insert PCB Asse LGE EBR37284601 Contact Us For Availability
240
Supporter Assembly LGE AJJ31680701 Contact Us For Availability
250
Supporter Assembly LGE AJJ31680702 Contact Us For Availability
300
Cabinet Assembly LGE ABJ31087707 Contact Us For Availability
301
Frame Assembly LGE ADV31044301 Contact Us For Availability
302
Cabinet LGE MBH32566301 Contact Us For Availability
303
Supporter Assembly LGE AJJ31044701 Contact Us For Availability
304
Supporter Assembly LGE AJJ31044801 Contact Us For Availability
305
Supporter Assembly LGE AJJ31044901 Contact Us For Availability
306
Supporter Assembly LGE AJJ31045001 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ35133605 Contact Us For Availability
501
Plate Assembly LGE AGU31681105 Contact Us For Availability
502
Plate Assembly LGE AGU31680929 Contact Us For Availability
520
Hand Insert PCB Assembly LGE EBR37280410 Contact Us For Availability
560
PCB Assembly,Sub LGE EBR36899105 Contact Us For Availability
570
PCB Assembly,Sub LGE EBR36899505 Contact Us For Availability
590
Filter,AC Line LGE EAM35012703 Contact Us For Availability
600
Hand Insert PCB Assembly LGE EBR37756001 Contact Us For Availability
603
Plate,Shield LGE MGJ32323501 Contact Us For Availability
900
Base Assembly LGE AAN31593101 Contact Us For Availability
A1
Manual,Owners LGE MFL37734802 Contact Us For Availability
A1
Title LGE SAC30653104 Contact Us For Availability
A2
Remote Controller LGE MKJ39170808 Contact Us For Availability
A3
Power Cord LGE EAD36444601 Contact Us For Availability
A4
FIXER LGE 4972V00178A Contact Us For Availability
A5
Bag LGE 3880TKZ004E Contact Us For Availability
A6
Plate LGE 4950TKA320A Contact Us For Availability
A7
LGE FAB30021701 LGE FAB30021701 Contact Us For Availability
A21
Cover LGE 3550V00590A Contact Us For Availability
AR100
Resistor,Array LGE EBC32260901 Contact Us For Availability
AR204
Resistor,Array LGE EBC33751901 Contact Us For Availability
AR453
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR602
Resistor,Array LGE EBC32260501 Contact Us For Availability
AR9008
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
B1
Box LGE MAY32943836 Contact Us For Availability
B2
Box LGE MAY39568704 Contact Us For Availability
C1
Capacitor,AL,Radial LGE 0CE477DD618 Contact Us For Availability
C2
CONNECTOR ASSEMBLY LGE 6631900012D Contact Us For Availability
C3
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C4
Harness,Single LGE 6631900097L Contact Us For Availability
C5
CONNECTOR ASSEMBLY LGE 6631900098A Contact Us For Availability
C8
Harness,Single LGE 6631900108B Contact Us For Availability
C9
Harness,Single LGE 6631V12031F Contact Us For Availability
C11
CONNECTOR ASSEMBLY LGE 6631V39016E Contact Us For Availability
C12
Harness,Single LGE EAD35682502 Contact Us For Availability
C14
Harness,Single LGE EAD36175301 Contact Us For Availability
C101
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C205
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C265
Capacitor,AL,Chip LGE EAE30840301 Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C328
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C329
CAPACITOR,FIXED CERA LGE 0CK105EJ56A Contact Us For Availability
C337
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C341
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C345
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C349
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C352
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C413
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C460
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C474
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C548
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C568
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C570
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C576
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C582
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C590
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C706
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C713
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C724
Capacitor,AL,Chip LGE EAE32720101 Contact Us For Availability
C727
Capacitor,AL,Chip LGE EAE30840401 Contact Us For Availability
C737
CAPACITOR,FIXED ELEC LGE 0CE337WH6DC Contact Us For Availability
C2133
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C2138
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C2144
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C2152
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C5017
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C5041
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C5043
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C5052
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C7016
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C9082
CAPACITOR,FIXED ELEC LGE 0CE227SF6DC Contact Us For Availability
CA1
Cable,Assembly LGE 68509A0004E Contact Us For Availability
D101
LED LGE 0DL200000CA Contact Us For Availability
D300
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D301
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D9000
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
F3
FILTER(CIRC),EMC LGE 6210VH0004B Contact Us For Availability
FL742
Filter,LCR LGE EAM33010401 Contact Us For Availability
IC101
IC,Video Processors LGE EAN32808701 Contact Us For Availability
IC102
Receiver Module LGE 6712000014A Contact Us For Availability
IC202
IC,CMOS LGE EAN33931901 Contact Us For Availability
IC203
IC,DDR2 SDRAM LGE EAN33624401 Contact Us For Availability
IC205
LGE SAA30970005 LGE SAA30970005 Contact Us For Availability
IC207
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC300
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC304
IC,PWM Controller LGE EAN33573001 Contact Us For Availability
IC305
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC306
IC,PERIPHERALS LGE 0IPRP00009A Contact Us For Availability
IC309
S/W,Firmware LGE SAA30890003 Contact Us For Availability
IC310
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC400
IC,POWER MANAGEMENT LGE 0IMCRSJ001B Contact Us For Availability
IC402
IC,A/D Converter LGE 0IPRP00696E Contact Us For Availability
IC403
IC,Analog Switch LGE EAN32724701 Contact Us For Availability
IC404
IC,MEMORIES LGE 0IMMRCS012B Contact Us For Availability
IC408
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC409
IC,Analog Switch LGE EAN35942401 Contact Us For Availability
IC501
IC,Receiver LGE 0IPRPCI017A Contact Us For Availability
IC505
IC,Audio Amplifier LGE EAN32404601 Contact Us For Availability
IC508
IC,MICRO CONTROLLER LGE 0IMCRMN028C Contact Us For Availability
IC700
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC711
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC712
IC,DC,DC Converter LGE EAN32013101 Contact Us For Availability
IC800
IC,MICRO CONTROLLER LGE 0IMCRTH002A Contact Us For Availability
JK1
Jack,Fiber Optic LGE EAG32151101 Contact Us For Availability
JK400
Jack,RCA LGE EAG35540801 Contact Us For Availability
JK405
CONNECTOR (CIRC),D-S LGE 6630G70016A Contact Us For Availability
JK703
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK704
Jack,RCA LGE EAG35541501 Contact Us For Availability
JK705
Jack,Complex LGE EAG35541101 Contact Us For Availability
JK706
Jack,RCA LGE EAG35542201 Contact Us For Availability
JK9000
Jack,Complex LGE 6612J10025A Contact Us For Availability
L100
Inductor,Wire Wound, LGE EAP32632801 Contact Us For Availability
L318
INDUCTOR,CHIP LGE 0LC2000005K Contact Us For Availability
L501
INDUCTOR,CHIP LGE 0LCML00020B Contact Us For Availability
L511
Inductor,Wire Wound, LGE EAP32842805 Contact Us For Availability
L708
LGE 0LC2220101A LGE 0LC2220101A Contact Us For Availability
L723
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
L752
Filter,LCR LGE EAM37276902 Contact Us For Availability
L9007
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD702
LED LGE 0DL233309AC Contact Us For Availability
P3
Connector,Wafer LGE 6602T20008N Contact Us For Availability
P4
JACK,RCA LGE 6612J10033A Contact Us For Availability
P101
WAFER LGE 6602T20009E Contact Us For Availability
P401
CONNECTOR (CIRC),WAF LGE 6602T12004C Contact Us For Availability
P500
PWB(PCB) ASSEMBLY,SU LGE 6871VSMFA8A Contact Us For Availability
P502
Connector,Wafer LGE 6602T25008B Contact Us For Availability
P701
WAFER LGE 6602T25008M Contact Us For Availability
P702
WAFER LGE 6602T25008J Contact Us For Availability
P712
Connector,Wafer LGE 6602T20008D Contact Us For Availability
P800
Connector,Wafer LGE 6630V90116A Contact Us For Availability
Q408
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q513
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
Q702
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
Q9000
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
R8
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R16
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R100
Resistor,Chip LGE 0RH9100D622 Contact Us For Availability
R105
Resistor,Chip LGE 0RH5601D622 Contact Us For Availability
R106
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R148
Resistor,Chip LGE EBC33834501 Contact Us For Availability
R149
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R192
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R216
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ4302D677 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R308
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R319
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R321
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R346
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R366
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R375
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R391
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R411
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R415
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R422
RESISTOR,METAL GLAZE LGE 0RJ9101D477 Contact Us For Availability
R423
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R434
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R439
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R540
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R583
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R672
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R715
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R771
RESISTOR,METAL GLAZE LGE 0RJ2203D677 Contact Us For Availability
R3012
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R3027
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R3055
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R3070
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R4020
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R4035
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R4090
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R4091
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R4143
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R5003
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R5015
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R5020
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R5036
RESISTOR,METAL GLAZE LGE 0RJ0392D677 Contact Us For Availability
R5038
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R5063
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R5070
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R5077
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R5079
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R5081
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R5082
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R7086
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R9031
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R9083
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R9088
Resistor,Chip LGE EBC32174201 Contact Us For Availability
SW107
SWITCH TACT LGE 140-313B Contact Us For Availability
TU9001
Tuner,Digital LGE EBL32961505 Contact Us For Availability
VR405
VARISTOR LGE 6102W5V016A Contact Us For Availability
X100
Crystal LGE EAW30352304 Contact Us For Availability
X400
RESONATOR,CRYSTAL LGE 6202VDT002B Contact Us For Availability
X500
Crystal LGE 6202VDT002H Contact Us For Availability
ZD421
Diode,TVS LGE EAH33945901 Contact Us For Availability
ZD502
DIODE,ZENERS LGE 0DZRM00248A Contact Us For Availability
× ![]()
Login and Registration Form
