Model LG 50PA6500 – Common Parts & Diagrams

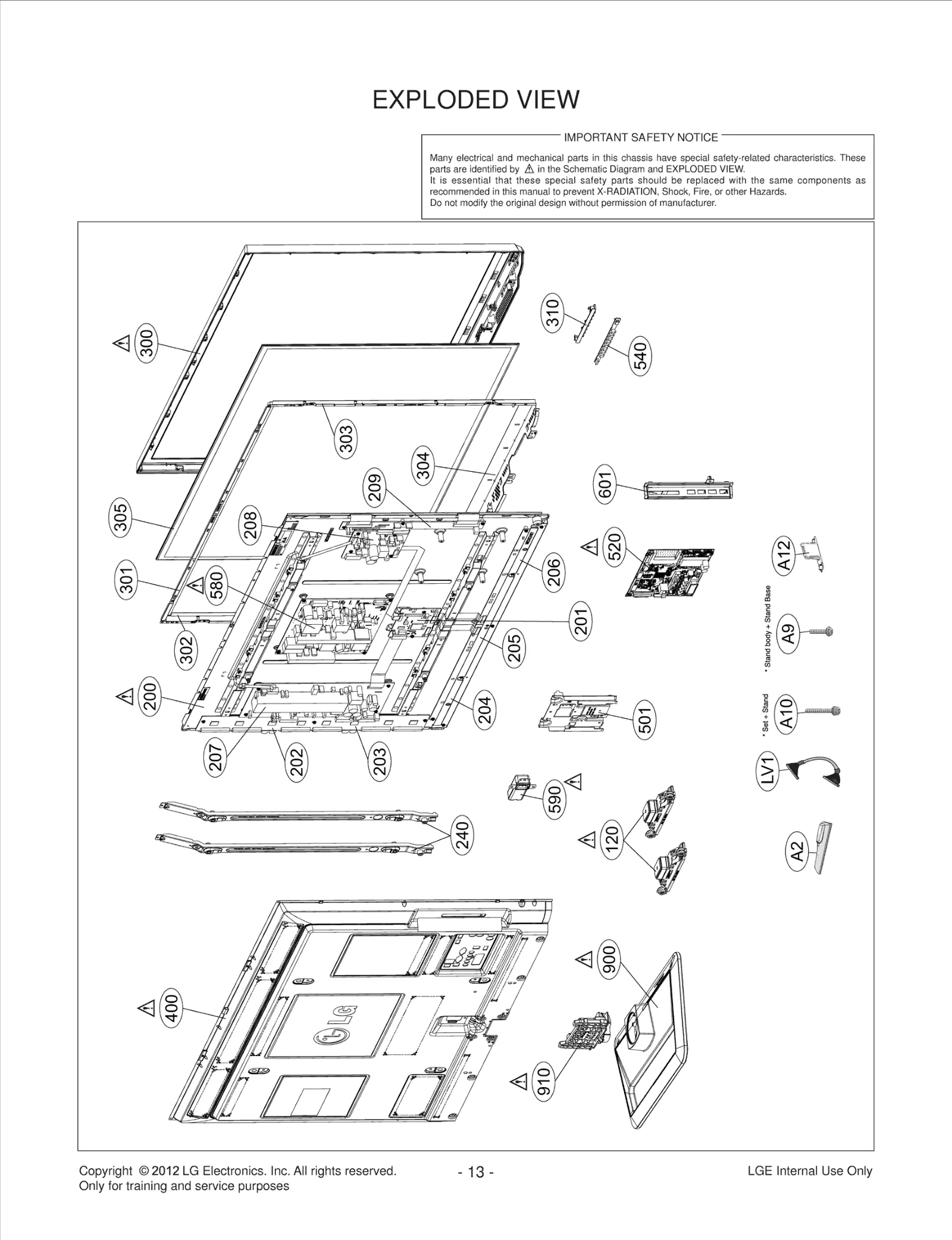

Diagram 0
Diagram 1
Common parts from model LG 50PA6500
200
PDP,Module-FullHD LGE EAJ61908604 Contact Us For Availability
201
Hand Insert PCB Assembly LGE EBR74185001 Contact Us For Availability
202
Hand Insert PCB Assembly LGE EBR73763902 Contact Us For Availability
203
Hand Insert PCB Assembly LGE EBR73764302 Contact Us For Availability
204
Hand Insert PCB Assembly LGE EBR73764701 Contact Us For Availability
206
Hand Insert PCB Assembly LGE EBR73753901 Contact Us For Availability
207
Hand Insert PCB Assembly LGE EBR73763201 Contact Us For Availability
208
Hand Insert PCB Assembly LGE EBR74306901 Contact Us For Availability
209
Hand Insert PCB Assembly LGE EBR74012001 Contact Us For Availability
240
Supporter LGE MJH62595901 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73647413 Contact Us For Availability
301
Supporter Assembly LGE AJJ73558402 Contact Us For Availability
302
Supporter Assembly LGE AJJ73558702 Contact Us For Availability
303
Supporter Assembly LGE AJJ73558602 Contact Us For Availability
304
Supporter Assembly LGE AJJ73558502 Contact Us For Availability
305
Filter LGE MDJ63404401 Contact Us For Availability
310
Button,Control LGE MBG64385301 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85711515 Contact Us For Availability
501
Supporter LGE MJH62433701 Contact Us For Availability
520
PCB Assembly LGE EBR74988101 Contact Us For Availability
540
PCB Assembly LGE EBR74904101 Contact Us For Availability
580
SMPS,AC/DC LGE EAY62609701 Contact Us For Availability
590
Filter,AC Line LGE EAM62450201 Contact Us For Availability
601
Bracket Assembly LGE ABA74128712 Contact Us For Availability
900
Base Assembly LGE AAN73929204 Contact Us For Availability
910
Supporter LGE MJH62575204 Contact Us For Availability
A1
Manual,Owners LGE MFL67468606 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73615337 Contact Us For Availability
A4
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A13
Filter,Ferrite Core LGE EAM62154801 Contact Us For Availability
C409
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C427
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C430
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C431
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C434
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C445
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C460
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C473
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C535
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C620
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C628
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C632
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C636
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C646
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C650
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C656
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C666
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C670
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C677
Capacitor,Ceramic,Ch LGE 0CK224DK46A Contact Us For Availability
CA1
Harness,Single LGE EAD61646702 Contact Us For Availability
CA3
Harness,Single LGE EAD56480806 Contact Us For Availability
CA10
Harness,Single LGE EAD60958303 Contact Us For Availability
IC1
IC,Ambient Light Sensor LGE EAN62389201 Contact Us For Availability
IC2
Receiver Module LGE EAV61932201 Contact Us For Availability
IC204
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC400
Display SOC,Digital TV LGE EAN62331501 Contact Us For Availability
IC500
IC,DDR3 SDRAM LGE EAN61829001 Contact Us For Availability
IC503
IC,EEPROM LGE EAN62389501 Contact Us For Availability
IC505
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC604
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC605
IC,DC,DC Converter LGE EAN62326801 Contact Us For Availability
IC606
IC,Audio Amplifier LGE EAN61834801 Contact Us For Availability
JK201
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK203
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK205
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK207
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK211
Jack,RCA LGE EAG61008001 Contact Us For Availability
L401
Filter,Bead LGE EAM32500903 Contact Us For Availability
L500
Filter,Bead LGE EAM58113401 Contact Us For Availability
L610
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
P1
Connector,Wafer LGE EAG58732904 Contact Us For Availability
P600
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P601
Connector,Wafer LGE EAG61091601 Contact Us For Availability
R2
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R7
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R8
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R12
Resistor,Chip LGE EBC32176501 Contact Us For Availability
R14
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R241
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R244
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R316
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R403
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R433
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R441
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R465
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R613
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R629
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R634
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R639
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R648
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R654
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R655
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R688
RESISTOR,METAL GLAZE LGE 0RJ0392D677 Contact Us For Availability
SDW
Ribbon LGE 4812TZZ004C Contact Us For Availability
SW2
Switch,Tact LGE EBF61734801 Contact Us For Availability
TU301
Tuner,Analog/Digital LGE EBL61060101 Contact Us For Availability
ZD9
Diode,Zener LGE EAH61752501 Contact Us For Availability
ZD9
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
