Model LG 50PA4500 – Common Parts & Diagrams
Diagram 0

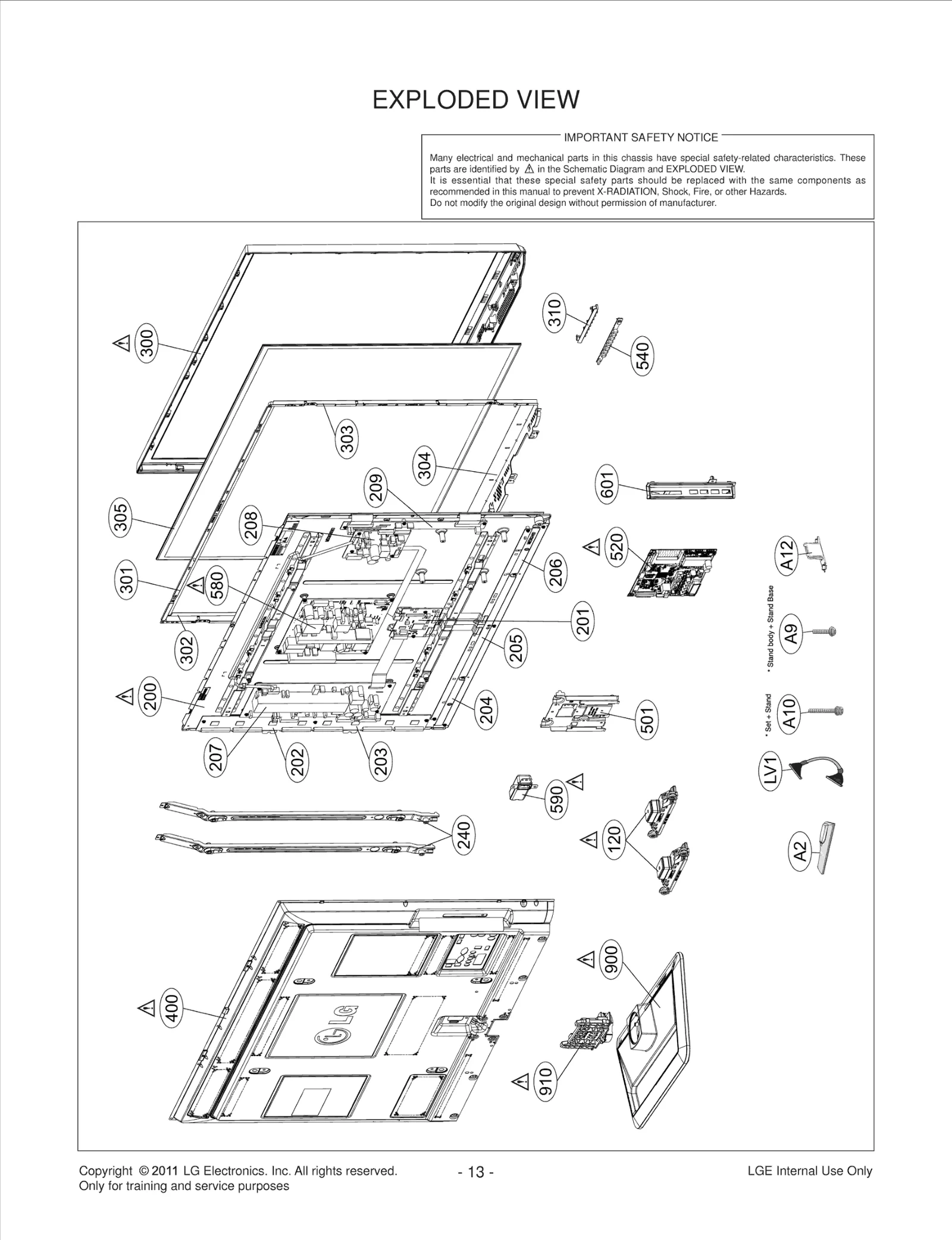

Diagram 1
Common parts from model LG 50PA4500
200
PDP,Module-XGA LGE EAJ61908504 Contact Us For Availability
202
Hand Insert PCB Assembly LGE EBR73748601 Contact Us For Availability
203
Hand Insert PCB Assembly LGE EBR73748801 Contact Us For Availability
205
Hand Insert PCB Assembly LGE EBR74141601 Contact Us For Availability
206
Hand Insert PCB Assembly LGE EBR74009601 Contact Us For Availability
207
Hand Insert PCB Assembly LGE EBR73747601 Contact Us For Availability
208
Hand Insert PCB Assembly LGE EBR73748101 Contact Us For Availability
240
Supporter LGE MJH62595901 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73647319 Contact Us For Availability
301
Supporter Assembly LGE AJJ73558402 Contact Us For Availability
302
Supporter Assembly LGE AJJ73558702 Contact Us For Availability
303
Supporter Assembly LGE AJJ73558602 Contact Us For Availability
304
Supporter Assembly LGE AJJ73558502 Contact Us For Availability
305
Filter LGE MDJ63404302 Contact Us For Availability
310
Button,Control LGE MBG64385301 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85711202 Contact Us For Availability
501
Supporter LGE MJH62433701 Contact Us For Availability
520
PCB Assembly LGE EBR74950501 Contact Us For Availability
540
PCB Assembly LGE EBR74904101 Contact Us For Availability
580
SMPS,AC/DC LGE EAY62609701 Contact Us For Availability
590
Filter,AC Line LGE EAM62450201 Contact Us For Availability
601
Bracket Assembly LGE ABA74128711 Contact Us For Availability
900
Base Assembly LGE AAN73929204 Contact Us For Availability
910
Supporter LGE MJH62575204 Contact Us For Availability
A1
Manual,Owners LGE MFL67468606 Contact Us For Availability
A4
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A14
Filter,Ferrite Core LGE EAM62154801 Contact Us For Availability
ADWD
Bag LGE 3880TVZ021H Contact Us For Availability
AR518
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C429
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C431
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C468
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C513
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C534
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C632
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C637
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C645
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C646
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C647
Capacitor,Ceramic,Chip LGE EAE58399101 Contact Us For Availability
C650
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C654
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C664
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C669
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
CA1
Harness,Single LGE EAD61646702 Contact Us For Availability
CA3
Harness,Single LGE EAD56480823 Contact Us For Availability
CA11
Harness,Single LGE EAD60958303 Contact Us For Availability
D400
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
IC1
IC,Ambient Light Sensor LGE EAN62389201 Contact Us For Availability
IC2
Receiver Module LGE EAV61932201 Contact Us For Availability
IC204
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC501
IC,DDR3 SDRAM LGE EAN61829001 Contact Us For Availability
IC505
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC603
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
JK201
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK203
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK205
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK207
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK211
Jack,RCA LGE EAG61008001 Contact Us For Availability
L605
Inductor,Wire Wound,Chip LGE EAP62026301 Contact Us For Availability
LV1
Cable,FFC LGE EAD61858724 Contact Us For Availability
P1
Connector,Wafer LGE EAG58732904 Contact Us For Availability
P600
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P601
Connector,Wafer LGE EAG61091601 Contact Us For Availability
R1
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R2
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R4
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R8
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R12
Resistor,Chip LGE EBC32176501 Contact Us For Availability
R14
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R207
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R227
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R254
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R267
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R268
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R297
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R423
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R468
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R536
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R574
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R612
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R619
Resistor,Chip LGE EBC42649901 Contact Us For Availability
R625
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R631
Resistor,Chip LGE 0RJ3903E472 Contact Us For Availability
R633
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R643
Resistor,Chip LGE EBC35273701 Contact Us For Availability
R653
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R654
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R656
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R662
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R685
RESISTOR,METAL GLAZE LGE 0RJ0392D677 Contact Us For Availability
TU301
Tuner,Analog/Digital LGE EBL61060101 Contact Us For Availability
ZD7
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
ZD7
Diode,Zener LGE EAH61752501 Contact Us For Availability
ZD502
Diode,Zener LGE 0DZKE00318A Contact Us For Availability
× ![]()
