Model Broan 509S-C Through Wall Fan - 180 CFM / 6.5 Sones – Common Parts & Diagrams

Common parts from model Broan 509S-C Through Wall Fan - 180 CFM / 6.5 Sones

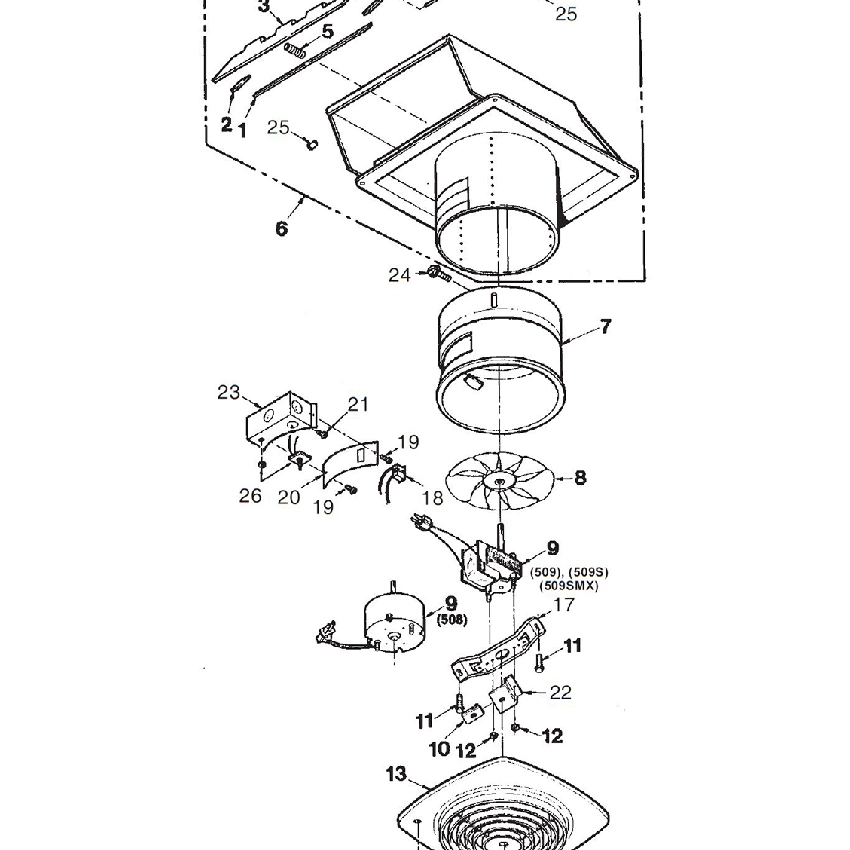

Exploded View

Print

• This Diagram
• All Diagrams

5

S99140145 Broan Range Spring Backorder BRN S99140145 View Details $25.51

View on Model

8

S99020165 Broan Range Fan Blade Backorder BRN S99020165 View Details $43.20

View on Model

9

S99080180 Broan Range Motor Backorder BRN S99080180 View Details $88.50

View on Model

13

S97011727 Broan Grille Assembly 11-1/2 in x 1 Backorder BRN S97011727 View Details $67.50

View on Model

15

S97011918 Broan Range Knob Backorder BRN S97011918 View Details $25.51

View on Model

15,16,19-21,23,26,& 27

Parts Bag BRN S97011729 Contact Us For Availability

View on Model

16

S99420586 Broan Range Stud Backorder BRN S99420586 View Details $43.20

View on Model

17

S98007820 Broan Range Motor Mounting Bracket Backorder BRN S98007820 View Details $40.82

View on Model

18

Fan Receptacle - Black - No Longer Available BRN S99270982 Contact Us For Availability

View on Model

19

S99170245 Broan Range Screw Backorder BRN S99170245 View Details $25.51

View on Model

20

SRV OUTLET BOX COVER 8/10N FA Backorder BRN S98006047 View Details $43.20

View on Model

21

Screw - #10-32 x 1/2" - No Longer Available - BRN S99150471 Contact Us For Availability

View on Model

22

Grille Mounting Bracket BRN S98007819 Contact Us For Availability

View on Model

23

NO LONGER AVAILABLE - Wiring Box BRN 98008491 Contact Us For Availability

View on Model

24

Screw - #8B x 1/4inch BRN S99150417 Contact Us For Availability

View on Model

25

Damper Bushing - No Longer Available - No Rep BRN S99100379 Contact Us For Availability

View on Model

26

S97005328 Broan Switch Backorder BRN S97005328 View Details $43.20

View on Model

27

S99360218 Broan Range Knob Backorder BRN S99360218 View Details $7.50

View on Model

NI

S99010042 Broan Range Cover In Stock BRN S99010042 View Details $43.20

View on Model

×
