Model Broan 509-C Through Wall Fan - 180 CFM / 6.5 Sones – Common Parts & Diagrams

Common parts from model Broan 509-C Through Wall Fan - 180 CFM / 6.5 Sones

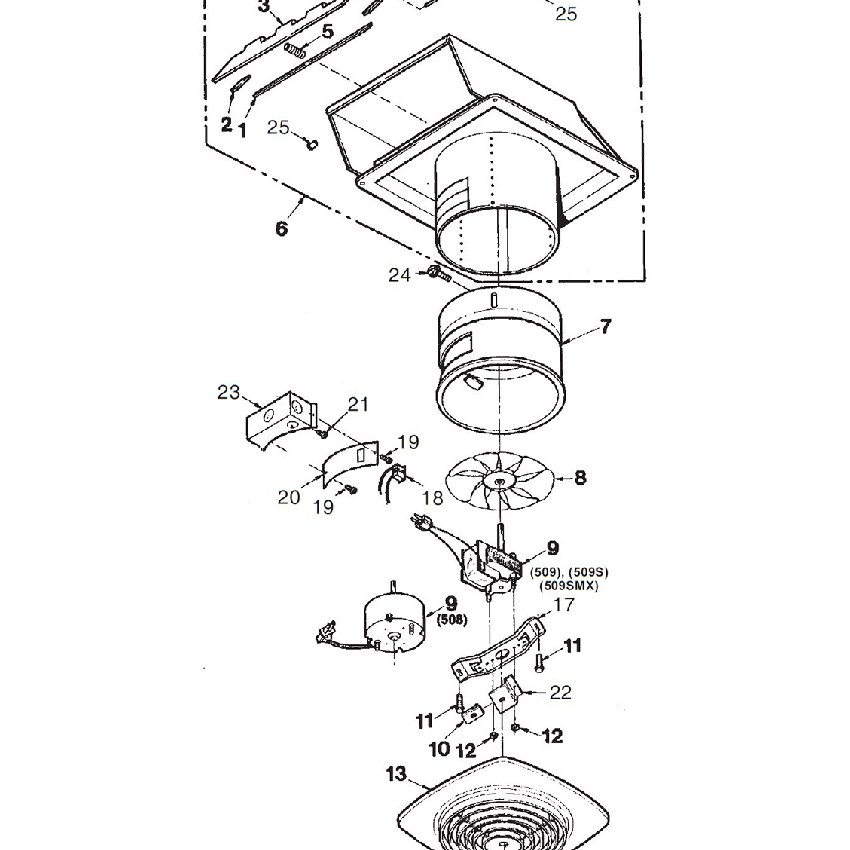

Exploded View

Print

• This Diagram
• All Diagrams

5

S99140145 Broan Range Spring Backorder BRN S99140145 View Details $25.51

View on Model

8

S99020165 Broan Range Fan Blade Backorder BRN S99020165 View Details $43.20

View on Model

9

S99080180 Broan Range Motor Backorder BRN S99080180 View Details $88.50

View on Model

12

Nut - #6-32 x 5/16" - No Longer Available - N BRN S99260428 Contact Us For Availability

View on Model

13

S97011919 Broan Range Knob Backorder BRN S97011919 View Details $56.70

View on Model

15

S97011918 Broan Range Knob Backorder BRN S97011918 View Details $25.51

View on Model

15,16,19-21,& 23

Parts Bag BRN S97011735 Contact Us For Availability

View on Model

16

S99420586 Broan Range Stud Backorder BRN S99420586 View Details $43.20

View on Model

17

S98007820 Broan Range Motor Mounting Bracket Backorder BRN S98007820 View Details $40.82

View on Model

18

Fan Receptacle - Black - No Longer Available BRN S99270982 Contact Us For Availability

View on Model

19

S99170245 Broan Range Screw Backorder BRN S99170245 View Details $25.51

View on Model

20

SRV OUTLET BOX COVER 8/10N FA Backorder BRN S98006047 View Details $43.20

View on Model

21

Screw - #10-32 x 1/2" - No Longer Available - BRN S99150471 Contact Us For Availability

View on Model

22

Grille Mounting Bracket BRN S98007819 Contact Us For Availability

View on Model

23

Wiring Box BRN S98006046 Contact Us For Availability

View on Model

24

Screw - #8B x 1/4inch BRN S99150417 Contact Us For Availability

View on Model

25

Damper Bushing - No Longer Available - No Rep BRN S99100379 Contact Us For Availability

View on Model

NI

S99010042 Broan Range Cover In Stock BRN S99010042 View Details $43.20
